Gas Pressure Range 0.4-0.6Mpa PCB Cleaning Machine Cleaning Process Cleaning Ensures Cleaning Results for Electronic Assembly Lines

Product Description:

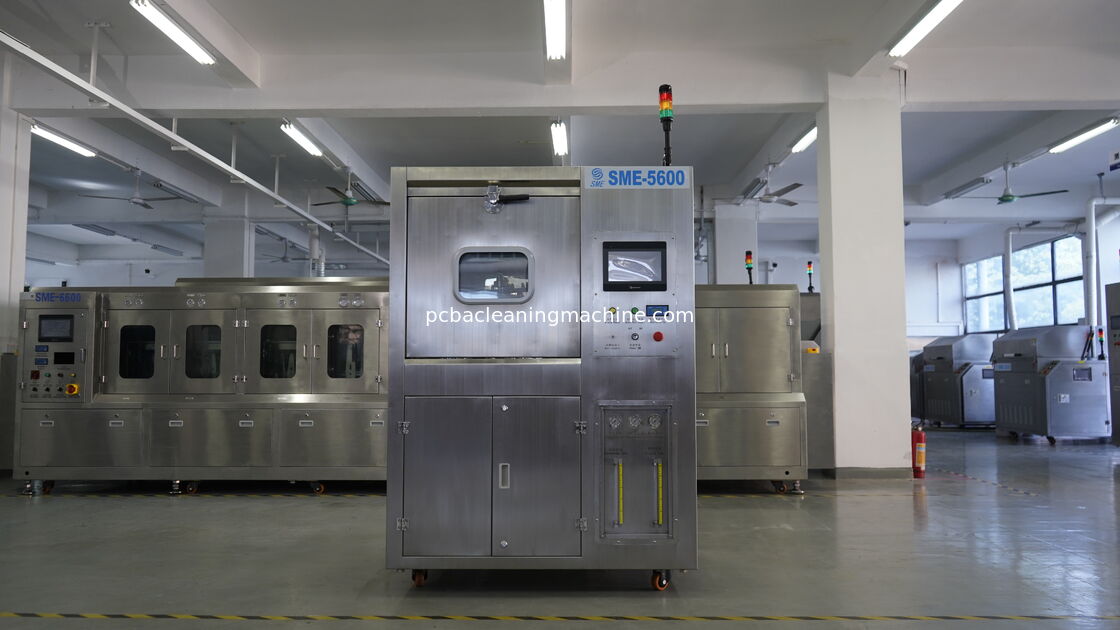

The PCB Cleaning Machine is an advanced automated cleaning equipment designed specifically to remove stains and impurities from printed circuit board assemblies (PCBA) using a specialized chemical cleaning agent. This machine offers a comprehensive cleaning process that includes cleaning, rinsing, air drying, and final drying to ensure that PCBs are thoroughly cleaned, dried, and ready for subsequent manufacturing steps or final use.

Constructed from high-quality stainless steel, the machine features the original color of stainless steel, which not only provides a sleek and professional appearance but also ensures durability and resistance to corrosion, making it suitable for long-term industrial use. The robust stainless steel construction guarantees that the machine can withstand the rigors of constant operation and exposure to chemical cleaning agents without compromising its structural integrity.

The PCB Cleaning Machine is capable of handling PCB thicknesses ranging from 0.5mm to 3.0mm, making it versatile enough to accommodate a wide variety of board specifications commonly used in electronics manufacturing. This adaptability allows manufacturers to use the same equipment for different PCB types and thicknesses, improving workflow efficiency and reducing the need for multiple machines.

One of the key features of this machine is its DI water supply system, which provides a consistent supply of deionized water at a flow rate between 30 to 65 liters per minute and a pressure range of 0.2 to 0.4 kgf/cm². This precise control of water flow and pressure ensures effective rinsing of the PCBs, thoroughly removing any residual chemical agents and contaminants after the cleaning phase. The use of DI water is critical in preventing mineral deposits or additional stains on the boards.

The drying process is equally important in this cleaning machine. It includes an air drying stage followed by a controlled drying phase where the PCB dry temperature can be adjusted from room temperature (RT) up to 99℃. This temperature range allows for gentle drying to avoid damage or warping of sensitive electronic components while ensuring the boards are completely dry before further handling or assembly.

Regarding its physical dimensions, the machine measures L1300 mm in length, W1200 mm in width, and H1850 mm in height. This compact footprint is designed to fit comfortably within production environments without occupying excessive floor space, while still providing sufficient capacity for effective PCB cleaning operations.

In summary, the PCB Cleaning Machine is a highly efficient and reliable automated cleaning solution that combines a multi-stage cleaning process with precise control over water supply and drying conditions. Its stainless steel construction, ability to accommodate various PCB thicknesses, and compact size make it an ideal choice for electronics manufacturers seeking to enhance their PCB cleaning capabilities. With features like DI water supply of 30~65L/Min at 0.2~0.4kgf/cm² pressure and adjustable drying temperatures from RT to 99℃, this machine ensures optimal cleaning performance and product quality.

Features:

• Product Name: PCB Cleaning Machine
• Operation is simple, ensuring ease of use for all operators.
• High cleanliness achieved through advanced cleaning technology.
• Large output capacity for efficient processing of PCBAs.
• Cleaning Process includes Cleaning, Rinsing, Air Drying, and Drying.
• Gas Pressure Range: 0.4-0.6Mpa for optimal cleaning performance.
• Cleaning Fluid volume: 60CC used for effective stain removal.
• Designed to remove stains on PCBAs using a chemical cleaning agent.
• Two layers of wash basket, each layer's basket size: L610*W560*H100mm.
• Automatic cleaning mode: clean, rinse, dry process can be completed in one compact machine.
• Diluent liquid tank capacity is 60L for extended operation without frequent refills.

Technical Parameters:

Applications:

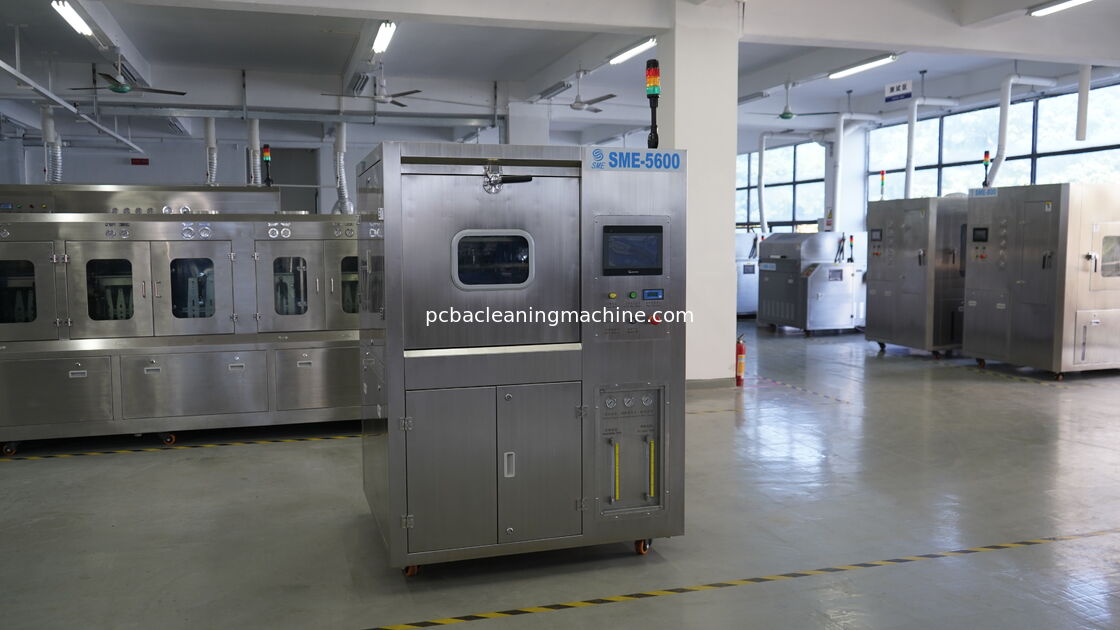

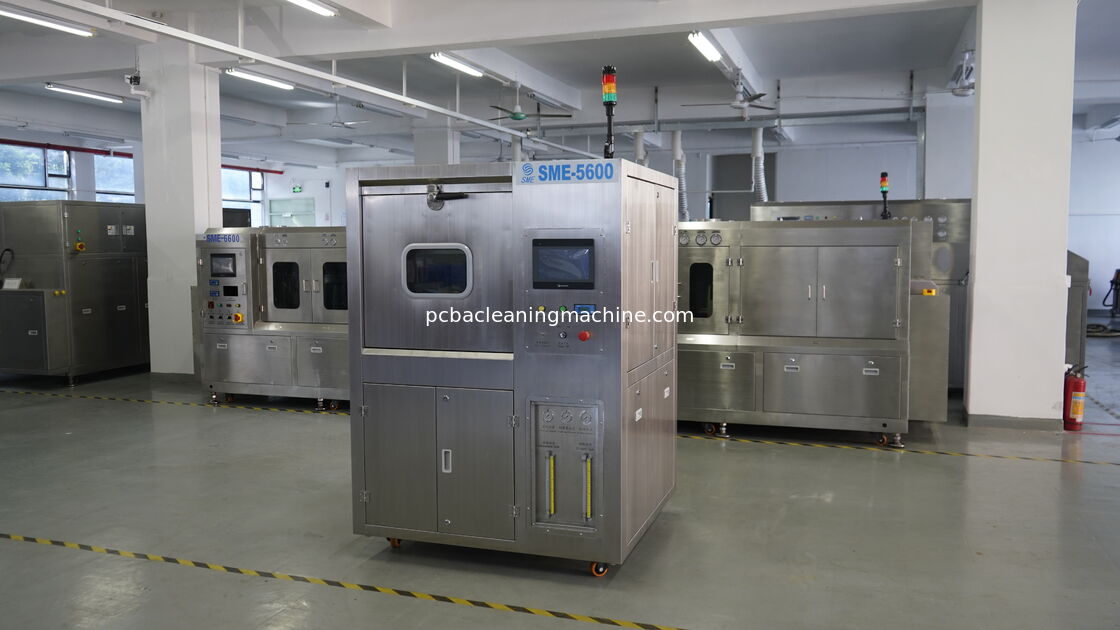

The Automatic machine equipment for cleaning PCBA, model SME-5600L, is a high-performance PCB cleaning machine designed to efficiently remove stains on PCBA using a chemical cleaning agent. Manufactured in China and certified with CE, this machine guarantees reliability and safety in operation. It is constructed from high-quality stainless steel, maintaining its original color, and is capable of handling PCB sizes up to 330x250mm, making it suitable for a wide range of printed circuit board assemblies.

This PCB cleaning machine is ideal for use in electronics manufacturing plants where maintaining cleanliness and quality of PCBA is critical. Its ability to perform rinse times ranging from 1 to 99 and adjustable wash times between 5 to 20 minutes offers flexibility to meet different cleaning requirements. The vent size of Φ76xH50(mm) ensures proper ventilation during the cleaning process, promoting effective chemical usage and safe operation.

Due to its versatile application, the SME-5600L is perfect for quality control departments, repair centers, and laboratories that require precise and thorough cleaning of PCBA. The machine operates within a gas pressure range of 0.4-0.6Mpa, providing consistent and controlled cleaning performance. Its non-inline type design allows for easy integration into existing manufacturing workflows without the need for extensive modifications.

With a supply ability of 10 sets per month and a delivery time of 4 weeks, businesses can efficiently plan their production schedules. The machine is packaged securely in a wooden box to ensure safe transport. Priced at USD 38,000.00 with a minimum order quantity of 1 piece, it offers excellent value for companies seeking advanced cleaning solutions. Payment terms are flexible with T/T options available.

Overall, the SME-5600L PCB cleaning machine is an indispensable tool for electronics manufacturers aiming to improve product quality, reduce defects, and maintain high standards in PCBA cleanliness. Its precise control over rinse and wash cycles, combined with robust construction and certified safety, makes it a reliable choice in various industrial cleaning scenarios.

Customization:

Introducing the Automatic machine equipment for cleaning PCBA, model SME-5600L, a high-quality PCB Cleaning Machine originating from China and certified by CE. This advanced machine is designed to remove stains on PCBA using a chemical cleaning agent, ensuring a comprehensive cleaning system for all kinds of SMT and THT PCBA residual rosin, water-soluble flux, no-clean flux, solder paste, and other organic and inorganic pollutants for thorough and effective cleaning.

The SME-5600L features a PCB size capacity of 330x250mm as max, with a gas pressure range of 0.4-0.6 Mpa and DI water supply of 30~65L/Min at 0.2~0.4kgf/cm2, providing optimal cleaning performance. It has a dry time of 10~30 minutes, ensuring efficient processing without compromising quality.

This model SME-PC560 is not an in-line type, allowing flexible placement and use in various production environments. The machine is packaged securely in a wooden box for safe delivery, with a delivery time of 4 weeks and a minimum order quantity of 1PCS. Priced at USD 38,000.00, it offers excellent value with a supply ability of 10 sets per month.

Payment terms are T/T, making transactions straightforward and reliable. Choose the SME-5600L for your PCB cleaning needs and experience a professional solution that enhances the cleanliness and quality of your PCBA assembly.

Support and Services:

Our PCB Cleaning Machine is designed to provide efficient and thorough cleaning of printed circuit boards, ensuring optimal performance and reliability of your electronic assemblies.

For technical support, we offer comprehensive assistance including installation guidance, operation training, maintenance tips, and troubleshooting help to maximize the lifespan and effectiveness of your machine.

Our service team is equipped to provide routine maintenance services, replacement parts, and upgrades to keep your cleaning machine operating at peak efficiency.

We recommend regular cleaning cycles and adherence to the user manual to prevent build-up and ensure consistent cleaning results.

In case of any operational issues, please consult the troubleshooting section of the user manual or reach out to our support team for expert guidance.

We are committed to ensuring your complete satisfaction and the reliable performance of your PCB Cleaning Machine through ongoing technical support and service.

Packing and Shipping:

Product Packaging:

The PCB Cleaning Machine is securely packaged using high-quality, durable materials to ensure safe transportation. The machine is wrapped in protective foam and placed inside a sturdy cardboard box to prevent any damage during shipping. Additionally, all accessories and components are individually packed and labeled for easy identification. The packaging is designed to be environmentally friendly and recyclable.

Shipping:

We offer reliable shipping options to deliver the PCB Cleaning Machine promptly and safely to your location. The product is shipped via trusted carriers with tracking information provided for your convenience. Depending on your location, shipping methods may include standard ground, expedited, or express delivery. We ensure that all shipments comply with international shipping regulations and customs requirements to facilitate smooth delivery.
