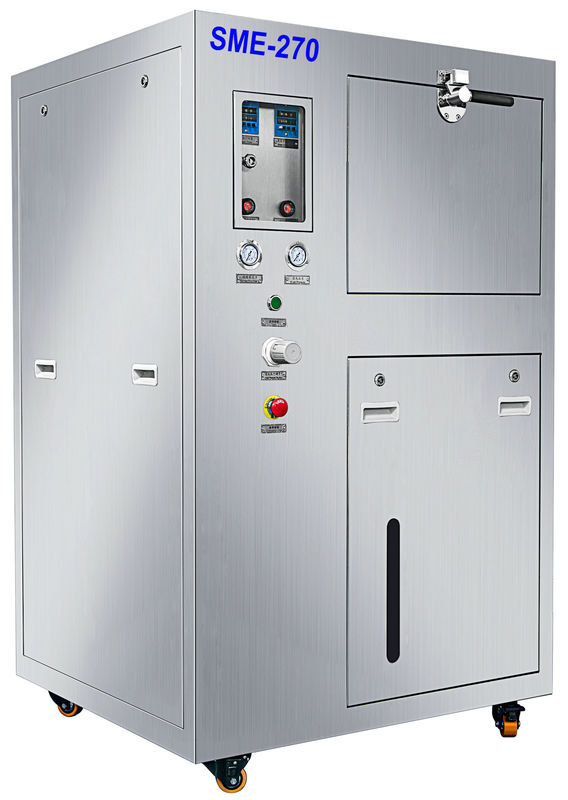

610mm Circuit Board Cleaning Machine solder paste mis-printed Pcb Cleaner

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-270

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1700*1450*2100 mm(L*W*H)

Delivery Time: 25~30 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

610mm circuit board cleaning machine

,

SME 270 circuit board cleaning machine

,

SME 270 ultrasonic pcb cleaner

Material:
SUS304 Stainless Steel
Stencil Size:
L610*W610*T100mm As Max
Liquid Tank Capacity:
60L
Wash Time:
3~5min
Blow Dry Time:
3~5min
Compressed-air Supply:
0.5~0.7Mpa,600~800L/min
Wash Type:
2 Rods 360° Rotation Spray Liquid Wash
Filter:
1mm/100um/1um
Machine Size:
L400*W1200*H1600
Machine Weight:
400kg
Material:
SUS304 Stainless Steel
Stencil Size:
L610*W610*T100mm As Max
Liquid Tank Capacity:
60L
Wash Time:
3~5min
Blow Dry Time:
3~5min
Compressed-air Supply:
0.5~0.7Mpa,600~800L/min
Wash Type:
2 Rods 360° Rotation Spray Liquid Wash
Filter:
1mm/100um/1um
Machine Size:
L400*W1200*H1600
Machine Weight:
400kg
Product Description

Product Description

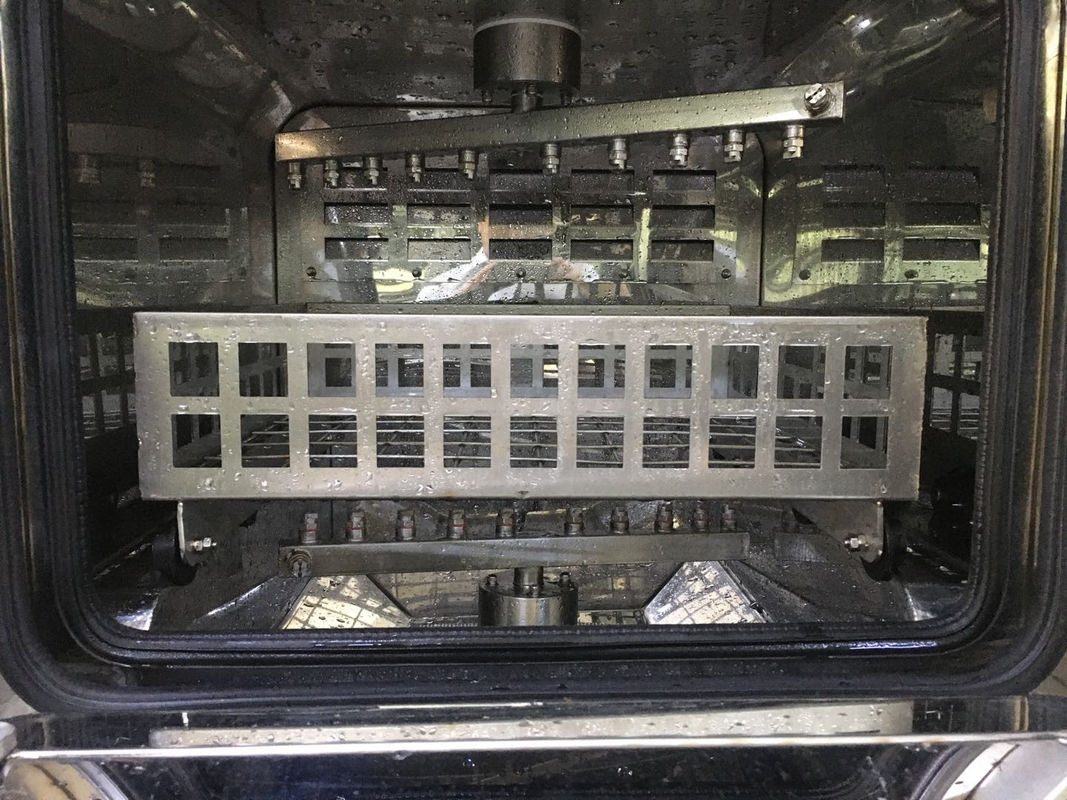

For big size mis-print PCB ,we suggest to use SUS304 stainless steel 610mm*610mm size pneumatic solder paste mis-printed PCB cleaner. SME-270 is specially designed to clean mis-printed PCB. SME-210 use a push and pull cleaning basket to hold PCB and wash PCB from upper and lower side. Famous pneumatic parts, strictly produce process, patent rotation spray rods guarantee you a high quality pcb machine.It make your cleaning process safe, easy, cost down and efficient.
In order to avoid  PCB cooper pad oxidized when using hot air dry, we suggest to use alcohol to clean PCB because alcohol is very easy to turn to vapor and PCB will dry naturally.

Machine Features:

1. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.

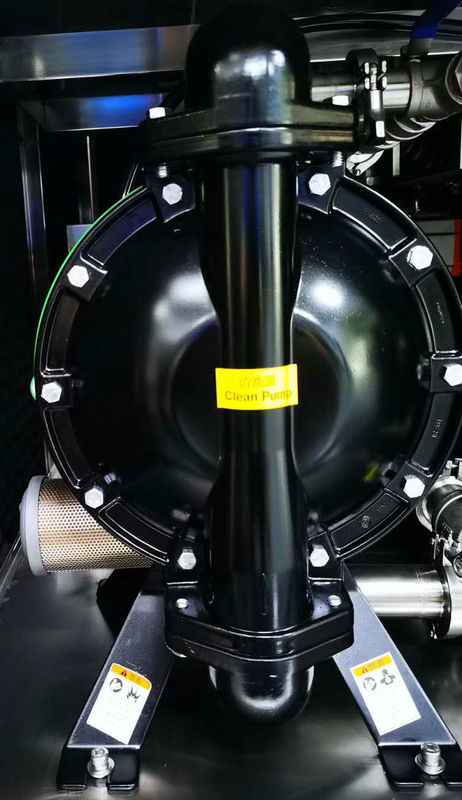

2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.
4. Patent 360° rotation spray rods on both sides, ensure good cleaning quality.
5. Solvent recycle use, low consumption.
6. Inner-lock safety door and safety valve, once open, machine will be stopped immediately.
7. 3-level precise liquid filtering system. Liquid used repeatedly.
8. Super well-known Pneumatic parts from all over the word manufactures.
9. Modular design, easy maintenance.

Machine Spec:

Item SME-270 spec
Max stencil size L610 x W610 x H100(mm)
Liquid tank 60L
Clean time 3~10min
Dry time 3~5min
Compressed air pressure 0.5~0.7Mpa
Air flow rate 400~600L/min
Clean method 360°rotat spray clean + compressed air blow dry
Filter system 1mm/50um/1um, 3 level
Machine size L1400 x W1200 x H1600(mm)
Machine weight 400KG

Other accessories , please discuss with us in details.

Customer Question & Answer

Ask something for more details
Q1: Can SME-270 clean mis-prrinted bare PCB or one side component mounted PCB?
A1: Both bare PCB and one side component mounted PCB can be washed in this machine.

Q2: Does SME-270 need PCB fixture?
A2: Yes, we suggest you make your own PCB fixture to hold PCB to avoid PCB movement and scrath because solvent spray pressure.

Q3: Is SME-270 safe by using alcohol?
A3: Yes, it is, it driven by compressed-air, not using electric power, no need to worry about it.

Q4: Can this machine clean red glue mis-printed PCB?
A4: For thickness 0.1~0.3mm red glue PCB, SME-270 can clean it very well; but for over 0.5mm thickness red glue pcb, cleaning result is not so good, especially the little holes in PCB. We recommend to use our SME-800 electric  cleaning machine, it is more powerful to do that.

Mis-printed PCB cleaning comparison beofore and after cleaning:
