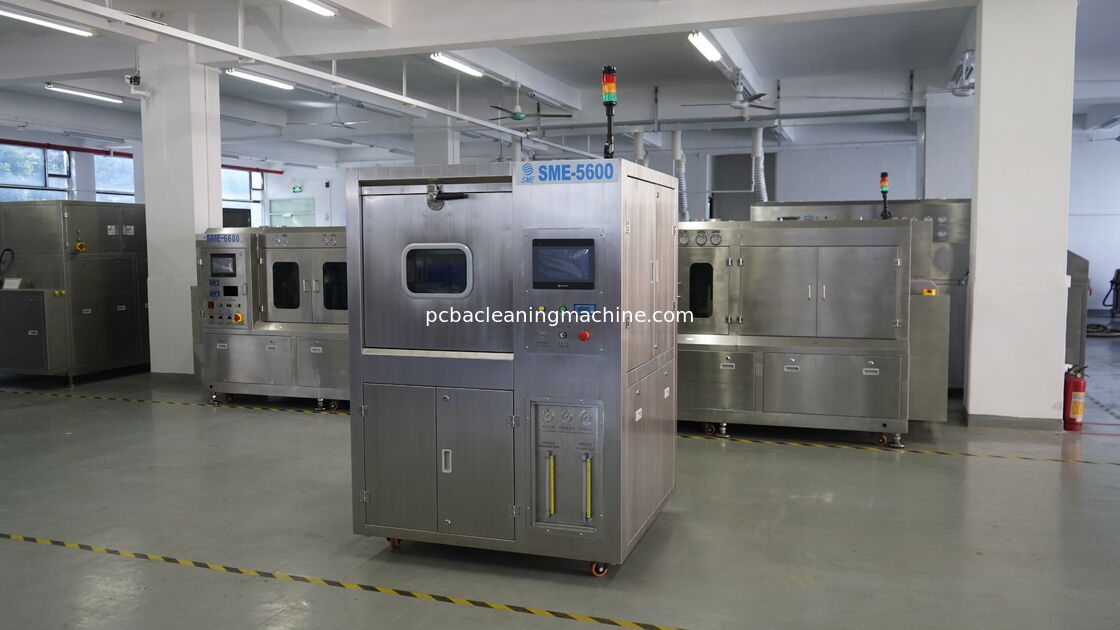

Pcb Thickness 0.5 3.0mm Two layers of wash basket each layers basket size L610 W560 H100mm Remove The Stains On PBCA Using A Chemical Cleaning Agent for pcb processing

Product Description:

The SME-PC560 is a state-of-the-art automated cleaning equipment designed specifically for the efficient and precise cleaning of printed circuit boards (PCBs). This advanced PCB cleaning machine stands out in the industry for its robust performance, user-friendly operation, and adaptability to various production requirements. Engineered to handle PCBs with thicknesses ranging from 0.5mm to 3.0mm, the SME-PC560 ensures thorough cleaning without compromising the delicate components on the board.

One of the key features of the SME-PC560 is its capability to accommodate stencil sizes up to L610*W610*T100mm, allowing it to clean a wide variety of PCB designs and sizes. This flexibility makes the machine suitable for use in diverse manufacturing environments, from small-scale production lines to large industrial facilities. The generous stencil dimension capacity ensures that even complex and large PCBs can be processed efficiently.

The cleaning process on the SME-PC560 is highly optimized to save time while maintaining superior results. The wash time ranges from 5 to 20 minutes, depending on the level of contamination and the cleaning requirements. This adjustable wash time allows operators to customize the cleaning cycle for different types of residues and production schedules, ensuring maximum throughput without sacrificing quality. Following the wash cycle, the machine executes a rapid drying phase with a dry time of only 10 to 30 minutes. This quick drying capability minimizes downtime and accelerates the overall production process.

Another notable attribute of the SME-PC560 is its diluent liquid tank capacity of 60 liters. This large capacity supports extended cleaning operations without the need for frequent refills, thereby enhancing operational efficiency and reducing maintenance interruptions. The diluent liquid used in the cleaning process is carefully selected to dissolve flux residues, solder paste, and other contaminants effectively while being environmentally friendly and safe for operators.

The SME-PC560 operates within a gas pressure range of 0.4 to 0.6 Mpa, which ensures optimal pressure for cleaning without damaging sensitive PCB components. This pressure range is finely tuned to provide powerful cleaning action while maintaining the integrity of the PCB and its components. The automated control system precisely regulates the gas pressure and cleaning cycles, guaranteeing consistent and repeatable results every time the machine is used.

Designed with automation in mind, the SME-PC560 reduces the need for manual labor and minimizes human error. The machine’s user interface is intuitive and easy to navigate, allowing operators to set and monitor cleaning parameters quickly. Its automated features include programmable cleaning cycles, automatic liquid replenishment alerts, and real-time monitoring of operational status, which together contribute to a streamlined production workflow.

In summary, the SME-PC560 automated cleaning equipment is an essential asset for any electronics manufacturing facility seeking reliable, efficient, and high-quality PCB cleaning solutions. Its ability to handle PCB thicknesses from 0.5 to 3.0mm, support large stencil sizes up to L610*W610*T100mm, and operate within a gas pressure range of 0.4-0.6 Mpa makes it versatile and adaptable to various production needs. Coupled with a wash time of 5 to 20 minutes, a dry time of 10 to 30 minutes, and a substantial diluent liquid tank capacity of 60 liters, the SME-PC560 offers unparalleled performance and operational efficiency. This machine not only improves cleaning quality but also enhances overall manufacturing productivity, making it a valuable investment for the future of PCB cleaning technology.

Features:

• Product Name: PCB Cleaning Machine
• Color: Original Color Of Stainless Steel
• Cleaning Fluid Capacity: 60CC
• In Line Type: No
• Cleaning Process: Cleaning, Rinsing, Air Drying, Drying
• PCB Thickness Compatibility: 0.5~3.0mm
• Wash Basket Size: L610* W560* H100 (mm) x2 layers
• Suitable for small amount, multi-spec PCBA wash
• Dry Time: 10~30min

Technical Parameters:

Applications:

The Automatic machine equipment for cleaning PCBA, model SME-5600L, is an advanced and reliable solution designed for efficient and thorough cleaning of printed circuit board assemblies (PCBA). Originating from China and certified with CE, this automated cleaning equipment is ideal for removing stains on PCBA using a chemical cleaning agent, ensuring the highest quality and performance standards in electronic manufacturing processes.

This PCB cleaning machine is widely applicable in various industrial and manufacturing occasions where precision and cleanliness are paramount. It is particularly suited for electronics manufacturing plants, quality control laboratories, repair and refurbishment centers, and research and development facilities. The SME-5600L’s ability to handle PCB thickness ranging from 0.5 to 3.0mm and a maximum PCB size of 330x250mm makes it versatile for a broad range of PCBAs used in consumer electronics, automotive electronics, medical devices, and telecommunications.

One of the standout features of this equipment is its automatic cleaning mode, which integrates the clean, rinse, and dry processes into one compact machine. This seamless operation not only saves time but also reduces the need for multiple manual interventions, enhancing productivity and consistency in cleaning results. The machine is equipped with two layers of wash baskets, each measuring L610*W560*H100mm, allowing simultaneous processing of multiple PCBs. The wash tank capacity of 18 liters ensures sufficient chemical cleaning agent volume for effective stain removal.

The SME-5600L is designed for medium to large-scale production environments, supported by a supply ability of 10 sets per month and a delivery time of approximately 4 weeks after order confirmation. Its packaging in a sturdy wooden box ensures safe transportation, and the payment terms via T/T provide flexibility for procurement. With a price of USD 38,000.00 per unit and a minimum order quantity of just 1 piece, this automated cleaning equipment offers an excellent balance of cost-efficiency and high performance.

In summary, the Automatic machine equipment for cleaning PCBA SME-5600L is an indispensable tool for manufacturers seeking an efficient, reliable, and automated solution to maintain the cleanliness and integrity of their PCB assemblies. Its compact design, automated cleaning cycle, and robust construction make it suitable for a variety of production and maintenance scenarios, ensuring enhanced product quality and operational efficiency.

Customization:

Introducing the Automatic machine equipment for cleaning PCBA, model SME-5600L, a high-quality PCB cleaning machine originating from China with CE certification. This advanced cleaning solution is designed to efficiently remove stains on PCBA using a chemical cleaning agent, ensuring exceptional cleanliness and high output.

The machine features two layers of wash basket, each layer sized L610*W560*H100mm, providing ample space for effective cleaning. The overall machine dimensions are L1300*W1200*H1850(mm), making it compact yet powerful for various production environments.

Equipped with a comprehensive cleaning process including cleaning, rinsing, air drying, and drying, the SME-5600L guarantees thorough treatment of your PCBA. The DI water rinse time can be set flexibly to meet specific ion contamination requirements, ensuring optimal rinsing performance.

With a gas pressure range of 0.4-0.6Mpa and a supply ability of 10 sets per month, this model SME-PC560 offers reliable and consistent operation. The key selling points include simple operation, high cleanliness, and large output, making it an excellent choice for your PCB cleaning needs.

We offer a minimum order quantity of 1PCS at a competitive price of USD 38,000.00. The product is securely packaged in a wooden box to ensure safe delivery within 4 weeks. Payment terms are T/T, providing you with flexible and convenient transaction options.

Support and Services:

Our PCB Cleaning Machine is designed to provide efficient and thorough cleaning for printed circuit boards, ensuring optimal performance and reliability of your electronic assemblies. To maximize the lifespan and effectiveness of your machine, please follow the recommended maintenance and operational guidelines.

For technical support, ensure that you have the machine's model number and purchase details ready when seeking assistance. Our support team is equipped to help with troubleshooting, repairs, and spare parts replacement to minimize downtime.

Regular maintenance includes cleaning the machine’s filters, checking the spray nozzles for blockages, and verifying that all electrical connections are secure. Use only approved cleaning agents compatible with the machine to avoid damage.

In case of any performance issues, consult the user manual for diagnostic steps. If the problem persists, contact our technical support to arrange for service or to receive detailed guidance on corrective actions.

We also offer training services to help your staff operate the PCB Cleaning Machine safely and effectively, ensuring compliance with operational standards and maximizing cleaning results.

Packing and Shipping:

Product Packaging: The PCB Cleaning Machine is securely packaged using high-quality materials to ensure safe delivery. Each unit is wrapped in anti-static foam and placed inside a sturdy, custom-designed cardboard box. The packaging includes protective corner guards and internal compartments to prevent any movement during transit. Additionally, a user manual and necessary accessories are neatly packed within the box for easy access.

Shipping: We offer reliable shipping options to ensure your PCB Cleaning Machine arrives promptly and in perfect condition. All orders are processed within 2-3 business days. Shipping methods include standard ground shipping and expedited services for urgent needs. Tracking information will be provided once the order is dispatched. International shipping is available with appropriate customs documentation to facilitate smooth delivery.
