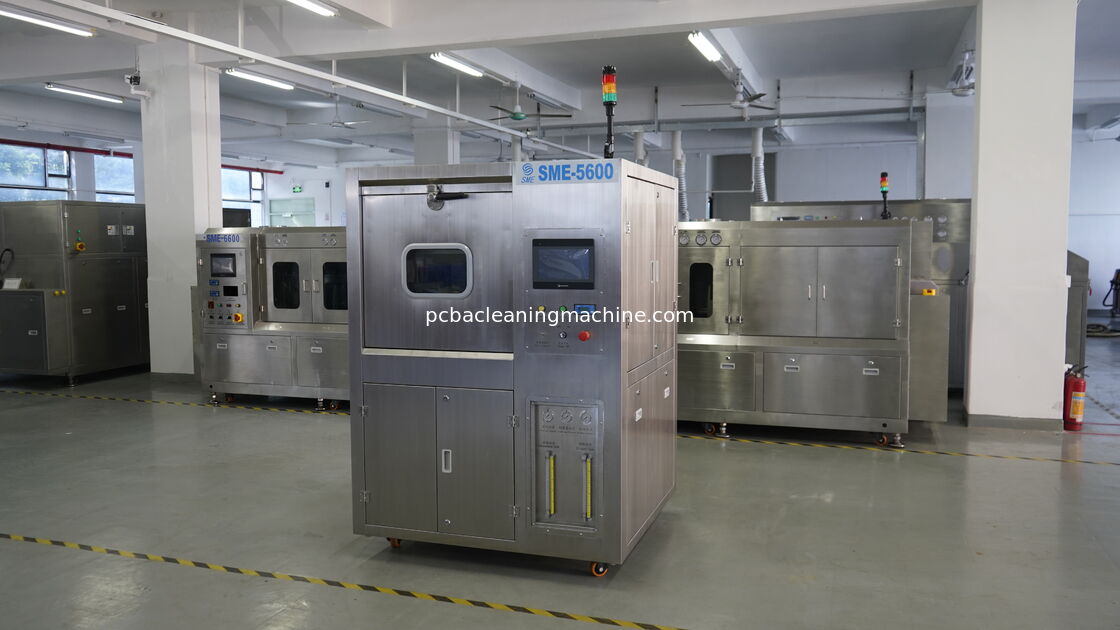

Remove The Stains On PBCA Using A Chemical Cleaning Agent PCB Cleaning Machine SME -5600T PCBsize 330x250mm As Max Cleaning Solution

Product Description:

The SME-5600T PCB Cleaning Machine is a specialized equipment designed to effectively remove stains from printed circuit board assemblies (PCBA) using a chemical cleaning agent. This machine is tailored for high precision cleaning needs and is particularly suitable for a wide range of critical applications including car electronics PCBA, military PCBA, aerospace PCBA, telecom PCBA, medical device PCBA, and digital meters PCBA. Its advanced cleaning process ensures thorough cleaning, rinsing, air drying, and drying, making it an essential tool for industries that demand impeccable PCB cleanliness and reliability.

One of the key specifications of the SME-5600T is its capacity to handle PCBs with a maximum size of 330x250mm and a thickness ranging from 0.5 to 3.0mm. This makes it versatile enough to accommodate various PCB dimensions commonly used across different sectors. Despite being a highly capable cleaning machine, it is not an in-line type system, which means it operates as a standalone unit, allowing for flexible integration into existing production workflows.

The cleaning process employed by the SME-5600T is a multi-stage operation that includes cleaning, rinsing, air drying, and drying. This comprehensive sequence ensures that all contaminants, flux residues, and stains are thoroughly removed from the PCBA surfaces, preparing them for subsequent manufacturing steps or final assembly. The use of a chemical cleaning agent is optimized to effectively dissolve and wash away stubborn stains without damaging delicate components or the PCB itself.

One of the standout machine features of the SME-5600T is its lower operating costs, achieved through the incorporation of a built-in filter system. This filter allows the chemical dilution to be repeatedly used, significantly reducing the amount of cleaning agent required and thereby lowering the overall consumption of consumables. Additionally, the machine uses a compressed air blow method at the end of the cleaning process. This innovative approach blows residual detergent off from the pipeline and pump, preventing waste and further conserving the cleaning solution. As a result, the SME-5600T can save up to 50% of dilution, which translates into substantial cost savings for manufacturers.

Furthermore, the SME-5600T is designed with an efficient DI water supply system that delivers between 30 to 65 liters per minute at a pressure of 0.2 to 0.4 kgf/cm². This ensures that rinsing is thorough and consistent, effectively removing any remaining chemical residues from the PCBA. The careful control of water flow and pressure contributes to the high-quality cleaning performance and helps maintain the machine’s reliability and longevity.

The SME-5600T is particularly valued in industries where PCB cleanliness is critical for product performance and safety. For example, in aerospace and military applications, where reliability under extreme conditions is mandatory, the SME-5600T ensures that every PCBA meets stringent cleanliness standards. Similarly, in the medical device and telecom sectors, where contamination can lead to device failure or interference, this machine provides the necessary level of cleaning precision.

In summary, the SME-5600T PCB Cleaning Machine offers a robust, efficient, and cost-effective solution for removing stains on PCBA using a chemical cleaning agent. Its ability to handle various PCB sizes and thicknesses, combined with a thorough cleaning process and innovative cost-saving features, makes it an invaluable asset for manufacturers in the car electronics, military, aerospace, telecom, medical device, and digital meter industries. The combination of advanced technology and practical design ensures that the SME-5600T consistently delivers high-quality cleaning results while minimizing operational expenses.

Features:

• Product Name: PCB Cleaning Machine
• Cleaning Process: Cleaning, Rinsing, Air Drying, Drying
• Color: Original Color Of Stainless Steel
• In Line Type: No
• Stencil Size: L610*W610*T100mm As Max
• Machine Type: Automated Cleaning Equipment
• Vent size Φ76xH50(mm)
• Concentrate liquid tank capacity 30L
• Equip with front window and LED light, the whole process visible

Technical Parameters:

Applications:

The Automatic machine equipment for cleaning PCBA, model SME-5600L, is an advanced PCB cleaning machine designed to meet the rigorous demands of modern electronics manufacturing. Originating from China and certified with CE standards, this machine offers exceptional performance in cleaning printed circuit board assemblies (PCBA) with high efficiency and reliability. It is ideal for industries that require impeccable cleanliness for their electronic components, ensuring optimal product quality and longevity.

This PCB cleaning machine is perfect for production lines where cleanliness and throughput are critical. With a maximum PCB size capacity of 330x250mm, it accommodates a wide range of circuit boards used in consumer electronics, automotive electronics, medical devices, and telecommunications. The machine’s wash tank capacity of 18L, combined with a cleaning fluid usage of 60CC, ensures thorough and consistent cleaning cycles.

One of the key operational advantages of the SME-5600L is its simple operation, making it accessible for factory operators without extensive training. The machine does not require an in-line setup, allowing flexible placement within the production facility. It operates efficiently with a power supply and air supply, using DI water supply at 30~65L/Min and 0.2~0.4kgf/cm2 pressure, which guarantees effective removal of flux residues and contaminants from the PCB surface.

Due to its large output capacity and high cleanliness standards, this cleaning machine is suitable for medium to large-scale manufacturing environments producing a high volume of PCBs. The stainless steel construction in its original color ensures durability and corrosion resistance, contributing to long-term operational stability. Customers can order with a minimum quantity of 1 PCS, with packaging details secured in a wooden box to ensure safe delivery within 4 weeks.

Supplied with a payment term of T/T and a monthly supply ability of 10 sets, the SME-5600L represents a cost-effective investment at a price of USD 38,000.00. Its compact yet robust design, combined with CE certification, makes it an excellent choice for companies aiming to enhance their PCB cleaning processes, improve production efficiency, and maintain high-quality standards in their electronic assemblies.

Customization:

Brand Name: Automatic machine equipment for cleaning PCBA

Model Number: SME-5600L

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1PCS

Price: USD 38,000.00

Packaging Details: Wooden Box

Delivery Time: 4 weeks

Payment Terms: T/T

Supply Ability: 10 sets can be delivered every month

Color: Original Color Of Stainless Steel

Key Selling Points: The operation is simple, the cleanliness is high, and the output is large.

Specification: PCB size up to 330x250mm, Cleaning Fluid capacity 60CC, Machine type: Automated Cleaning Equipment.

The SME-5600T main application includes Car electronics PCBA, Military PCBA, Aerospace PCBA, Telecom PCBA, Medical device PCBA, and Digital meters PCBA.

Machine Features include adjustable rinse times from 1 to 99, wash basket size L610*W560*H100 (mm) with 2 layers for efficient cleaning.

Support and Services:

Our PCB Cleaning Machine is designed to provide efficient and thorough cleaning of printed circuit boards, ensuring optimal performance and reliability. For technical support, please refer to the user manual included with your machine, which offers detailed instructions on installation, operation, and maintenance.

If you encounter any issues during setup or use, first verify that all connections are secure and that the machine is operated according to the recommended guidelines. Routine maintenance such as cleaning filters, checking fluid levels, and inspecting nozzles will help maintain peak performance.

We offer comprehensive after-sales services including troubleshooting assistance, replacement parts, and software updates to keep your PCB Cleaning Machine running smoothly. Our technical team is equipped to provide expert guidance on machine calibration, cleaning process optimization, and problem diagnosis.

For extended support, training sessions are available to help your staff maximize the capabilities of the PCB Cleaning Machine, improving cleaning efficiency and reducing downtime. Customized service plans can also be arranged to suit your specific operational needs.

Ensure to keep your machine’s serial number and purchase details handy when seeking support, as this information will help us provide you with faster and more accurate assistance. Regular updates and tips are also available through our online resources to enhance your experience with the PCB Cleaning Machine.

Packing and Shipping:

Product Packaging: The PCB Cleaning Machine is carefully packed using high-quality materials to ensure safe delivery. Each unit is secured with protective foam inserts and wrapped in anti-static bubble wrap to prevent any damage during transit. The machine is placed inside a sturdy cardboard box labeled with handling instructions and product details.

Shipping: We offer reliable shipping options to deliver the PCB Cleaning Machine promptly and securely. The product can be shipped via standard or expedited services, depending on customer preference. Tracking information will be provided once the order is dispatched. We also ensure that all shipments comply with international shipping regulations and are insured for full value to guarantee customer satisfaction.
