350mm width PCB in line dusts cleaning machine for SMT line before solder paste printing

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE

Model Number: S-350CV

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 760*900*1600 mm(L*W*H)

Delivery Time: 25~30 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

50mm pcb assembly machine

,

100kg pcb assembly machine

,

100kg solder paste printer machine

PCB Size:
50*50~330*350( L*W)mm
Pcb Thickness:
0.5~3.0mm
Brush Unit:
1 Set
Roller Unit:
1 Set
Ionizer Bar:
1 Input Side, 1 Output Side
PCB Width Adjust:
Manual
In Line Type:
Yes
Color:
White
PCB Size:
50*50~330*350( L*W)mm
Pcb Thickness:
0.5~3.0mm
Brush Unit:
1 Set
Roller Unit:
1 Set
Ionizer Bar:
1 Input Side, 1 Output Side
PCB Width Adjust:
Manual
In Line Type:
Yes
Color:
White
Product Description

Machine Description:

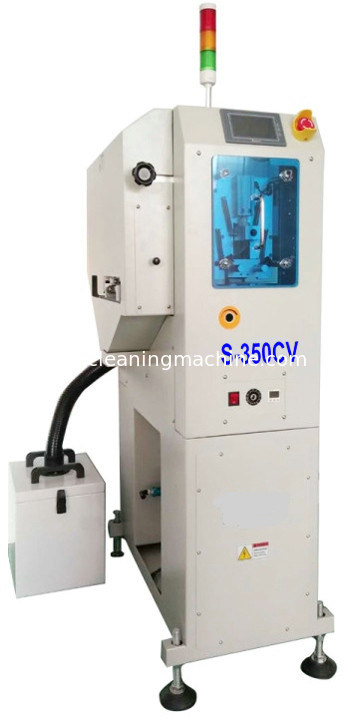

  S-350CV is middle size PCB automatic cleanig machine. 350mm width PCB in line dusts cleaning machine for SMT line before solder paste printing is Middle sized brush and roller unit good performance and reasonable price in line PCB cleaning machine. S-350CV also named PCB cleaner, SMT in line cleaning machine.

 S-350CV is used in SMT auto production line between Loader and Solder paste Printer. It is used to clean dusts, fibers, hair and micro metal balls on the surface of PCB pads to make PCB clean and improve PCBA quality.

Brush and roller two cleaning method make you PCB more clean.

350mm width PCB in line dusts cleaning machine for SMT line before solder paste printing 0



Machine Features:



1. Only for SMT auto production line.

2. For bare PCB or one side bare and the other side mounted with components.

3. Contact clean method, Brush+ rubber roller clean,99% cleaning result.

4. Standard equipped with ionizer bars at PCB input and output side.

5. PLC control, English operation interface.

6. Especially for 01005 small components and BGA, uBGA, CSP precise parts.

7. More than 10 years of PCB cleaner production experience.

8. More than 500 sets machine installed at customers SMT workshop all over the world.



Machine Spec:



S/N ITEM SPEC
1 PCB size 50*50~330*350mm(L*W)
2 PCB thickness 0.5~3.0mm
3 PCB conveyor direction Lto R or R to L
4 PCB width adjustment Manual
5 PCB conveyor height 900±25mm
6 Ionizer bar 2(input and output side)
7 Brush  1 PCS
8 Rubber roller  2 PCS
9 Adhesive paper  1Roll
10 Air supply 0.5Mpa
11 Power supply AC220V,50Hz, 60W
12 Machine weight 100kg
13 Machine size L450*W800*H1600mm



Questions and Answers:

Q1: Is this machine in line?

A1: Yes, it is.



Q2: How many PCS should we change adhesive paper?

A2: The whole adhesive paper roll has 80 circles, each circle can clean 200~300pcs of PCB.



Q3: Can we use this machine one car electronics SMT line?

A3: Yes, most of our current customers use our machines on car electronics and mobile phone SMT lines.

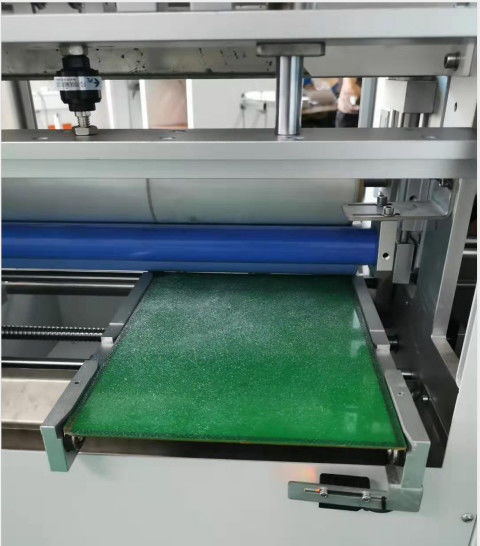

Comparison pictures before and after cleaning:

350mm width PCB in line dusts cleaning machine for SMT line before solder paste printing 1



350mm width PCB in line dusts cleaning machine for SMT line before solder paste printing 2
