Pcb Thickness 0.5 to 3.0mm Automatic Cleaning Mode Clean Rinse Dry Process Complete in One Compact Machine Pcb Cleaning System

Product Description:

The SME-PC560 PCB Cleaning Machine is a highly efficient and reliable solution designed to meet the rigorous demands of modern electronics manufacturing. Engineered to handle PCB thicknesses ranging from 0.5 to 3.0mm, this machine is capable of processing printed circuit boards up to a maximum size of 330x250mm. Its advanced cleaning process includes multiple stages: cleaning, rinsing, air drying, and drying, ensuring that every PCB is thoroughly treated to attain the highest level of cleanliness.

One of the standout features of the SME-PC560 is its simple operation. The machine is designed for ease of use, allowing operators to manage the cleaning process with minimal training and effort. This user-friendly interface contributes to increased productivity and reduced downtime, making the SME-PC560 an ideal choice for high-volume PCB cleaning requirements. Additionally, the output capacity is large, supporting mass production environments without compromising on quality or efficiency.

The SME-PC560 is a versatile machine whose main applications include cleaning PCBA (printed circuit board assemblies) used in critical industries such as car electronics, military, aerospace, telecommunications, medical devices, and digital meters. These sectors demand the highest standards of cleanliness and reliability, and the SME-PC560 is engineered to meet those exact needs. Its robust construction and advanced technology ensure that sensitive and complex PCBA components are safely and effectively cleaned.

From a technical standpoint, the SME-PC560 operates on AC380V 3-phase power at 50/60Hz, consuming 30KW of power. The machine uses compressed air at 0.5Mpa and a flow rate of 200 to 400 liters per minute, optimizing the cleaning and drying stages for maximum efficiency. The dry time ranges between 10 to 30 minutes, depending on the PCB specifications and cleaning requirements, offering flexibility to meet different production schedules.

The cleaning process begins with an effective washing phase that eliminates contaminants such as flux residues, dust, oils, and other impurities from the PCB surface. This is followed by a rinsing stage that removes any residual cleaning agents, ensuring the board is left spotless. The air drying and drying stages then carefully remove moisture without causing damage or warping to the PCB, preserving the integrity of the board and its components.

Machine features include a robust and durable frame, precision control systems, and automated functions that reduce manual intervention and risk of human error. The SME-PC560 is built to withstand continuous production cycles, making it a dependable asset for factories focused on maintaining high-quality standards in their PCBA manufacturing process.

In summary, the SME-PC560 PCB Cleaning Machine offers a comprehensive, efficient, and reliable cleaning solution tailored to the needs of modern electronics manufacturing industries. Its key selling points — simple operation, high cleanliness, and large output — set it apart as a premier choice for companies producing PCBA for automotive electronics, military applications, aerospace technology, telecommunications, medical devices, and digital meters. With its advanced cleaning process and robust technical specifications, the SME-PC560 ensures that every printed circuit board meets the highest quality standards, contributing to the overall performance and reliability of the final electronic products.

Features:

• Product Name: PCB Cleaning Machine
• Color: Original Color Of Stainless Steel
• In Line Type: No
• Usage: Remove The Stains On PBCA Using A Chemical Cleaning Agent
• Cleaning Process: Cleaning, Rinsing, Air Drying, Drying
• Gas Pressure Range: 0.4-0.6Mpa
• Concentrate liquid tank capacity 30L
• Vent size Φ76xH50(mm)

Technical Parameters:

Applications:

The Automatic machine equipment for cleaning PCBA, model SME-5600L, is an advanced and highly efficient PCB cleaning machine designed for various industrial applications. Originating from China and certified with CE, this machine guarantees top-notch quality and compliance with international standards. Its robust construction in the original color of stainless steel ensures durability and longevity, making it an excellent investment for electronics manufacturing facilities.

This PCB cleaning machine is ideal for use in electronics production lines where high cleanliness and large output are essential. The SME-5600L is specifically designed to clean PCBA efficiently with simple operation, making it suitable for both small and large-scale production environments. With a stencil size capacity of L610*W610*T100mm, it can accommodate a wide range of PCB sizes, providing versatility for different cleaning requirements.

One of the key features of this model is its customizable DI water rinse time, which can be set to meet stringent ion contamination requirements. The rinse time ranges from 1 to 2 minutes per cycle, ensuring thorough cleaning and rinsing of PCBs to maintain the highest standards in product quality. The machine is equipped with a diluent liquid tank capacity of 60 liters, providing ample fluid volume for extended cleaning operations without frequent refills, thus enhancing operational efficiency.

The SME-5600L is packaged securely in a wooden box for safe delivery and can be supplied with a minimum order quantity of just 1 PCS. Priced at USD 38,000.00, it offers excellent value considering its performance and output capacity. With a supply ability of 10 sets per month and a delivery time of approximately 4 weeks, customers can reliably plan their procurement schedules.

Payment terms are flexible with T/T options, making it convenient for international buyers. The machine’s high cleanliness standards, large output capacity, and ease of operation make it perfect for use in electronics manufacturing plants, repair centers, and quality control laboratories where PCB cleanliness directly impacts product reliability and performance.

In summary, the SME-5600L PCB cleaning machine is the perfect solution for industries seeking reliable and efficient cleaning equipment. Its combination of advanced features, including the adjustable DI water rinse time and large diluent tank capacity, ensures superior cleaning results, meeting the strictest ion contamination standards while maintaining high throughput.

Customization:

Introducing the Automatic machine equipment for cleaning PCBA, model SME-5600L, a high-quality PCB Cleaning Machine originating from China and certified with CE to ensure safety and reliability. This advanced cleaning system is designed to thoroughly and effectively clean all kinds of SMT and THT PCBA residual rosin, water-soluble flux, no-clean flux, solder paste, and other organic and inorganic pollutants.

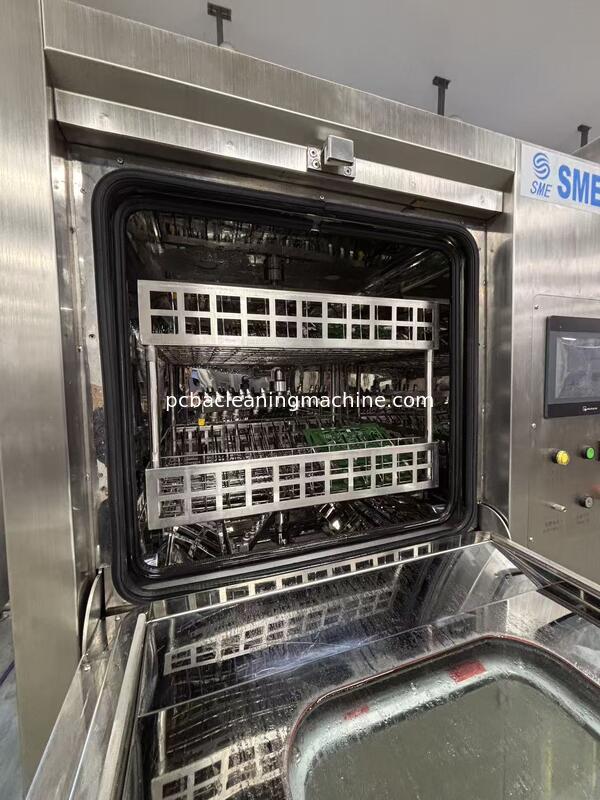

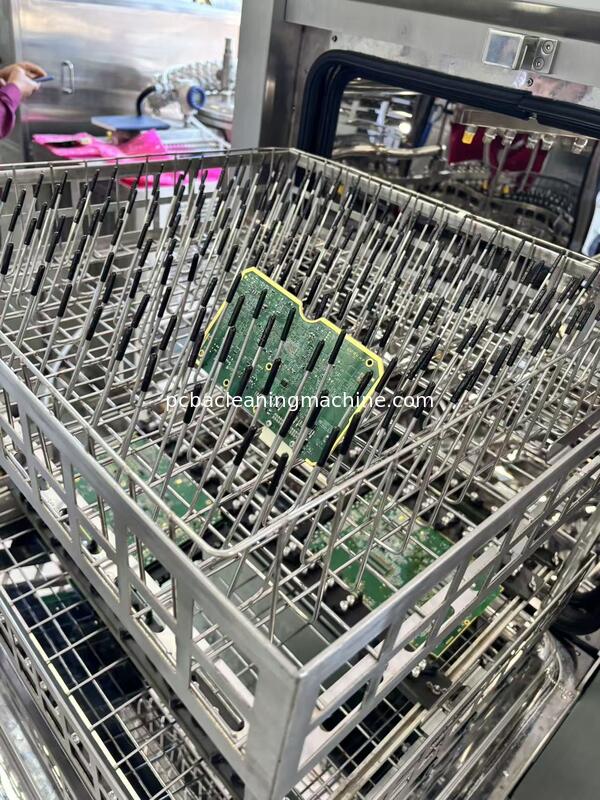

The SME-5600L features an automatic cleaning mode where the clean, rinse, and dry processes are all completed within one compact machine, providing efficient and seamless operation. It is equipped with two layers of wash baskets, each with a basket size of L610*W560*H100mm, allowing for versatile and large PCB cleaning capabilities.

This model supports PCB thicknesses ranging from 0.5 to 3.0 mm and can accommodate PCB sizes up to 330x250mm. The stencil size can be up to L610*W610*T100mm as max, ensuring compatibility with various board dimensions. The cleaning fluid capacity is 60CC, optimizing the cleaning process for best results.

Available at a price of USD 38,000.00 with a minimum order quantity of 1PCS, the SME-5600L is packaged securely in a wooden box to ensure safe delivery. Delivery time is approximately 4 weeks, with payment terms based on T/T. Our supply ability is 10 sets per month, making it a reliable choice for your production needs.

Choose the SME-PC560 model for a comprehensive cleaning solution that integrates cleaning, rinsing, and drying in one machine, perfect for maintaining the highest quality standards in PCB assembly cleaning.

Support and Services:

Our PCB Cleaning Machine is designed to provide efficient and thorough cleaning of printed circuit boards, ensuring optimal performance and reliability. For technical support, please refer to the user manual included with the product, which contains detailed instructions on installation, operation, and maintenance.

We offer comprehensive services including installation guidance, routine maintenance, troubleshooting assistance, and spare part replacement to keep your PCB Cleaning Machine operating at peak efficiency. Our technical support team is equipped to help with software updates, calibration procedures, and resolving any operational issues you may encounter.

Regular maintenance is recommended to prolong the lifespan of the machine and maintain cleaning effectiveness. This includes periodic inspection of cleaning nozzles, filters, and solution levels, as well as scheduled cleaning cycles as outlined in the maintenance section of the manual.

In case of malfunction or unexpected behavior, please perform basic troubleshooting steps such as checking power connections, ensuring proper solution levels, and verifying settings. If the issue persists, professional service support is available to diagnose and repair the machine.

We are committed to providing ongoing support to maximize your investment and ensure your PCB Cleaning Machine delivers consistent, high-quality results in your production environment.

Packing and Shipping:

Product Packaging:

The PCB Cleaning Machine is securely packaged to ensure safe delivery. It is enclosed in a sturdy, custom-designed cardboard box with foam inserts to protect the machine from any shocks or impacts during transit. The packaging includes all necessary accessories, a user manual, and a warranty card, neatly organized within the box.

Shipping:

We offer reliable shipping options to deliver the PCB Cleaning Machine promptly and safely to your location. The product is shipped via trusted courier services with tracking available for your convenience. Depending on your location, shipping times may vary, and expedited shipping options are available upon request. All shipments are insured to protect against loss or damage during transit.
