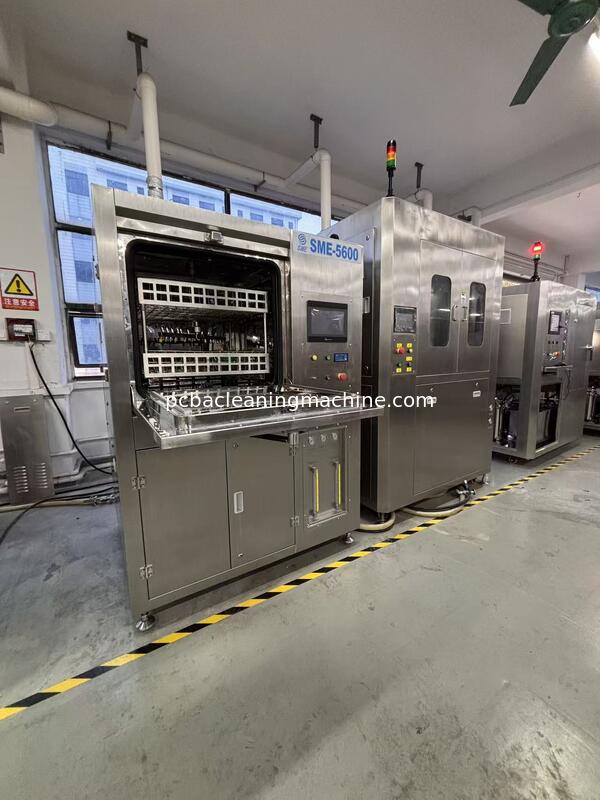

Pcb Thickness 0.5 to 3.0mm SME-5600L PCB Cleaning Machine Automated Cleaning Equipment Ensuring Circuit Board Processing

Product Description:

The PCB Cleaning Machine is an advanced automated cleaning equipment designed specifically for efficient and thorough cleaning of printed circuit boards (PCBs). This machine integrates multiple cleaning processes, including cleaning, rinsing, air drying, and drying, to ensure that PCBs are treated with the utmost care and precision. Its comprehensive cleaning cycle guarantees the removal of contaminants, flux residues, and other impurities, resulting in pristine, fully functional circuit boards ready for further assembly or inspection.

One of the standout features of this PCB Cleaning Machine is its versatility in handling various PCB thicknesses, ranging from 0.5mm to 3.0mm. This broad thickness compatibility makes it suitable for a wide array of PCB types, accommodating different manufacturing requirements and specifications. Moreover, the machine is designed to accommodate PCB sizes up to a maximum of 330x250mm, providing ample space for most standard board dimensions encountered in the electronics industry.

The construction of the machine emphasizes durability and corrosion resistance, featuring the original color of stainless steel as its primary material. This not only enhances the machine’s aesthetic appeal but also ensures a long service life, even in demanding industrial environments where exposure to cleaning solvents and moisture is frequent. The stainless steel build facilitates easy maintenance and cleaning of the machine itself, contributing to consistent performance and hygiene standards.

In terms of operational efficiency, the PCB Cleaning Machine incorporates a vent size of Φ76xH50(mm), optimized to facilitate effective air circulation during the drying phases. This vent dimension is critical for maintaining the proper airflow needed to achieve thorough air drying and drying processes, ultimately reducing moisture retention on the PCB surfaces. The drying time is adjustable within a range of 10 to 30 minutes, allowing users to tailor the drying cycle according to the specific requirements of different PCB types and contamination levels.

Designed with flexibility in mind, this machine is ideal for small quantity production runs and supports multi-spec PCBA washing. This means that it can efficiently handle various PCB assemblies without the need for extensive reconfiguration, making it a cost-effective solution for manufacturers who deal with diverse product lines or prototypes. The ability to wash multiple specifications of PCBA in one machine streamlines production workflows and reduces downtime associated with equipment changes.

Overall, the PCB Cleaning Machine offers a reliable, automated solution for PCB cleaning needs, combining advanced technology with user-friendly features. Its multi-stage cleaning process ensures superior cleanliness, while the adjustable drying time and vent design optimize throughput and quality. The machine’s capacity to manage different PCB thicknesses and sizes, along with its robust stainless steel construction, makes it an indispensable tool for electronics manufacturers aiming to maintain high standards of product quality and reliability.

Whether for small batch production or multi-spec PCBA washing, this PCB Cleaning Machine stands out as a versatile and efficient piece of automated cleaning equipment that meets the rigorous demands of modern electronics manufacturing.

Features:

• Product Name: PCB Cleaning Machine
• PCB Thickness: 0.5~3.0mm
• In Line Type: No
• Stencil Size: L610*W610*T100mm As Max
• Specification: PCB Size: 330x250mm As Max
• Power supply/Air supply included for efficient operation
• Suitable for small amount, multi-spec PCBA wash

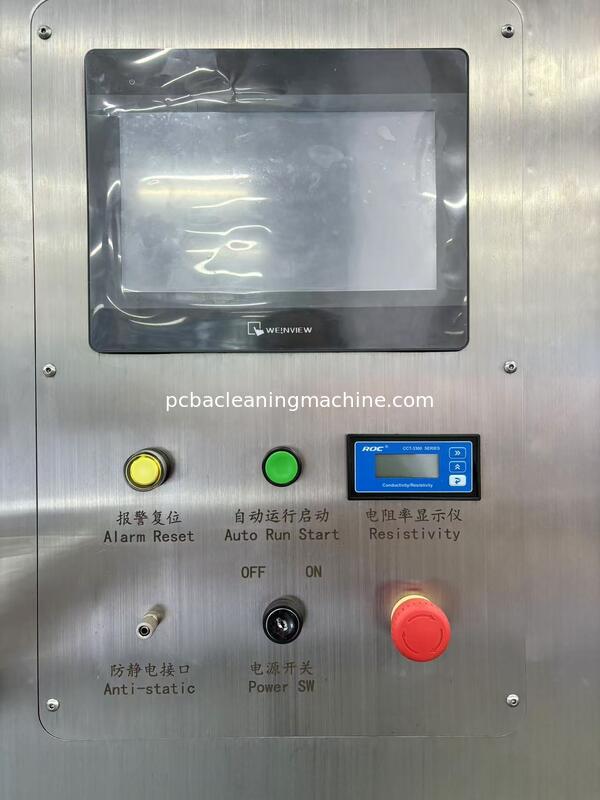

• Resistivity range: 0~18MΩ ensuring high cleanliness
• Simple operation for ease of use
• High cleanliness level
• Large output capacity

Technical Parameters:

Applications:

The Automatic machine equipment for cleaning PCBA, model SME-5600L, is a highly efficient and reliable PCB cleaning machine designed to meet the rigorous demands of modern electronics manufacturing. Originating from China and certified with CE standards, this machine ensures high-quality cleaning performance that is essential for maintaining the integrity and functionality of printed circuit boards.

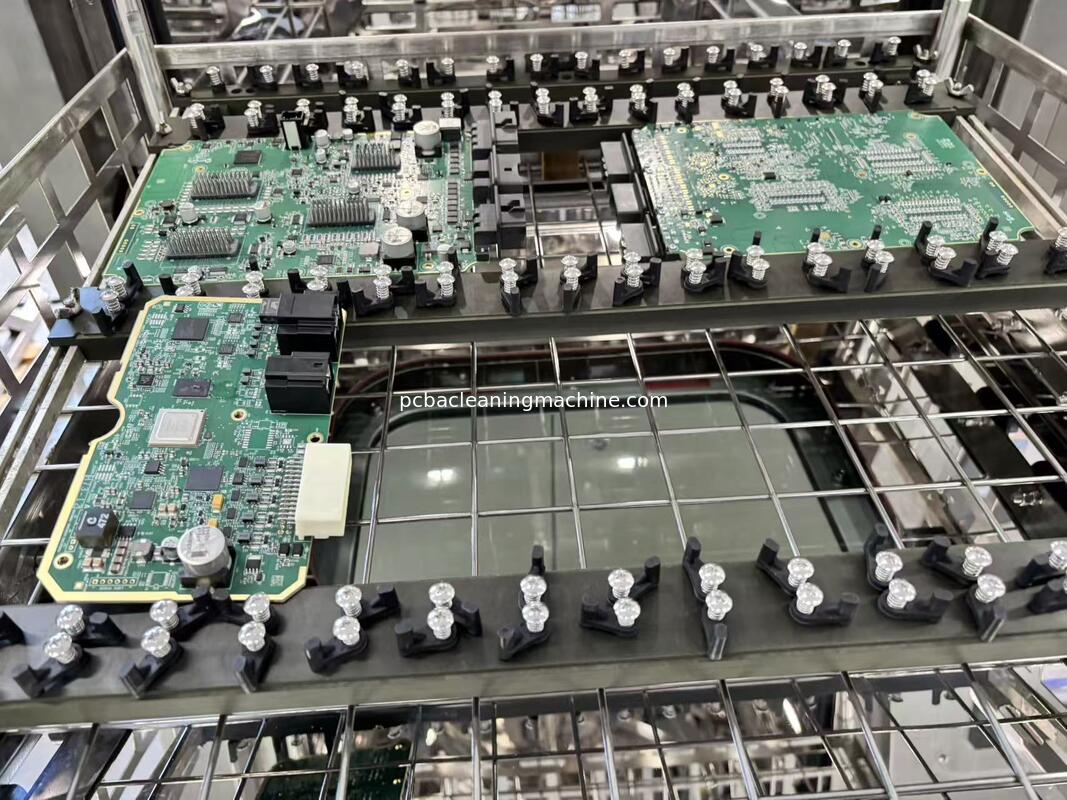

This PCB cleaning machine is ideal for use in various production environments where precision and cleanliness are critical. Its key selling points include simple operation, high cleanliness, and large output capacity, making it suitable for both small-scale and large-scale manufacturing processes. The machine features two layers of wash basket, each with a basket size of L610*W560*H100mm, allowing for efficient cleaning of multiple PCBs simultaneously. This design significantly enhances productivity while ensuring thorough cleaning.

The concentrate liquid tank has a capacity of 30 liters, providing ample cleaning solution for extended operation without frequent refills. Additionally, the dry time ranges from 10 to 30 minutes, optimizing the overall process flow and reducing downtime. The machine supports PCB thicknesses ranging from 0.5 to 3.0mm, accommodating a wide variety of board specifications commonly used in the electronics industry.

With a gas pressure range of 0.4-0.6Mpa, the SME-5600L maintains stable and consistent cleaning performance. It is packaged securely in a wooden box to ensure safe delivery and has a delivery time of approximately 4 weeks. The payment terms are flexible with T/T options, and the supply ability stands at 10 sets per month, making it accessible for both large manufacturers and smaller enterprises.

This model, SME-PC560, is a standalone unit and not an inline type, which provides versatility for different factory layouts. Priced at USD 38,000.00 per unit with a minimum order quantity of just 1 piece, it offers excellent value for companies looking to enhance their PCB assembly cleaning processes. Whether used in electronics manufacturing plants, repair centers, or quality control labs, this PCB cleaning machine ensures exceptional cleanliness, efficiency, and reliability.

Customization:

Our Automatic machine equipment for cleaning PCBA, model SME-5600L, is a high-quality PCB Cleaning Machine made in China with CE certification. We offer a minimum order quantity of 1PCS at a price of USD 38,000.00.

The machine is packaged securely in a wooden box to ensure safe delivery. Delivery time is approximately 4 weeks, with payment terms via T/T. We have the supply ability to deliver 10 sets every month.

This automated cleaning equipment features a comprehensive cleaning process including Cleaning, Rinsing, Air Drying, and Drying, with a dry time of 10~30 minutes. The cleaning fluid capacity is 60CC, suitable for PCB sizes up to 330x250mm.

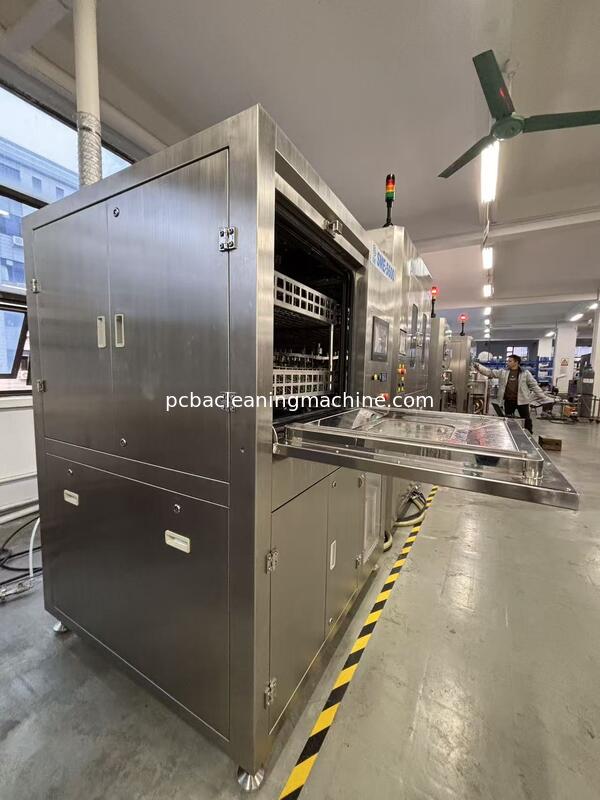

The machine is designed with a front window and LED light, making the whole cleaning process visible for ease of monitoring. It is not an in-line type machine, and its dimensions are L1300*W1200*H1850(mm), optimized for efficient operation.

Support and Services:

Our PCB Cleaning Machine is designed to provide efficient and reliable cleaning solutions for printed circuit boards. To ensure optimal performance and longevity of your machine, please follow the recommended maintenance and operational guidelines.

If you experience any issues with the PCB Cleaning Machine, please consult the user manual for troubleshooting tips. Common problems such as inadequate cleaning, machine stoppage, or error messages can often be resolved by checking the cleaning solution levels, ensuring proper loading of PCBs, and verifying that all filters and nozzles are clean and unobstructed.

Regular maintenance is crucial for the best results. This includes periodic replacement of cleaning solutions, cleaning or replacing filters, and inspection of mechanical parts for wear and tear. Always use recommended cleaning agents and parts specified by the manufacturer to avoid damage and maintain warranty coverage.

We offer comprehensive technical support and after-sales services to assist you with installation, calibration, and training. Our team is dedicated to ensuring your PCB Cleaning Machine operates at peak efficiency and meets your production needs.

For repair services, we provide authorized service centers equipped with certified technicians and genuine replacement parts. Preventive maintenance contracts are also available to minimize downtime and extend the life of your equipment.

Please refer to the warranty terms and conditions included with your product for detailed information on coverage and service procedures.
