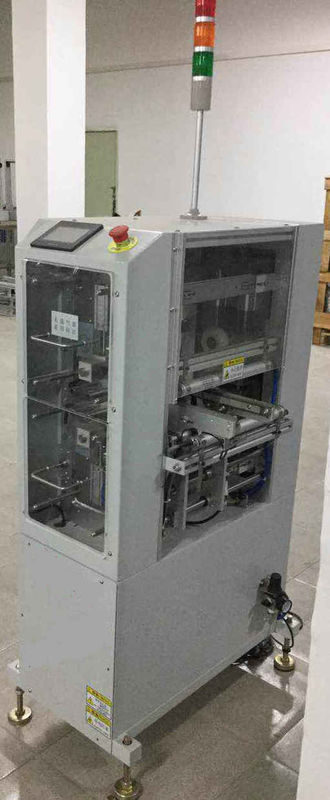

In line PCB surface dust cleaner for smt line with adhesive roller and paper roll

In line PCB surface dust cleaner for smt line with adhesive roller and paper roll

rubber PCB smt stencil cleaner

0.5mm smt stencil cleaner

0.5mm sme machine

Place of Origin:

Dongguan, China

Brand Name:

SHENHUA

Certification:

CE

Model Number:

S-250

Contact Us
Request A Quote
Product Details
PCB Size:
50*50~330*250( L*W)mm
Pcb Thickness:
0.5~3.0mm
Brush Unit:
1 Set
Roller Unit:
1 Set
Ionizer Bar:
1 Input Side, 1 Output Side
PCB Width Adjust:
Manual
In Line Type:
Yes
Color:
White
Highlight:

rubber PCB smt stencil cleaner

,

0.5mm smt stencil cleaner

,

0.5mm sme machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
Vacuum +plywood case package, case size: 800*1000*1600 mm(L*W*H)
Delivery Time
25~30 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
300 sets per year
Product Description

Machine Description:



  S-250 is a basic but powerful functional  automatic PCB cleanig machine. In line PCB surface dust cleaner for smt line with adhesive roller and paper roll. Roller cleaning unit, simple operation, good performance in line PCB cleaning machine. S-250 also named PCB cleaner, SMT in line cleaning machine.

 S-250 is used in SMT auto production line between Loader and Solder paste Printer. It is used to clean dusts, fibers, hair and micro metal balls on the surface of PCB pads to make PCB clean and improve PCBA quality.

Rubber roller plus adhesive paper unit make you PCB more clean.





Machine Features:



1. Only for SMT auto production line.

2. For bare PCB or one side bare and the other side mounted with components.

3. Contact clean method, Brush+ rubber roller clean,99% cleaning result.

4. Standard equipped with ionizer bars at PCB input and output side.

5. PLC control, English operation interface.

6. Especially for 01005 small components and BGA, uBGA, CSP precise parts.

7. More than 10 years of PCB cleaner production experience.

8. More than 500 sets machine installed at customers SMT workshop all over the world.



Machine Spec:



S/N ITEM SPEC
1 PCB size 50*50~330*450mm(L*W)
2 PCB thickness 0.5~3.0mm
3 PCB conveyor direction Lto R or R to L
4 PCB width adjustment Manual
5 PCB conveyor height 900±25mm
6 Ionizer bar 2(input and output side)
7 Brush no
8 Rubber roller  2 PCS
9 Adhesive paper  1Roll
10 Air supply 0.5Mpa
11 Power supply AC220V,50Hz, 60W
12 Machine weight 100kg
13 Machine size L500*W700*H1600mm



Questions and Answers:

Q1: Is this machine in line?

A1: Yes, it is.



Q2: How many PCS should we change adhesive paper?

A2: The whole adhesive paper roll has 80 circles, each circle can clean 200~300pcs of PCB.



Q3: Can we use this machine one car electronics SMT line?

A3: Yes, most of our current customers use our machines on car electronics and mobile phone SMT lines.

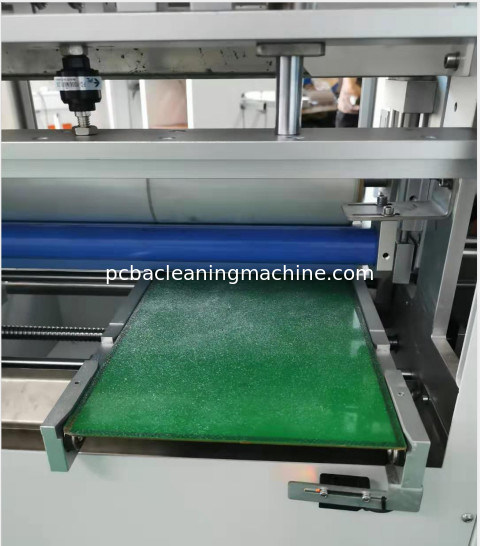

Comparison pictures before and after cleaning:

In line PCB surface dust cleaner for smt line with adhesive roller and paper roll 0



In line PCB surface dust cleaner for smt line with adhesive roller and paper roll 1
