Home > products > Pallet Cleaning Machine > SME-5500 Big Size N2 Reflow Oven Cooler Flux Cleaning Machine 100L Liquid Tank For Smt Tamura Heller JT Machine

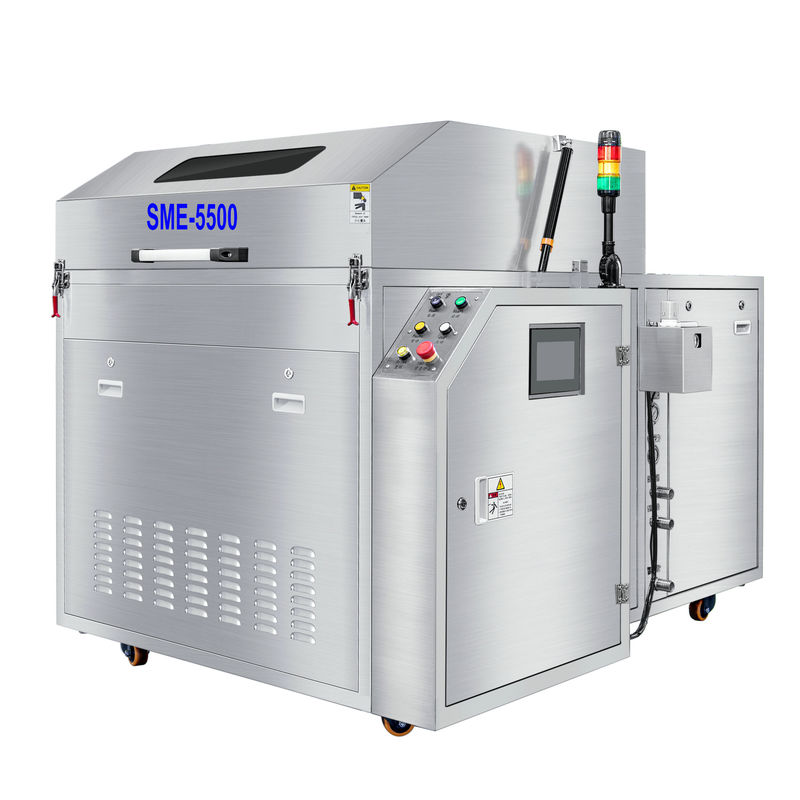

SME-5500 Big Size N2 Reflow Oven Cooler Flux Cleaning Machine 100L Liquid Tank For Smt Tamura Heller JT Machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-5500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 2200*2860*1950 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

SME 5500 flux cleaning machine

,

100L flux cleaning machine

,

100L benchtop reflow oven

Wash Basket Size:
φ1500mm
Pallet Height:
450mm As Max
Wash Time:
5~15min
Rinse Time:
2~3min
Dry Time:
10~20min
Wash Temp:
Room Temp~60℃
Rinse Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Liquid Capacity:
100L
Water Capacity:
100L
Filter:
20um
Power And Air Supply:
AC380V,3P,50/60Hz,33KW,0.5Mpa
Machine Size:
1900*2600*1500( L*W*H) Mm
Machine Weight:
900KG
Wash Basket Size:
φ1500mm
Pallet Height:
450mm As Max
Wash Time:
5~15min
Rinse Time:
2~3min
Dry Time:
10~20min
Wash Temp:
Room Temp~60℃
Rinse Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Liquid Capacity:
100L
Water Capacity:
100L
Filter:
20um
Power And Air Supply:
AC380V,3P,50/60Hz,33KW,0.5Mpa
Machine Size:
1900*2600*1500( L*W*H) Mm
Machine Weight:
900KG
Product Description

  Shenhua is a leading spray cleaning machine manufacturing company in China. We make reflow oven cooler cleaning machine and wave soldering oven cleaning and installed in a lot of famous companies such as: Sumsung, Foxconn, Huawei, Panasonic, Mitsubishi...



Machine usage:



 Coolers of N2 reflow oven need to be cleaned 15~30days regularly or else the coolers will be covered with flux and can not play its role in the machine. As coolers are very dirty and harmful, no operators want to clean it by hand.



 SME-5500 SME-5500 Big Size Reflow Oven Cooler Flux Cleaning Machine 100L Liquid Tank For Smt Tamura Heller JT Machine is a 1500mm diameter basket big size reflow oven coolers automatic cleaning machine. Coolers ofrew a SMT, TAMURA,HELLER,BTU,JT, Rehm Ersa reflow oven can be washed in this machine very easily.



 PLC control, TP operation. SME-5500 is consist of wash unit, rinse unit, dry unit, filter unit and electric control unit. Liqui clean, tap water rinse, hot air blow dry process are automatic conducted one by one accorind to setting programe.



 Machine process:

 Put the dirt coolers into the cleaning basket, setting the cleaning parameters, the machine will automatically complete wash, rinse and dry process by just pushing start key. The coolers are clean and dry after cleaning and ready for use.



Machine features:



1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.

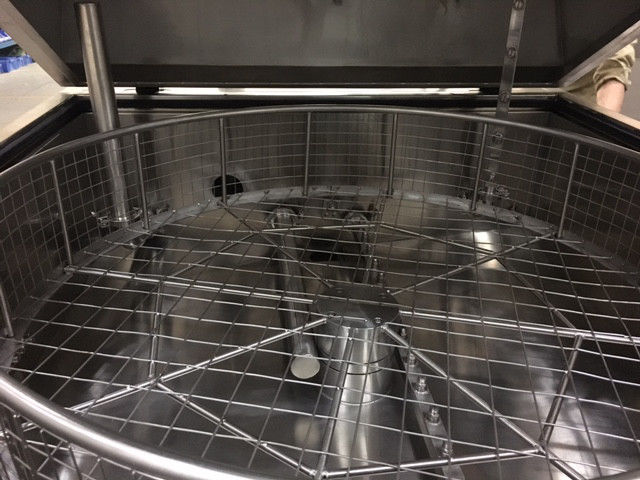

2. φ1000mm diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.
5. PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7. Clean liquid and water heat and temperature keeping function.
8. Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9. Standard equipped solution and water auto fill in and discharge function.
10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.



Machine spec:



Item SME-5500 Spec
Cleaning basket size Φ1500mm x H 200mm. Clean height 450mm
Spray unit Upper/lower/front side,720°, all-around spray
3-level filter system 2mm /100um/20um filters
Clean tank capacity 100L
Rinse tank capacity 100L
Clean spray pressure 5~6 kg/cm2
Clean time 5~20 Min
Rinse time 2~3 Min
Dry time 10~20Min
Clean liquid heat temp Room temp~80℃
Rinse water heat temp Room temp~80℃
Hot air heat temp Room temp~90℃
Clean/Rinse pump power 2.2KW/2.2kw
Liquid/Water heaater power 9KW
Hot air heat power 9KW
Air blower power 4.0KW
Air supply 0.5~0.7Mpa
Power supply 3 P,AC380V,50/60HZ,33KW
Machine size L1900*W2600*H1500 (mm)
Machine weight 900KG



Question and Answers:

Q1: How big coolers can  SME-5500 clean?

A1: 900*300mm coolers can clean 2 in the same time.



Q2: How many fixtures can SME-5500 clean one time?

A2: It depends on pallet size. for Rehm, it can clean 6~7 in one time, for Ersa, it can clean 2~4 in one time.



Q3: What is cycle time of SME-5500?

A3: It is about 40~45 miutes, including wash,rinse and hot air blow dry time.



Q4: Does the round basket turns with setting speed?

A4: Yes, the 1000mm diamater round basket turns at the speed of 15~20RPM



Comparison pictures before and after cleaing:
