80L Liquid Tank Capacity Pallet Cleaning Machine Offering Dry Time 5 to 15 Minutes Noise Level Less Than 75 DB Ideal for Warehouse

Product Description:

The Pallet Cleaning Machine is an advanced solution designed specifically for cleaning DIP and SMT jigs, fixtures, and pallets with exceptional efficiency and precision. Engineered to meet the rigorous demands of modern electronics manufacturing, this machine ensures thorough cleaning while maintaining ease of operation and environmental sustainability. It is equipped with a sophisticated PLC control system featuring a user-friendly touchscreen interface, allowing operators to manage and monitor the cleaning process seamlessly.

One of the standout features of this pallet cleaning machine is its precise temperature control, capable of drying at temperatures ranging from room temperature up to 99℃. The drying process is fully automated through the PLC control system, which guarantees consistent and reliable drying cycles. The dry time typically ranges between 5 to 15 minutes; however, the machine is optimized to handle dry times of 10 to 20 minutes depending on the specific requirements of the cleaning task and the type of pallets being processed.

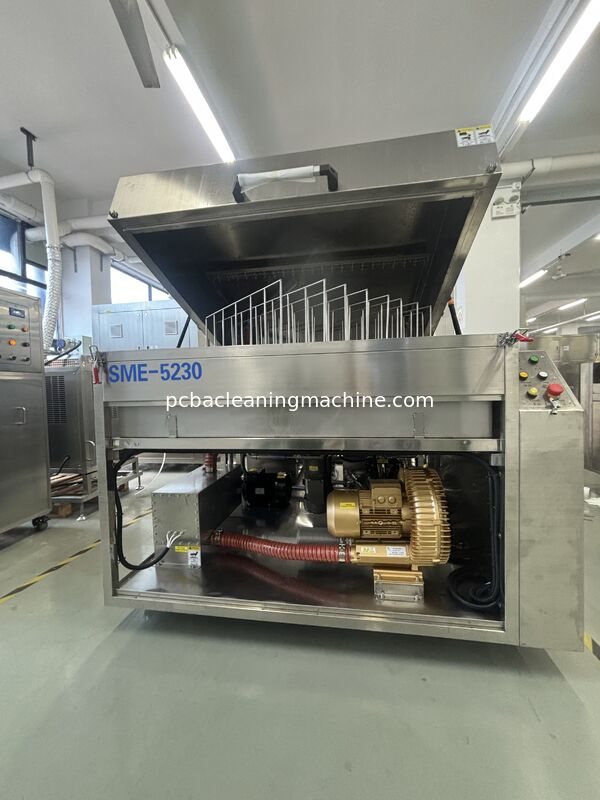

The cleaning mechanism is highly effective and thorough. It employs clean liquid spray from three strategically positioned spray rods located on the upper, lower, and front sides of the cleaning chamber. This multi-directional spray system ensures that every surface of the jig, fixture, or pallet is reached and cleaned comprehensively. Meanwhile, the cleaning basket rotates continuously during the cleaning cycle. This rotation ensures that all parts of the items being cleaned are exposed evenly to the cleaning liquid, enhancing the removal of contaminants and residues.

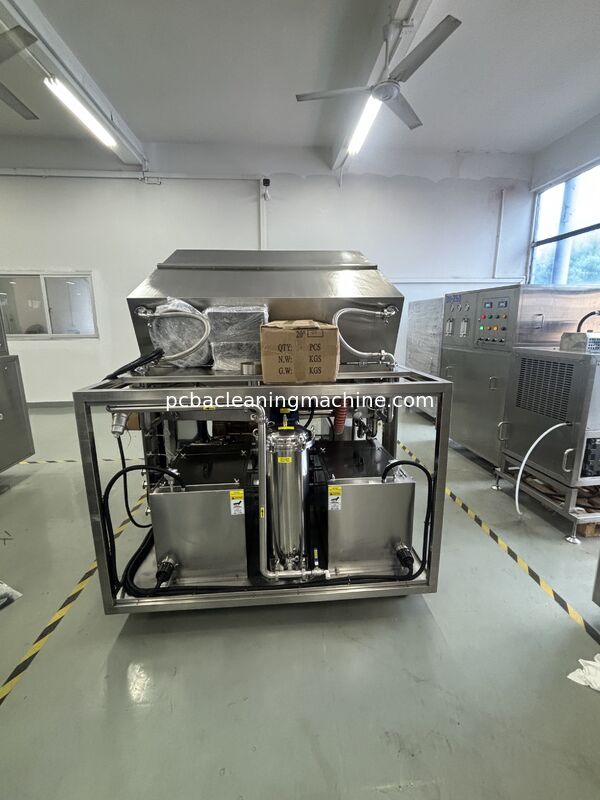

Another crucial innovation of this pallet cleaning machine is its closed-loop cleaning and rinsing system. Both the cleaning detergent and rinse water are continuously filtered and recycled within the machine, dramatically reducing water and chemical consumption. This closed-loop system not only lowers operational costs but also minimizes environmental impact, making the machine an eco-friendly choice for factories aiming to reduce waste and comply with sustainability standards.

Control and automation are at the heart of this machine’s operation. The PLC automatic control system integrates all functions, from cleaning and rinsing to drying, providing a consistent process with minimal manual intervention. The touchscreen interface offers an intuitive user experience, allowing operators to easily set parameters such as dry time, temperature, and cleaning cycles. This level of control ensures that the machine can be adapted to a wide range of pallet cleaning needs, from delicate SMT jigs to robust fixture pallets.

In summary, the Pallet Cleaning Machine delivers an efficient, reliable, and environmentally responsible cleaning solution for DIP and SMT jigs, fixtures, and pallets. Its advanced features like the triple spray rod cleaning system, rotating cleaning basket, closed-loop detergent and rinse water filtration, and precise PLC-controlled drying make it an indispensable asset in any electronics manufacturing environment. With dry times optimized between 10 and 20 minutes and a comprehensive automatic control system, this machine guarantees high throughput and exceptional cleaning quality, supporting improved production yields and equipment longevity.

Features:

• Product Name: Pallet Cleaning Machine
• Dry Temperature Range: Room Temp to 99℃
• Control System: PLC Control with Touchscreen Interface
• Spray Pressure: 3~4 kgf/cm²
• Clean Tank Capacity: 80L
• Clean liquid spray from 3 spray rods on upper, lower, and front side
• Cleaning basket rotates during cleaning for thorough cleaning
• Air Blower Power: 4.0KW
• Usage: DIP and SMT Jig, Fixture, Pallet Cleaning

Technical Parameters:

Applications:

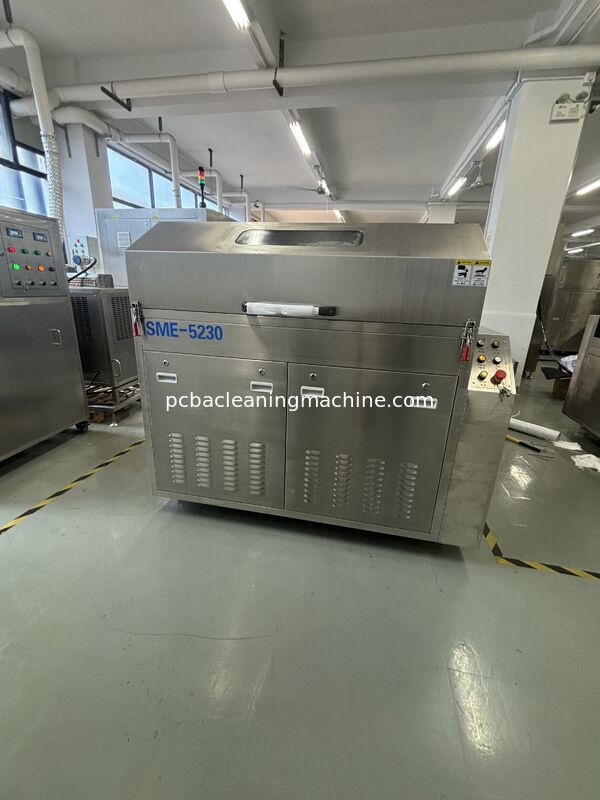

The Automatic cleaning equipment for cleaning trays and cleaning tools, model SME-5230, is an advanced Pallet Cleaning Machine designed to meet the diverse needs of industries requiring efficient and thorough cleaning solutions. Originating from Shenzhen, China, this state-of-the-art machine boasts a total SUS 304 structure, making it highly resistant to acid and alkali corrosion, ensuring durability, firmness, and stability during operation. This robust construction is ideal for environments where chemical exposure is frequent, providing long-lasting performance without compromising the machine's integrity.

The SME-5230 excels in various application occasions and scenarios, particularly in industries such as food processing, pharmaceuticals, electronics, and manufacturing, where pallets and trays must be impeccably clean to maintain hygiene standards and operational efficiency. Its cleaning process involves rinse water heated from room temperature up to 80℃, which effectively removes contaminants and residues. The cleaning liquid is sprayed from three strategically positioned spray rods located on the upper, lower, and front sides of the cleaning chamber, ensuring comprehensive coverage. Additionally, the cleaning basket rotates during the cleaning cycle, allowing for uniform cleaning of all surfaces and hard-to-reach areas on the pallets and tools.

In scenarios where drying is critical, the SME-5230 employs a hot air drying method, capable of drying at temperatures ranging from room temperature up to 99℃. This drying process takes between 5 to 15 minutes, providing a quick and efficient solution to prepare trays and tools for immediate reuse. The noise level of the machine is maintained below 75 dB, making it suitable for settings where noise pollution is a concern, such as medical facilities or cleanroom environments.

This Pallet Cleaning Machine is particularly suited for automated cleaning lines where consistency, speed, and hygiene are paramount. It can be seamlessly integrated into production workflows to clean a variety of tray types and cleaning tools, ensuring compliance with stringent cleanliness standards. Whether used in factories, warehouses, or distribution centers, the SME-5230 guarantees reliable performance and superior cleaning results, significantly reducing manual labor and improving operational productivity.

Customization:

Our SME-5230 Pallet Cleaning Machine, a part of the Automatic cleaning equipment for cleaning trays and cleaning tools brand, offers customized solutions to meet your specific cleaning needs. Designed and manufactured in China, this model features a robust total SUS 304 structure that resists acid and alkali corrosion, ensuring durability and stability during operation.

The SME-5200 Pallet Cleaning Machine is ideal for cleaning flux, dust, and other contaminants from the surface of various wave soldering oven pallets, fixtures, jigs, claws, chains, nets, reflow oven coolers, and filters. Although the SME-5230 model offers a spray pressure range of 3~4 kgf/cm², it maintains effective cleaning performance comparable to the SME-5200's 4~6 kg/cm² spray pressure.

Equipped with a PLC control system featuring a touchscreen interface, the SME-5230 provides user-friendly operation and precise control. Its 80L liquid tank capacity and large wash basket size of φ1500mm accommodate various cleaning tasks, including DIP and SMT jigs, fixtures, and pallets.

We offer product customization services to tailor the machine’s specifications, including spray pressure adjustments, basket size modifications, and control system configurations, to perfectly fit your production requirements. Trust our SME-5230 Pallet Cleaning Machine to deliver firm, stable, and efficient cleaning performance for your industrial needs.

Support and Services:

Our Pallet Cleaning Machine is designed to provide efficient and thorough cleaning of wooden pallets, ensuring they meet hygiene standards and are ready for reuse. For technical support, our team is available to assist with installation guidance, operational training, and troubleshooting to maximize the machine’s performance and longevity.

We offer comprehensive maintenance services, including routine inspections, parts replacement, and software updates to keep your pallet cleaning machine running smoothly. Additionally, our experts can provide customized service plans tailored to your facility’s specific needs.

Should you encounter any issues with your Pallet Cleaning Machine, our support staff is prepared to diagnose and resolve problems promptly, minimizing downtime. We also provide access to detailed user manuals, instructional videos, and FAQs to help you operate and maintain your equipment effectively.

For optimal results, we recommend periodic professional cleaning and calibration services, which can be scheduled through our service department. Our commitment is to ensure your pallet cleaning operations are efficient, safe, and compliant with industry standards.

Packing and Shipping:

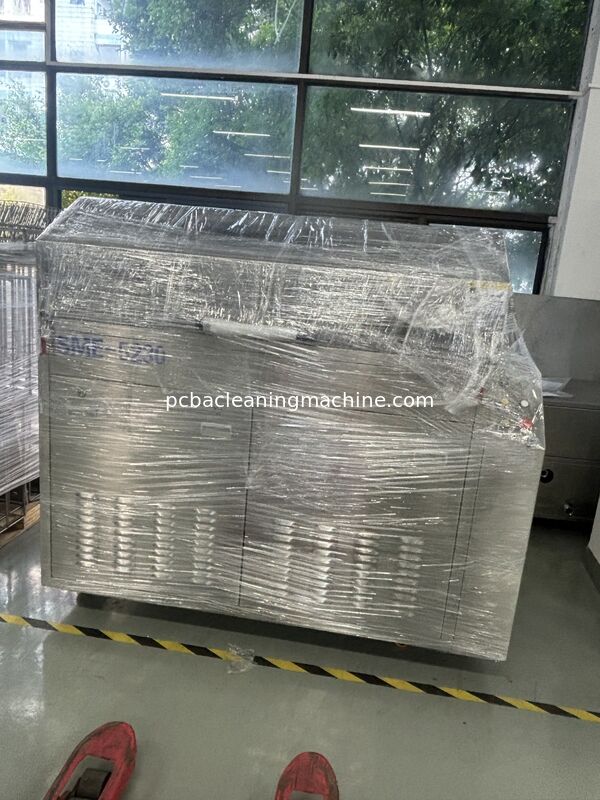

The Pallet Cleaning Machine is carefully packaged to ensure it arrives in perfect condition. It is securely wrapped with protective materials and placed in a sturdy wooden crate to prevent any damage during transit. All components are individually packed and clearly labeled for easy identification and assembly.

For shipping, the machine is loaded onto pallets using heavy-duty straps to keep it stable throughout the journey. We coordinate with reliable logistics partners to provide timely and safe delivery to your location. Tracking information will be provided once the shipment is dispatched, allowing you to monitor the progress until it reaches you.

FAQ:

Q1: What is the brand name of the pallet cleaning machine?

A1: The pallet cleaning machine is from the brand "Automatic cleaning equipment for cleaning trays and cleaning tools."

Q2: What is the model number of this pallet cleaning machine?

A2: The model number of the pallet cleaning machine is SME-5230.

Q3: Where is the pallet cleaning machine manufactured?

A3: This pallet cleaning machine is made in China.

Q4: What types of pallets can the SME-5230 clean?

A4: The SME-5230 is designed to clean various types of pallets, including wooden, plastic, and metal pallets, ensuring efficient removal of dirt and contaminants.

Q5: Is the pallet cleaning machine suitable for industrial use?

A5: Yes, the SME-5230 model is built for industrial applications, providing automatic and high-efficiency cleaning for trays and pallets in manufacturing and logistics environments.
