Conformal coating automatic and pneumatic removing spray cleaning machine for conformal pallets

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-5100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1800*1860*1850 mm(L*W*H)

Delivery Time: 35~40 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 100sets per year

Get Best Price
Product Details
High Light:

1000L Pallet Cleaning Machine

,

SME Pallet Cleaning Machine

,

847989990

Basket Size:
φ1000mmxH200mm
Customized:
Non-Customized
Usage:
DIP And SMT Jig,Fixure, Pallet Clean
Solvent:
Conformal Coating Solvent
Machine Material:
SUS304 Stainless Steel
Control:
Panel Control
HS Code:
847989990
Port:
Shenzhen, China
Drive:
Compressed-Air
Nozzle Type:
Fan-Shaped Nozzle
Basket Size:
φ1000mmxH200mm
Customized:
Non-Customized
Usage:
DIP And SMT Jig,Fixure, Pallet Clean
Solvent:
Conformal Coating Solvent
Machine Material:
SUS304 Stainless Steel
Control:
Panel Control
HS Code:
847989990
Port:
Shenzhen, China
Drive:
Compressed-Air
Nozzle Type:
Fan-Shaped Nozzle
Product Description

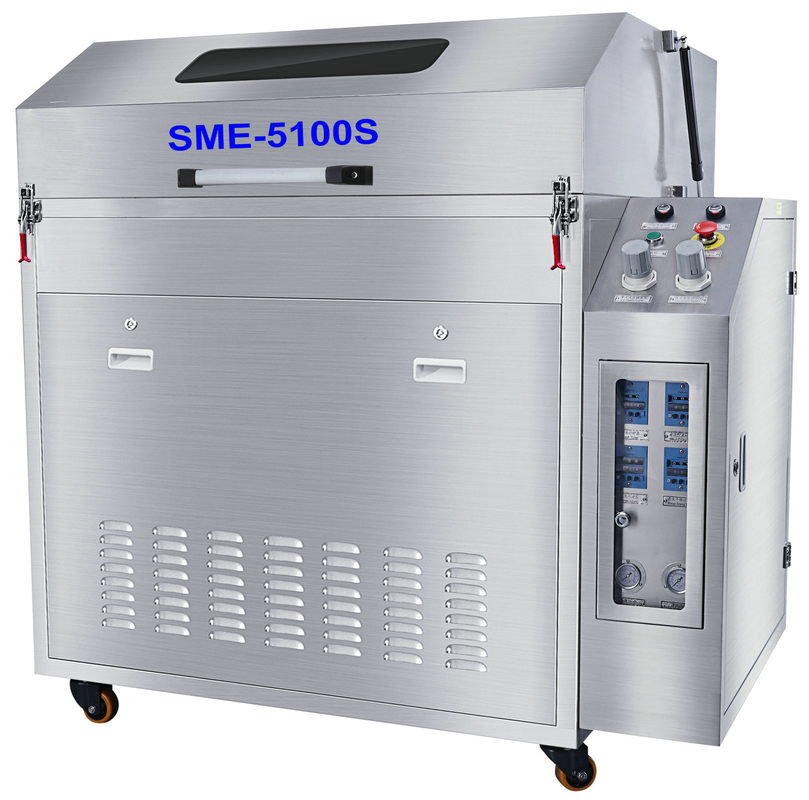

SME-5100S Conformal coating automatic and pneumatic removing spray cleaning machine for conformal pallets.
SME-5100S is used to conformal coating on conformal coating pallet. It is a pneumatic  spray cleaning machine, not use electric power, so conformal coating solvent can be used in this machine.



SME-5100S adopts solvent wash+solvent clean+compressed air blow dry process.



Pneumatic control, east operation and maintenance.

Machine Features:

1. Pneumatic control, never use electric power at all, absolutely clean safe.
2. SUS 304 machine structure, resist Acid and Alkali corrosion, firm and attractive.
3. One-button easy operation, high pressure clean+ high pressure rinse+ compressed air dry, all process complete in one time automatically.

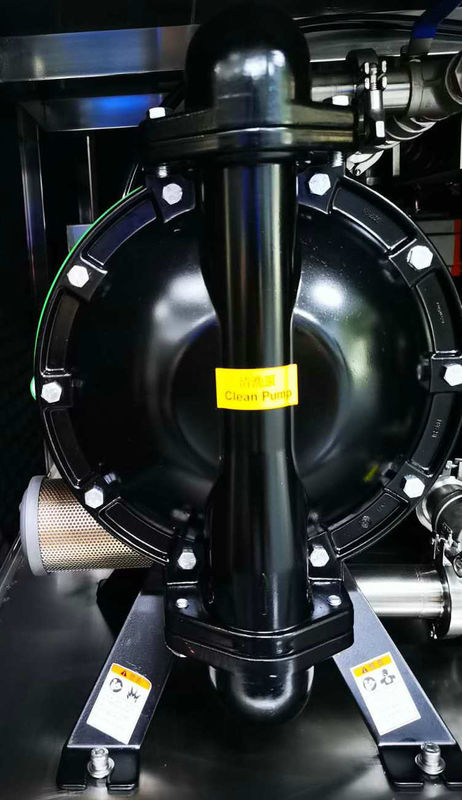

4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine
5. Solvent recycled to use and cost down.
6. Both solvent and aqueous detergent can be used.
7. The pallet are clean and dry after cleaning, standby and ready for use.
8. Standard equipped with auto fill-in and drain-out function.
9. Inner lock safety design, once door open, the machine stops immediately.

Machine Spec:

Item SME-5100S
Cleaning basket size Φ1000 x H 200(mm)
Clean spray unit Upper/Lower/front side, all-round spray, basket rotate
2-level filter 1mm/20um filter
Clean time 5~15 Min
Rinse time 1~2 Min
Air dry time 5~10min
Clean tank capacity 80L
Rinse tank capacity 80L
Clean spray pressure 2~4kg/cm2
Air supply 0.5~0.7Mpa,800~1000L/min
Machine size L1450 x W1550 x H 1400 (mm)
Machine weight 520KG



Customer questions and Answers:

Q1: Is SME-5100S safe?

A1: Yes, SME-5100 do not use electric power, only compressed-air, so no risk of electricity, heat, sparks.



Q2: How SME-5100S clean products?

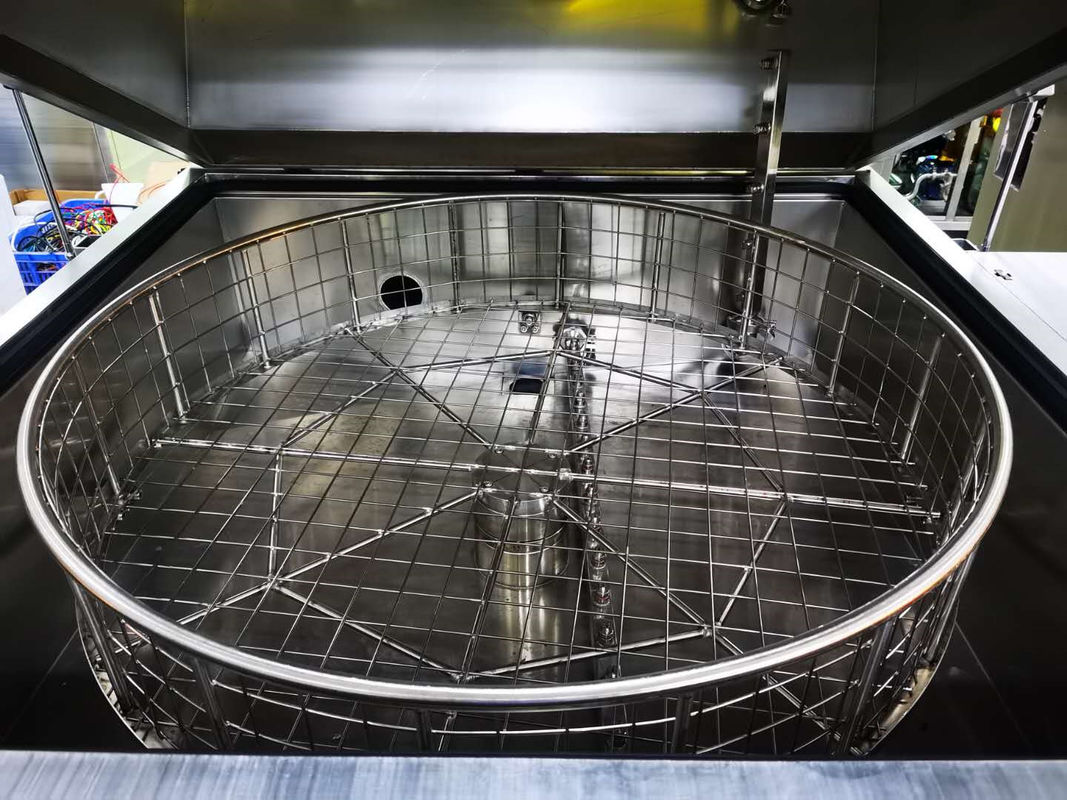

A2: The products put on round basket, the upper and lower spray rods spray solvent while basket turns at low speed.



Cleaning comparison pictures beofre and after cleaning:
