| Wash Basket Size: | φ1000mm | Material: | Stainless Steel |
|---|---|---|---|
| Wash Liquid: | Water Based Flux Clean Liquid | Rinse Liquid: | Tape Water |
| Spray Pressure: | 5~6kgf/cm2 | Lqiuid Temp: | Room Temp~80℃ |
| Water Temp: | Room Temp~80℃ | Hot Air Temp: | Room Temp~100℃ |
| Wash Time: | 0~20min | Rinse Time: | 1~3min |
| Hot Air Dry Time: | 10~15min | ||
| High Light: | 450mm tray cleaning machine,solder 80L tray cleaning machine,solder 80L desktop reflow oven |
||
Shenhua is a leading company speciallized in smt spray cleaning machine. We've installed more than 330sets in domestic and overseas customers. we have famous end users such as: Foxconn, Sumsung, Huawei, Panasonic, Wistron, Mistubishi, Schneider,Jabil...

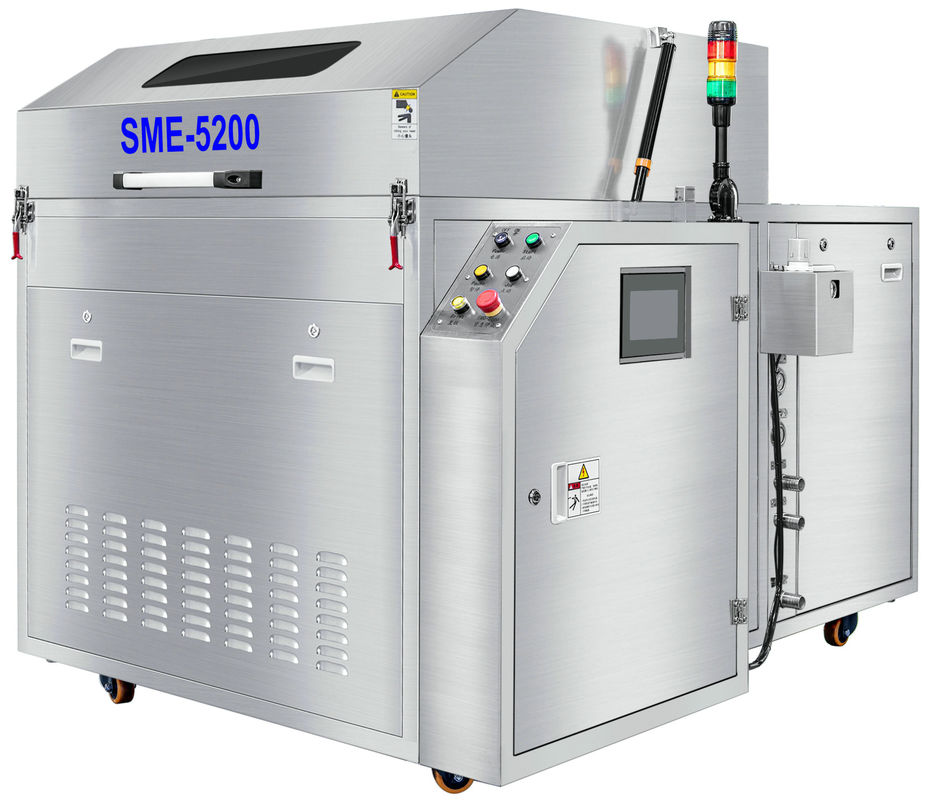

80L Liquid Tank Soldering Wave Tray Batch Cleaning Machine Flux Auot Wash Machine. SME-5200 is polularly used to clean flux, dusts on the surface of soldering pallets and reflow trays.

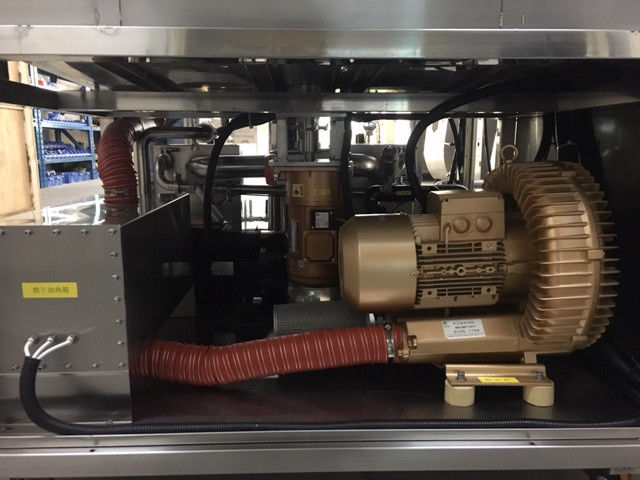

SME-5200 machine consist of wash unit+ rinse unit,+hot air dry unit, filter unit and electric control unit. Put the dirt pallets on to the cleaning basket, setting the cleaning parameters, the machine will automatically complete wash, rinse and dry process by just pushing start key.
The pallets are very clean and dry after cleaning and ready for use.
Machine features:
1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.
2. φ1000mm diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.
5. PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7. Clean liquid and water heat and temperature keeping function.
8. Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9. Standard equipped solution and water auto fill in and discharge function.
10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.
Machine spec:
| Item | SME-5200 Spec |
| Cleaning basket size | Φ1000mm x H 200mm. Clean height 450mm |
| Spray unit | Upper/lower/front side,720°, all-around spray |
| 3-level filter system | 2mm /100um/20um filters |
| Clean tank capacity | 80L |
| Rinse tank capacity | 80L |
| Clean spray pressure | 5~6 kg/cm2 |
| Clean time | 5~15 Min |
| Rinse time | 1~3 Min |
| Dry time | 10~20Min |
| Clean liquid heat temp | Room temp~80℃ |
| Rinse water heat temp | Room temp~80℃ |
| Hot air heat temp | Room temp~90℃ |
| Clean/Rinse pump power | 2.2KW/1.1kw |
| Liquid/Water heaater power | 9KW |
| Hot air heat power | 9KW |
| Air blower power | 4.0KW |
| Air supply | 0.5~0.7Mpa |
| Power supply | 3 P,AC 380V,50/60HZ,33KW |
| Machine size | L1400 x W2000 x H 1450 (mm) |
| Machine weight | 600KG |
Question and Answers:
Q1: Can SME-5200 clean pallets ,trays, fixtures, chains, claws of reflow oven and wave soldering oven?
A1: Yes, it can clean all parts with flux.
Q2: How many pallets can SME-5200 clean one time?
A2: It depends on pallet size. for L200xW150mm pallet, it can clean about 40PCS one time.
Q3: What is cycle time of SME-5200?
A3: It is about 40~45 miutes, including wash,rinse and hot air blow dry time.
Q4: Does the round basket turns with setting speed?
A4: Yes, the 1000mm diamater round basket turns at the speed of 15~20RPM

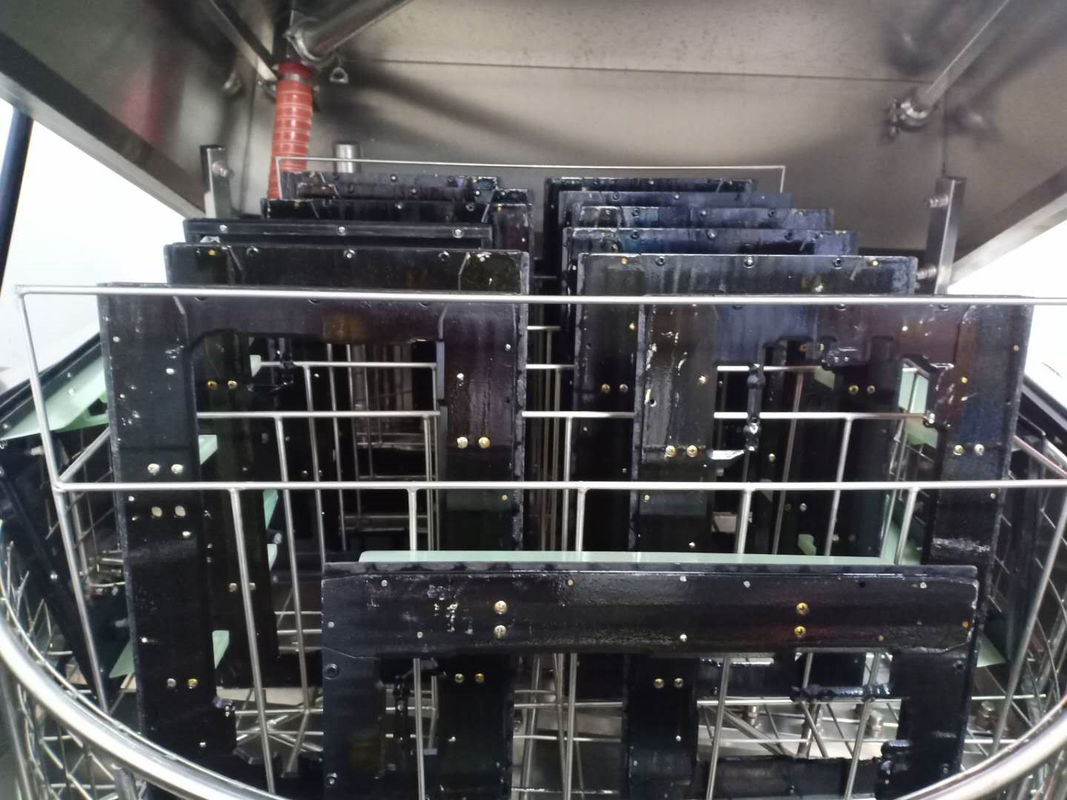

Comparison pictures before and after cleaing:
