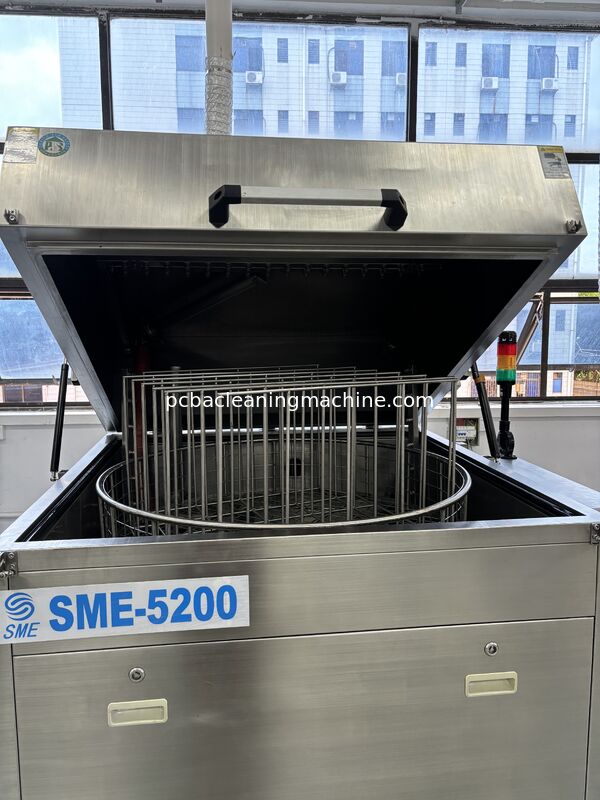

Automatic SME-5200 with wash unit rinse unit dry unit rotation cleaning basket unit electric control unit cleans dry fixtures ready

Product Description:

The Pallet Cleaning Machine is an advanced cleaning solution designed specifically for the thorough and efficient cleaning of DIP and SMT jigs, fixtures, and pallets. Engineered to meet the demanding needs of modern manufacturing environments, this machine offers exceptional performance through its well-thought-out features and robust construction.

One of the standout features of this Pallet Cleaning Machine is its generous clean tank capacity of 80L. This large tank provides ample space to accommodate a variety of cleaning tasks without frequent refilling, enhancing productivity and minimizing downtime. The machine utilizes a powerful 2.1000mm diameter big round cleaning basket, which is capable of holding and cleaning between 20 to 40 pieces of fixtures simultaneously. This high-capacity basket ensures that multiple items can be processed in one cleaning cycle, significantly improving operational efficiency and throughput.

The cleaning process is optimized by the use of a specialized acid-base chemical cleaning agent, which effectively removes contaminants, residues, and impurities from the surfaces of the jigs, fixtures, and pallets. This solvent is carefully chosen to provide maximum cleaning power while being safe and compatible with the materials commonly used in manufacturing equipment. Additionally, the wash temperature can be adjusted from room temperature up to 60℃, allowing for flexible cleaning conditions depending on the specific cleaning requirements and the nature of the contaminants.

In terms of power and operation, the Pallet Cleaning Machine is driven by compressed air, ensuring a reliable, safe, and energy-efficient drive system. This pneumatic drive mechanism eliminates the need for complex electrical motors in certain components, reducing maintenance requirements and enhancing the machine’s lifespan. Despite its pneumatic drive, the machine’s power supply is rated at 1.1KW, providing sufficient energy to support all its functions effectively and maintain consistent cleaning performance.

The design of the machine emphasizes ease of use and versatility, making it suitable for a wide range of cleaning applications within electronics manufacturing and other industries where precise and thorough cleaning of pallets and fixtures is essential. Its robust construction and high-quality materials ensure durability and long service life, even in demanding industrial environments.

In summary, the Pallet Cleaning Machine offers an excellent combination of capacity, power, and efficiency. With a large clean tank capacity of 80L, a sizable 2.1000mm diameter cleaning basket that can handle 20 to 40 fixtures at once, and a powerful 1.1KW power supply, it is an ideal choice for companies looking to improve their cleaning processes. The use of an acid-base chemical cleaning agent and adjustable wash temperatures from room temperature to 60℃ further enhance its cleaning effectiveness, while the compressed air drive system ensures reliable and low-maintenance operation. This machine represents a valuable investment for any facility requiring precise and effective cleaning of DIP and SMT jigs, fixtures, and pallets.

Features:

• Product Name: Pallet Cleaning Machine
• Drive: Compressed-Air
• Drying Method: Hot Air Drying
• Wash Temperature Range: Room Temp to 60℃
• Liquid Tank Capacity: 80L
• Machine Type: Automatic
• 1000mm diameter big round cleaning basket, can clean 20~40 pcs fixtures at one time
• Air Supply: 0.5~0.7 Mpa
• Air Blower Power: 4.0 KW

Technical Parameters:

Applications:

The Automatic Cleaning Equipment for Cleaning Trays and Cleaning Tools, model SME-5230, is an advanced pallet cleaning machine designed to meet the rigorous demands of industrial cleaning applications. Originating from China, this automatic machine is engineered to provide efficient, thorough cleaning of pallets and trays used across various industries, ensuring hygiene and operational efficiency.

One of the key application occasions for the SME-5230 pallet cleaning machine is in manufacturing plants where pallets are frequently used to transport raw materials and finished products. The machine’s acid-base chemical cleaning agent effectively removes stubborn residues, oils, and contaminants that accumulate during production processes. With a spray pressure ranging from 3 to 4 kgf/cm2, the cleaning system ensures deep penetration and thorough washing of pallets, maintaining cleanliness standards required in food processing, pharmaceuticals, and electronics manufacturing.

In logistics and warehousing sectors, the SME-5230 plays a vital role in maintaining the cleanliness of pallets that are reused multiple times. The automatic nature of the machine reduces labor costs and improves turnaround time, making it ideal for facilities with high pallet throughput. Additionally, the wash basket size of φ1500mm accommodates a wide variety of pallet sizes, enhancing versatility and operational convenience.

The machine’s noise level is less than 75 dB, making it suitable for use in environments where noise pollution is a concern, such as indoor warehouses or production floors adjacent to office spaces. Furthermore, the cleaning process includes a dry time of 10 to 20 minutes, ensuring pallets are ready for immediate reuse without compromising hygiene.

A standout feature of the SME-5230 is the clean liquid and rinse water auto fill-in and discharge function, which automates the supply and removal of cleaning agents and rinse water. This functionality not only optimizes water and chemical usage but also reduces manual intervention, enhancing operational efficiency and environmental sustainability.

Overall, the SME-5230 pallet cleaning machine is ideal for industries requiring reliable, automatic cleaning solutions that combine high performance with environmental consciousness. Whether in food production, pharmaceuticals, electronics, or logistics, this equipment ensures pallets are consistently clean, dry, and ready for safe use, supporting streamlined operations and compliance with hygiene standards.

Customization:

Our Pallet Cleaning Machine, model SME-5230, from our brand Automatic Cleaning Equipment for Cleaning Trays and Cleaning Tools, offers customizable features to meet your specific needs. Designed and manufactured in China, this machine boasts a wash basket size of φ1500mm, driven by compressed-air with an air supply range of 0.5~0.7Mpa to ensure efficient operation.

The cleaning process utilizes an acid-base chemical cleaning agent, with a clean tank capacity of 80L, providing ample volume for thorough cleaning cycles. The clean liquid spray pressure can be adjusted up to 6kg/cm2, enabling the machine to thoroughly clean all aspects of fixtures and pallets.

Equipped with a PLC control system featuring a user-friendly touchscreen interface, the SME-5230 allows for precise control and customization of cleaning parameters. Additionally, the machine operates at a noise level of less than 75 dB, ensuring a quieter working environment.

We offer tailored customization services to adapt the machine’s specifications, including wash basket size, drive system settings, solvent compatibility, and control options, to perfectly fit your operational requirements.

Support and Services:

Our Pallet Cleaning Machine is designed to provide efficient and thorough cleaning of pallets to ensure hygiene and extend pallet life. For technical support, please refer to the user manual included with your machine, which contains detailed instructions on installation, operation, and maintenance.

Regular maintenance is recommended to keep the machine running smoothly. This includes checking and cleaning the brushes, inspecting the water and detergent systems, and ensuring all moving parts are properly lubricated.

If you encounter any technical issues, troubleshooting guides are available to help diagnose common problems such as power failures, brush malfunctions, or water flow issues. Following these guides can often resolve issues quickly without the need for professional service.

For more complex repairs or if replacement parts are needed, professional service technicians are available to assist. We offer comprehensive service plans that include routine inspections, preventive maintenance, and prompt repair services to minimize downtime.

Our support team is committed to ensuring the optimal performance of your Pallet Cleaning Machine. We recommend using only genuine parts and approved cleaning agents to maintain machine warranty and performance standards.

In addition, training sessions and instructional materials are available to help your staff operate the machine safely and effectively. Proper training can enhance productivity and reduce the risk of damage or injury.

We continuously strive to improve our products and services. Customer feedback is valued and used to enhance future versions of the Pallet Cleaning Machine and support offerings.

Packing and Shipping:

The Pallet Cleaning Machine is carefully packaged to ensure safe delivery and optimal protection during transportation. Each unit is securely wrapped with industrial-grade shrink wrap and placed on a sturdy wooden pallet to prevent movement and damage.

Protective corner guards and foam padding are added around sensitive components to absorb shocks and vibrations. The machine is then enclosed in a robust corrugated cardboard box or custom crate, depending on size and destination requirements.

For shipping, the palletized package is labeled with handling instructions, including “Fragile” and “This Side Up” to guide carriers. The shipment can be transported via freight carriers, ensuring timely and secure delivery to the customer’s site.

Additional shipping options, such as liftgate service and inside delivery, are available upon request to facilitate smooth unloading and installation.

FAQ:

Q1: What is the brand name of the pallet cleaning machine?

A1: The brand name is Automatic cleaning equipment for cleaning trays and cleaning tools.

Q2: What is the model number of this pallet cleaning machine?

A2: The model number is SME-5230.

Q3: Where is the pallet cleaning machine manufactured?

A3: This pallet cleaning machine is made in China.

Q4: What types of pallets can the SME-5230 clean?

A4: The SME-5230 is designed to clean a variety of pallets, including wooden, plastic, and metal pallets efficiently.

Q5: Is the pallet cleaning machine easy to operate?

A5: Yes, the SME-5230 features an automatic cleaning system that is user-friendly and requires minimal manual intervention.
