SME-5100 Double-Station 1000mm Diameter Round Basket Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-5100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1650*1900*1850 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 100 sets per year

Get Best Price
Product Details
High Light:

1000mm Pallet Cleaning Machine

,

SME 5100 Pallet Cleaning Machine

,

SME 5100 smt reflow oven

Basket Size:
φ1000mm
Cleaning Height:
400mm As Max
Clean Time:
5~15min
Rinse Time:
2~3min
Dry Time:
5~15min
Liquid Tank Capacity:
80L
Water Tank Capacity:
80L
Filter:
20um
Machine Size:
1450*1650*1450( L*W*H) Mm
Machine Weight:
500KG
Power:
Compressed-air, No Electric Power
Basket Size:
φ1000mm
Cleaning Height:
400mm As Max
Clean Time:
5~15min
Rinse Time:
2~3min
Dry Time:
5~15min
Liquid Tank Capacity:
80L
Water Tank Capacity:
80L
Filter:
20um
Machine Size:
1450*1650*1450( L*W*H) Mm
Machine Weight:
500KG
Power:
Compressed-air, No Electric Power
Product Description

 Shenhua is the leading spray cleaning machine manufaturer in China. We've installed more than 4000 sets cleaning machine in domestic and overseas customers.

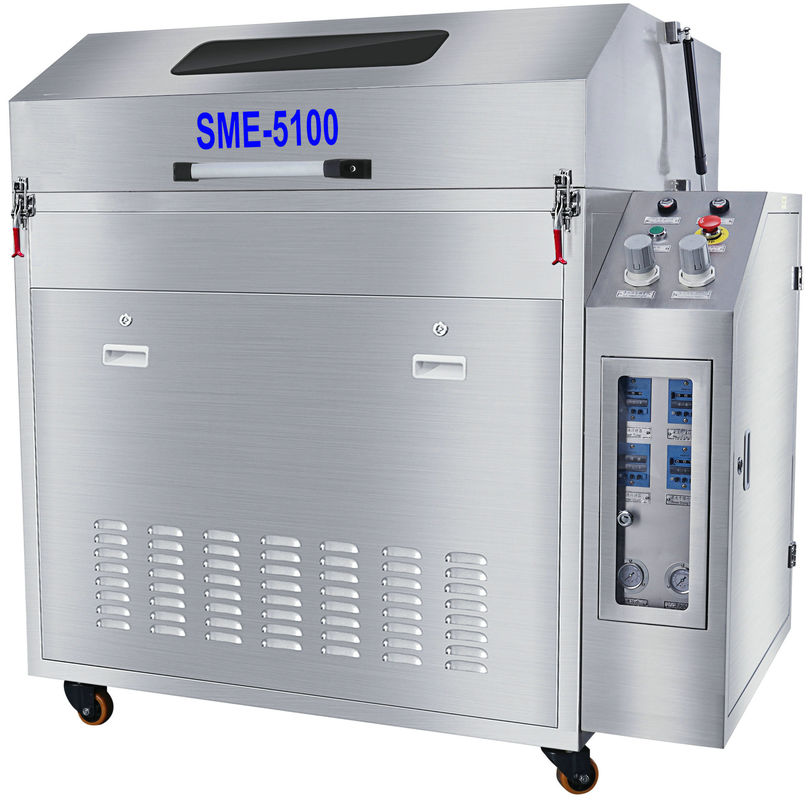

 SME-5100 Double-Station 1000mm Diameter Round Basket Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine.

  It is pneumatic cleaning machine,no electric power,safety machine.

  Both solvent and water-based liquid can be used in this machine.

 Pneumatic mahine, simple operation, simple maintenance.



SME-5100 introduction:



SME-5100pneumatic Pallet Cleaning Machine is used to clean flux, dusts on the surface of  soldering wave amchine pallets,trays, reflow oven coolers , wave-soldering oven claw, chains, and nets…etc. SME-5100 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt pallets on to the cleaning basket, setting the cleaning parameters, the machine will automatically perform wash, rinse and dry process by just pushing start key. The pallets are very clean after cleaning.



SME-5100 features:



1. Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.

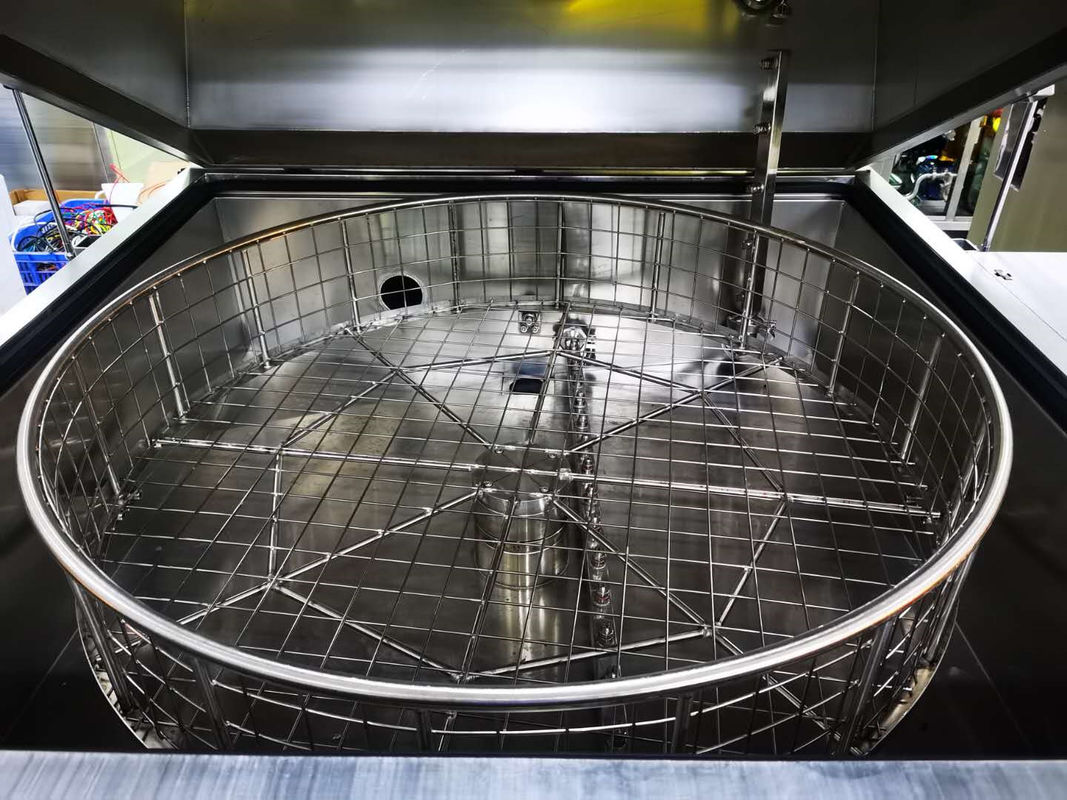

2. 1000mm diameter big cleaning round basket, can clean 20~40 pcs pallets at one time.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 3~4kg/cm2, make it throughly clean of whole Pallets.
5. Mechanical timer and valves control, cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ compressed air dry, all process complete in a cycle automatically.
7. Both water base liquid and solvent can be used.
8. Closed-loop clean and rinse, clean liquid and rinse water are cycling filtered and reused in the machine.
9. Standard equipped liquid and water auto fill in and discharge function.
10.The Pallet are clean and after cleaning, standby and ready to use.



SME-5100 specficaiton:

S/N ITEM SPEC
1 Cleaning basket size :Φ1000mm× 200mm(H),cleaning height:400mm
2 Cleaning tank capacity 80L( maximum )
3 Rinse tank capacity 80L( maximum )
4 Cleaning method 360°Spray Rotary Cleaning
5 Dry method Compressed air blow dry
6 Wash time 10~20min
7 Rinse time 1~2min
8 Dry time 5~10min
9 Fliter net 1 1mm
10 Filter net 2 100um
11 Filter 3 20um
12 Air supply 0.5~0.7Mpa
13 Air flow rate 800~1000L/min
14 Air vent size 130mm(Φ)×50mm(H)
15 Machine size L1450*W1550*H1400mm
16 Machine weight 400kg



Questions and Answers:



Q1: Why SME-5100 can use sovent like alchol to clean products?

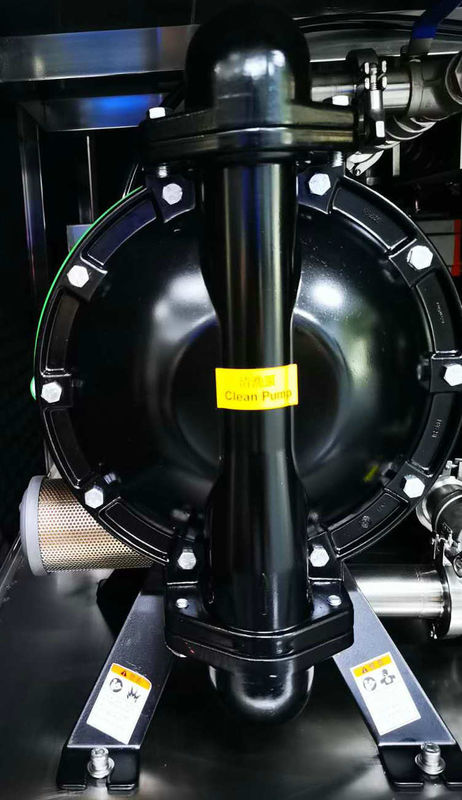

A1: SME-5100 use air pumps, air motor, air valves, mechanical meters, so it is only need compressed-air as power.



Q2: Is SME-5100 safe?

A2: Yes, SME-5100 do not use electric power, no electricity, no sparks, so it is very safe even use slovent to clean products.



Q3: What kind of detergent can use in this machine?

A3: Yes, both water-based liquid and solvent can use in SME-5200.







Comparison pictures before and after cleaning:



SME-5100 Double-Station 1000mm Diameter Round Basket Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 0



SME-5100 Double-Station 1000mm Diameter Round Basket Pneumatic Smt Soldering Wave Oven Pallet Cleaning Machine 1
