Home > products > Pallet Cleaning Machine > SME-5220 Wave Soldering Oven Synthetic Pallet Alumiun Pallet, Stainless Steel Pallet Flux Residual Cleaning Machine

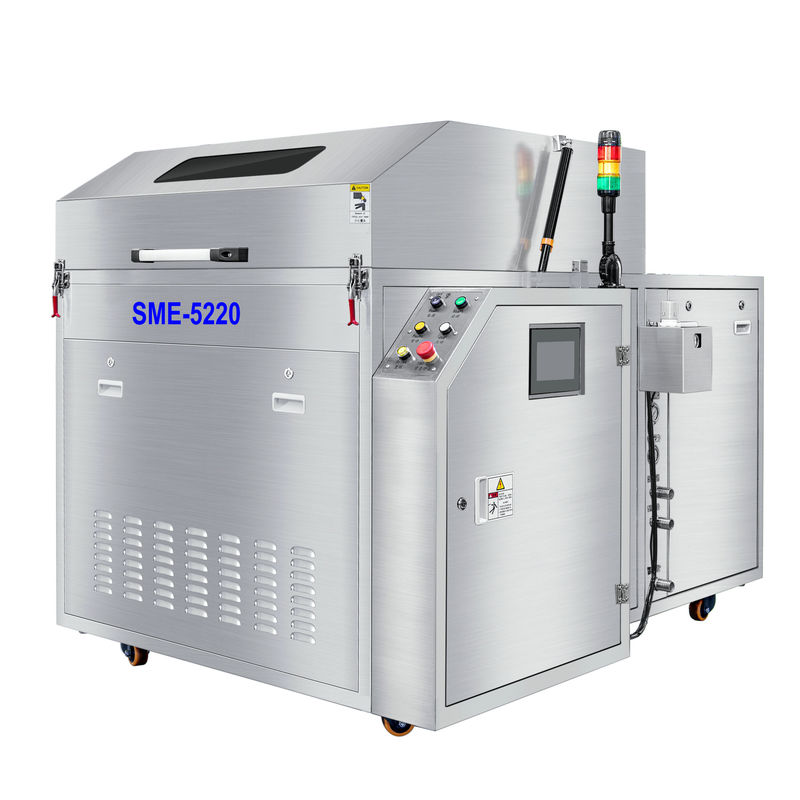

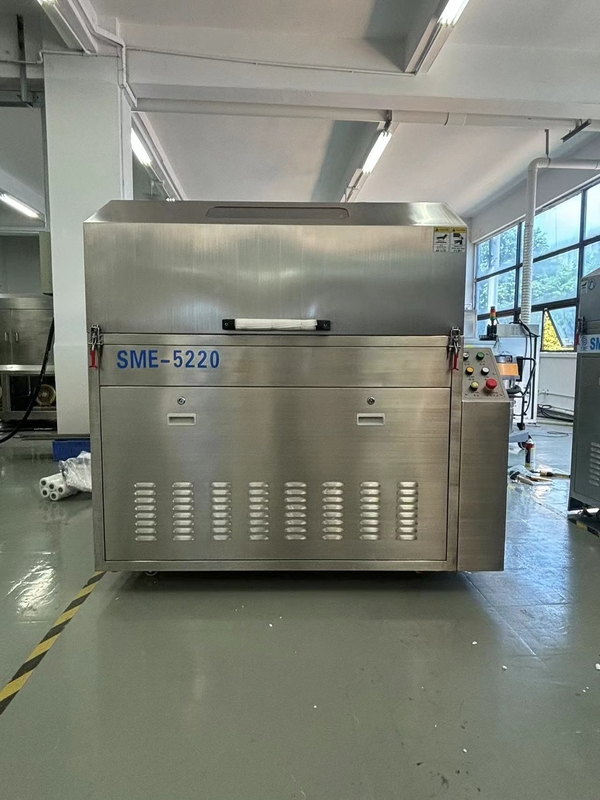

SME-5220 Wave Soldering Oven Synthetic Pallet Alumiun Pallet, Stainless Steel Pallet Flux Residual Cleaning Machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-5220

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1600*2200*1850 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

Big 3P Pallet Cleaning Machine

,

SME Pallet Cleaning Machine

,

SME btu reflow oven

Wash Basket Size:
φ1200mm
Pallet Height:
450mm As Max
Wash Time:
5~10min
Rinse Time:
1~2min
Dry Time:
10~20min
Wash Temp:
Room Temp~60℃
Rinse Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Liquid Capacity:
80L
Water Capacity:
80L
Filter:
20um
Power And Air Supply:
AC380V,3P,50/60Hz,33KW,0.5Mpa
Machine Size:
1400*2000*1450( L*W*H) Mm
Machine Weight:
600KG
Wash Basket Size:
φ1200mm
Pallet Height:
450mm As Max
Wash Time:
5~10min
Rinse Time:
1~2min
Dry Time:
10~20min
Wash Temp:
Room Temp~60℃
Rinse Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Liquid Capacity:
80L
Water Capacity:
80L
Filter:
20um
Power And Air Supply:
AC380V,3P,50/60Hz,33KW,0.5Mpa
Machine Size:
1400*2000*1450( L*W*H) Mm
Machine Weight:
600KG
Product Description

Machine description:



As a Wave Soldering Oven Synthetic Pallet Alumiun Pallet, Stainless Steel Pallet Flux Residual Cleaning Machine, SME-5220 is polularly used to clean flux, dusts on the surface of wave soldering oven pallets and reflow oven pallets.



SME-5220 has wash unit, rinse unit, dry unit, filter unit and electric control unit. Put the dirt pallets on to the cleaning basket, setting the cleaning parameters, the machine will automatically complete wash, rinse and dry process by just pushing start key. The pallets are very clean and dry after cleaning and ready for use.



Machine features:



1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.

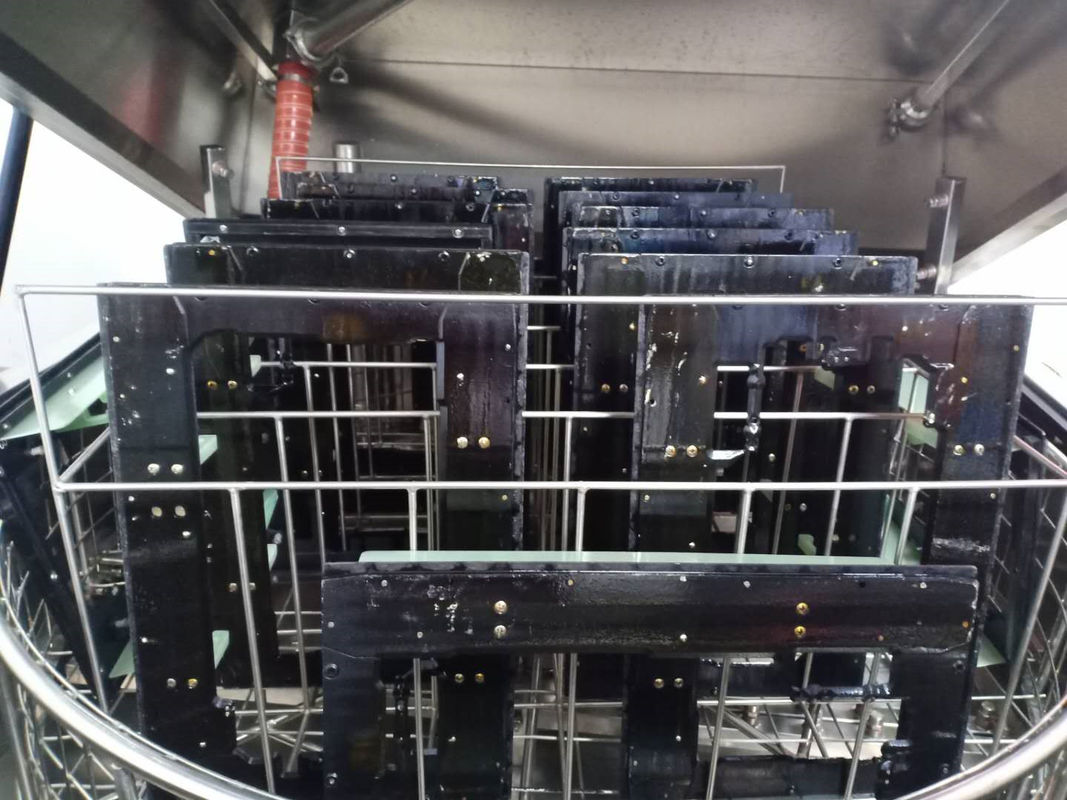

2. φ1000mm diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time.

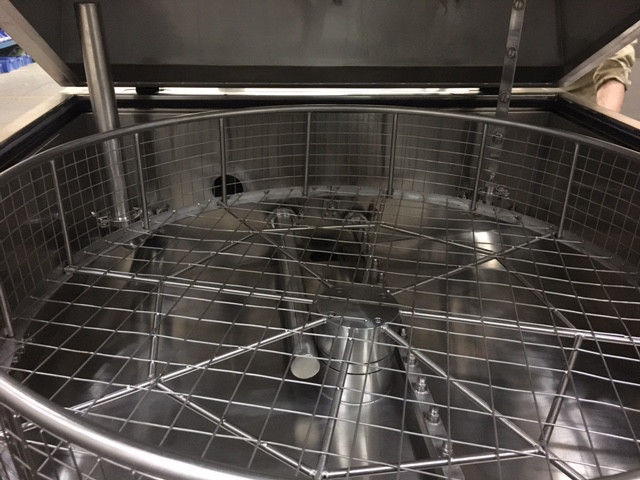

3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.

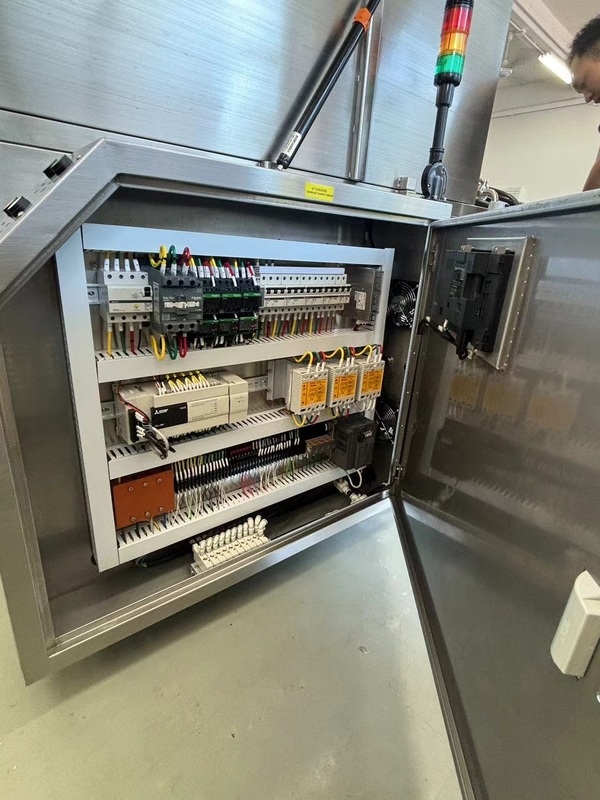

5. PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7. Clean liquid and water heat and temperature keeping function.
8. Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9. Standard equipped solution and water auto fill in and discharge function.
10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.



Machine spec:

Item SME-5220 Spec
Cleaning basket size Φ1200mm x H 200mm. Clean height 450mm
Spray unit Upper/lower/front side,720°, all-around spray

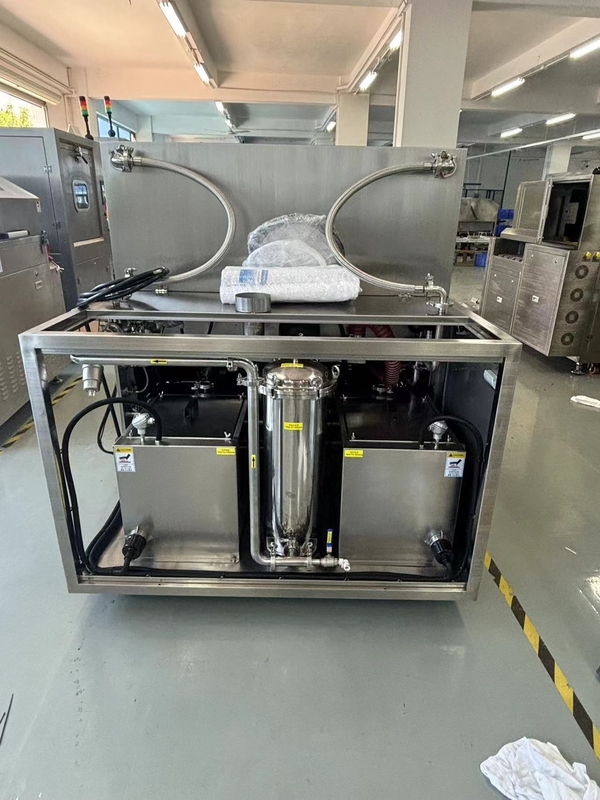

3-level filter system 2mm /100um/20um filters
Clean tank capacity 80L
Rinse tank capacity 80L
Clean spray pressure 5~6 kg/cm2
Clean time 5~15 Min
Rinse time 1~3 Min
Dry time 10~20Min
Clean liquid heat temp Room temp~80℃
Rinse water heat temp Room temp~80℃
Hot air heat temp Room temp~90℃
Clean/Rinse pump power 2.2KW/1.1kw
Liquid/Water heaater power 9KW
Hot air heat power 9KW

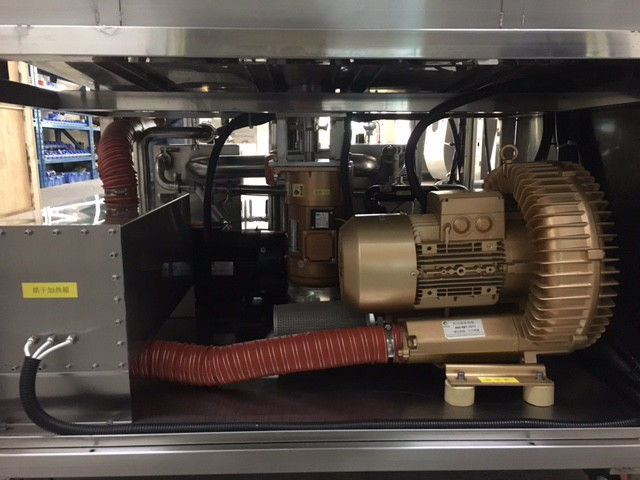

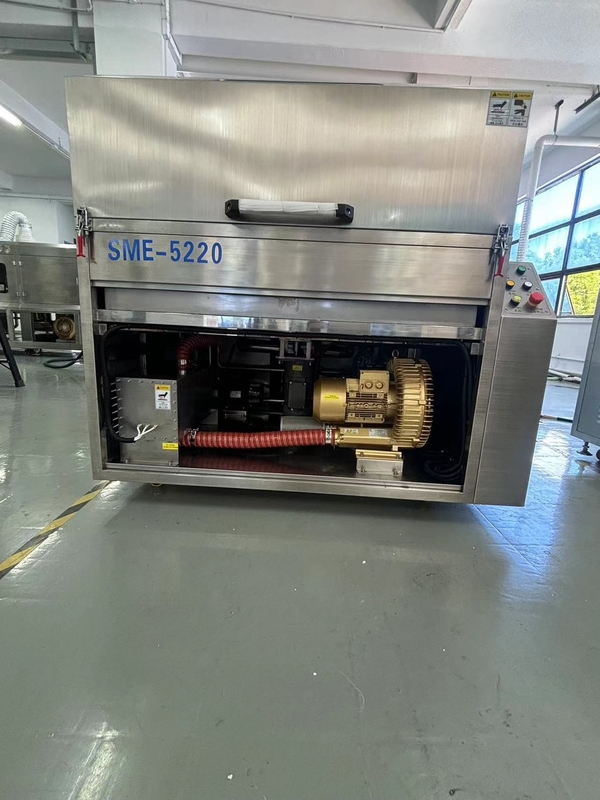

Air blower power 4.0KW
Air supply 0.5~0.7Mpa
Power supply 3 P,AC 380V,50/60HZ,33KW
Machine size L1600 x W2200 x H 1450 (mm)
Machine weight 700KG



Question and Answers:

Q1: Can SME-5220 clean pallets ,trays, fixtures, chains, claws of reflow oven and wave soldering oven?

A1: Yes, it can clean all parts with flux.



Q2: How many pallets can SME-5220 clean one time?

A2: It depends on pallet size. for L200xW150mm pallet, it can clean about 40~50PCS one time.



Q3: What is cycle time of SME-5220?

A3: It is about 40~45 miutes, including wash,rinse and hot air blow dry time.



Q4: Does the round basket turns with setting speed?

A4: Yes, the 1200mm diamater round basket turns at the speed of 15~20RPM



Comparison pictures before and after cleaing:

SME-5220 Wave Soldering Oven Synthetic Pallet Alumiun Pallet, Stainless Steel Pallet Flux Residual Cleaning Machine 0



SME-5220 Wave Soldering Oven Synthetic Pallet Alumiun Pallet, Stainless Steel Pallet Flux Residual Cleaning Machine 1
