Compressed Air Driven 1000mm Diameter Round Basket Reflow Oven Flux Condensor Wash Machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-5100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1700*1800*1800 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 100sets per year

Get Best Price
Product Details
High Light:

200mm solvent cleaning machine

,

60L solvent cleaning machine

,

200mm smt reflow oven

Basket Size:
φ1000mmxH200mm
Power:
Compressed-air
Wash Tank Capacity:
50L
Rinse Water Capacity:
50L
Cleaning Time:
10~15min
Rinse Time:
1~2min
Air Dry Time:
5~10min
Air Pump:
1.5inch Air Pump
Spray Pressure:
3~4kgf/cm2
Material:
Stainless Steel
Basket Size:
φ1000mmxH200mm
Power:
Compressed-air
Wash Tank Capacity:
50L
Rinse Water Capacity:
50L
Cleaning Time:
10~15min
Rinse Time:
1~2min
Air Dry Time:
5~10min
Air Pump:
1.5inch Air Pump
Spray Pressure:
3~4kgf/cm2
Material:
Stainless Steel
Product Description

Product Introduction:

 Compressed Air Driven 1000mm Diameter Round Basket N2  Reflow Oven Flux Condensor Cleaning Machine.

 Pneumatic control, powerful cleaning ability, easy operation, easy maintenance.

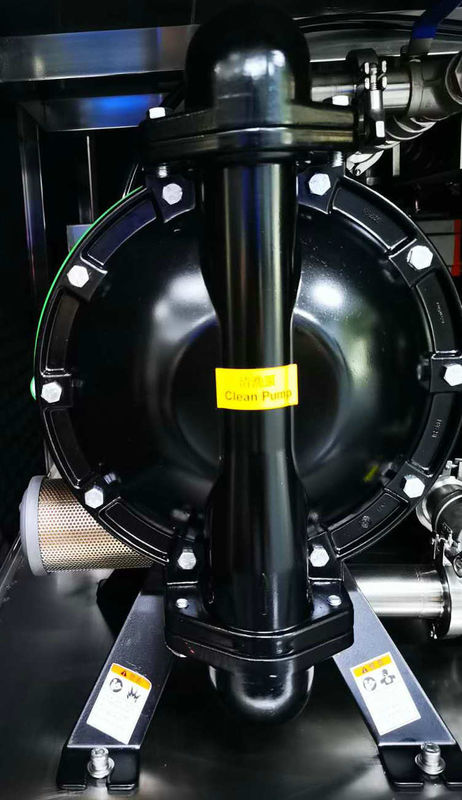

 Air pumps, air motor, mechanical meters, mechanical valves.

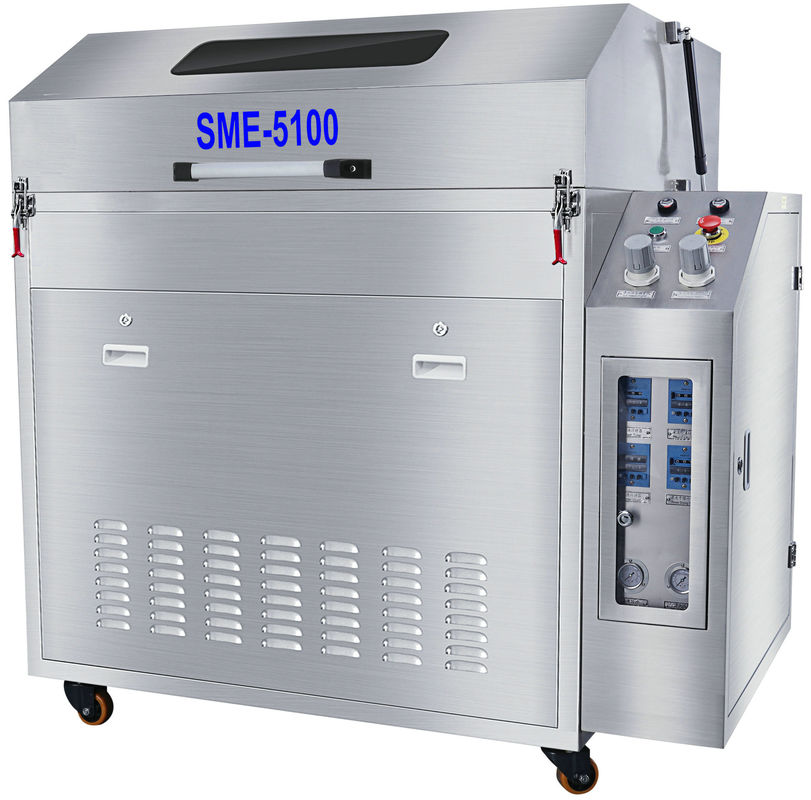

 SME-5100 Compressed Air Driven 1000mm Diameter Round Basket Reflow Oven Flux Cooler And Filter Cleaning Machine. is used to clean flux on reflow oven coolers and filters.... It is a pneumatic cleaning machine, not use electric power. Both solvent and water based liquid can be used in this machine. Very easy to operate and maintenance.

Machine Features:

1. Pneumatic control, no use electric power at all, absolutely clean safe.
2. SUS 304 machine structure, resist Acid and Alkali corrosion, firm and attractive.
3. One-button easy operation, high pressure clean+ high pressure rinse+ compressed air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine
5. Solvent recycled to use to make cost down.
6. Both solvent and water based liquid can be used.
7. Non contact clean, protect cooler
8. Standard equipped with auto fill-in and drain-out function.
9. Inner lock safety design, once door open, the machine stops immediately.

Machine Spec:

Item SME-5100
Cleaning basket size Φ1000 x H 200(mm)
Clean spray unit Upper/Lower/front side, all-round spray, basket rotate
2-level filter 1mm/20um filter
Clean time 5~15 Min
Rinse time 1~2 Min
Air dry time 5~10min
Clean tank capacity 80L
Rinse tank capacity 80L
Clean spray pressure 2~4kg/cm2
Air supply 0.5~0.7Mpa,800~1000L/min
Machine size L1450 x W1550 x H 1400 (mm)
Machine weight 400KG



Customer questions and Answers:

Q1: Is SME-5100 safe?

A1: Yes, SME-5100 do not use electric power, only compressed-air, so no risk of electricity, heat, sparks.



Q2: How SME-5100 clean products?

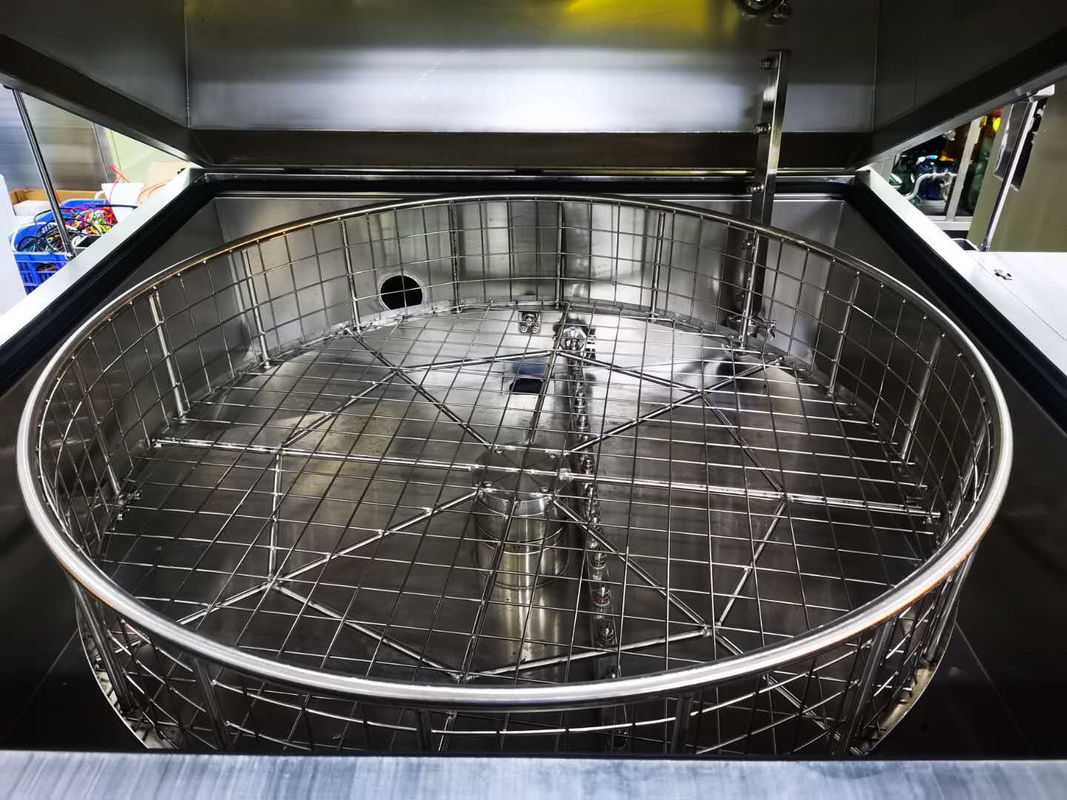

A2: The products put on round basket, the upper and lower spray rods spray solvent while basket turns at low speed.



Cleaning comparison pictures beofre and after cleaning:

Compressed Air Driven 1000mm Diameter Round Basket Reflow Oven Flux Condensor Wash Machine 0  Compressed Air Driven 1000mm Diameter Round Basket Reflow Oven Flux Condensor Wash Machine 1
