Room Temp to 99C Pallet Cleaning Machine Featuring Automatic Functionality and Acid Base Chemical Cleaning Agent for Cleaning

Product Description:

The Pallet Cleaning Machine is an advanced automatic cleaning solution designed specifically for the efficient and thorough cleaning of DIP and SMT jigs, fixtures, and pallets. Engineered with precision and reliability in mind, this machine offers a superior cleaning performance that meets the rigorous demands of modern manufacturing environments. Its design and functionality ensure that cleaning processes are not only effective but also environmentally friendly and user-friendly.

One of the standout features of this pallet cleaning machine is its robust construction. Built with a total SUS 304 stainless steel structure, the machine boasts exceptional resistance to acid and alkali corrosion. This ensures a firm and stable framework that guarantees long-lasting durability even under harsh industrial conditions. The corrosion-resistant nature of the SUS 304 material means that the machine maintains its structural integrity and aesthetic appeal over extended periods of use, reducing maintenance costs and downtime.

The cleaning mechanism utilizes a powerful clean spray system with a pressure range of 4 to 6 kg/cm². This optimal spray pressure is carefully calibrated to effectively remove contaminants, residues, and residues from all surfaces of the jigs, fixtures, and pallets without causing any damage. The spray unit is ingeniously designed to cover all aspects of the items being cleaned, featuring upper, lower, and front side spray nozzles. This comprehensive spray coverage ensures that every nook and cranny is thoroughly cleaned, leaving the pallets spotless and ready for immediate use.

Driven by compressed air, the machine harnesses pneumatic power to deliver consistent and efficient cleaning cycles. The use of compressed-air drive technology not only enhances the machine's reliability and performance but also contributes to lower energy consumption compared to traditional electric motor-driven systems. This makes the pallet cleaning machine an eco-friendly choice for manufacturers looking to optimize their cleaning process while reducing their environmental footprint.

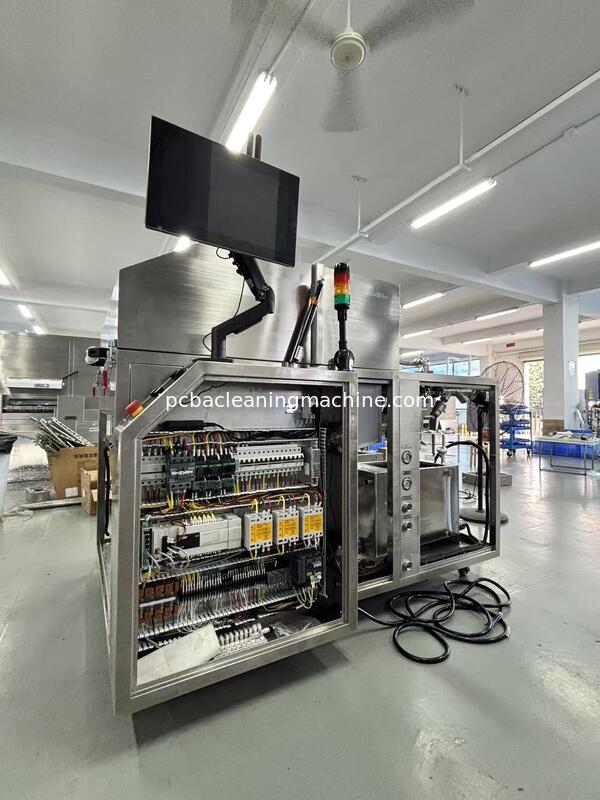

Operator convenience and ease of control are paramount in the design of this machine. It is equipped with a sophisticated PLC automatic control system that allows for seamless operation with minimal human intervention. The programmable logic controller (PLC) ensures precise control over the cleaning parameters, including spray pressure, timing, and cycle sequences. This automation enhances productivity by enabling consistent cleaning quality and reducing the risk of operator error. The intuitive control panel also simplifies machine setup and monitoring, making it accessible to users of all skill levels.

In addition to its technical capabilities, the pallet cleaning machine maintains a noise level of less than 75 decibels, ensuring a quieter working environment. This low noise emission is particularly beneficial in manufacturing settings where noise pollution can affect worker comfort and safety. The machine’s quiet operation contributes to a more pleasant workplace atmosphere without compromising cleaning efficiency.

Overall, the Pallet Cleaning Machine is an indispensable asset for industries involved in electronic manufacturing and assembly. Its automatic operation, durable SUS 304 stainless steel construction, acid and alkali resistance, comprehensive spray coverage, compressed-air drive system, and advanced PLC control combine to deliver unmatched cleaning performance. Whether for DIP and SMT jigs, fixtures, or pallets, this machine guarantees cleanliness, reliability, and efficiency, making it a smart investment for any production line aiming to maintain high standards of quality and hygiene.

Features:

• Product Name: SME-5200 Pallet Cleaning Machine
• Used to clean flux and dust on the surface of all kinds of wave soldering oven pallets, fixtures, jigs, claws, chains, nets, reflow oven coolers, and filters
• Drying Method: Hot Air Drying
• Control System: PLC Automatic Control
• Solvent: Acid-base Chemical Cleaning Agent

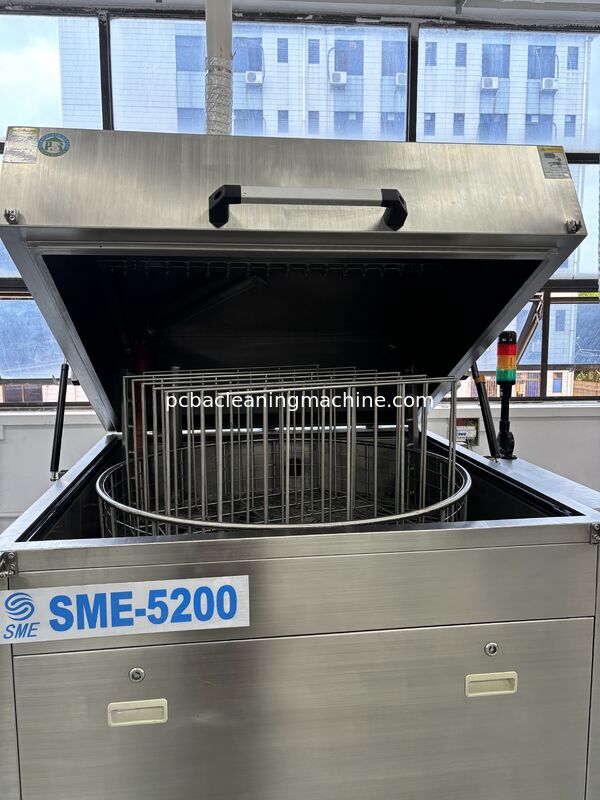

• Wash Basket Size: φ1500mm
• Dry Time: 5 to 15 minutes
• Clean Tank Capacity: 80L

Technical Parameters:

Applications:

The Automatic cleaning equipment for cleaning trays and cleaning tools, model number SME-5230, is an advanced pallet cleaning machine designed to meet the rigorous demands of industrial cleaning applications. Originating from China, this state-of-the-art equipment offers highly efficient and thorough cleaning solutions for various trays, pallets, and fixtures used in manufacturing and logistics. Its PLC Automatic Control system ensures precise and user-friendly operation, enabling consistent results with minimal human intervention.

This pallet cleaning machine is ideal for industries requiring frequent and reliable cleaning of pallets and fixtures, such as food processing, pharmaceuticals, electronics assembly, and automotive manufacturing. The machine features a 1000mm diameter big round cleaning basket, capable of cleaning 20 to 40 pieces of fixtures simultaneously. This large capacity significantly enhances productivity by reducing cleaning cycles and downtime.

The equipment operates with a spray pressure of 3 to 4 kgf/cm², providing powerful water jets to remove dirt, grease, and residues effectively. The cleaning process uses a clean tank capacity of 80L, ensuring sufficient liquid volume for multiple cleaning cycles without frequent refills. The wash temperature can be adjusted from room temperature up to 60℃, allowing customization based on the type of contaminants and material sensitivity.

After washing, the SME-5230 utilizes hot air drying to ensure pallets and tools are dried quickly and thoroughly, preventing rust and contamination. With a power supply of 1.1KW, the machine balances energy efficiency with high performance, making it suitable for continuous industrial use. The combination of automatic control, adjustable parameters, and robust construction makes this pallet cleaning machine a versatile and essential asset in maintaining cleanliness standards.

Typical application scenarios include cleaning trays and pallets in warehouses, production lines, and quality control areas. It is also well-suited for cleaning tools and fixtures used in assembly processes, ensuring equipment hygiene and prolonging service life. This machine's adaptability to various cleaning requirements makes it indispensable in any facility where cleanliness and operational efficiency are paramount.

Customization:

Our Pallet Cleaning Machine, model SME-5230, is a high-quality automatic cleaning equipment designed for cleaning trays and cleaning tools. Manufactured in China and shipped from the port of Shenzhen, this machine utilizes an acid-base chemical cleaning agent to ensure thorough cleaning.

The SME-5230 offers easy one-button operation, allowing users to complete the entire cleaning cycle automatically. This includes high pressure cleaning at 4~6 kg/cm² spray pressure, rinsing with a rinse time of 1~3 minutes, and hot air drying at temperatures ranging from room temperature up to 99℃. The drying time can be set between 5 to 15 minutes according to your requirements.

With a spray pressure of 3~4 kgf/cm² during the cleaning process, the machine ensures effective removal of contaminants while maintaining the integrity of your trays and tools. This all-in-one cycle makes the SME-5230 an efficient and reliable solution for your pallet cleaning needs.

Support and Services:

Our Pallet Cleaning Machine is designed to provide efficient and thorough cleaning of pallets, ensuring they are free from dirt, debris, and contaminants. For optimal performance, regular maintenance and timely servicing are recommended.

Technical support for the Pallet Cleaning Machine includes troubleshooting guidance, operational assistance, and replacement parts availability. Our team of experts is equipped to help diagnose any issues and provide solutions to minimize downtime.

We offer comprehensive services including installation support, user training, routine maintenance schedules, and repair services. Proper training ensures that operators can use the machine safely and effectively, while regular maintenance extends the machine's lifespan.

Spare parts and consumables for the Pallet Cleaning Machine are available to ensure continuous operation. We recommend using only authorized parts to maintain machine integrity and warranty coverage.

For best results, please follow the user manual guidelines and schedule periodic inspections. Our support services are committed to helping you maximize the value and reliability of your Pallet Cleaning Machine.

Packing and Shipping:

The Pallet Cleaning Machine is carefully packaged to ensure safe delivery and optimal protection during transit. Each unit is securely wrapped with protective materials and placed inside a sturdy wooden crate to prevent any damage from handling or environmental factors.

The packaging includes foam padding around sensitive components to absorb shocks and vibrations. All accessories and user manuals are neatly packed within the crate to avoid loss or misplacement.

For shipping, the palletized crates are loaded onto trucks or containers with proper securing methods to prevent movement. We recommend using freight services that specialize in heavy machinery to guarantee timely and safe delivery to your location.

Upon receiving the shipment, please inspect the package for any signs of damage and report immediately if any issues are found. Our packaging and shipping standards are designed to provide you with a hassle-free experience and ensure your Pallet Cleaning Machine arrives in perfect working condition.

FAQ:

Q1: What is the brand name of the Pallet Cleaning Machine?

A1: The brand name is Automatic cleaning equipment for cleaning trays and cleaning tools.

Q2: What is the model number of the Pallet Cleaning Machine?

A2: The model number is SME-5230.

Q3: Where is the Pallet Cleaning Machine manufactured?

A3: It is manufactured in China.

Q4: What types of pallets can the SME-5230 clean?

A4: The SME-5230 is designed to clean various types of pallets, including wooden, plastic, and metal pallets.

Q5: Is the Pallet Cleaning Machine easy to operate?

A5: Yes, the SME-5230 features automatic cleaning functions and user-friendly controls, making it easy to operate.
