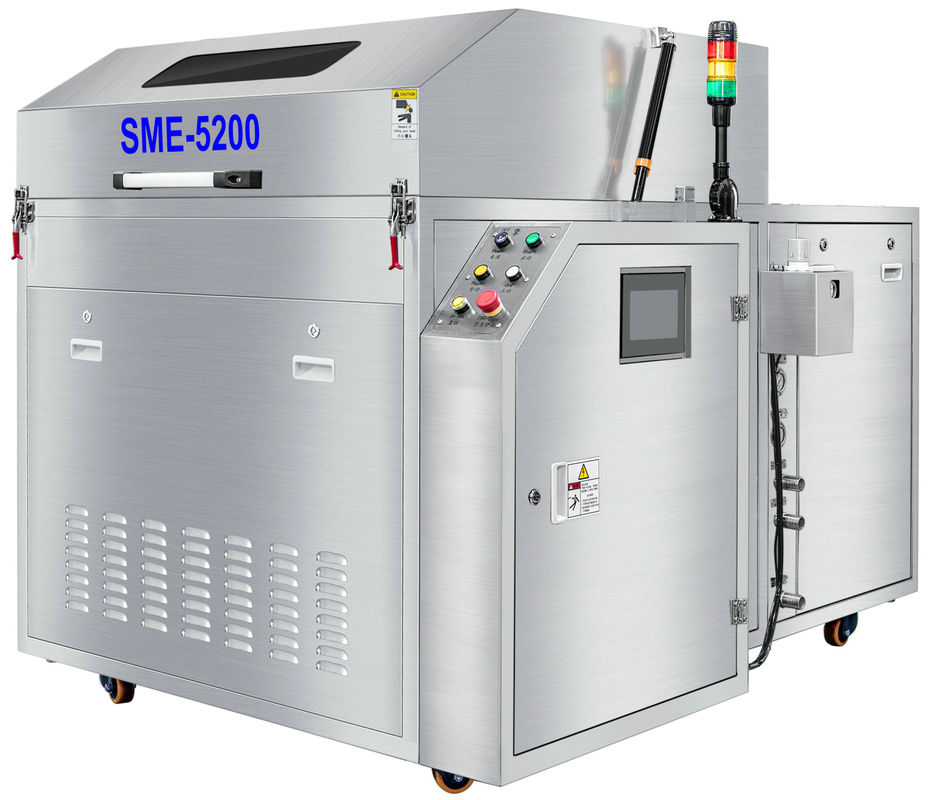

Processing Parts Automatic Spray Wash Machine Processing Oil Resin Particle Dusts Dual Station Spray Cleaner

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-5200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1600*2200*1850 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

SUS304 solder reflow oven

,

ERSA solder reflow oven

,

ERSA oven cleaning machine

Wash Basket Size:
φ1000mm
Wash Basket Size:
φ1000mm
Product Description





Machine usage:

SME-5200 Processing Parts Automatic Spray Wash Machine Processing Oil Resin Particle Dusts Dual Station Spray Cleaner is used to clean oil, resin, particles, dusts on the surface of processing parts.



Wash process: put dirty parts in round basket--liquid wash--water rinse--hot air blow dry. the processing parts on round basket turns 360° ,the upper, lower and front side spray bars fixed.



 PLC control, TP operation. SME-5200 has wash unit, rinse unit, dry unit, filter unit and electric control unit. Liqui clean, tap water rinse, hot air blow dry process are automatic conducted one by one accorind to setting programe.





Machine features:



1. Processing parts oil, particles and dusts automatic wash.

2. Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.
2.  Batch clean . φ1000mm diameter big cleaning round basket.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole parts.
5. PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7. Clean liquid and water heat and temperature keeping function.
8. Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9. Standard equipped solution and water auto fill in and discharge function.
10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.



Machine spec:



Item SME-5200 Spec

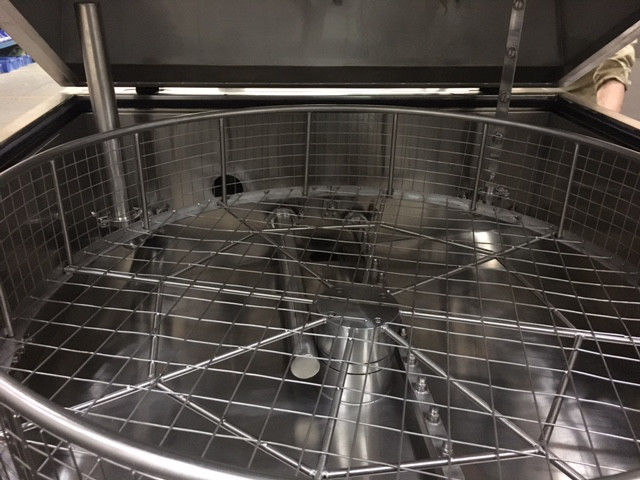

Cleaning basket size Φ1000mm x H 200mm. Clean height 450mm
Spray unit Upper/lower/front side,720°, all-around spray
3-level filter system 2mm /100um/20um filters
Clean tank capacity 80L
Rinse tank capacity 80L
Clean spray pressure 5~6 kg/cm2
Clean time 5~15 Min
Rinse time 1~3 Min
Dry time 10~20Min
Clean liquid heat temp Room temp~80℃
Rinse water heat temp Room temp~80℃
Hot air heat temp Room temp~90℃
Clean/Rinse pump power 2.2KW/1.1kw
Liquid/Water heaater power 9KW
Hot air heat power 9KW

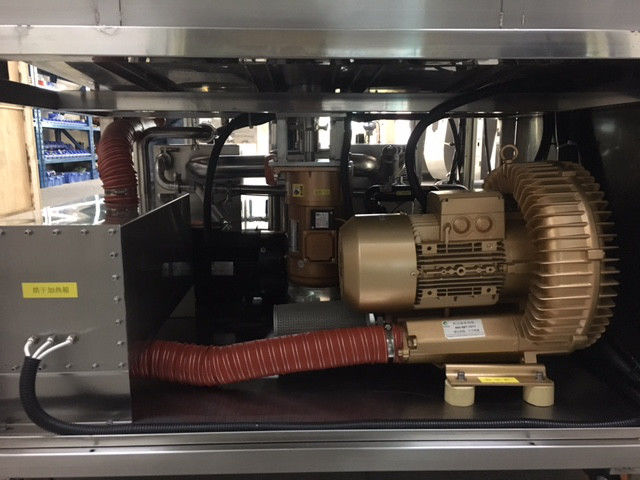

Air blower power 4.0KW
Air supply 0.5~0.7Mpa
Power supply 3 P,AC 380V,50/60HZ,33KW
Machine size L1400 x W2000 x H 1450 (mm)
Machine weight 600KG



Question and Answers:

Q1: Why SME-5200 can clean oil, particle and dust on processing?

A1: It spray liquid from up, down, front side while round basket turns 360° at certain speed. the spray lqiuid pressure is about 6kgf/cme. it is enough to wash the oil, particles and dusts off from parts.



Q2: How many parts can SME-5200 clean one time?

A2: It depends on parts size.φ1m round basket can load a lot of parts.



Q3: What is cycle time of SME-5200?

A3: It is about 40~45 miutes, including wash,rinse and hot air blow dry time.



Q4: Does the round basket turns with setting speed?

A4: Yes, the 1000mm diamater round basket turns at the speed of 15~20RPM

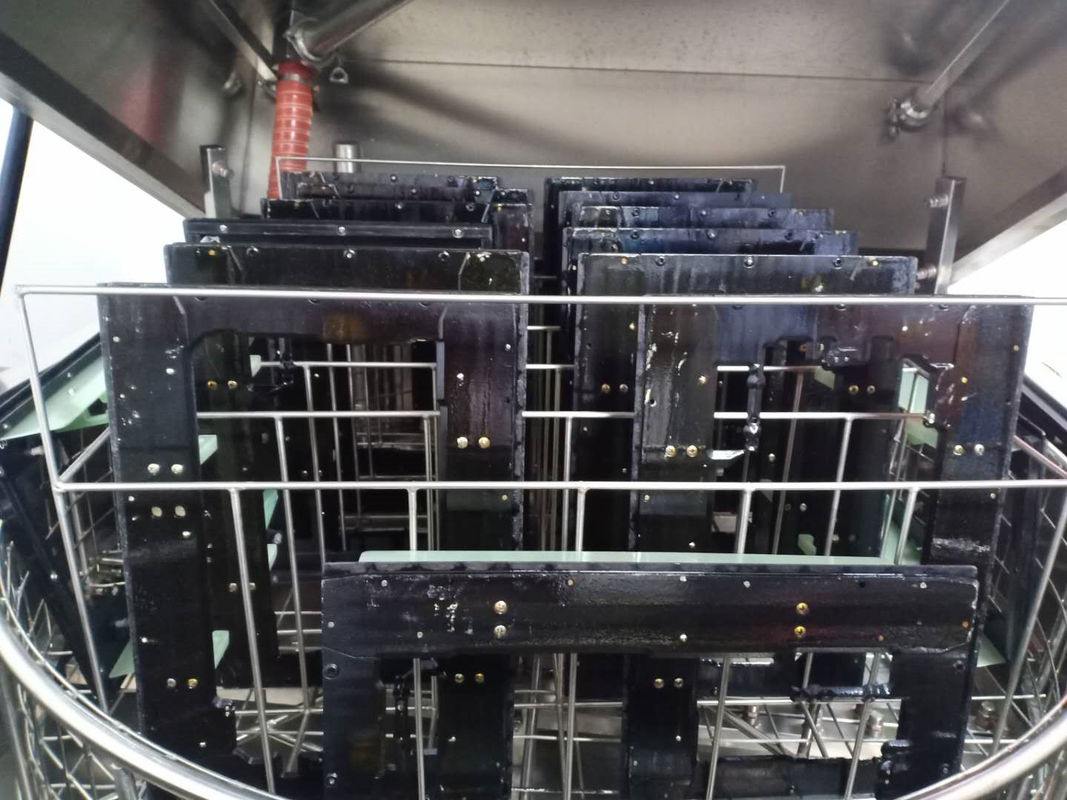

Comparison pictures before and after cleaing:

Processing Parts Automatic Spray Wash Machine Processing Oil Resin Particle Dusts Dual Station Spray Cleaner 0



Processing Parts Automatic Spray Wash Machine Processing Oil Resin Particle Dusts Dual Station Spray Cleaner 1
