Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-5100
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1650*1900*1850 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 sets per year
Basket Size: |
φ1000mm |
Basket Size: |
φ1000mm |
No electric power, safe, pneumatic automatic cleaning machine for slovent cleaning products.

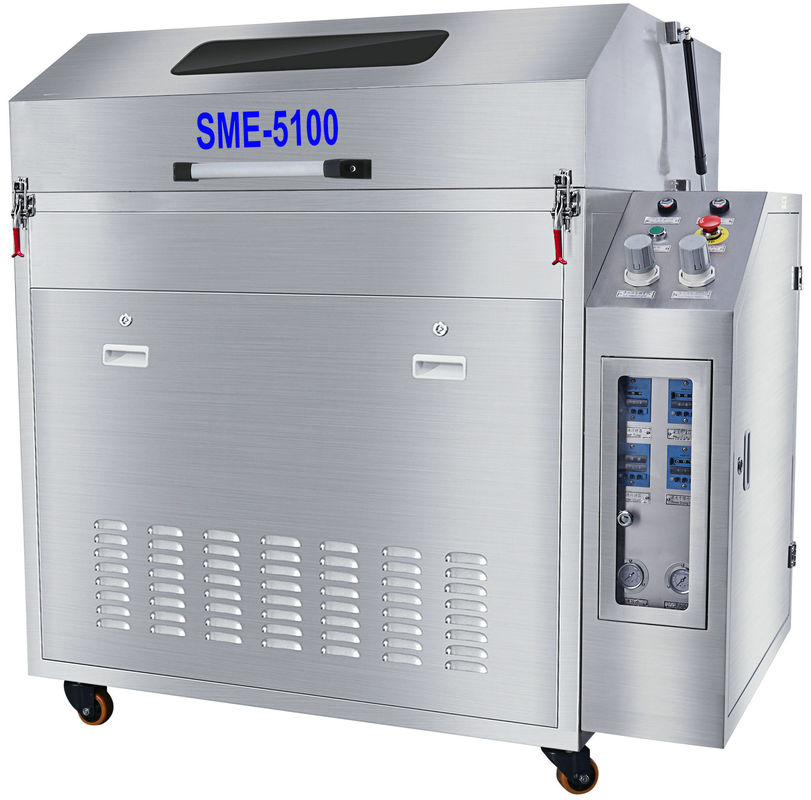

SME 5100 Solvent Washing Machine 50L Solvent Tank CE UL Pneumatic Tray Cleaning Machine.
No need electric power, just compressed-air. No need water-based lqiuid, just solvent.
Very good machine for products only can clean by solvent.

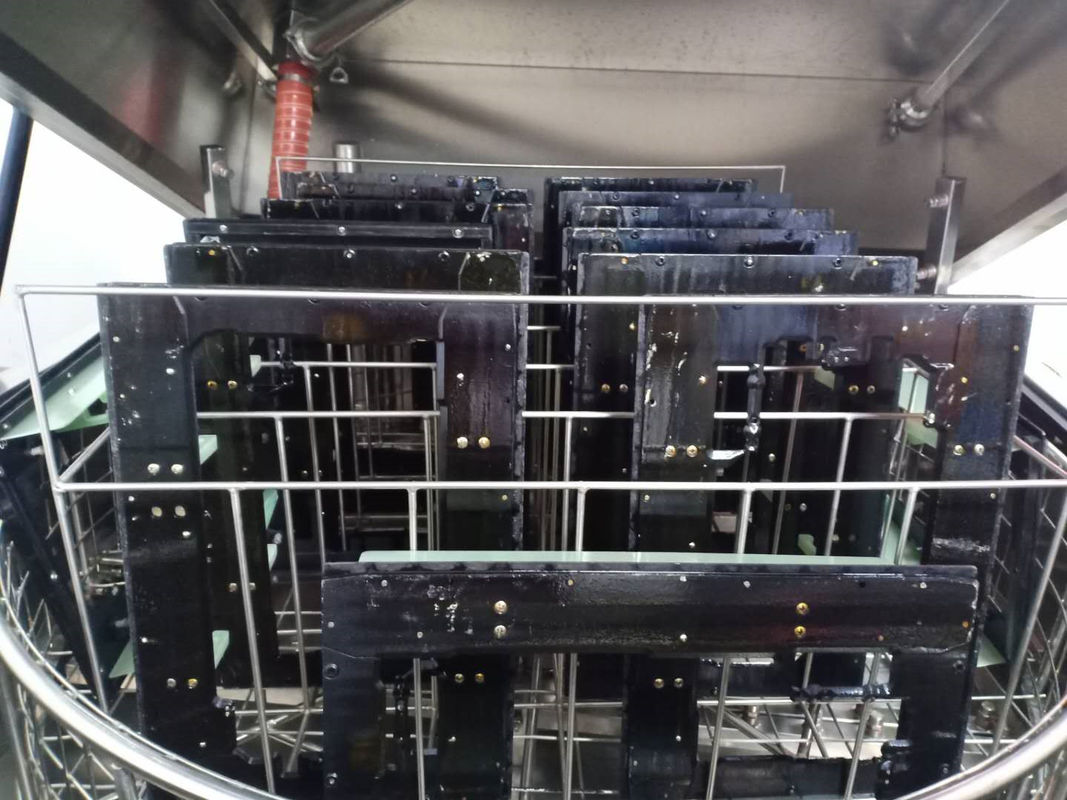

SME-5100 SUS304 stainless steel pneumatic solvent cleaning machine for products which can clean by solvent, such as:wave soldering pallets,trays, reflow oven coolers , wave-soldering oven claw, chains, and nets…etc.
SME-5100 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt pallets on to the cleaning basket, setting the cleaning parameters, the machine will automatically perform wash, rinse and dry process by just pushing start key. The pallets are very clean after cleaning.
SME-5100 features:
1. Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.

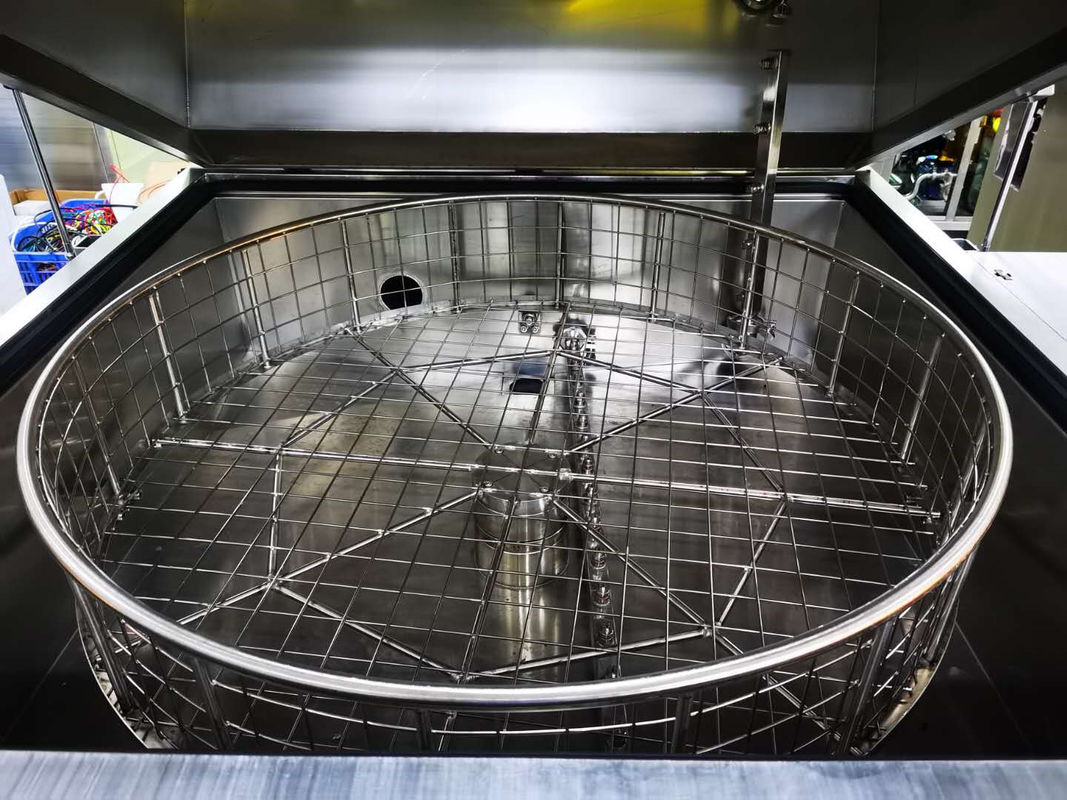

2. 1000mm diameter big cleaning round basket, can clean 20~40 pcs pallets at one time.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 3~4kg/cm2, make it throughly clean of whole Pallets.
5. Mechanical timer and valves control, cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ compressed air dry, all process complete in a cycle automatically.
7. Both water base liquid and solvent can be used.
8. Closed-loop clean and rinse, clean liquid and rinse water are cycling filtered and reused in the machine.
9. Standard equipped liquid and water auto fill in and discharge function.
10.The Pallet are clean and after cleaning, standby and ready to use.
SME-5100 specficaiton:
| S/N | ITEM | SPEC |
| 1 | Cleaning basket size | :Φ1000mm× 200mm(H),cleaning height:400mm |
| 2 | Cleaning tank capacity | 80L( maximum ) |
| 3 | Rinse tank capacity | 80L( maximum ) |
| 4 | Cleaning method | 360°Spray Rotary Cleaning |
| 5 | Dry method | Compressed air blow dry |
| 6 | Wash time | 10~20min |
| 7 | Rinse time | 1~2min |
| 8 | Dry time | 5~10min |
| 9 | Fliter net 1 | 1mm |
| 10 | Filter net 2 | 100um |
| 11 | Filter 3 | 20um |
| 12 | Air supply | 0.5~0.7Mpa |
| 13 | Air flow rate | 800~1000L/min |
| 14 | Air vent size | 130mm(Φ)×50mm(H) |
| 15 | Machine size | L1450*W1550*H1400mm |
| 16 | Machine weight | 400kg |
Questions and Answers:
Q1: Why SME-5100 can use sovent like alchol to clean products?

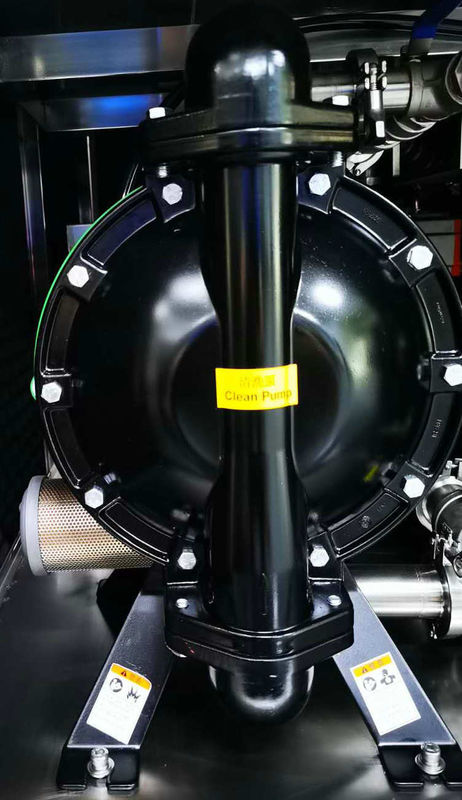

A1: SME-5100 use air pumps, air motor, air valves, mechanical meters, so it is only need compressed-air as power.
Q2: Is SME-5100 safe?
A2: Yes, SME-5100 do not use electric power, no electricity, no sparks, so it is very safe even use slovent to clean products.
Q3: What kind of detergent can use in this machine?
A3: Yes, both water-based liquid and solvent can use in SME-5200.
Comparison pictures before and after cleaning:
