double-Station Rotation Spray Clean Machine liquid spray wash, water rinse and hot air dry machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-5200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1600*2200*1850 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

450mm Pallet Cleaning Machine

,

80L Pallet Cleaning Machine

,

80L reflow soldering machine

Wash Basket Size:
φ1000mm
Pallet Height:
450mm As Max
Wash Time:
5~10min
Rinse Time:
1~2min
Dry Time:
10~20min
Wash Temp:
Room Temp~60℃
Rinse Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Liquid Capacity:
80L
Water Capacity:
80L
Filter:
20um
Power And Air Supply:
AC380V,3P,50/60Hz,33KW,0.5Mpa
Machine Size:
1400*2000*1450( L*W*H) Mm
Machine Weight:
600KG
Wash Basket Size:
φ1000mm
Pallet Height:
450mm As Max
Wash Time:
5~10min
Rinse Time:
1~2min
Dry Time:
10~20min
Wash Temp:
Room Temp~60℃
Rinse Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Liquid Capacity:
80L
Water Capacity:
80L
Filter:
20um
Power And Air Supply:
AC380V,3P,50/60Hz,33KW,0.5Mpa
Machine Size:
1400*2000*1450( L*W*H) Mm
Machine Weight:
600KG
Product Description

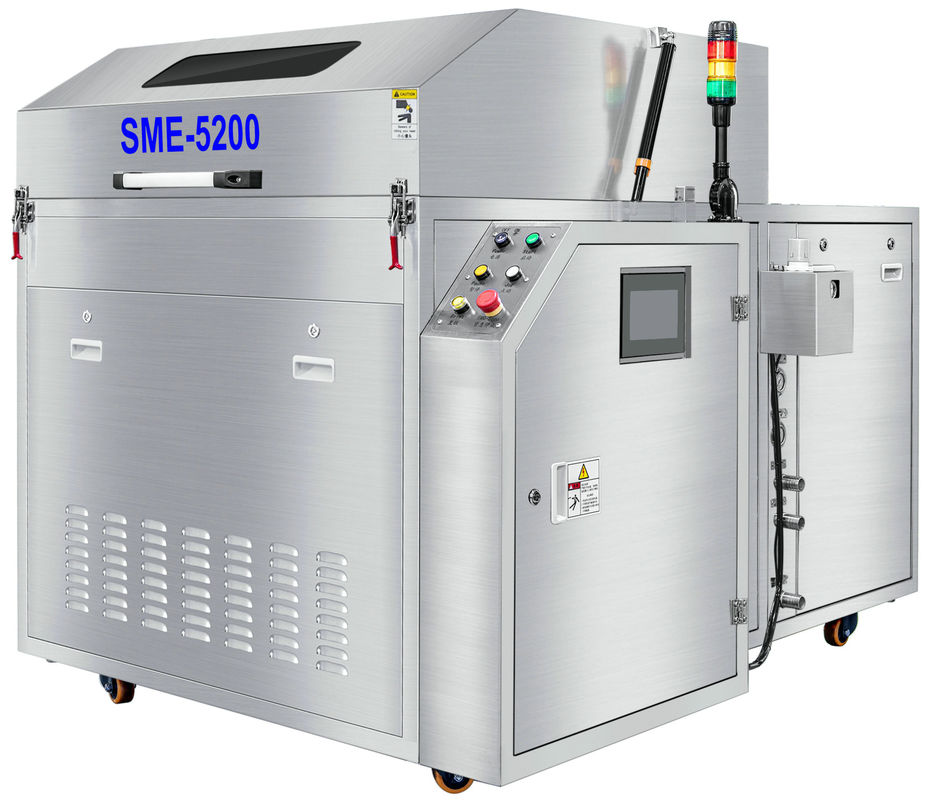

Double-Station Rotation Spray Clean Machine Car Engine Cylinder Block Engine Cylinder Head, Car Filter Wash Machine SME-5200 is a high pressure spray cleaning machine.



It has 1 wash system and 1 rinse system, double station can clean car parts very clean.



Wash process: put in car parts--liquid spray wash--water spray rinse--hot air blow dry. the round basket turns at certain speed while machine is working.



SME-5200 is controlled by PLC, English operation interface. All kinds of material parts can be cleaned in the machine.







Machine features:



1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.

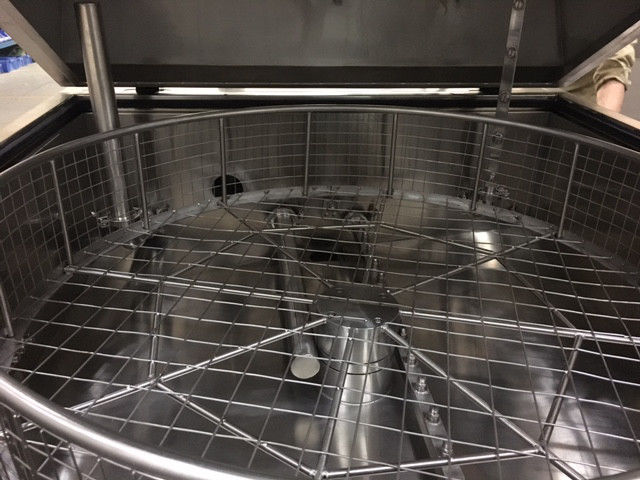

2. φ1000mm diameter big cleaning round basket, batch clean.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.
5. PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7. Clean liquid and water heat and temperature keeping function.
8. Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9. Standard equipped solution and water auto fill in and discharge function.
10.The parts are clean and dry after cleaning, standby and ready for use at any time.



Machine spec:



Item SME-5200 Spec
Cleaning basket size Φ1000mm x H 200mm. Clean height 450mm
Spray unit Upper/lower/front side,720°, all-around spray
3-level filter system 2mm /100um/20um filters
Clean tank capacity 80L
Rinse tank capacity 80L
Clean spray pressure 5~6 kg/cm2
Clean time 5~15 Min
Rinse time 1~3 Min
Dry time 10~20Min
Clean liquid heat temp Room temp~80℃
Rinse water heat temp Room temp~80℃
Hot air heat temp Room temp~90℃
Clean/Rinse pump power 2.2KW/1.1kw
Liquid/Water heaater power 9KW
Hot air heat power 9KW

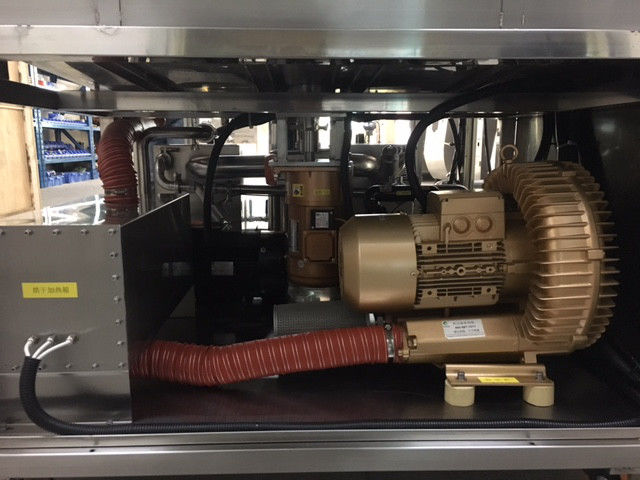

Air blower power 4.0KW
Air supply 0.5~0.7Mpa
Power supply 3 P,AC 380V,50/60HZ,33KW
Machine size L1400 x W2000 x H 1450 (mm)
Machine weight 600KG



Question and Answers:

Q1: Can SME-5200 clean all kinds of material parts?

A1: Yes, it can.



Q2: How many partss can SME-5200 clean one time?

A2: It depends on parts size. for L200xW150mm parts, it can clean about 40PCS one time.



Q3: What is cycle time of SME-5200?

A3: It is about 40~45 miutes, including wash,rinse and hot air blow dry time.



Q4: Does the round basket turns with setting speed?

A4: Yes, the 1000mm diamater round basket turns at the speed of 15~20RPM



Comparison pictures before and after cleaing:

double-Station Rotation Spray Clean Machine  liquid spray wash, water rinse and hot air dry machine 0



double-Station Rotation Spray Clean Machine  liquid spray wash, water rinse and hot air dry machine 1
