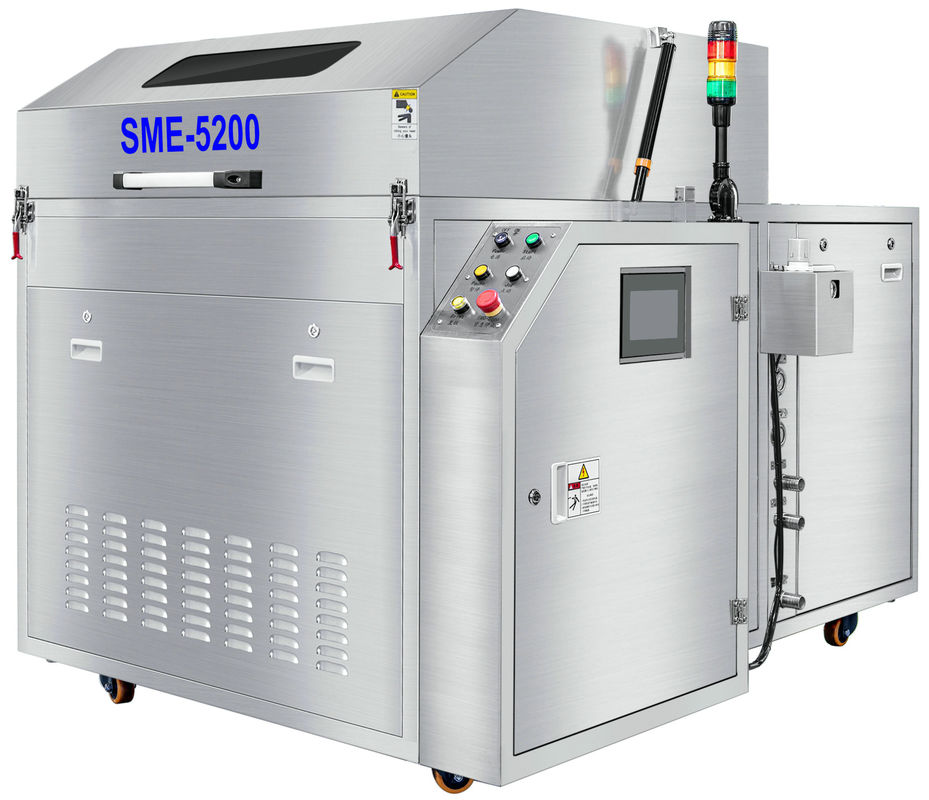

Automatic1000mm Diameter Wave Soldering Oven PCBA Carrier PCB Traps ,PCB Fixture Wash Machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-520

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1600*2200*1850 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

20um Pallet Cleaning Machine

,

SME 5200 Pallet Cleaning Machine

,

SME benchtop reflow oven

Wash Basket Size:
φ1000mm
Pallet Height:
450mm As Max
Wash Time:
5~15min
Rinse Time:
1~2min
Dry Time:
10~20min
Wash Temp:
Room Temp~60℃
Rinse Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Liquid Capacity:
80L
Water Capacity:
80L
Filter:
20um
Power And Air Supply:
AC380V,3P,50/60Hz,33KW,0.5Mpa
Machine Size:
1400*2000*1450( L*W*H) Mm
Machine Weight:
600KG
Wash Basket Size:
φ1000mm
Pallet Height:
450mm As Max
Wash Time:
5~15min
Rinse Time:
1~2min
Dry Time:
10~20min
Wash Temp:
Room Temp~60℃
Rinse Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Liquid Capacity:
80L
Water Capacity:
80L
Filter:
20um
Power And Air Supply:
AC380V,3P,50/60Hz,33KW,0.5Mpa
Machine Size:
1400*2000*1450( L*W*H) Mm
Machine Weight:
600KG
Product Description

  Shenhua is a leading spray cleaning machine manufaturer in China, We've installed more than 330 sets of soldering wave oven pallet cleaning machine in demestic and overseas customer's factory.



 Now we are looking for overseas agents!



SME-5200 usage:



Automatic 1000mm Diameter Wave Soldering Oven PCBA Carrier PCB Traps PCB Fixture wash Machine can automatic clean flux and solder balls on synthesis stone and aluminum alloy carrier by using water-based liquid.



 SME-5200 PLC contrled  machine consists of wash unit, rinse unit, dry unit, filter unit and electric control unit.



Cleaning process:



  Put the dirt pallets on to the cleaning basket--setting cleaning parameters--srpay wash--spray rinse--hot air blow dry process  The pallets are clean and dry after cleaning and ready for use after cleaning.



Machine features:



1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.

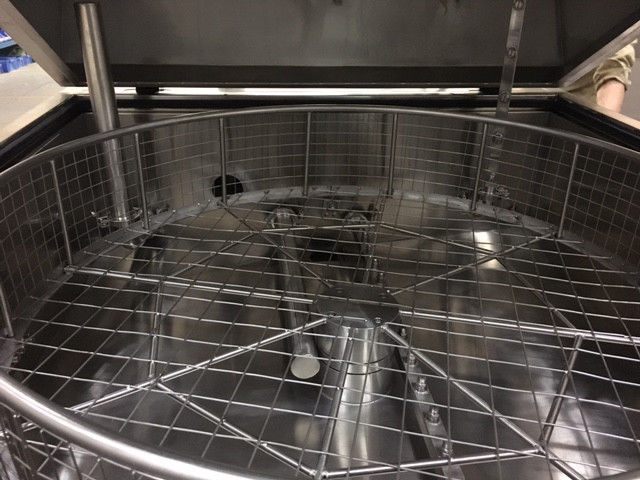

2. φ1000mm diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.
5. PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7. Clean liquid and water heat and temperature keeping function.
8. Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9. Standard equipped solution and water auto fill in and discharge function.
10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.



Machine spec:



Item SME-5200 Spec
Cleaning basket size Φ1000mm x H 200mm. Clean height 450mm
Spray unit Upper/lower/front side,720°, all-around spray
3-level filter system 2mm /100um/20um filters
Clean tank capacity 80L
Rinse tank capacity 80L
Clean spray pressure 5~6 kg/cm2
Clean time 5~15 Min
Rinse time 1~3 Min
Dry time 10~20Min
Clean liquid heat temp Room temp~80℃
Rinse water heat temp Room temp~80℃
Hot air heat temp Room temp~90℃
Clean/Rinse pump power 2.2KW/1.1kw
Liquid/Water heaater power 9KW
Hot air heat power 9KW

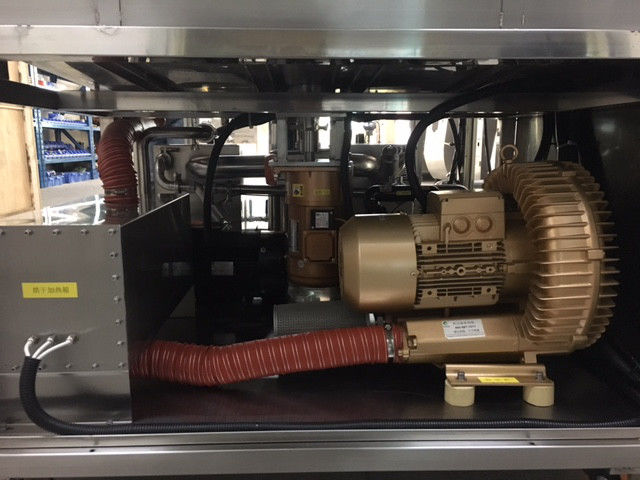

Air blower power 4.0KW
Air supply 0.5~0.7Mpa
Power supply 3 P,AC 380V,50/60HZ,33KW
Machine size L1400 x W2000 x H 1450 (mm)
Machine weight 600KG



Question and Answers:

Q1: Can SME-5200 clean all kinds of material fixture?

A1: Yes, it can.



Q2: How many pallets can SME-5200 clean one time?

A2: It depends on pallet size. for L200xW150mm pallet, it can clean about 40PCS one time.



Q3: What is cycle time of SME-5200?

A3: It is about 40~45 miutes, including wash,rinse and hot air blow dry time.



Q4: Does the round basket turns with setting speed?

A4: Yes, the 1000mm diamater round basket turns at the speed of 15~20RPM

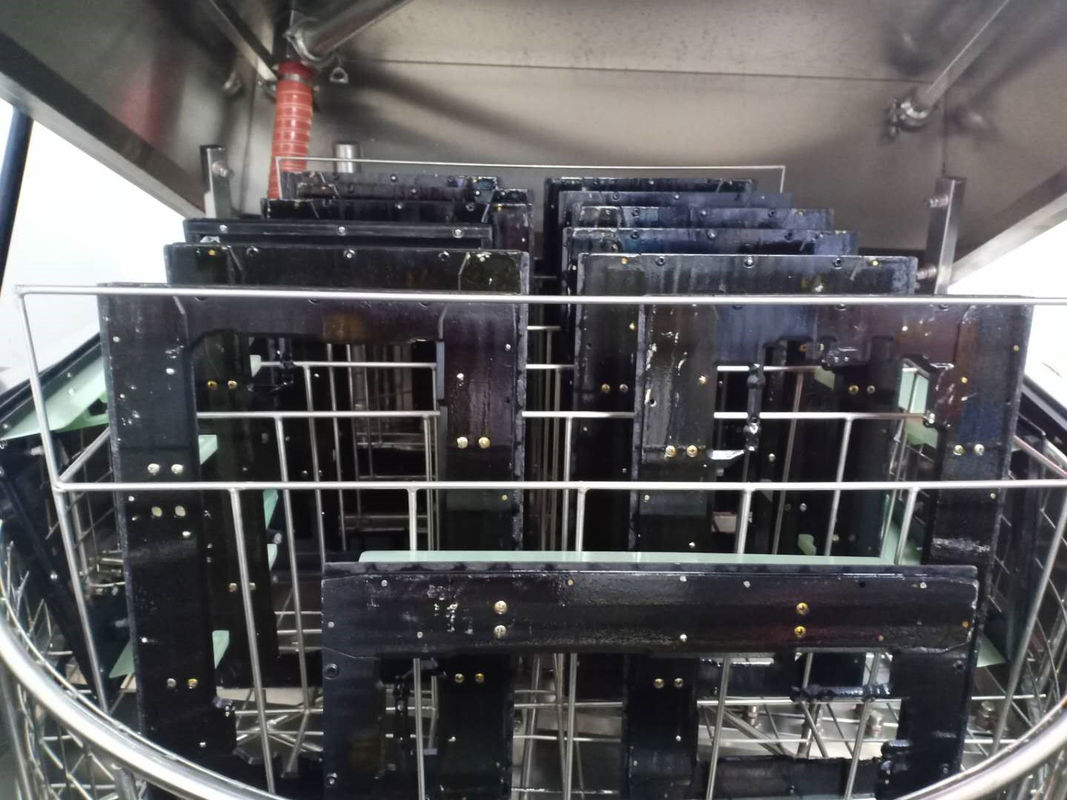

Comparison pictures before and after cleaing:

Automatic1000mm Diameter Wave Soldering Oven  PCBA Carrier PCB Traps  ,PCB Fixture Wash Machine 0



Automatic1000mm Diameter Wave Soldering Oven  PCBA Carrier PCB Traps  ,PCB Fixture Wash Machine 1
