Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-5200
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1600*2200*1850 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 300 sets per year
Wash Basket Size: |
φ1000mm |
Pallet Height: |
450mm As Max |
Wash Time: |
5~10min |
Rinse Time: |
1~2min |
Dry Time: |
10~20min |
Wash Temp: |
Room Temp~60℃ |
Rinse Temp: |
Room Temp~60℃ |
Dry Temp: |
Room Temp~99℃ |
Liquid Capacity: |
80L |
Water Capacity: |
80L |
Filter: |
20um |
Power And Air Supply: |
AC380V,3P,50/60Hz,33KW,0.5Mpa |
Machine Size: |
1400*2000*1450( L*W*H) Mm |
Machine Weight: |
600KG |
Wash Basket Size: |
φ1000mm |
Pallet Height: |
450mm As Max |
Wash Time: |
5~10min |
Rinse Time: |
1~2min |
Dry Time: |
10~20min |
Wash Temp: |
Room Temp~60℃ |
Rinse Temp: |
Room Temp~60℃ |
Dry Temp: |
Room Temp~99℃ |
Liquid Capacity: |
80L |
Water Capacity: |
80L |
Filter: |
20um |
Power And Air Supply: |
AC380V,3P,50/60Hz,33KW,0.5Mpa |
Machine Size: |
1400*2000*1450( L*W*H) Mm |
Machine Weight: |
600KG |

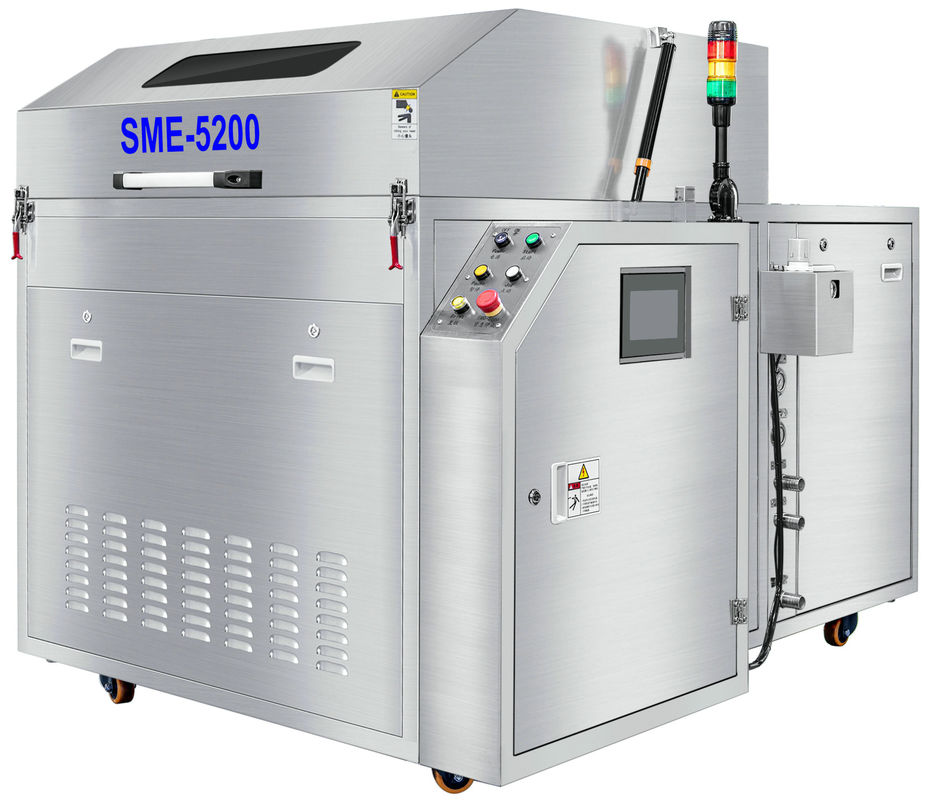

SME-5200 Spare Parts Single-Station Spray Cleaning Machine Dusts Oil Particle Remove Spray Clean Machine is used to clean oil, resin, painting leftovers, particles and mechanical processing scraps,dusts of car spare parts and other processing parts.
SME-5200 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt spare parts on to the round cleaning basket, setting wash parameters, the machine will automatically complete wash, rinse and dry process by just pushing start key. The spare parts are very clean and dry after cleaning and ready for use.
Machine features:
1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.
2. Single-station, spray batch clean, φ1000mm diameter big cleaning round basket.
3. Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4. Clean liquid pressure up to 6kg/cm2, make it throughly clean spare parts.
5. PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6. Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7. Clean liquid and water heat and temperature keeping function.
8. Closed-loop clean and rinse, clean liquid and rinse water are cycling filtered and reused in the machine.
9. Standard equipped liquid and water auto fill in and discharge function.
10.The spare parts are clean and dry after cleaning, standby and ready for use at any time.
Machine spec:
| Item | SME-5200 Spec |
| Cleaning basket size | Φ1000mm x H 200mm. Clean height 450mm |
| Spray unit | Upper/lower/front side,720°, all-around spray |
| 3-level filter system | 2mm /100um/20um filters |
| Clean tank capacity | 80L |
| Rinse tank capacity | 80L |
| Clean spray pressure | 5~6 kg/cm2 |
| Clean time | 5~15 Min |
| Rinse time | 1~3 Min |
| Dry time | 10~20Min |
| Clean liquid heat temp | Room temp~80℃ |
| Rinse water heat temp | Room temp~80℃ |
| Hot air heat temp | Room temp~90℃ |
| Clean/Rinse pump power | 2.2KW/1.1kw |
| Liquid/Water heaater power | 9KW |
| Hot air heat power | 9KW |

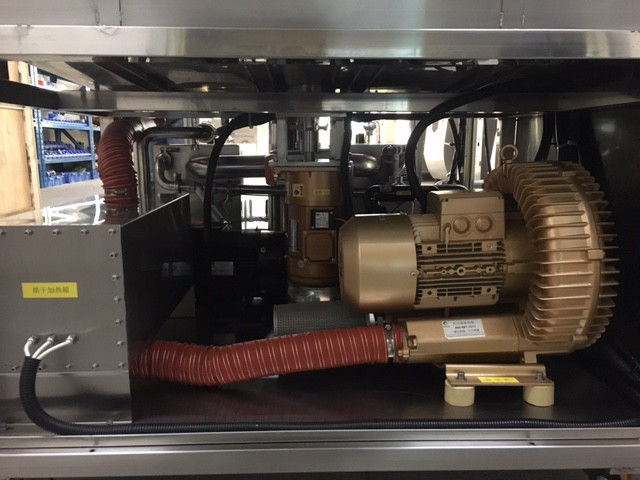

| Air blower power | 4.0KW |
| Air supply | 0.5~0.7Mpa |
| Power supply | 3 P,AC 380V,50/60HZ,33KW |
| Machine size | L1400 x W2000 x H 1450 (mm) |
| Machine weight | 600KG |
Question and Answers:
Q1: How SME-5200 clean car spare parts and other mechanical parts?
A1: SME-5200 clean spare parts by using spray technology, spray liquid from upper,lower and front side, cover all aspects of the parts. .
Q2: How many spare parts can SME-5200 clean one time?

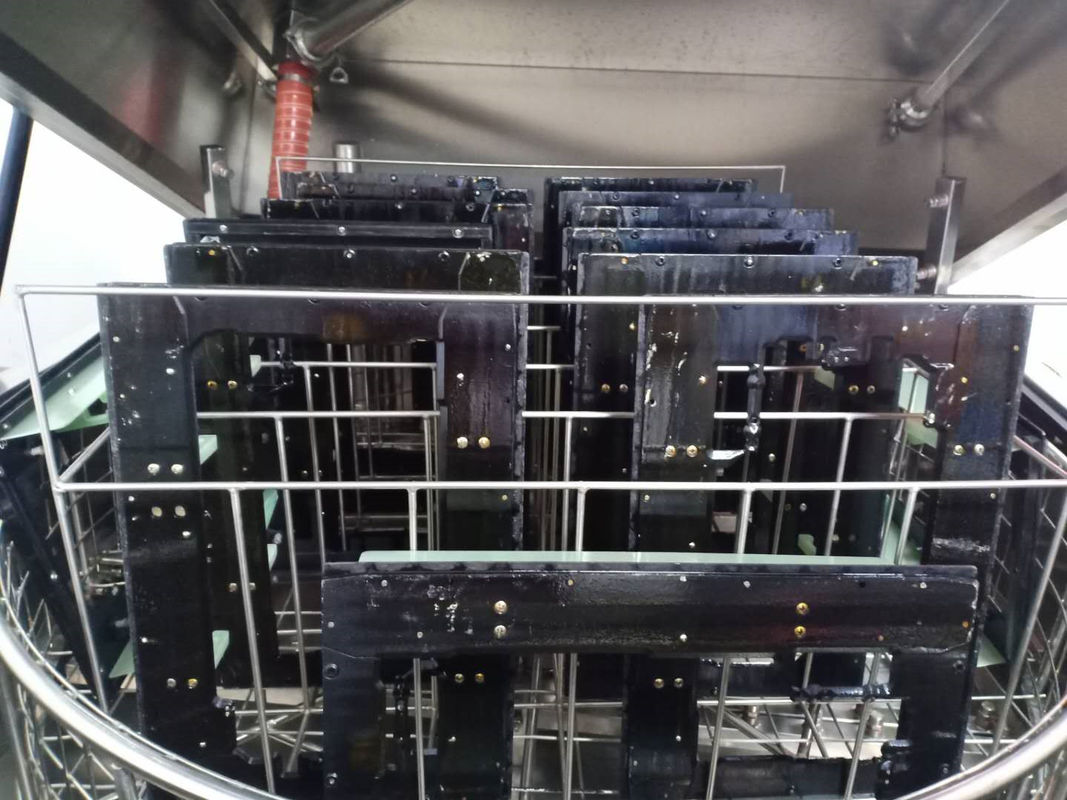

A2: It depends on spare parts size. for L200xW150mm pallet, it can clean about 40PCS one time.
Q3: What is cycle time of SME-5200?
A3: It is about 20~30 miutes, including wash,rinse and hot air blow dry time.
Q4: Is the round basket turns with setting speed?

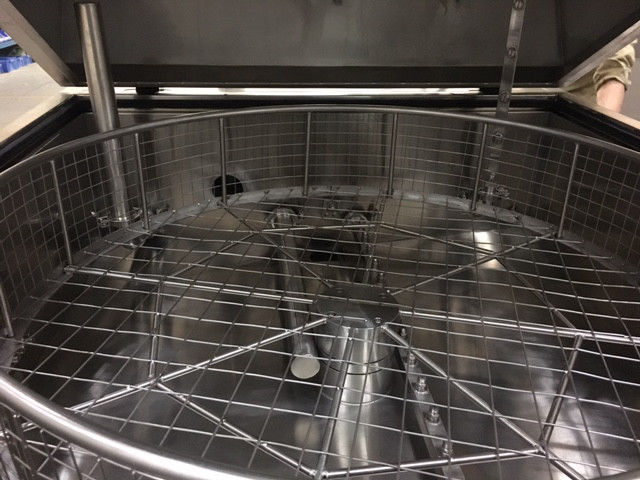

A4: Yes, the 1000mm diamater round basket turns at the speed of 15~20RPM
Comparison pictures before and after cleaing:
Video
