Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE
Model Number: S-250CV
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 660*900*1600 mm(L*W*H)
Delivery Time: 25~30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per year
PCB Size: |
50*50~330*250( L*W)mm |
Pcb Thickness: |
0.5~3.0mm |
Brush Unit: |
1 Set |
Roller Unit: |
1 Set |
Ionizer Bar: |
1 Input Side, 1 Output Side |
PCB Width Adjust: |
Manual |
In Line Type: |
Yes |
Color: |
White |
PCB Size: |
50*50~330*250( L*W)mm |
Pcb Thickness: |
0.5~3.0mm |
Brush Unit: |
1 Set |
Roller Unit: |
1 Set |
Ionizer Bar: |
1 Input Side, 1 Output Side |
PCB Width Adjust: |
Manual |
In Line Type: |
Yes |
Color: |
White |

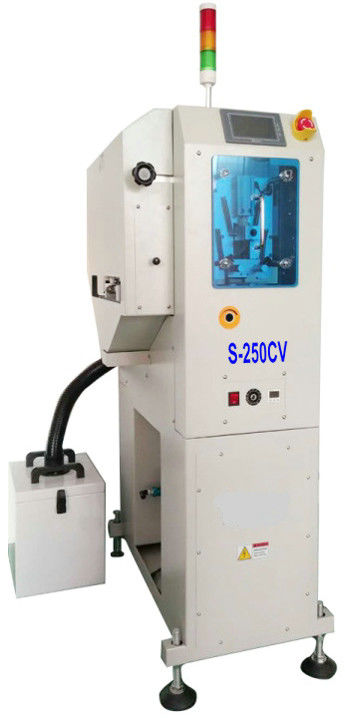

Machine Description:
S-250CV compact brush vaccum and roller adhesive two cleaning method in line PCB surface cleaning machine S-250CV for SMT line also named PCB cleaner, SMT in line cleaning machine is use in SMT auto production line between Loader and Solder paste Printer. It is used to clean dusts, fibers, hair and micro metal balls on the surface of PCB pads to make PCB clean and improve PCBA quality. Two cleaning method make you PCB more clean.
Machine Features:
1. Only for SMT auto production line.
2. For bare PCB or one side bare and the other side mounted with components.
3. Contact clean method, Brush+ rubber roller clean,99% cleaning result.
4. Standard equipped with ionizer bars at PCB input and output side.
5. PLC control, English operation interface.
6. Especially for 01005 small components and BGA, uBGA, CSP precise parts.
7. More than 10 years of PCB cleaner production experience.
8. More than 500 sets machine installed at customers SMT workshop all over the world.
Machine Spec:
| S/N | ITEM | SPEC |
| 1 | PCB size | 50*50~330*250mm(L*W) |
| 2 | PCB thickness | 0.5~3.0mm |
| 3 | PCB conveyor direction | Lto R or R to L |
| 4 | PCB width adjustment | Manual |
| 5 | PCB conveyor height | 900±25mm |
| 6 | Ionizer bar | 2(input and output side) |
| 7 | Brush | 1 PCS |
| 8 | Rubber roller | 2 PCS |
| 9 | Adhesive paper | 1Roll |
| 10 | Air supply | 0.5Mpa |
| 11 | Power supply | AC220V,50Hz, 60W |
| 12 | Machine weight | 100kg |
| 13 | Machine size | L450*W700*H1600mm |
Questions and Answers:
Q1: Is this machine in line?
A1: Yes, it is.
Q2: How many PCS should we change adhesive paper?
A2: The whole adhesive paper roll has 80 circles, each circle can clean 200~300pcs of PCB.
Q3: Can we use this machine one car electronics SMT line?
A3: Yes, most of our current customers use our machines on car electronics and mobile phone SMT lines.

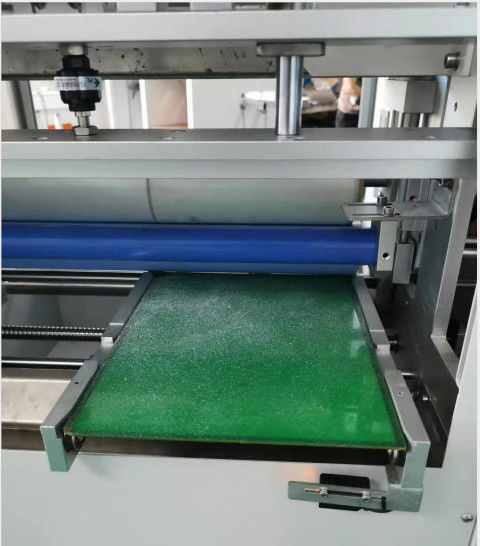

Comparison pictures before and after cleaning:
