Ultrasoinc and spray Squeegeeturning Cleaning Machine with CE mark

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-290

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 2100*1900*2200 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability: 200 sets per year

Get Best Price
Product Details
High Light:

150L Screen Stripping developing Machine

,

800KG Screen Stripping developing Machine

,

150L squeegee cleaning machine

Squeegee Number:
6 Pcs
Customized:
Non-Customized
Specification:
Squeegee Size: 1200mm Length
Cleaning Type:
Aqueous Liquid Clean
Liquid Tank Capacity:
150L
Water Tank Liquid:
150L
Nozzle Type:
Fan-Shaped Nozzle
Machine Size:
L1900*W1700*H1600mm
Machine Weight:
800KG
Squeegee Number:
6 Pcs
Customized:
Non-Customized
Specification:
Squeegee Size: 1200mm Length
Cleaning Type:
Aqueous Liquid Clean
Liquid Tank Capacity:
150L
Water Tank Liquid:
150L
Nozzle Type:
Fan-Shaped Nozzle
Machine Size:
L1900*W1700*H1600mm
Machine Weight:
800KG
Product Description

 We are a leading cleaning technology company in China. We are looking for cleaning machine overseas agents !



 Nonstandard big size, ultrasonic and spray ink screen printing squeegee cleaning machine is a new type oil squeegees auto cleaning machine only for big size screen printing squeegees.



  Screen printing machine squeegees are very hard to clean beause the corners at the 2 end of them; cracks of squeegees and fixing plates are also hard to be cleared.



  SME-290 is an off-line, compact, energy-saving , batch cleaning screen printing squeegee  cleaning machine. SME-290 can automatically complete the cleaning, rinsing, drying process in one chamber by just push" start" key.


Machine Features:
1.      Special designed to clean printing oil, silver paste and other organic and inorganic contaminations on Squeegees .
2.      Ultrasonic and spray clean at the same time to clean all the oil off from the squeegees.
3.      Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.

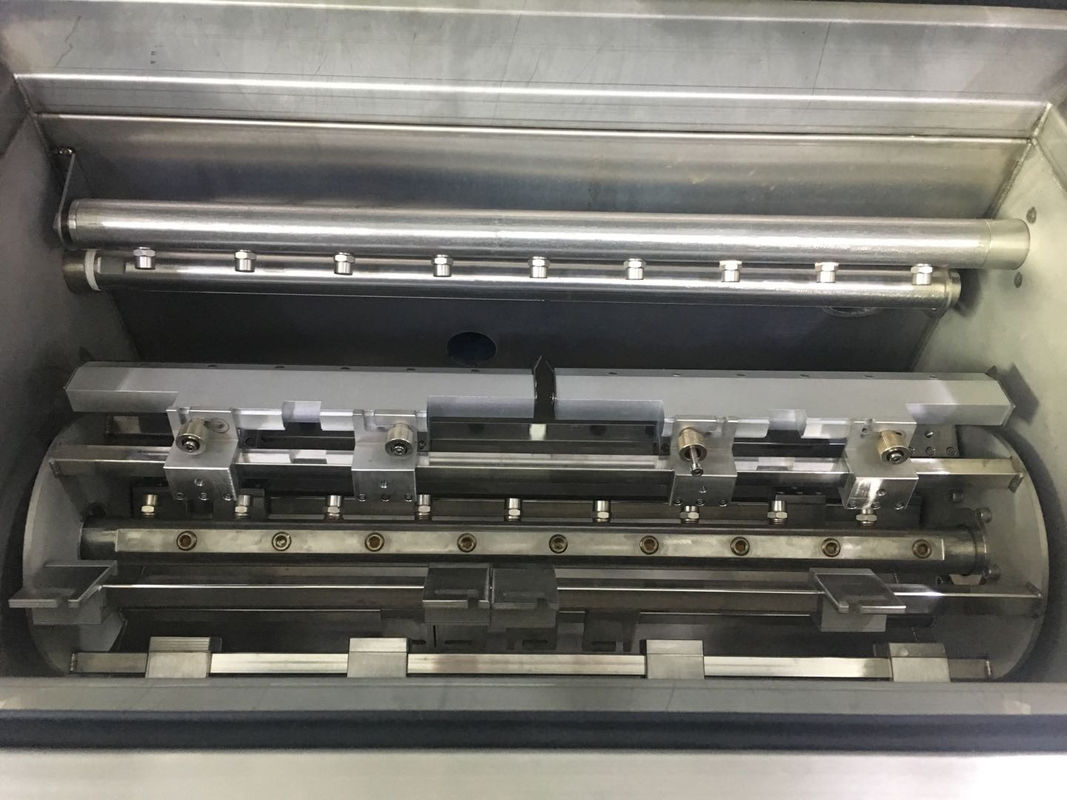

4.      4 squeegee racks : can clean 6pcs  1200mm squeegees in one time.
5.      State of the process is visible through a large observation window.
6.      Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
7.      Easy operation interface, quick setting clean parameters. Different passwords can be set.
8.     Inner filter makes detergent used repeated. .
9.     Totally SUS304 structure, very firm and attractive.

 Machine Spec:
Item SME-290 Spec
Squeegee numbers 4pcs of 1200mm squeegees one time, 12 pcs of 500mm one time
clean lqiuid tank capacity 150L
rinse water  tank capacity 150L
Clean time 5~10min
Rinse time 1~2min
Dry time 10~30min
cleaning liquid heat temp Room temp~60ºC
Dry temp Room temp~99ºC
water temp  Room temo~60ºC
Cleaning liquid filter 1um
Rinse water filter 1um
clean/ rinse pump 1.1KW
ultrasonic power 1.2KW
Power/air supply AC380V/50A/50HZ,30KW;0.5Mpa
Machine size L1900 x W1700 x H1700(mm)
Machine weight 800KG





 Questions and Answers:

Q1. How the machine clean squeegees?

A1: We use ultrasonic and spray cleaning technology to make good cleaning result.



Q2: Do you use solvent as cleaning agent?

A2: No, we use flash point 270℃ liquid to clean to make cleaning process safe and efficient.




Comparison pictures before and after cleaning:

Ultrasoinc and spray Squeegeeturning Cleaning Machine with CE mark 0



Ultrasoinc and spray Squeegeeturning Cleaning Machine with CE mark 1
