Screen auto stripping and developing Machine for screen making process with 120L water tank

Product Details

Place of Origin: Shenzhen, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-4100S

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1950*1800*2400 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability: 100 sets per year

Get Best Price
Product Details
High Light:

120L Screen Stripping developing Machine

,

3P Screen Stripping developing Machine

,

3P smt screen stripping machine

Screen Size:
1000*1000*40mm(L*W*T)
Water Capacity:
120L
Stripping Time:
2~4min
Air Blow Dry Time:
1~2min
Filter:
20um
Pump:
3kw
Air Supply:
0.5~0.7Mpa, 800~1000L/Min
Power Supply:
AC380V, 3P, 50Hz,5KW
Machine Size:
L1750*W1550*H2000mm
Machine Weight:
780KG
Screen Size:
1000*1000*40mm(L*W*T)
Water Capacity:
120L
Stripping Time:
2~4min
Air Blow Dry Time:
1~2min
Filter:
20um
Pump:
3kw
Air Supply:
0.5~0.7Mpa, 800~1000L/Min
Power Supply:
AC380V, 3P, 50Hz,5KW
Machine Size:
L1750*W1550*H2000mm
Machine Weight:
780KG
Product Description

Machine Description:

SME-4100S PLC controlled confined space high pressure automatic water spray screen stripping machine is used to erase old emulsion on screen and make the screen into blank and waiting for reuse next time.  Put the sceen into stripping tank outside to soften the emulsion and then put it into machine to do automatic stripping work. 2 water spray rods high pressure to clean the front and rear side of the screen. water spray back side can be turn on an shut off for normal screen and water fillm screen. Spray water pressure,spray time and spray rods moving speed can be edited on PLC programme as needed. Water can be discharge or recyclly used.



SME-4100S also can be used to erase ghost by putting on ghost erase paste.

SME-4100 advantages:
1.  Low water cost.
2.  Very good develop and strip quality.
3.  One key easy operation.
4.  Moving range can be set according to screen size.

5.  Low water level protection function.

6.  Water auto add function.

7.  Spray speed and pressure easy edit.

8.  Sus304 staninless steel material, acid and alkalic proof.

9.  Obeservation window.

10. Seal cabinet,no water or mist leak out, keep workshop dry and clean.

Machine Features:

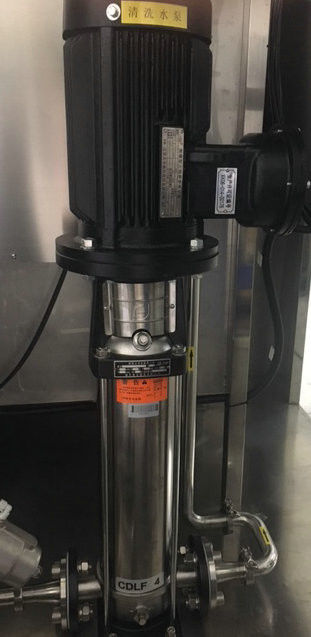

1.High quality electrical pump. High pressure water spray and recycle filtering function.
2.Totally SUS 304  structure, Strong Acid and Alkali corrosion resistance,  10 years lifespan.
3.One-key operation, developing/Stripping and dry process complete automatically according to pre-setting procedure.
4.Standard equipped water level control mechanism, automatically add water when water is not enough..
5.Standard equipped water less alarm and protection system, shut off the machine automatically to protect the pump.
6.Completely closed spray developing process, makes the ground of the workshop clean and day.
7.Super well-known electrical and pneumatic parts, perfect design, strictly produce process to ensure stability and high quality of the machine.
8.It also can be used as auto striping machine after adjusting the water jet pressure and time.

 Machine Spec:

Item SME-4100
Screen size L1000 x W1000 x H40(mm)

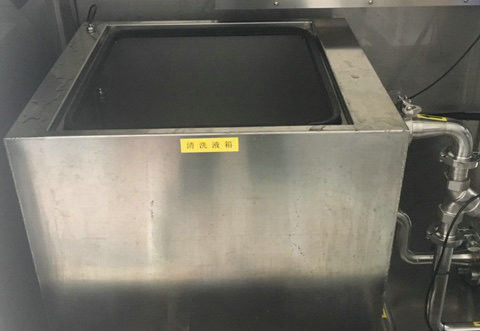

Water tank capacity 120L
Stripping time 1~3min
Air blow dry time 1~2min
Air rate 800~1000L/min
Air pressure 0.5~0.7Mpa
air vent Φ125 × H30 (mm)
Power supply AC380V,50HZ,5KW
Machine size L1700xW1550xH2000mm
Weight 780kg



Customer Questions and Answers:

Q1: Does the screen need to immerse into stripping poder tank for some time?

A1: Yes, normally, 3~30min depending on diffirent stripping power concentration .



Q2: Can this machine strip thick screen?

A2: Yes, the water spray pressure and time can be adjusted, thick screen need 4~5min.



Q3: Can this machine strip 2 small size screen?

A3: Yes, screen size less than 500*500mm, it can strip 2 screens at the same time.

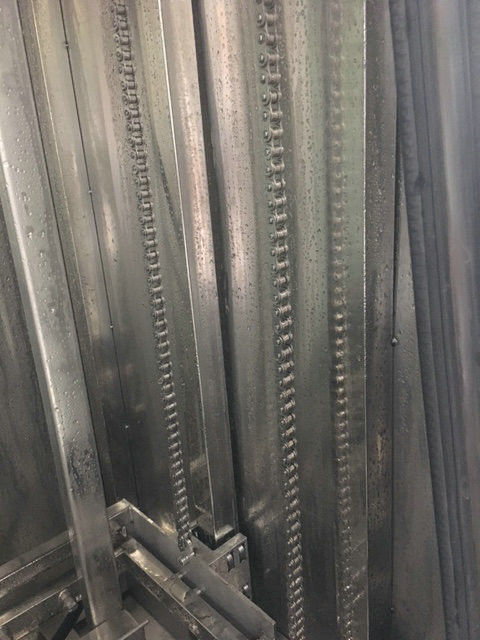

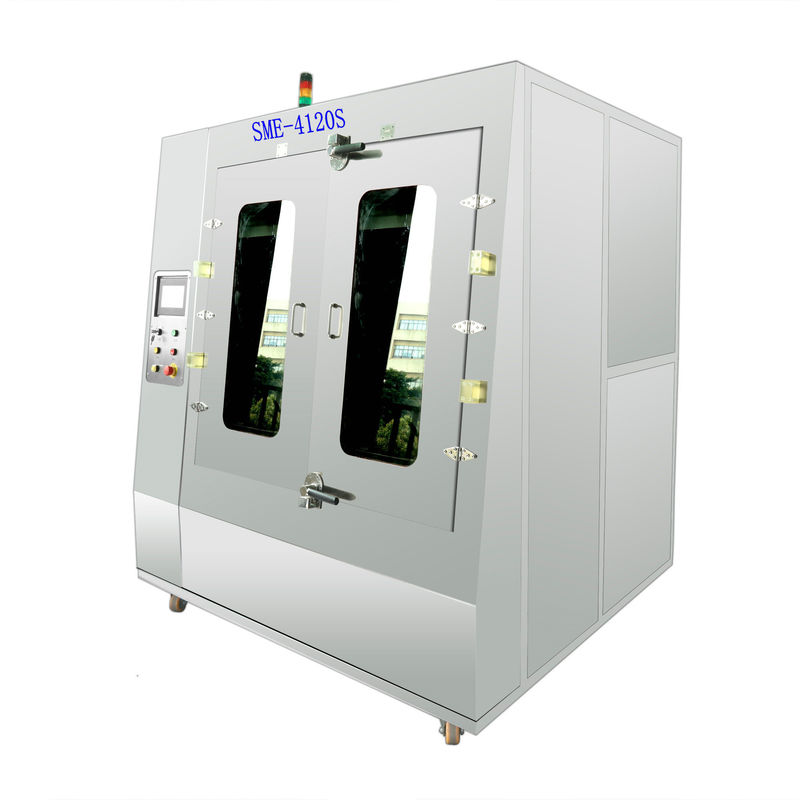

Machine pictures:

Screen auto stripping and developing Machine for screen making process with 120L water tank 0



Screen auto stripping and developing Machine for screen making process with 120L water tank 1
