Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-4100S
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 2000*1800*2400 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 200sets per year
Screen Size: |
1000X1000X40mm(Lxwxt) |

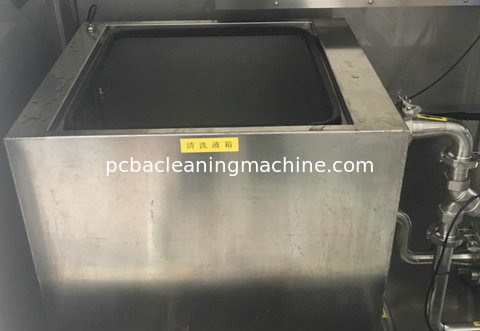

Water Tank Capacity: |
120L |
Stripping Time: |
2~4min |
Dry Time: |
1~2min |
Pump: |
3KW |
Water Pressure: |
1~12kg/cm2 |
Air Supply: |
0.5Mpa, 800~1000L/min |
Power Supply: |
AC380V. 3P,50/60Hz, 4KW |
Machine Weight: |
780KG |
Machine Size: |
L1750*W1550*H2000mm |
Screen Size: |
1000X1000X40mm(Lxwxt) |
Water Tank Capacity: |
120L |
Stripping Time: |
2~4min |
Dry Time: |
1~2min |
Pump: |
3KW |
Water Pressure: |
1~12kg/cm2 |
Air Supply: |
0.5Mpa, 800~1000L/min |
Power Supply: |
AC380V. 3P,50/60Hz, 4KW |
Machine Weight: |
780KG |
Machine Size: |
L1750*W1550*H2000mm |

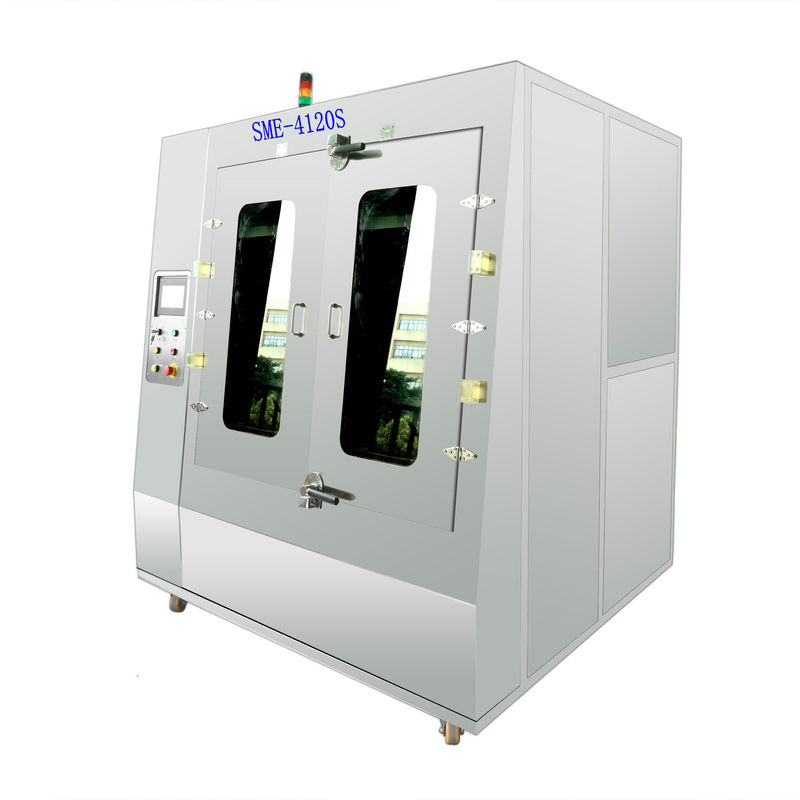

SME-4100S is used to erase old emulsion to make the emulsion clear and turn the screen into blank.
SME-4100S also use to clean ghost on screen after stripping.
SME-4100S advantages:
1. Water reuse, low water cost.
2. Very good and strip quality for screens.
3. Quick clean process.

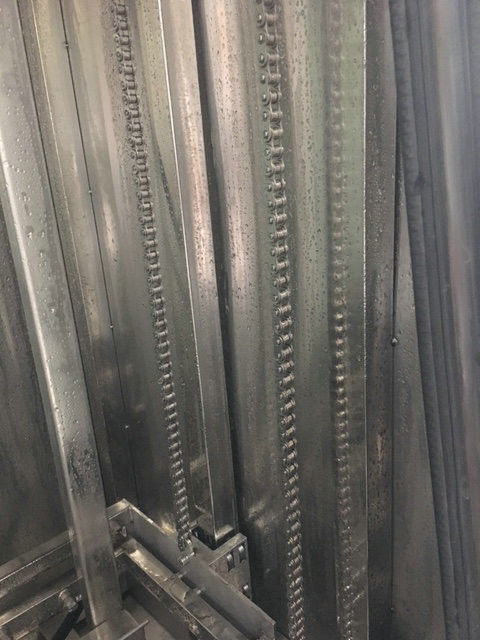

4. Spray rods moving range can be set according to screen size.
Machine Features:
1. High quality electrical pump. High pressure water spray and recycle filtering function.
2. Totally SUS 304 structure, Strong Acid and Alkali corrosion resistance, 10 years lifespan.
3. One-key operation, developing/Stripping and dry process complete automatically according to pre-setting procedure.
4. Standard equipped water level control mechanism, automatically add water when water is not enough..
5. Standard equipped water less alarm and protection system, shut off the machine automatically to protect the pump.
6. Completely closed spray developing process, makes the ground of the workshop clean and day.
7. Super well-known electrical and pneumatic parts, perfect design, strictly produce process to ensure stability and high quality of the machine.
8. It also can be used as auto striping machine after adjusting the water jet pressure and time.
Machine Spec:
| S/N | ITEM | SPEC |
| 1 | screen size | L1200*W1200*T40mm |
| 2 | stripping time | 2~4min |
| 3 | dry time | 1~2 min |
| 4 | water spray pressure | 2~12kg/cm2 |
| 5 | pump | 3KW |
| 6 | air supply | 0.5Mpa, 800~100L/min |
| 7 | power supply | AC380V, 50/60Hz,4KW |
| 8 | machine weight | 780KG |
| 9 | Machine size | L1750*W1550*H2000mm |
