Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-280
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1800*1800*1800 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per year
Squeegee Number: |
6 Pcs |
Customized: |
Non-Customized |
Specification: |
Squeegee Size: 900mm Length |
Cleaning Type: |
Aqueous Liquid Clean |
Liquid Tank Capacity: |
120L |
Water Tank Liquid: |
120L |
Nozzle Type: |
Fan-Shaped Nozzle |
Machine Size: |
L1600*W1600*H1500mm |
Machine Weight: |
600KG |
Squeegee Number: |
6 Pcs |
Customized: |
Non-Customized |
Specification: |
Squeegee Size: 900mm Length |
Cleaning Type: |
Aqueous Liquid Clean |
Liquid Tank Capacity: |
120L |
Water Tank Liquid: |
120L |
Nozzle Type: |
Fan-Shaped Nozzle |
Machine Size: |
L1600*W1600*H1500mm |
Machine Weight: |
600KG |
High efficient 900mm length ink screen printing squeegee batch cleaning machine is a new type oil squeegees auto cleaning machine. Screen printing machine squeegees are very hard to clean beause the corners at the 2 end of them; cracks of squeegees and fixing plates are also hard to be cleared.

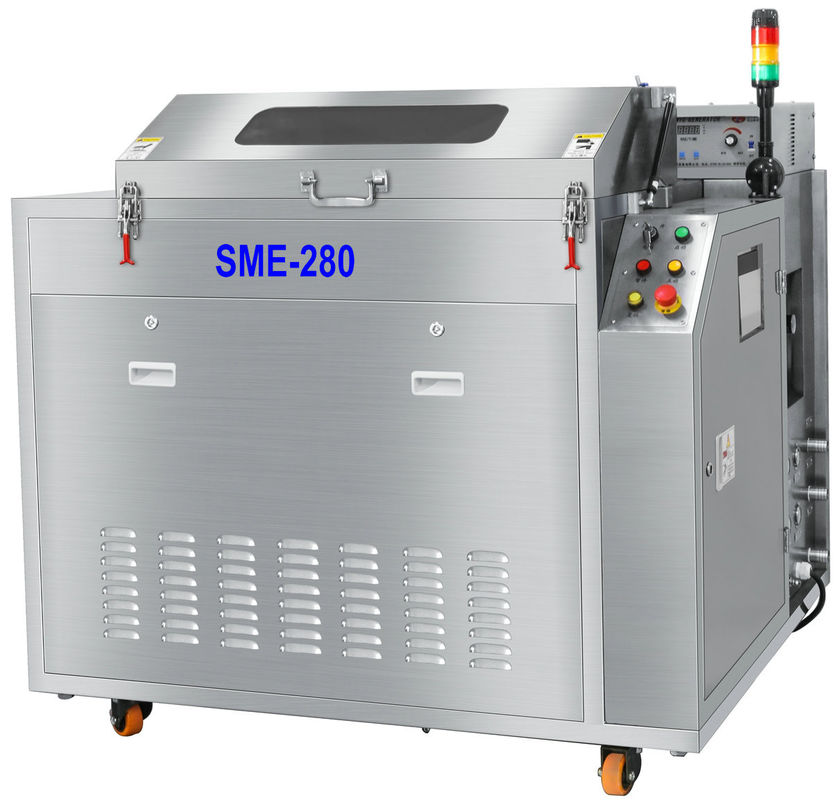

SME-280 is an off-line, compact, energy-saving , batch cleaning screen printing squeegee cleaning machine. SME-280 can automatically complete the cleaning, rinsing, drying process in one chamber by just push" start" key.
| Item | SME-280 Spec |
| Squeegee numbers | 4pcs of 900mm squeegees one time, 8 pcs of 400mm one time |
| clean lqiuid tank capacity | 120L |
| rinse water tank capacity | 120L |
| Clean time | 5~10min |
| Rinse time | 1~2min |
| Dry time | 10~30min |
| cleaning liquid heat temp | Room temp~60ºC |
| Dry temp | Room temp~99ºC |
| water temp | Room temo~60ºC |
| Cleaning liquid filter | 1um |
| Rinse water filter | 1um |
| clean/ rinse pump | 1.1KW |
| ultrasonic power | 1.2KW |
| Power/air supply | AC380V/50A/50HZ,30KW;0.5Mpa |
| Machine size | L1600 x W1600 x H1400(mm) |
| Machine weight | 600KG |
Comparison pictures before and after cleaning:
