900mm long ink printer sgueegee ink and silver residual automatic cleaning machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-280

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1500*1600*1800 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability: 200 sets per year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                SUS304 Screen Stripping developing Machine, 600mm Screen Stripping developing Machine, 600mm SMT Screen Developing machine


Squeegee Number:	4 Pcs	Customized:	Non-Customized
Specification:	Squeegee Size: 900mm Length	Cleaning Type:	Aqueous Liquid Clean
Liquid Tank Capacity:	120L	Water Tank Liquid:	120L
Nozzle Type:	Fan-Shaped Nozzle	Machine Size:	L1600W1600H1500mm
Machine Weight:	600KG

Squeegee Number:	4 Pcs
Customized:	Non-Customized
Specification:	Squeegee Size: 900mm Length
Cleaning Type:	Aqueous Liquid Clean
Liquid Tank Capacity:	120L
Water Tank Liquid:	120L
Nozzle Type:	Fan-Shaped Nozzle
Machine Size:	L1600W1600H1500mm
Machine Weight:	600KG

Product Description

Ink printer squeegee, silver printer squeegee, glue printer squeegee auto wash machine:

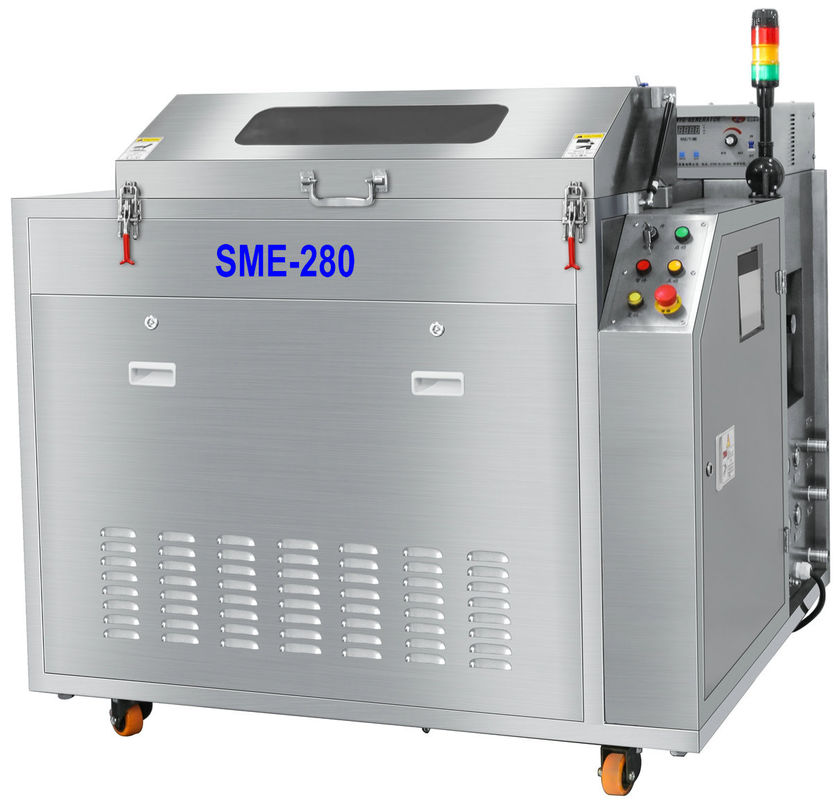

SUS304 stainless steel, silver color, liquid clean 900mmx4pcs screen printing squeegee cleaning machine is a new type oil/silver/glue squeegees auto cleaning machine.

Screen printing machine squeegees are very hard to clean beause the corners at the 2 end of them; cracks of squeegees and fixing plates are also hard to be cleared.SME-280 is an off-line, compact, energy-saving , batch cleaning screen printing squeegee cleaning machine. SME-280 can automatically complete the cleaning, rinsing, drying process in one chamber by just push" start" key.

Machine Features:
1.      Special designed to clean printing oil, silver paste and other organic and inorganic contaminations on Squeegees .
2. Ultrasonic and spray clean at the same time to clean all the oil off from the squeegees.
3.      Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.

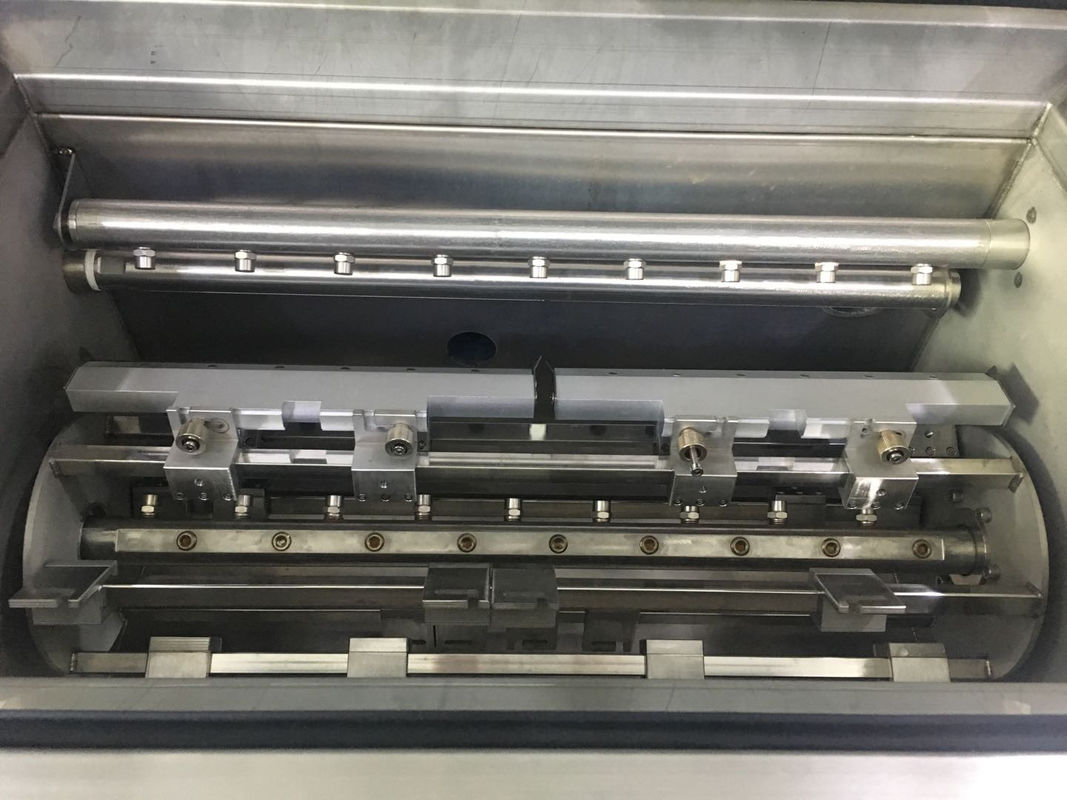

4.    6 squeegee racks : can clean 6pcs 900mm squeegees in one time.
5.      State of the process is visible through a large observation window.
6.      Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
7.      Easy operation interface, quick setting clean parameters. Different passwords can be set.
8. Inner filter makes detergent used repeated. .
9. Totally SUS304 structure, very firm and attractive.

Machine Spec:

Item	SME-280 Spec
Squeegee numbers	4pcs of 900mm squeegees one time, 12 pcs of 400mm one time
clean lqiuid tank capacity	120L
rinse water tank capacity	120L
Clean time	5~10min
Rinse time	1~2min
Dry time	10~30min
cleaning liquid heat temp	Room temp~60ºC
Dry temp	Room temp~99ºC
water temp	Room temo~60ºC
Cleaning liquid filter	1um
Rinse water filter	1um
clean/ rinse pump	1.1KW
ultrasonic power	1.2KW
Power/air supply	AC380V/50A/50HZ,30KW;0.5Mpa
Machine size	L1900 x W1600 x H1400(mm)
Machine weight	600KG

Comparison pictures before and after cleaning:

900mm long ink printer sgueegee ink and silver residual automatic cleaning machine 0

900mm long ink printer sgueegee ink and silver residual automatic cleaning machine 1
