Product Details
Place of Origin: Shenzhen, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-4100
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1950*1800*2400 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 100 sets per year
Screen Size: |
1000*1000*40mm(L*W*T) |
Water Capacity: |
120L |
Developing Time: |
2~4min |
Air Blow Dry Time: |
1~2min |
Filter: |
20um |
Pump: |
3kw |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Power Supply: |
AC380V, 3P, 50Hz,5KW |
Machine Size: |
L1750*W1550*H2000mm |
Machine Weight: |
780KG |
Screen Size: |
1000*1000*40mm(L*W*T) |
Water Capacity: |
120L |
Developing Time: |
2~4min |
Air Blow Dry Time: |
1~2min |
Filter: |
20um |
Pump: |
3kw |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Power Supply: |
AC380V, 3P, 50Hz,5KW |
Machine Size: |
L1750*W1550*H2000mm |
Machine Weight: |
780KG |

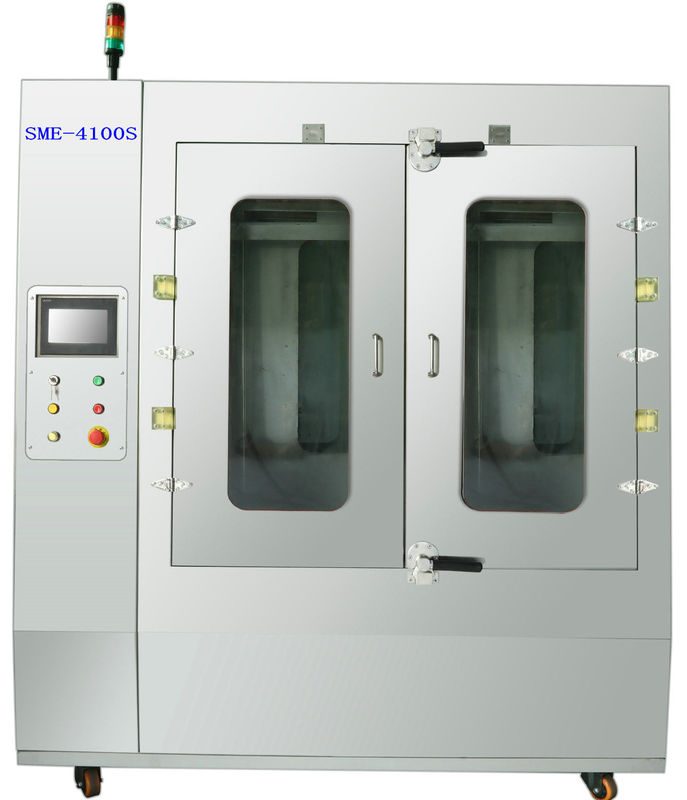

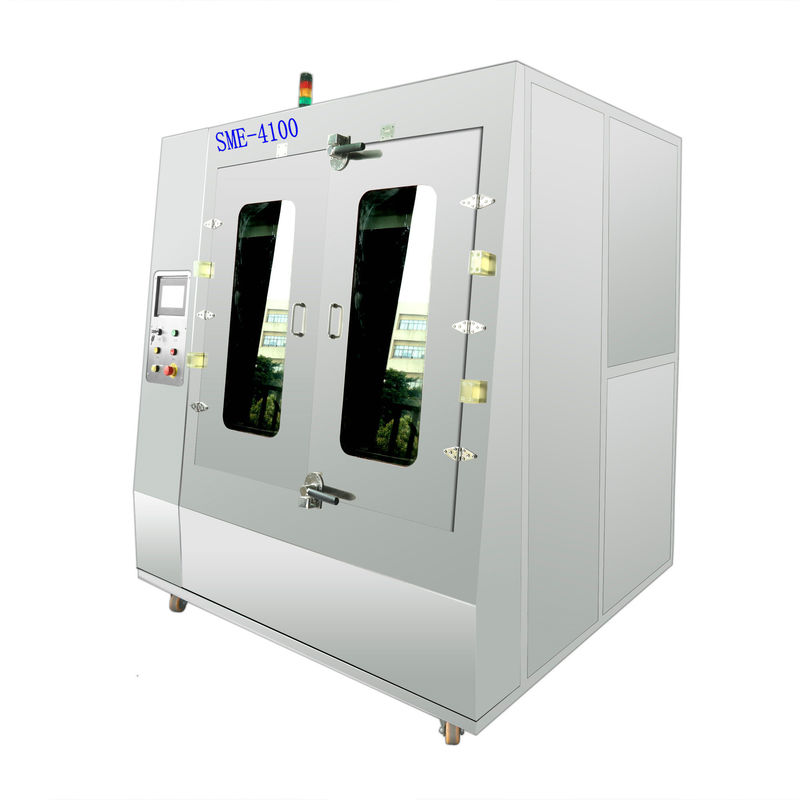

SME-4120 is a Smart, quick, confined space and high pressure automatic water spray screen developing machine.
SME-4120 is used to clean screen after film exposure or laser curving in screen producing process.
Front and back side 2 water spray rods clean the front and rear side of the screen to make the printing graph clear.
Water spray back side can be turn on an shut off for normal screen and water fillm screen.
Spray water pressure,spray time and spray rods moving speed can be edited on PLC programme as needed. Water can be discharge or recyclly used.
SME-4120 advantages:
1. Low water cost.
2. Very good develop and strip quality.
3. One key easy operation.
4. Moving range can be set according to screen size.
5. Low water level protection function.
6. Water auto add function.
7. Spray speed and pressure easy edit.
8. Sus304 staninless steel material, acid and alkalic proof.
9. Obeservation window.
10. Seal cabinet,no water or mist leak out, keep workshop dry and clean.
Machine Features:

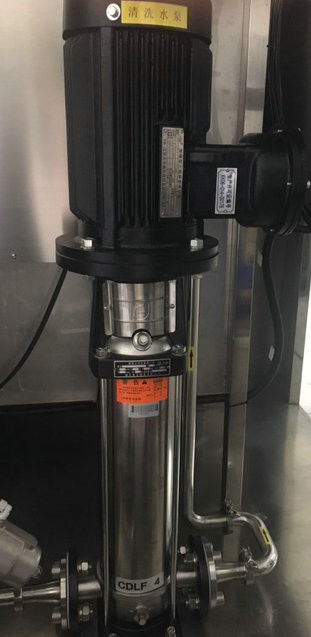

1.High quality electrical pump. High pressure water spray and recycle filtering function.
2.Totally SUS 304 structure, Strong Acid and Alkali corrosion resistance, 10 years lifespan.
3.One-key operation, developing/Stripping and dry process complete automatically according to pre-setting procedure.
4.Standard equipped water level control mechanism, automatically add water when water is not enough..
5.Standard equipped water less alarm and protection system, shut off the machine automatically to protect the pump.
6.Completely closed spray developing process, makes the ground of the workshop clean and day.
7.Super well-known electrical and pneumatic parts, perfect design, strictly produce process to ensure stability and high quality of the machine.
8.It also can be used as auto striping machine after adjusting the water jet pressure and time.
Machine Spec:
| Item | SME-4120 |
| screen size | L1200 x W1200 x H40(mm) |
| water tank capacity | 120L |
| developing and stripping time | 1~3min |
| Air blow dry time | 1~2min |
| Air rate | 800~1000L/min |
| Air pressure | 0.5~0.7Mpa |
| air vent | Φ125 × H30 (mm) |
| Power supply | AC380V,50HZ,5KW |
| Machine size | L1950xW1550xH2200mm |
| Weight | 880kg |
Customer Questions and Answers:
Q1: Can this machine develop fine mesh screen?
A1: Yes, the water spray pressure can be adjusted on programme.
Q2: Can this machine develop thick screen?
A2: Yes, the water spray pressure and time can be adjusted, thick screen need 4~5min.
Q3: Can this machine develop 2 small size screen?
A3: Yes, screen size less than 600*600mm, it can develop 2 screens at the same time.

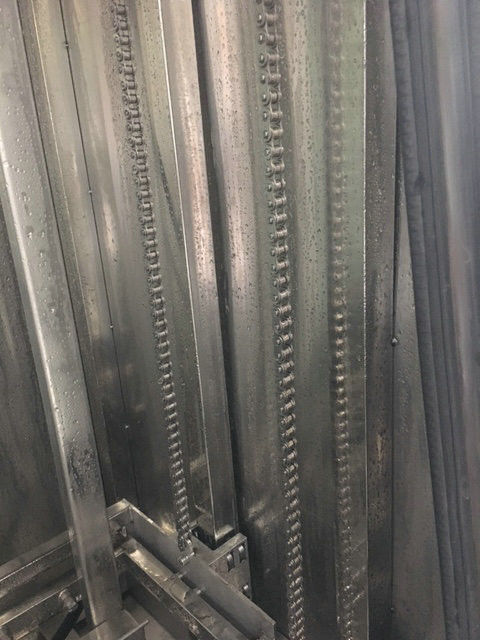

Machine pictures:
