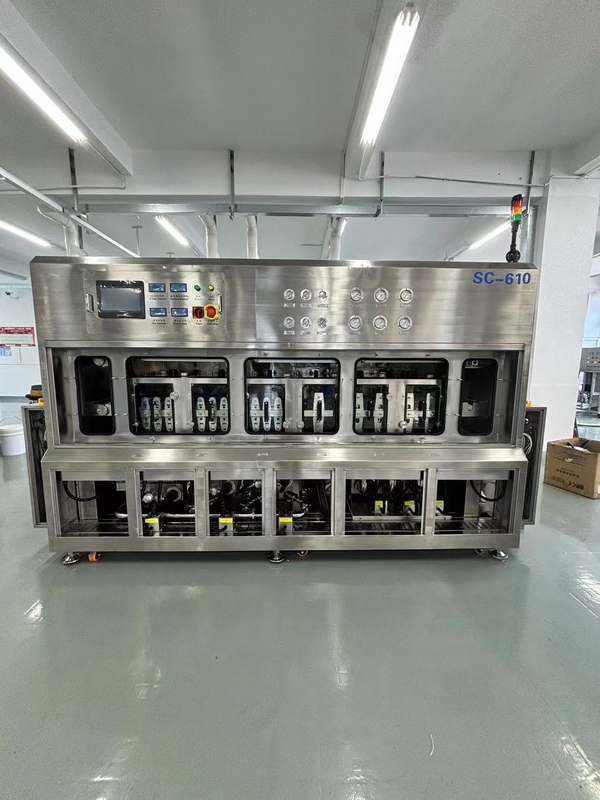

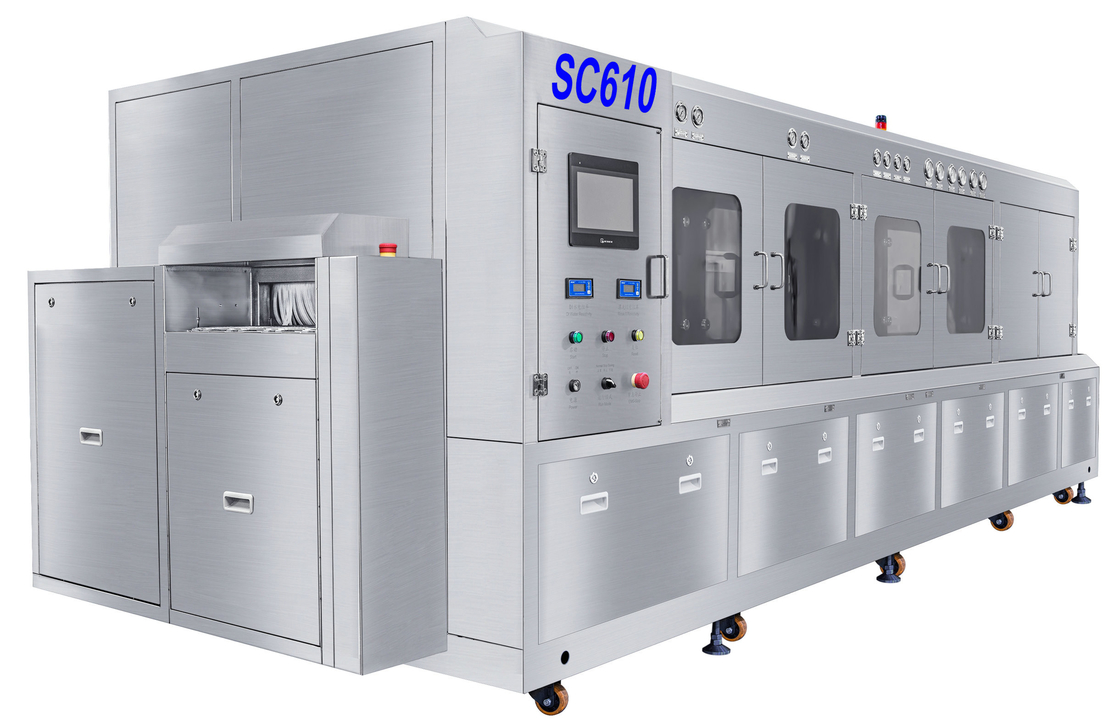

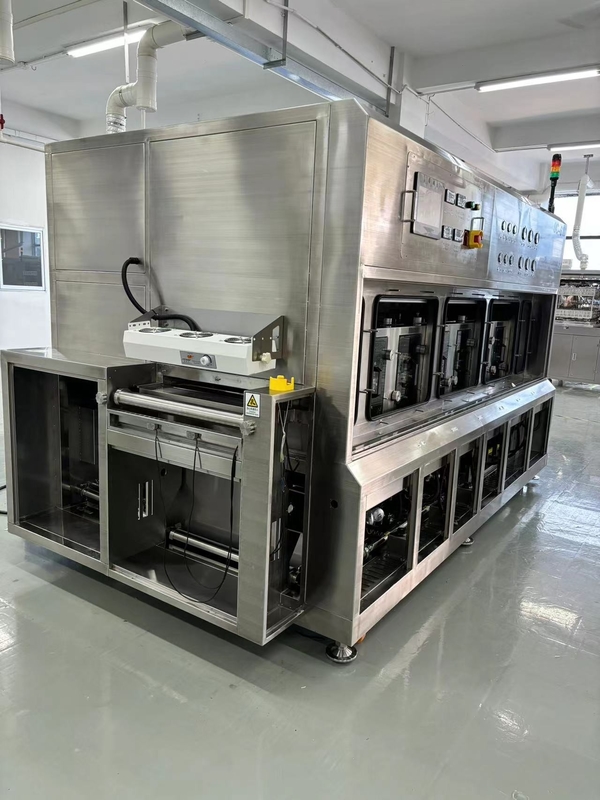

SC610 Semiconductor Cleaning Machine

Product Details

Place of Origin: CHINA

Brand Name: SME

Certification: CE

Model Number: SC610

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: WOOD CASE

Payment Terms: T/T

Supply Ability: 1pc/7day

Get Best Price
Product Details
High Light:
Product Description
Brief Introduction
SC610 is chip semiconductor packaging in line cleaning machine. Use to clean flux and other contamination on Chip after soldering during chip packaging process. SC810 is design to in line clean lead frame, IGBT, IPM, IC modules chips.
Machine Features
1.Semicon chips in line clean in packaging process.
2.Spray clean to remove flux and other contamination.
3.Chemical clean+ DI water rinse+ Hot air dry process.
4.Wash liquid and rinse DI water add/discharge automatically.

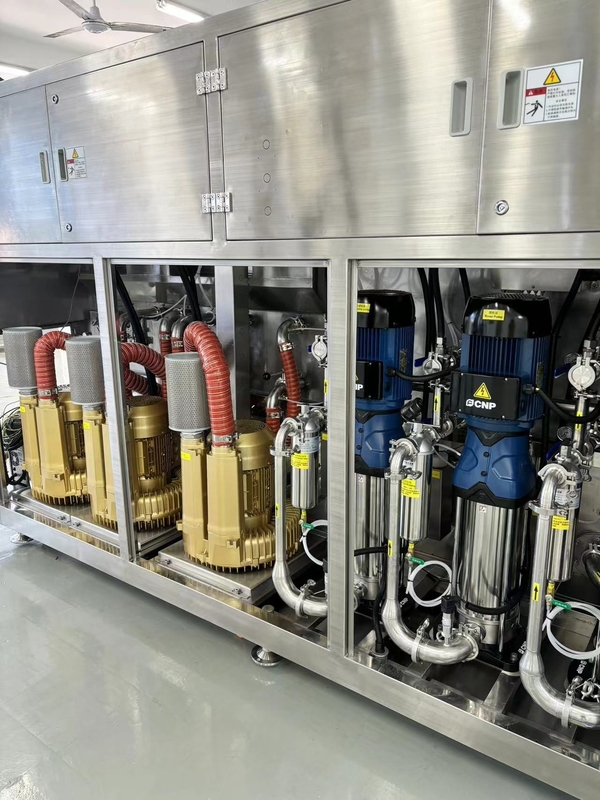

5.Wash liquid spray pressure can adjust for different chips.
6.High flow amount and high pressure liquid for precise FC packaging chips.
7.DI water resistivity monitoring system.
8.Air blow+ Hot air dry system.

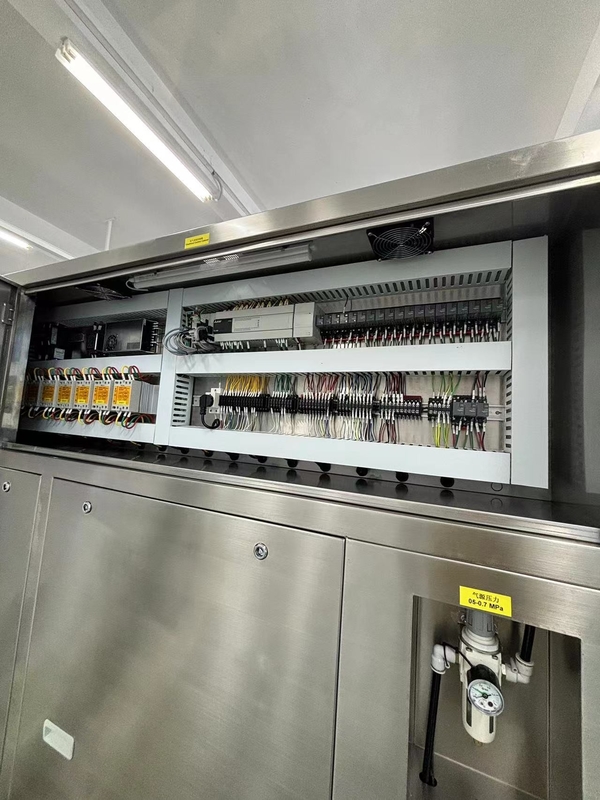

9.PLC control system, English interface and friendly operation system.
10.304 stainless steel frame structure.
11.SMEMA lines to connect up and down stream equipment.
12.Wash liquid concentration real time monitoring system.
Machine SPEC
Item SC610 SPEC
Net conveyor width 600mm
Net conveyor speed 100~150cm/min
Net conveyor height 900±50mm
Net conveyor direction Left to Right
Product width size 600mm as max
Product height 100mm as max
Wash liquid tank capacity 100L
DI water capacity 30+60L
Filter precision 0.2um
DI water consumption 400~800L/H
Air vent amount 32m³/H
System control PLC
Power/Air supply 380VAC,3P,50/60HZ,110KW/0.5Mpa,200L/Min
Resistivity range 0~18MΩ
Machine size L3500*W1750*H1650mm
Machine weight 2000KG
