Model Number: SC810
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)
Delivery Time: 60~80days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 100 sets per Year
Material: |
SUS304 Stainless Steel |
Package Size: |
L600*W400*T100mm As Max |
Conveyor Net Width: |
600mm |
Conveyor Speed: |
0.1~1.5m/min |
Conveyor Direction: |
Left To Right |
DI Water Amount: |
400~800L/H |
Air Exhaust Amount: |
36m³/H |
DI Water Resistivity Range: |
0~18MΩ |
Compressed-air Supply: |
0.5Mpa, 200~400L/min |
Power Supply:: |
AC380V, 3P, 50/60Hz,150KW |
Machine Size: |
5200*1750*1650( L*W*H) Mm |
Machine Weight: |
3000KG |
Material: |
SUS304 Stainless Steel |
Package Size: |
L600*W400*T100mm As Max |
Conveyor Net Width: |
600mm |
Conveyor Speed: |
0.1~1.5m/min |
Conveyor Direction: |
Left To Right |
DI Water Amount: |
400~800L/H |
Air Exhaust Amount: |
36m³/H |
DI Water Resistivity Range: |
0~18MΩ |
Compressed-air Supply: |
0.5Mpa, 200~400L/min |
Power Supply:: |
AC380V, 3P, 50/60Hz,150KW |
Machine Size: |
5200*1750*1650( L*W*H) Mm |
Machine Weight: |
3000KG |

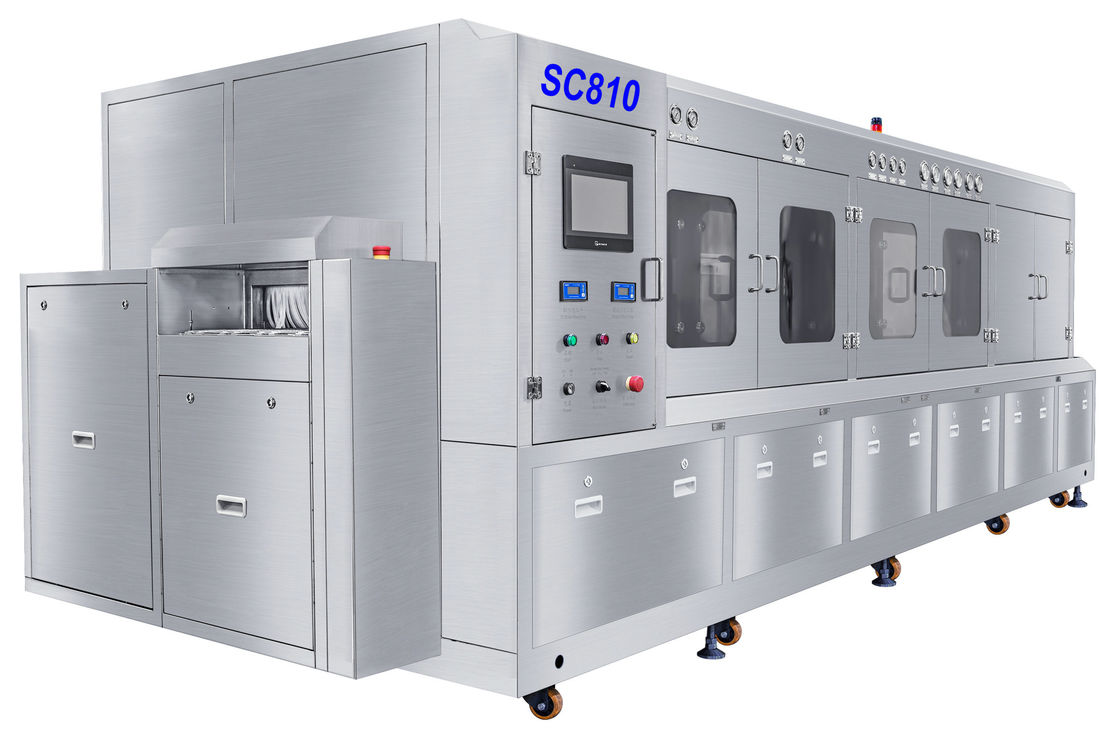

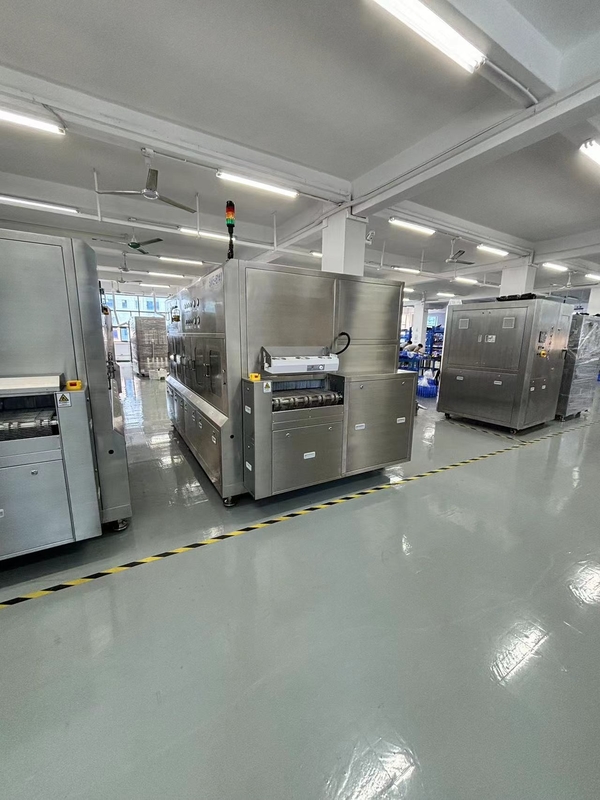

SC810 is a compact in line spray cleaning machine for leadframe, IGBT, IPM,BGA, CSP package flux clean by using liquid wash and DI water rinse and hot air dry.
For all kinds of flux and leadframe, IGBT, IPM,BGA, CSP package.
SC810 working process: Pre-wash+Wash+ Chemical isolation+ Pre-rinse+ Rinse+Final rinse+ Air blow dry+ Hot air dry1+ Hot air dry2.
By using SME latest mix spray cleaning technology, the system has following advantages:
1. Leadframe package flux in line cleaning system.
2. Liquid mix spray wash technology, super wash result, thoroughly clean water-sular solder paste flux and non-clean flux.
3. Longer wash sections + DI water rinse section+ Air blow section +2 hot air dry sections.
4. Liquid and fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.

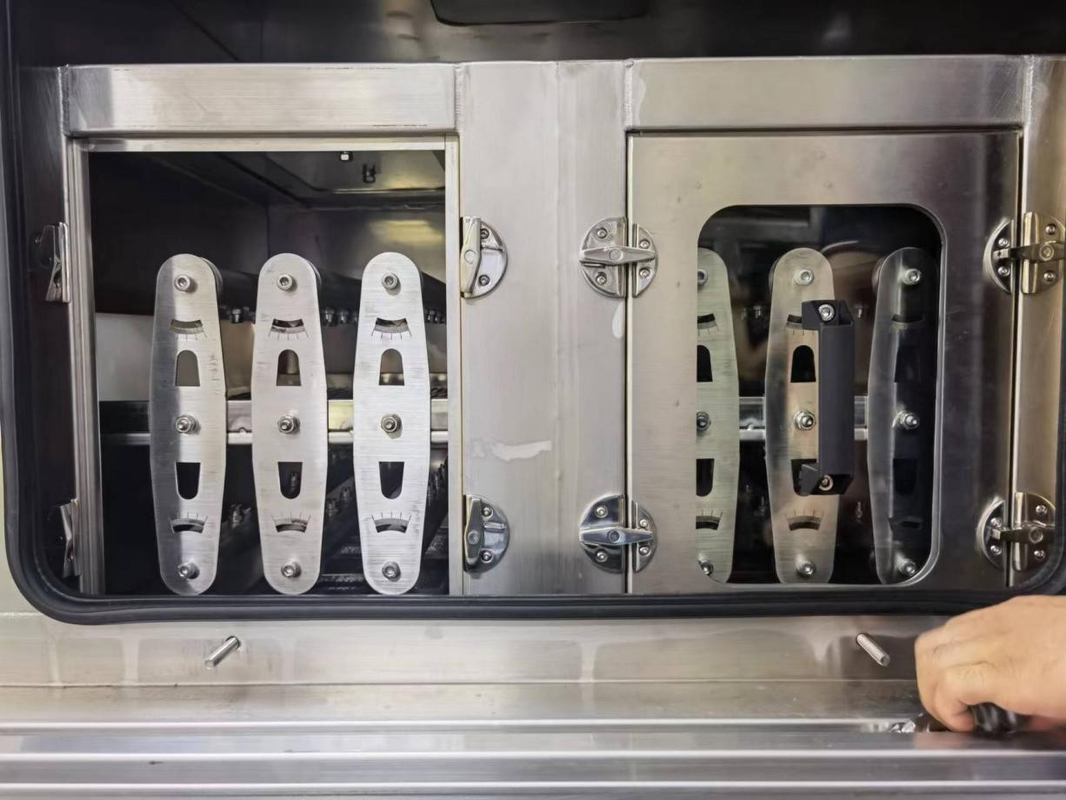

5. Up/down spary system on wash and rinse sections.
6. Liquid and DI water spray pressure can be adjusted for dirrerent semiconductor products cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry+ 2 section hot air dry system.
9. SUS304 stainless PCB flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.
12. Total SUS304 structure, Acid and Alkali corrosion resistance.
Machine Spec:
| S/N | Item | SC810 Spec |
| 1 | conyeyor net | 600mm |
| 2 | conveyor speed | 0.1~1.5m/min |
| 3 | conveyor height | 900±50mm |
| 4 | conveyor direction | Left to Right |
| 5 | product size | L400*W600mm as max |
| 6 | product height | 100mm as max(with component) |
| 7 | wash tank capacity | 120L |
| 8 | rinse tank capacity | 30L+60L+30L |
| 9 | DI water consumption | 400~800L/H |
| 10 | exhausted air | 36m³ |
| 11 | electric control | PLC+TP |
| 12 | Resistivity range | 0~18MΩ |
| 13 | PH range | 0~14 |
| 14 | air supply | 0.5Mpa |
| 15 | power supply | AC380V,50/60HZ, 3P,110KW |
| 16 | machine size | L5200*W1750*H1650mm |
| 17 | machine weight | 3000KG |
Q1: What kind of semiconductor profucts can SC810 clean?
A1: Flux on BGA,CSP,IGBT, IPM Leadframe pacakage. it has 600mm wash section with 2x8 spray rods on it, that's why it is so powerful.
Q2: Why is it 110KW?

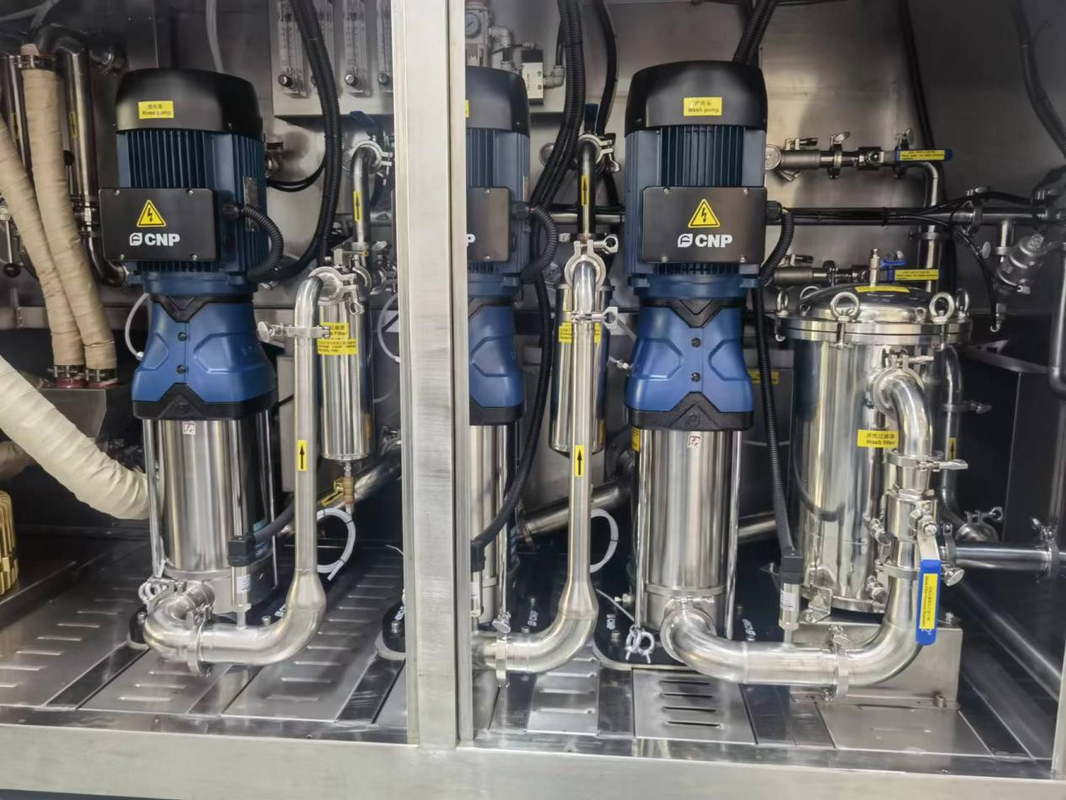

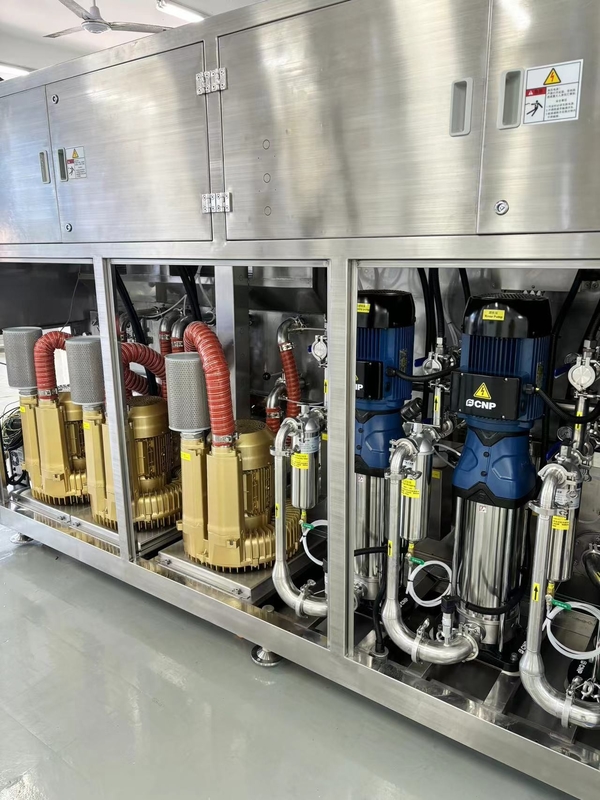

A2: in wash section, it has 3x12KW heater;in pre-rinse section,it has 1x12KW heater; in Rinse section, it has 1x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.
Q3: What is the liquid temperature and DI water temperature?
A3: liquid temperature can heat to 80℃; DI water can heat to 60℃.
Q4: What is the liquid consumption per hour?
A4: It depends on liquid itself and temperature, we install liquid cool condenser ,normally 5~10L/ Hour.
