| Place of Origin: | Dongguan, China |
|---|---|
| Brand Name: | SHENHUA |
| Certification: | CE,UL |
| Model Number: | CMC-800 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Vacuum +plywood case package, case size: 1100*1300*2250 mm(L*W*H) |
| Delivery Time: | 30~40 days |
| Payment Terms: | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
| Supply Ability: | 300sets per year |
| Cleaning Method: | Double Fluid DI Waterspray Wash | Dry Method: | Centrifugal Dry |
|---|---|---|---|
| Cleaning Plate: | φ＜550mm | DI Water Supply: | ＞17MΩ（Flow Rate＞7RPM） |
| Cleaning Pressure: | 3~8kg/cm2 | Air Filter: | 1umx1pcs; 0.01umx1pcs |
| Machine Size: | L800*W960*H1800 | Machine Weight: | 450KG |
| High Light: | Centrifugal CMOS water cleaning machine,7LPM water cleaning machine,Centrifugal CMOS wafer cleaning machine |
||
CMC-800 Ultrasuper DI Water CMOS Cleaning Machine Wafer 7LPM Two Fluid cleaning machine is mainly used to clean micro dusts on camera module products such as: Wafer, CMOS, Holder...etc. By using oure DI water scan spray cleaning technology, CMC-800 wash out very little micro dusts and by using 1000RPM centrifugal dry technology, CMC-800 can quickly make products dry.
Machine Features:
1. Specially designed to clean dusts on camera module products.
2. Mirror stainless steel structure, suitable for clean room.
3. Clean plate is specially made according to products, clean plate can be changed according to different products cleaning requirement.
4. PLC control, easy operation.
5. Transparent explosion-proof front door, safe operation, convenient for observation.
6. All machine displayed by meters. Cleaning status are monitoring at the time.
7. 2 stream clean, high cleaning precise, no damage to products, very few DI water consumption.
8. Rotate spray rods, no secondary pollution.
9. Equipped with static eliminator, cleaning room heat device, help to achieve best cleaning result.
10. Equipped with 2-level air filtration system, compressed air meet the standard of ISO8573.1.
11. Compact machine, smaller foot-print.
12. Use pure DI water, comply with RoHs standard.
Machine Spec:
| Cleaning Plate | Custom-made (cleaning plate diameter<550mm) | |
| Clean method | 2 stream clean | |
| Dry method | High speed centrifugal dry | |
| Power supply | AC380V 50HZ | |
| Power | 7KW | |
| Power consumption | Cleaning power : 3.5kw/h | Standby power: 1kw/h |
| Rotate power | 3HP | |
| Environment filtration method | 0.3μm;99.999% | |
| Air filtration method | 1μm×1;0.01μm×1 | |
| Centrifugal rotating speed | 100-1500RPM | |
| Clean pressure | Water pressure:3-8Kgf/cm² air pressure:0.2-0.5Mpa | |
| DI water supply | Flow rate:>7LPM Resistivity:>17MΩ | |
| Air consumption | Pressure:0.45-0.7Mpa;flow rate:>30m³/H(good cleanness) | |
| DI water let in diameter | ø12mm soft hose or PT1/2″ female joint | |
| Air supply diameter | ø12mm hose | |
| Water exit diameter | PT 1″female joint | |
| Air exit diameter | 4″×2(need air-pumping device, air speed over 3m/sec) | |
| Machine size | 880mm(L)×960mm(W)×1880mm(H) | |
| Machine weight | 450KG | |

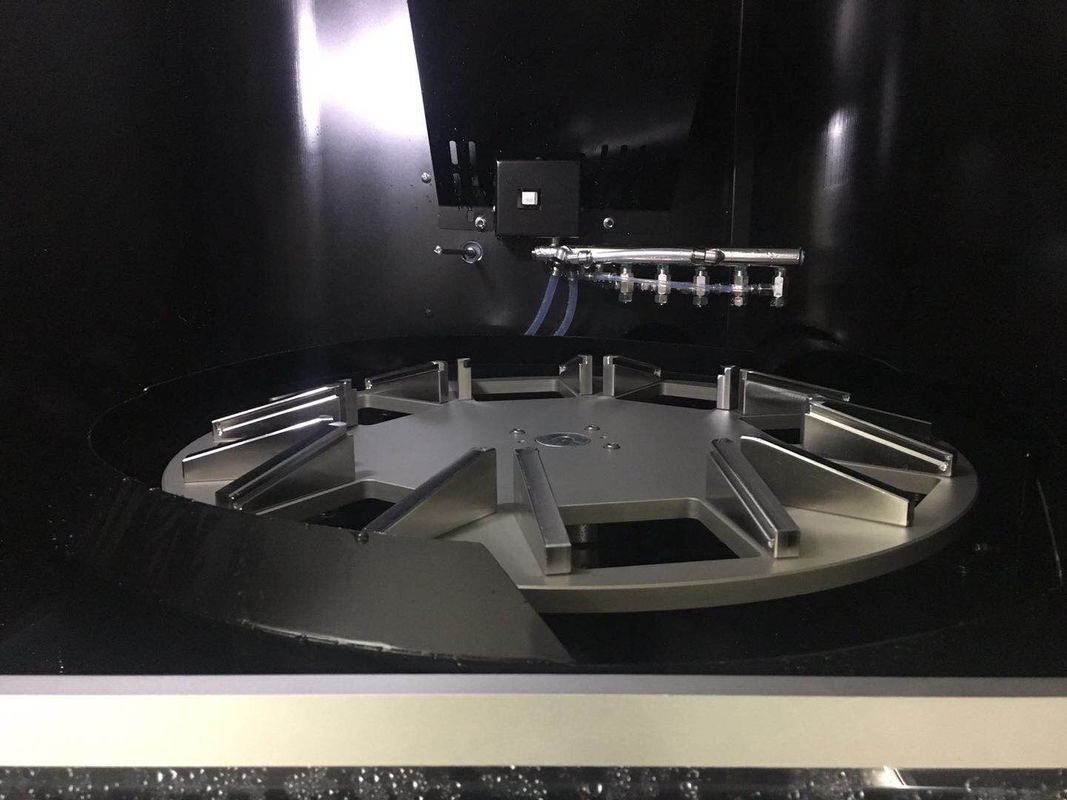

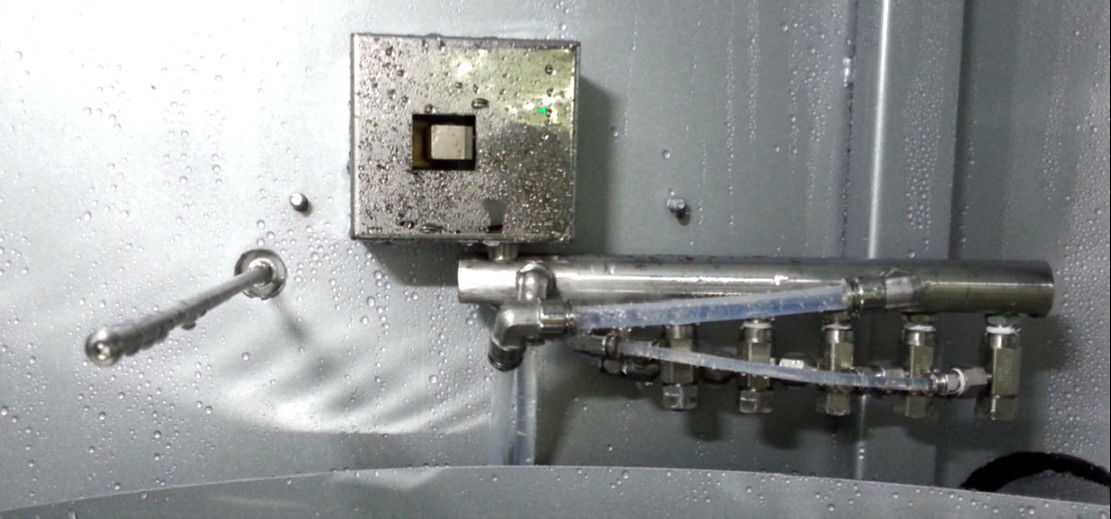

Machine picutre:
