SME-6100 Small Footprint PCBA Inline Spray Cleanig Machine For Water Soluble Flux

Product Details

Place of Origin: Guangdong, China

Brand Name: SHENHUA

Certification: CE,ISO,UL

Model Number: SME-6100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 6000*2200*2200 mm(L*W*H)

Delivery Time: 60~80days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 100 sets per Year

Get Best Price
Product Details
High Light:

PCBA Inline Spray Cleanig Machine

,

600mm PCBA Spray Cleanig Machine

,

1.5 m/min PCBA Spray Cleanig Machine

Material:
SUS304 Stainless Steel
PCBA Size:
L400*W600*T85mm As Max
Conveyor Net Width:
600mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
400~800L/H
Air Exhaust Amount:
30m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,113KW
Machine Size:
4500*1750*1980( L*W*H) Mm
Machine Weight:
2400KG
Material:
SUS304 Stainless Steel
PCBA Size:
L400*W600*T85mm As Max
Conveyor Net Width:
600mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
400~800L/H
Air Exhaust Amount:
30m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,113KW
Machine Size:
4500*1750*1980( L*W*H) Mm
Machine Weight:
2400KG
Product Description



Shenhua is the PCBA spray cleaning machine manufacturer in China. We've installed about 30 sets of PCBA in line cleaning machine in local customers' factory by the end of 2022.

SME-6100 PCBA Flux Inline Cleanig Machine can be used to clean no clean flux PCBA.

Good cleaning performance: PCBA flux residuals,soder balls and particles on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.

Small footprint cleaning section and  process: Wash+ Chemical isolation+ Pre-rinse+ Rinse+Final rinse+ Air blow dry+ Hot air dry.

SHENHUA new developed spray cleaning technology, the system has following advantages:

1.  PCBA flux in line cleaning system.
2. Long wash sections + DI water rinse section+ Air blow section +hot air dry section.
3. Liquid wash repeatedly and fresh DI water supply automatically and overflow to replace.
4. Up/down  spary system on wash and rinse sections.
5. Liquid and DI water spray pressure can be adjusted for dirrerent PCBA cleaning requirements.
6. SUS304 stainless PCB flat conveyor net system.
7. PLC control system, English operation interface, easy operation.
8. Total SUS304 structure, Acid and Alkali corrosion resistance.

Machine Spec:



S/NItemSME-6100 Spec
1conyeyor net 600mm
2conveyor speed0.1~1.5m/min
3conveyor height900±50mm
4conveyor directionLeft to Right
5PCB sizeL400*W600mm as max
6PCB height85 mm as max(with component)
7wash tank capacity140L
8rinse tank capacity40L+80L
9DI water consumption400~800L/H
10exhausted air30m³
11electric controlPLC+TP
12Resistivity range0~18MΩ
13PH rangeno
14air supply0.5Mpa, 200~400L/min
15power supplyAC380V,50/60HZ, 3P,113KW
16machine sizeL4500*W1750*H1980mm
17machine weight2400KG



Customer Question & Answer

Q1: What kind of PCBAs can SME-6100 clean?
A1: SME-6180 is a short and compact PCBA flux cleaning machine. It can clean all kinds of flux PCBA.

Q2: Why is it 110KW?
A2: in wash section, it has 3x12KW heater;in pre-rinse section,it has 1x12KW heater; in Rinse section, it has 1x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.

Q3: What is the liquid temperature and DI water temperature?
A3: liquid temperature can heat to 80℃; DI water can heat to 60℃.

Q4: What is the liquid consumption per hour?
A4: It depends on liquid itself and temperature,  we install liquid cool condenser ,normallyconcentrated liquid 1L/ Hour.


Ask something for more detail

PCB comparison pictures before and after cleaning:

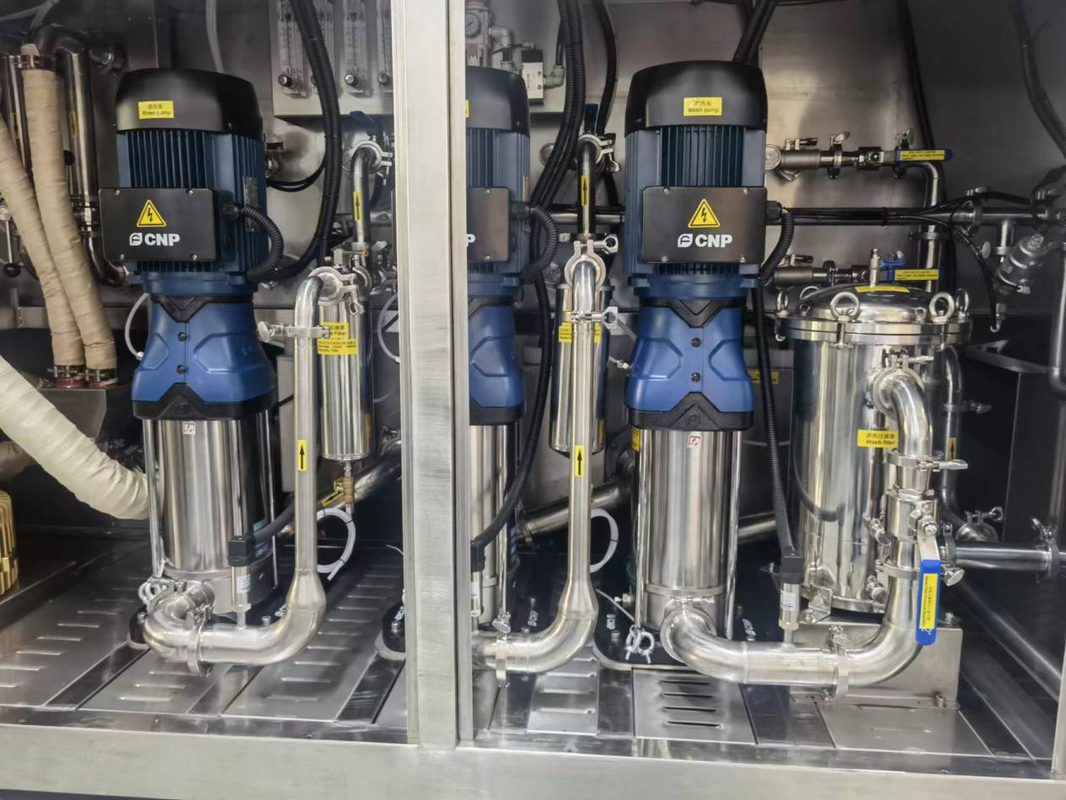

SME-6100 Small Footprint PCBA Inline Spray Cleanig Machine For Water Soluble Flux 0


SME-6100 Small Footprint PCBA Inline Spray Cleanig Machine For Water Soluble Flux 1
