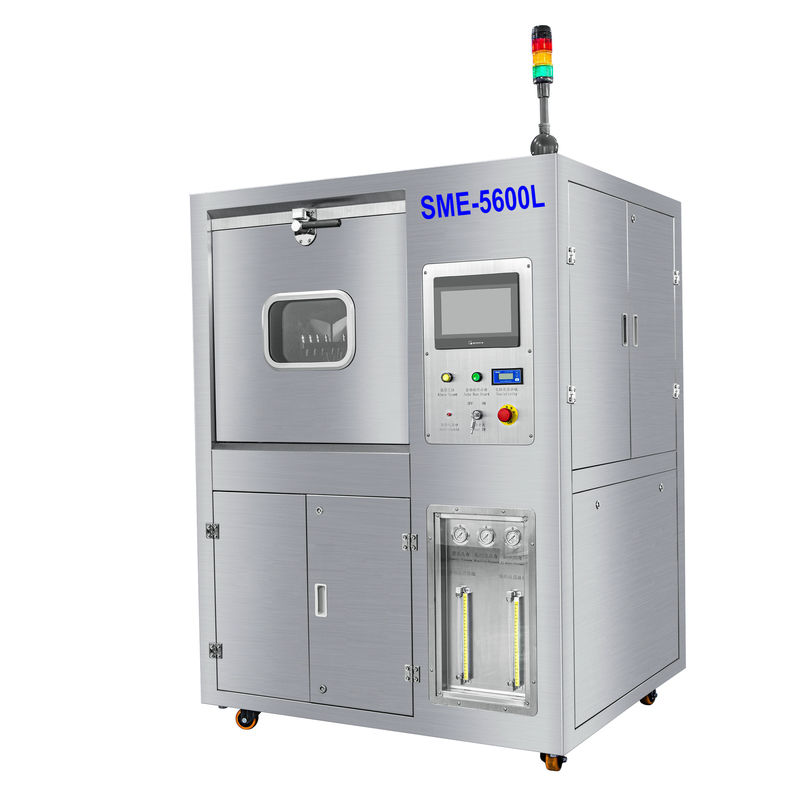

Large size PCB batch type no-clean solder paste flux cleaning machine with CE approved

Product Details

Place of Origin: Dongguan, China

Brand Name: SME

Certification: CE, UL

Model Number: SME-5600L

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1500*1400*2150 mm(L*W*H)

Delivery Time: 35~40 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 200sets/Year

Get Best Price
Product Details
High Light:

SMT PCBA Cleaning Machine

,

THT PCBA Cleaning Machine

,

THT stencil cleaning machine

PCB Size:
30x30mm~650x650mm
Cleaning Basket Size:
L700*W700*H200mm* 2Layers
Wash Time:
5~10min
Rinse Time:
1~2min/time
Rinse Times:
3~5times(1~99 Avaliable)
Dry Time:
20~25min
Liquid Heat Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Resistivity Range:
0~18MΩ
Air Supply:
0.5Mpa, 200~400L/min
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Machine Size:
1400*1400*2100( L*W*T) Mm
Weight:
720KG
Material:
SUS304 Stainless Steel
PCB Size:
30x30mm~650x650mm
Cleaning Basket Size:
L700*W700*H200mm* 2Layers
Wash Time:
5~10min
Rinse Time:
1~2min/time
Rinse Times:
3~5times(1~99 Avaliable)
Dry Time:
20~25min
Liquid Heat Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Resistivity Range:
0~18MΩ
Air Supply:
0.5Mpa, 200~400L/min
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Machine Size:
1400*1400*2100( L*W*T) Mm
Weight:
720KG
Material:
SUS304 Stainless Steel
Product Description

Product Description

SME-5600L is a Assembly circuit board PCBA no clean water soluble flux cleaning machine. It is mainly used to remove flux on pcba after SMT and THT assembly PCBA.



Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.

Good cleaning performance. SME-5600L PCBA cleaing n machine can wash rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.

SME-5600L advantages:


1. Flux and solder balls can be clean: for example, rosin flux, water-soluble flux , non-clean flux ,solder paste.


2. Special design big size basket: 700mm(L) ×700mm(W) × 200mm(H) x2 layers.


3. All processes are visible through a large observation window.


4. Easy operation interface, quick setting clean parameters. Different passwords can be set for ooerator and engineers.


5. Standard liquid and DI water fliter.



6. DI water resistivity real time check. Resistivity range is 0~18 MΩ.


7. Compressed air blow off pipes and pumps, save liquid.


8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.


9. Totally SUS304 structure,  solide, acid and alkali corrision-proof


SME-5600L spec:



ITEM

SPEC

Cleaning basket size

L700xW700xH200mmx 2layers

Diluent liquid tank capacity

60L

Spray liquid tank capacity

18L

Concentrate tank capacity

30L

Cleaning time

5~20min

Rinse time

1~2 min/times

Rinse times

1~10times

Dry time

10~30min

Diluent liquid heat temp

room temp ~60ºC

PCB dry time

room temp~99ºC

Resistivity range

0~18MΩ

Liquid filter

0.2um

DI water filter

0.2um

Air filter

10um

Vent size

φ76XH50(mm)

Power supply

AC380, 3 Phases, 50/60Hz, 30KW

Air supply

0.5Mpa, 400L/Min

Machine size

L1400xW1400x2100(mm)

Machine weight

720KG

Customer Question & Answer

Ask something for more details

Q1: What is the cycle time of SME-5600L batch cleaning  machine?

A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.



Q2: What liuqid can be used in SME-5600L to clean PCBA?

A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid  wash, DI water rinse.



Q3: Have many pcbas can SME-5600L clean in one cycle?

A3: L200*W100mm  size PCBA for example, it can clean 40~50pcs.

  PCBA Comparison pictures before and after cleaning:

Large size PCB batch type no-clean solder paste flux cleaning machine with CE approved 0





Large size PCB batch type no-clean solder paste flux cleaning machine with CE approved 1
