Product Details
Place of Origin: Dongguan, China
Brand Name: SME
Certification: CE, UL
Model Number: SME-5500L
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1500*1400*2150 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 200sets/Year
PCB Size: |
30x30mm~680x680mm |
Cleaning Basket Size: |
L700*W700*H200mm* 2Layers |
Wash Time: |
5~10min |
Rinse Time: |
1~2min/time |
Rinse Times: |
3~5times(1~99 Avaliable) |
Dry Time: |
20~25min |
Liquid Heat Temp: |
Room Temp~60℃ |
Dry Temp: |
Room Temp~99℃ |
Resistivity Range: |
0~18MΩ |
Air Supply: |
0.5Mpa, 200~400L/min |
Power Supply: |
AC380V. 3P,50/60Hz, 28KW |
Machine Size: |
1400*1400*2100( L*W*T) Mm |
Weight: |
720KG |
Material: |
SUS304 Stainless Steel |
PCB Size: |
30x30mm~680x680mm |
Cleaning Basket Size: |
L700*W700*H200mm* 2Layers |
Wash Time: |
5~10min |
Rinse Time: |
1~2min/time |
Rinse Times: |
3~5times(1~99 Avaliable) |
Dry Time: |
20~25min |
Liquid Heat Temp: |
Room Temp~60℃ |
Dry Temp: |
Room Temp~99℃ |
Resistivity Range: |
0~18MΩ |
Air Supply: |
0.5Mpa, 200~400L/min |
Power Supply: |
AC380V. 3P,50/60Hz, 28KW |
Machine Size: |
1400*1400*2100( L*W*T) Mm |
Weight: |
720KG |
Material: |
SUS304 Stainless Steel |
Flux Auto Spray Wash Machine With Chemical Wash And DI Water Rinse Hot Air Dry Process. SME-5500 is a multi-spec and small batch PCBA flux residual cleaning machine for all kinds of PCBA. It is a large size, off-line, PCBA cleaning machine. It can clean PCBA as big as L650*W650mm.

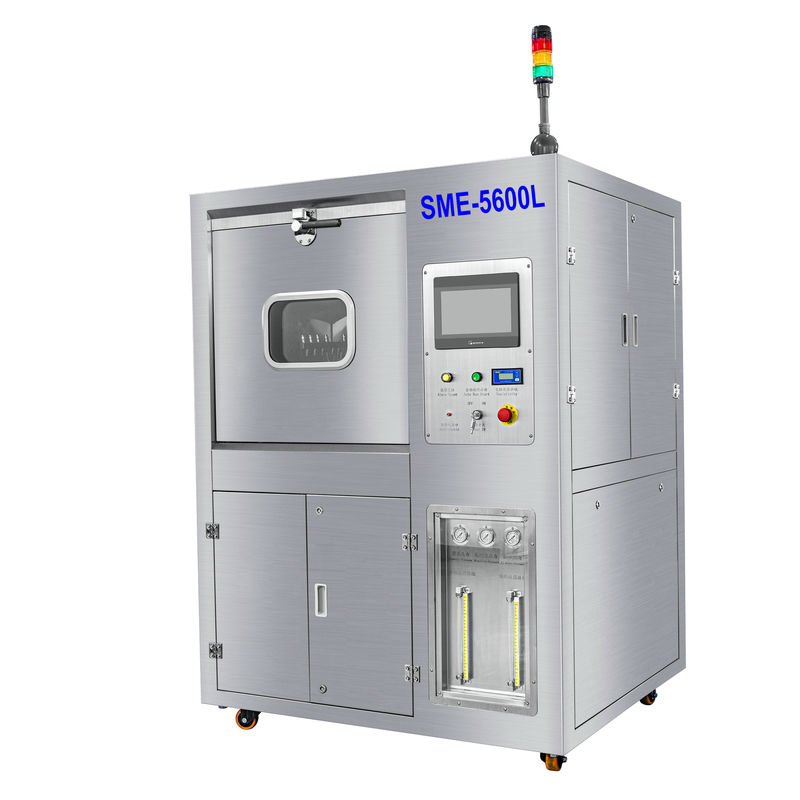

Super cleaning performance. SME-5600L PCBA cleaning machine can clean flux on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.
SME-5500L features:
1. All kinds of flux and solder balls can be clean: for example, rosin flux, water-soluble flux , non-clean flux ,solder paste.
2. 2-layers bigger cleaning basket: 700mm(L) ×700mm(W) × 200mm(H) x2 layers.
3. All processes are visible through a large observation window.
4 .Easy operation interface, quick setting clean parameters. Different passwords can be set for ooerator and engineers.
5. Standard liquid and DI water fliter.
6.DI water resistivity real time check. Resistivity range is 0~18 MΩ.
7. Compressed air blow off pipes and pumps, save liquid.
8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.
9. Totally SUS304 structure, solide, acid and alkali corrision-proof
SME-5500L spec:
| ITEM | SPEC |
| Cleaning basket size | L700xW700xH200mmx 2layers |
| Diluent liquid tank capacity | 60L |
| Spray liquid tank capacity | 18L |
| Concentrate tank capacity | 30L |
| Cleaning time | 5~20min |
| Rinse time | 1~2 min/times |
| Rinse times | 1~10times |
| Dry time | 10~30min |
| Diluent liquid heat temp | room temp ~60ºC |
| PCB dry time | room temp~99ºC |
| Resistivity range | 0~18MΩ |
| Liquid filter | 0.2um |
| DI water filter | 0.2um |
| Air filter | 10um |
| Vent size | φ76XH50(mm) |
| Power supply | AC380, 3 Phases, 50/60Hz, 30KW |
| Air supply | 0.5Mpa, 400L/Min |
| Machine size | L1400xW1400x2100(mm) |
| Machine weight | 720KG |
