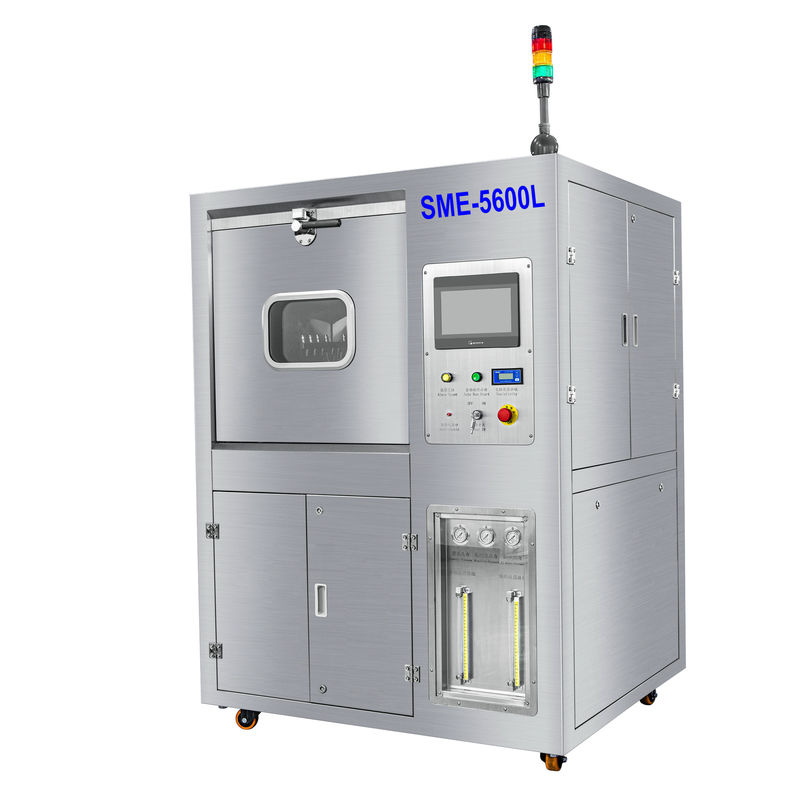

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket and CE approval is an off-line PCBA cleaning mahcine. It is a compact, energy-saving and environmental protection machine.
SME-5600 is used to wash off flux residual, solder balls, partichles on PCBA, such as: rosin flux, non-clean flux,water-soluble flux.Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.
SME-5600 advantages:
1. Throughly clean rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations on PCBA.
2. 2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.
3. All processes are visible through a large observation window.
4 .Easy operation interface, quick setting clean parameters. Different passwords can be set.
5. Inner filter makes liquid used repeated.
6.Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.
7. The remaining liquid in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.
8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.
9. Totally SUS304 structure, solide, acid and alkali corrision-proof
SME-5600 spec:
| ITEM | SPEC |
| Cleaning basket size | L610xW560xH100mmx 2layers |
| Diluent liquid tank capacity | 60L |
| Spray liquid tank capacity | 18L |
| Concentrate tank capacity | 30L |
| Cleaning time | 5~20min |
| Rinse time | 1~2 min/times |
| Rinse times | 1~10times |
| Dry time | 10~30min |
| Diluent liquid heat temp | room temp ~60ºC |
| PCB dry time | room temp~99ºC |
| Resistivity range | 0~18MΩ |
| Liquid filter | 0.2um |
| DI water filter | 0.2um |
| Air filter | 10um |
| Vent size | φ76XH50(mm) |
| Power supply | AC380, 3 Phases, 50/60Hz, 30KW |
| Air supply | 0.5Mpa, 400L/Min |
| Machine size | L1300xW1200x1850(mm) |
| Machine weight | 600KG |
Q1: What is the cycle time of SME-5600 batch cleaning machine?
A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.
Q2: What liuqid can be used in SME-5600 to clean PCBA?
A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid wash, DI water rinse.
Q3: Have many pcbas can SME-5600 clean in one cycle?
A3: L200*W100mm size PCBA for example, it can clean 30~40pcs.
Q4: Does the PCBAs need to bake after wash, rinse and dry process in the machine?
A4: Sure, PCBAs after clean need to put into electric oven and bake for 2 hours at 100~110℃ or 4hours at 80~90℃to make the PCBA totally dry.
Comparison pictures before clean and after clean:
Video
Video
Video
