Product Details
Place of Origin: Guangdong, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SC610
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)
Delivery Time: 60~80days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 100 sets per Year
Material: |
SUS304 Stainless Steel |
Package Size: |
L600*W400*T90mm As Max |
Conveyor Net Width: |
600mm |
Conveyor Speed: |
0.1~1.5m/min |
Conveyor Direction: |
Left To Right |
DI Water Amount: |
400~800L/H |
Air Exhaust Amount: |
36m³/H |
DI Water Resistivity Range: |
0~18MΩ |
Compressed-air Supply: |
0.5Mpa, 200~400L/min |
Power Supply:: |
AC380V, 3P, 50/60Hz,150KW |
Machine Size: |
4500*1850*1950( L*W*H) Mm |
Machine Weight: |
3000KG |
Material: |
SUS304 Stainless Steel |
Package Size: |
L600*W400*T90mm As Max |
Conveyor Net Width: |
600mm |
Conveyor Speed: |
0.1~1.5m/min |
Conveyor Direction: |
Left To Right |
DI Water Amount: |
400~800L/H |
Air Exhaust Amount: |
36m³/H |
DI Water Resistivity Range: |
0~18MΩ |
Compressed-air Supply: |
0.5Mpa, 200~400L/min |
Power Supply:: |
AC380V, 3P, 50/60Hz,150KW |
Machine Size: |
4500*1850*1950( L*W*H) Mm |
Machine Weight: |
3000KG |

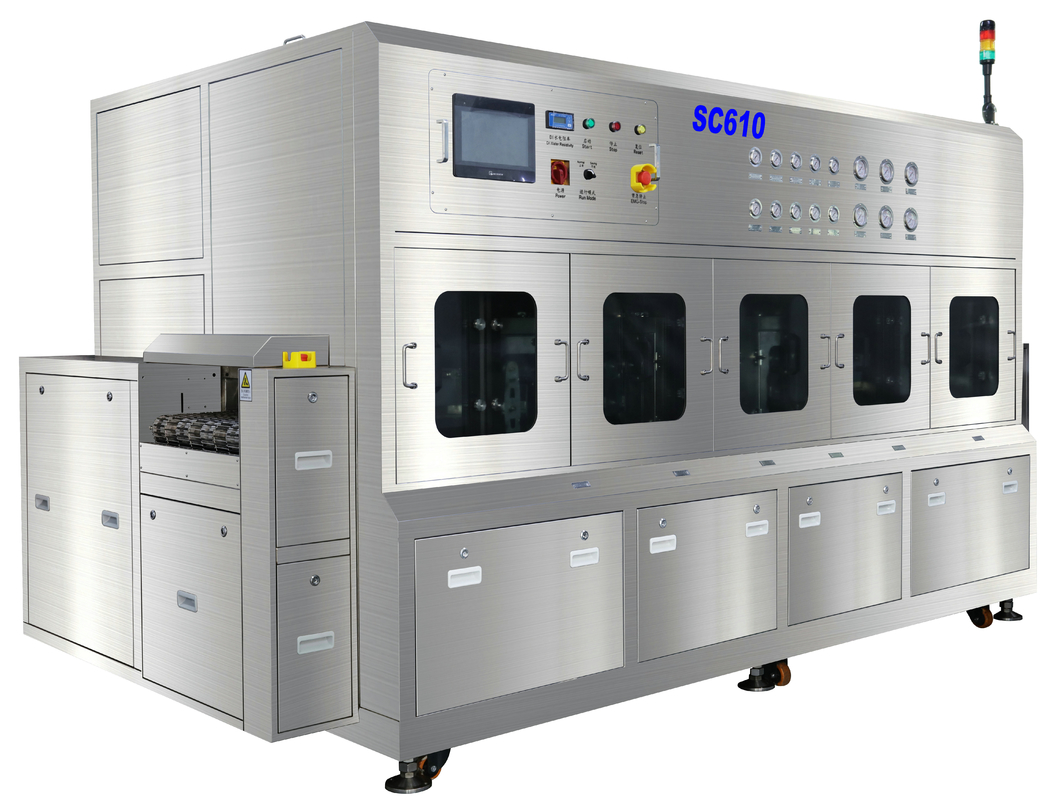

SME-6100 is a BGA Cleaning machine.
SME-6100 is a stainless steel constructure machine by using DI water wash and rinse and hot air dry.
For water soluble flux wash after BGA and reflow soldering.
6100 working process: Wash+Rinse1+Rinse 2+Air blow dry+ Hot air dry.
By using SME latest power spray cleaning technology, the system has following advantages:
1. BGA Auto cleaning system.
2. DI water wash and rinse, super wash result, thoroughly clean water-sular solder paste flux and non-clean flux.
3. Powerful wash section + DI water rinse section+ Air blow section + hot air dry section.
4. DI water supply and drain automatically, post-section DI water overflow to the previous-section to renew DI water.

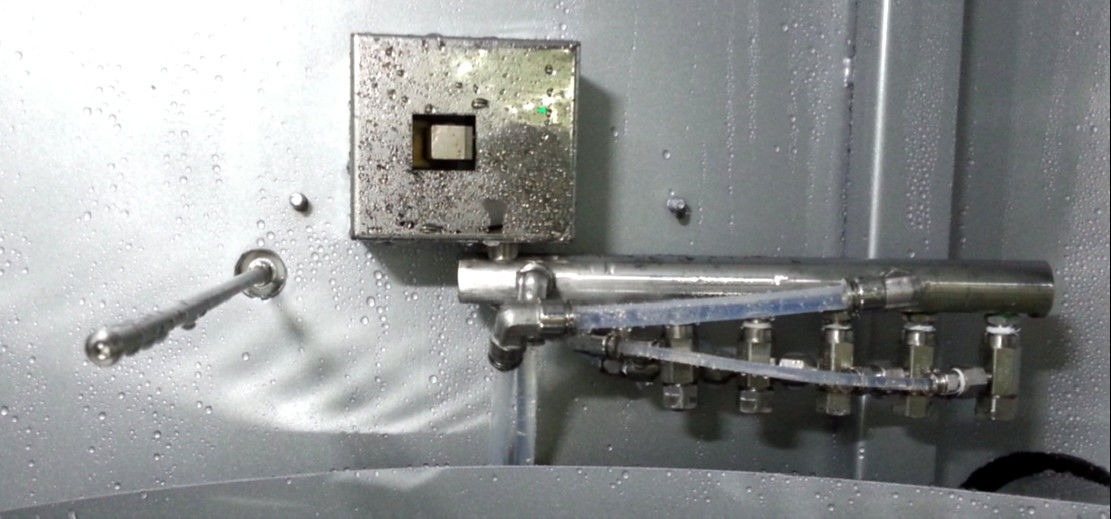

5. Up/down spary manifolds on wash and rinse sections.
6. DI water spray pressure can be adjusted.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry+ hot air dry system.
9. Dual layger kevlar transport net.
10. PLC control system, English operation interface, easy operation.
11. Many optional functions avalible.
12. Total SUS304 structure, Acid and Alkali corrosion resistance.
Machine Spec:
| S/N | Item | 6100 Spec |
| 1 | conyeyor net | 600mm |
| 2 | conveyor speed | 0.1~1.5m/min |
| 3 | conveyor height | 900±50mm |
| 4 | conveyor direction | Left to Right |
| 5 | product size | L400*W600mm as max |
| 6 | product height | 60mm as max(with component) |
| 7 | wash tank capacity | 80L |
| 8 | rinse tank capacity | 80L+80L |
| 9 | DI water consumption | 400~800L/H |
| 10 | exhausted air | 36m³ |
| 11 | electric control | PLC+TP |
| 12 | Resistivity range | 0~18MΩ |
| 13 | PH range | none |
| 14 | air supply | 0.5Mpa,200~400L/Min |
| 15 | power supply | AC380V,50/60HZ, 3P,55KW |
| 16 | machine size | L3500*W1850*H1950mm |
| 17 | machine weight | 2800KG |
Q1: What kind of semiconductor profucts can 6100 clean?
A1: Only BGA water soluble flux after ball mounting and reflow soldering.
Q2: Why is it 55KW?
A2: in wash section, it has 1x12KW heater;in rinse1 section,it has 1x12KW heater; in rinse2 section, it has 2x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.
Q3: What is DI water temperature?
A3: Water temperature can heat to 70℃; DI water can heat to 60℃.
Q4: How long the water consumption?
A4: normally 8~12L/Min.
