Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-3100
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1500*1700*2350 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200 sets per year
Screen Type: |
Ink Print Screen, Silver Paste Print Screen |
Screen Size: |
L1000*W1000*T40mm |
Wash Tank: |
50L |
Rinse Tank: |
50L |
Wash Time: |
3~5min |
Rinse Time: |
1~2min |
Dry Time: |
3~5min |
Filter: |
1um |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Wash Process: |
Wash+rinse+air Blow Dry |
Machine Size: |
L1260*W1450*H1950 |
Machine Weight: |
600KG |
Screen Type: |
Ink Print Screen, Silver Paste Print Screen |
Screen Size: |
L1000*W1000*T40mm |
Wash Tank: |
50L |
Rinse Tank: |
50L |
Wash Time: |
3~5min |
Rinse Time: |
1~2min |
Dry Time: |
3~5min |
Filter: |
1um |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Wash Process: |
Wash+rinse+air Blow Dry |
Machine Size: |
L1260*W1450*H1950 |
Machine Weight: |
600KG |
SME-3100 is a double-sided solvent spray cleaning machine for silver paste and gold paste printing screen. It is specially used for cleaning ink, glue, silver paste...to make the screen clean and dry, waiting for the next use. SME-3100 adopts solvent spray cleaning technology to spray the cleaning solvent on the screen surface to wash off the residual ink. It is powered entirely by compressed air and uses no electricity. Rotary spray cleaning + resin spray + air drying process can clean and dry any silk screen.
Mainly used in the following industries:
1. TP/PCB/FPC: ink, silver paste, isolation/etching glue Screen and Stencil.
2. Sneakers/clothing/singing/plastic/hardware screen printing.
Machine Features:
1. It is completely driven by compressed air, without electricity, and will not cause explosion or fire due to electrical sparks.
2. All SUS 304 structure, resistant to acid and alkali corrosion, with a service life of 10 years.
3. One-button operation, the cleaning, rinsing and drying processes are automatically completed according to the preset time program
4. The cleaning and rinsing system can use different solvents to meet more stringent cleaning requirements.

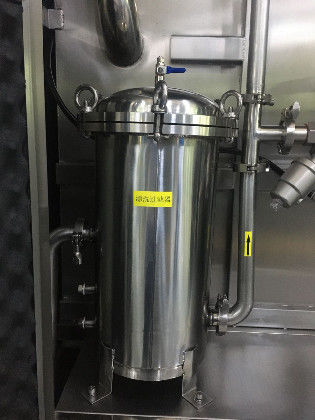

5. Multi-stage precision filtration system, the solvent in the machine is reused.
6. Equipped with automatic solvent entry and exit function as standard.
7. The exhaust port is connected to the air duct of the factory, there is no odor in the clean workshop caused by the solvent, the working environment is protected, and the environmental protection requirements are met.
8. Reduce printing defects by 10%, significantly improve printing quality
9. Improve the environment of the screen cleaning workshop and reduce the unpleasant smell of solvent volatilization.
10. Reduce the screen damage rate to less than 1% and prolong the life of the screen.
11. Solvents are reused to reduce costs and greatly reduce solvent emissions.
Machine Spec:
| Item | SME-3100spec |
| Max Screen Size | 1000 x 1000 x 40mm( Lx W x T) |
| Solvent tank | Max 50L |
| Clean time | 3~6min |
| Rinse time | 1~2min |
| Dry time | 3~5min |
| Air consumption | 200~800L/min |
| Air supply | 0.5~0.7Mpa |
| Air vent size | Φ124 × H30 (mm) |
| Filter system | 3-class filtration system |
| Clean mode | Clean +rinse + dry |
| Machine size | L1260 x W1450 x H 1950(mm) |
| Machine weight | 600kg |
Other related machines:

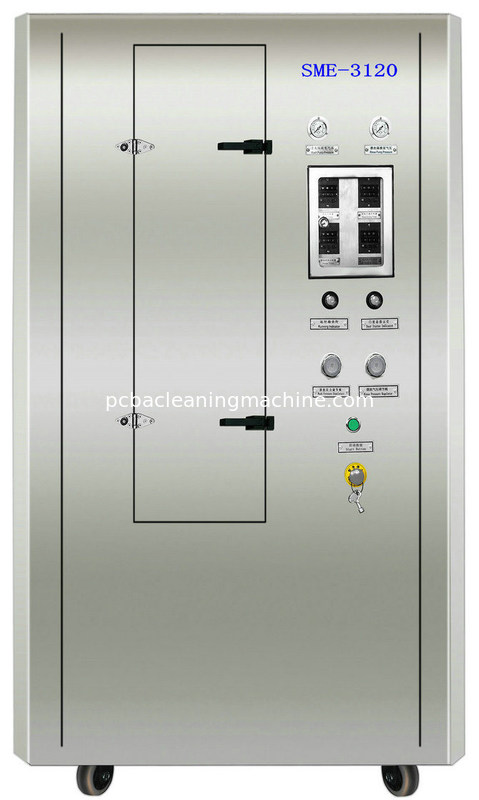

SME-3120;SME-1350;SME-1500 and SME-1800 for lager screen baord such as:1200x1200mm;1350x1350mm;1500x1500mm;1800x1800mm.
Customer questions and Answers:
Q1: What kind of printed screen can this machine wash?
A1: Basically any prin
ted screen; especially ink, silver paste, glue...
Q2: Does it need electric power?
A2: No, totally no need, just compressed-air, so no risk caused by electric,heat, sparks...
Q3: Only solvent can use in this machine?
A3: Because the machine is pneumatic, so any solvent and liquid can use in this machine.
Comparison pictures beofre and after cleaning:
