Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-3150
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1500*2000*2800 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200 sets per year
Screen Type: |
Hydrogen Fuel Cell Printed Seal Glue Screeen |
Screen Size: |
L1500*W1500*T40mm |
Wash Tank: |
50L |
Rinse Tank: |
50L |
Wash Time: |
3~8min |
Rinse Time: |
1~2min |
Dry Time: |
3~5min |
Filter: |
1um |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Wash Process: |
Wash+rinse+air Blow Dry |
Machine Size: |
L1300*W1800*H2400 |
Machine Weight: |
800KG |
Screen Type: |
Hydrogen Fuel Cell Printed Seal Glue Screeen |
Screen Size: |
L1500*W1500*T40mm |
Wash Tank: |
50L |
Rinse Tank: |
50L |
Wash Time: |
3~8min |
Rinse Time: |
1~2min |
Dry Time: |
3~5min |
Filter: |
1um |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Wash Process: |
Wash+rinse+air Blow Dry |
Machine Size: |
L1300*W1800*H2400 |
Machine Weight: |
800KG |

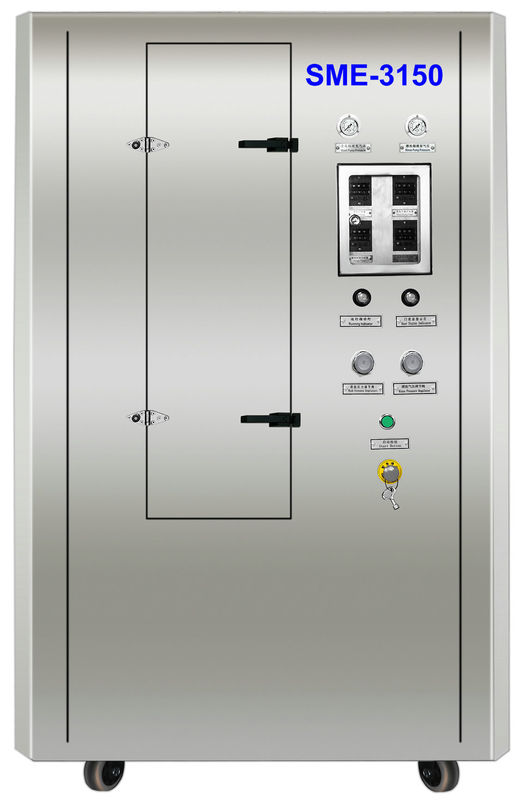

SME-3150 Big size new energy hydrogen fuel cell seal glue printed screen automatic cleaning machine.

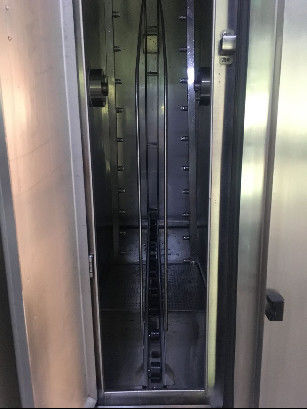

It is specially used to clean printed seal glue of hydrogen fuelcell making process to make screen clean and dry and waiting for re-use next time. SME-3150 uses high pressure liquid spray cleaning technology to spray cleaning liquid onto surface of screen to wash glue residual off. It is totally driven by compressed air, not use electric power. Rotate spray clean + spray resin + air dry process can clean any silk screen clean and dry.
Mainly used in the following industries:
1. Hydrogen fuelcell: seal glue screen.
2. TP/PCB/FPC: Ink, Silver paste, Isolated/Etching glue Screen and Stencil.
3. Sneakers/Clothing/Sings/Plastic/Hardware Silk Printing Screen.
Machine Feature:
1. Totally driven by compressed air, no electric power, no explosion, fire caused by electric sparks.
2. Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.
3. One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure
4. Clean and rinse system can use different solvent to meet more strict clean requirement .

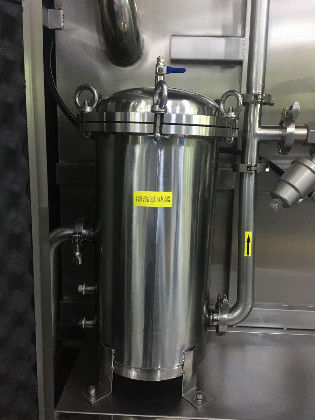

5. Multi-level precise filtration system, Solvent repeated use in the machine.
6. Standard equipped with auto solvent fill in and drain out function.
7. Exhaust air vent connected to the factory air pipe, no abnormal flavor in clean workshop caused by solvent, protect working environment, meet the requirement of environment protection.
8. Cut off 10% printing defect, significantly improve printing quality
9. Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.
10. Reduce screen damage rate to less than 1%, extend lifespan of Screen.
11. Solvent repeated use, cost down, greatly reduce solvent emission.
Machine Spec:
| Item | SME-3150spec |
| Max Screen Size | 1500 x 1500 x 40mm( Lx W x T) |
| Solvent tank | Max 50L |
| Clean time | 3~8min |
| Rinse time | 1~2min |
| Dry time | 3~5min |
| Air consumption | 800~1000L/min |
| Air supply | 0.5~0.7Mpa |
| Air vent size | Φ125 × H30 (mm) |
| Filter system | 3-class filtration system |
| Clean mode | Clean +rinse + dry |
| Machine size | L1300 x W1800 x H 2400(mm) |
| Machine weight | 800kg |
Other related machines:
SME-3120;SME-1350;SME-3150 and SME-3180 for lager screen baord such as:1200x1200mm;1350x1350mm;1500x1500mm;1800x1800mm.
We are spray cleaning system design, manufacturer, sales and service company, we are looking for local agent.
Customer questions and Answers:
Q1: What kind of printed screen can this machine wash?
A1: Basically any printed screen; especially ink, silver paste, glue...
Q2: Does it need electric power?
A2: No, totally no need, just compressed-air, so no risk caused by electric,heat, sparks...
Q3: Only solvent can use in this machine?
A3: Because the machine is pneumatic, so any solvent and liquid can use in this machine.
Comparison pictures beofre and after cleaning:
