Home > products > Automatic Screen Cleaning Machine > 120L water tank Automatic Screen Cleaning Machine 1000 mm water ink cleaning machine

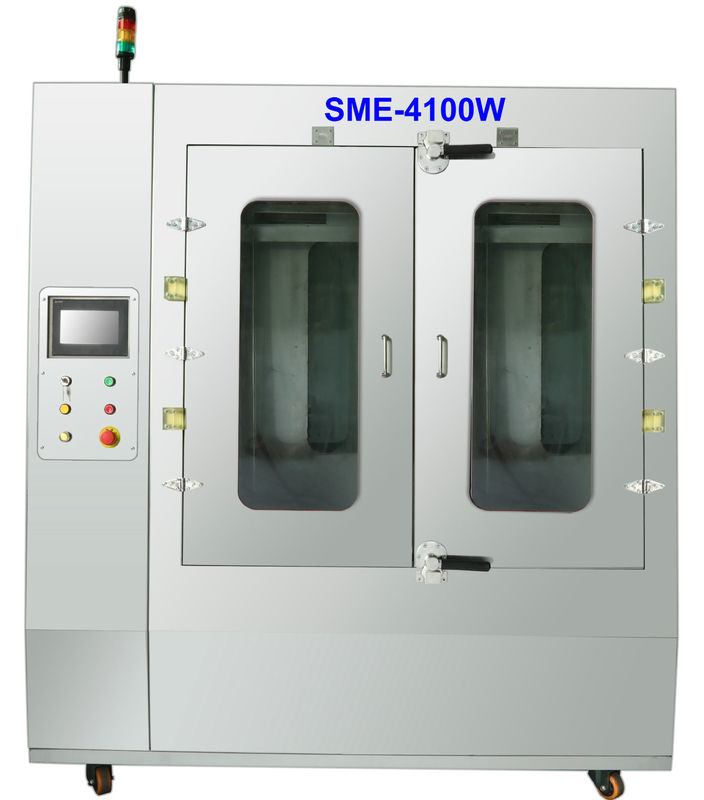

120L water tank Automatic Screen Cleaning Machine 1000 mm water ink cleaning machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-4100W

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 2000*1800*2400 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

120L Automatic Screen Cleaning Machine

,

2000mm Automatic Screen Cleaning Machine

,

2000mm smt stencil cleaner

Liquid:
Tap Water
Cleaning Process:
Clean+Resin+Dry
Screen Size:
L1000mm*W1000mm*T40mm
Cleaning Method:
Up And Down Scan Spray Clean
Wash Time:
3~5min
Dry Time:
2~3min
Water Tank:
120L
Air And Powersupply:
0.5~0.7Mpa, 800~1000L/Min,AC380V,5KW
Machine Size:
L1750*W1550*H2000mm
Machine Weight:
780KG
Liquid:
Tap Water
Cleaning Process:
Clean+Resin+Dry
Screen Size:
L1000mm*W1000mm*T40mm
Cleaning Method:
Up And Down Scan Spray Clean
Wash Time:
3~5min
Dry Time:
2~3min
Water Tank:
120L
Air And Powersupply:
0.5~0.7Mpa, 800~1000L/Min,AC380V,5KW
Machine Size:
L1750*W1550*H2000mm
Machine Weight:
780KG
Product Description

Are you intrested in a water ink automatic spray cleaning machine??? We have!

Machine descriptions:

SME-4100W is a 120L water tank Automatic Screen Cleaning Machine 1000 mm water ink cleaning machine. Water based ink is very difficult to clean by using water. Our SME-4100W adopts high pressure water spray cleaning technology to clean water based printed ink screen to make it clean and dry and waiting for use nex time. SME-4100W adopts up and down scan water spray power to wash out ink residual on screen. Notice: Put the screen into SME-4100W quickly after taken out from screen printing machine.Never delay!

Machine Feature:

1. High pressure water, wash water based ink quickly.
2. Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.
3. One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure
4.Multi-level precise filtration system, Solvent repeated use in the machine.
5. Standard equipped with auto water fill in and drain out function.
6. Cut off  10% printing defect, significantly improve printing quality
7. Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.
8. Reduce screen damage rate to less than 1%, extend lifespan of Screen.
9. water repeated use, cost down, greatly reduce water treatment cost.

Machine Spec:


Item SME-4100W
Screen size 1000 x 1000 x 40mm( Lx W x H)
Water  tank capacity 120L
Clean time 1~3min
Rinse time 1~2min
Dry time 3~5min
Air consumption 600~800L/min
Air supply 0.5~0.7Mpa
Air vent size Φ124 × H30 (mm)
Filter system 3-class filtration system
Clean mode Clean +rinse + dry
Machine size L1750 x W1550 x H 2000(mm)
Machine weight 780kg



We are screen cleaning machine manufacturing facotry, we are now looking for local agents overseas!



Customer Questions and Answers:

Q1: Does this machine use cleaning liquid:

A2: No, only use tap water.



Q2: Can we use this machine to clean other type ink?

A2: No, we do not recommond, only water-based ink.



Q3: Can we use this machine to do screen stripping and developing work?

Q3: Yes.You can, this machine is a multiple useage machine.



Q4: Can water recyclly used in this machine?

A4: Yes. but we suggest to put defoamer agent time to time to decrease the foam caused by water-based ink.



 Comparison pictures before and after cleaning:

120L water tank Automatic Screen Cleaning Machine 1000 mm water ink cleaning machine 0



120L water tank Automatic Screen Cleaning Machine 1000 mm water ink cleaning machine 1
