Hydrogen energy cell seal glue print sceen automatic cleaner with enviromental protection liquid

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-3150

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1500*1700*2350 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability: 200 sets per year

Get Best Price
Product Details
High Light:

1um Automatic Screen Cleaning Machine

,

50L Automatic Screen Cleaning Machine

,

50L ultrasonic stencil cleaner

Screen Type:
Ink Print Screen, Silver Paste Print Screen
Screen Size:
L1500*W1500*T40mm
Wash Tank:
70L
Rinse Tank:
70L
Wash Time:
3~5min
Rinse Time:
1~2min
Dry Time:
3~5min
Filter:
1um
Air Supply:
0.5~0.7Mpa, 800~1000L/Min
Wash Process:
Wash+rinse+air Blow Dry
Machine Size:
L1260*W1950*H2450
Machine Weight:
800KG
Screen Type:
Ink Print Screen, Silver Paste Print Screen
Screen Size:
L1500*W1500*T40mm
Wash Tank:
70L
Rinse Tank:
70L
Wash Time:
3~5min
Rinse Time:
1~2min
Dry Time:
3~5min
Filter:
1um
Air Supply:
0.5~0.7Mpa, 800~1000L/Min
Wash Process:
Wash+rinse+air Blow Dry
Machine Size:
L1260*W1950*H2450
Machine Weight:
800KG
Product Description

We are Hydrogen energy cell seal glue print sceen automatic cleaner with enviromental protection liquid production companhy in China.

Product Description:

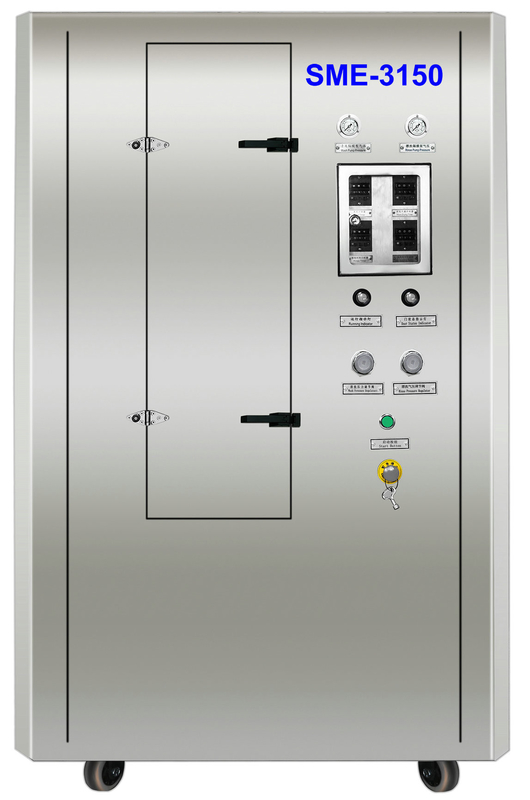

  SME-3150 is specally designed to wash seal glue residual on screen of hydrogen energy cell. It is specially used to wash seal glue on screen to make screen clean and dry and waiting for re-use  next time.



  SME-3150 uses solvent spray cleaning technology to spray cleaning solvent onto surface of screen to wash ink residual off. It is totally driven by compressed air, not use electric power. Rotate spray clean + spray resin + air dry process can clean any silk screen clean and dry.



Mainly used in the following industries:
1. TP/PCB/FPC: Ink, Silver paste, Isolated/Etching glue Screen and Stencil.
2. Sneakers/Clothing/Sings/Plastic/Hardware Silk Printing Screen.

Machine Feature:

1. Totally driven by compressed air, no electric power, no explosion, fire caused by electric sparks.
2. Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.
3. One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure
4. Clean and rinse system can use different solvent to meet more strict clean requirement .
5. Multi-level precise filtration system, Solvent repeated use in the machine.
6. Standard equipped with auto solvent fill in and drain out function.
7. Exhaust air vent connected to the factory air pipe, no abnormal flavor in clean workshop caused by solvent,     protect working environment, meet the requirement of environment protection.
8. Cut off  10% printing defect, significantly improve printing quality
9. Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.
10. Reduce screen damage rate to less than 1%, extend lifespan of Screen.
11. Solvent repeated use, cost down, greatly reduce solvent emission.


Machine Spec:


Item SME-3150spec
Max Screen Size 1500 x 1500 x 40mm( Lx W x T)
Solvent tank Max 70L
Clean time 3~6min
Rinse time 1~2min
Dry time 3~5min
Air consumption 200~800L/min
Air supply 0.5~0.7Mpa
Air vent size Φ124 × H30 (mm)
Filter system 3-class filtration system
Clean mode Clean +rinse + dry
Machine size L1260 x W1950 x H 2450(mm)
Machine weight 800kg


Other related machines:
SME-3120;SME-1350;SME-1500 and SME-1800 for lager screen baord such as:1200x1200mm;1350x1350mm;1500x1500mm;1800x1800mm.



Customer questions and Answers:



Q1: What kind of printed screen can this machine wash?

A1: Basically any printed screen; especially ink, silver paste, glue...



Q2: Does it need electric power?

A2: No, totally no need, just compressed-air, so no risk caused by electric,heat, sparks...



Q3: Only solvent can use in this machine?

A3: Because the machine is pneumatic, so any solvent and liquid can use in this machine.



Comparison pictures beofre and after cleaning:



Hydrogen energy cell seal glue print sceen automatic cleaner with enviromental protection liquid 0



Hydrogen energy cell seal glue print sceen automatic cleaner with enviromental protection liquid 1
