Compact Smt Squeeges Wash Machine MPM DEK Solder Paste Squeegee Cleaning Machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-220

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 25,000~40,000 Dollars

Packaging Details: Vacuum +plywood case package, case size: 1600*1500*1650 mm(L*W*H)

Delivery Time: 35~40 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability: 600 sets per year

Get Best Price
Product Details
High Light:

SUS304 smt screen stripping machine

,

smt screen stripping machine

,

MPM solder paste squeegee Cleaning Machine

Material:
SUS304 Stainless Steel
Application:
Sgueegee, SMT Solder Paste Printer Squeegee
Cleaning Type:
Mpm, Dek Printer Squeegee Wash
Cleaning Process:
Liquid Clean+ Water Rinse +hot Air Blow Dry
Feature:
PLC Control, Auto Cleaning, Easy Operation
Machine Power:
AC380V,3P,50/60Hz,28KW
Machine Weight:
500KG
After-sales Service:
Technical Video Support, Overseas Engineer On Site Support
Material:
SUS304 Stainless Steel
Application:
Sgueegee, SMT Solder Paste Printer Squeegee
Cleaning Type:
Mpm, Dek Printer Squeegee Wash
Cleaning Process:
Liquid Clean+ Water Rinse +hot Air Blow Dry
Feature:
PLC Control, Auto Cleaning, Easy Operation
Machine Power:
AC380V,3P,50/60Hz,28KW
Machine Weight:
500KG
After-sales Service:
Technical Video Support, Overseas Engineer On Site Support
Product Description

Compact Smt Squeeges Wash Machine MPM DEK Solder Paste Squeegee Cleaning Machine.



SME-220 is a compact, energy-saving, high efficiency SMT Squeegee cleaning machine. It can clean 6 squeegees at one time and all solder paste squeegees like MPM, DEK, ERKA,GKG, DESON...

SME-220 clean process: lqiuid wash, water rinse, hot air blow dry.

SME-220 one key easy operation, auto running.



Machine Features:


1. Special designed to clean solder paste ,flux and other organic and inorganic contaminations on Squeegees .


2. Ultrasonic and spray clean at the same time to clean all the solder paste off from the squeegees.


3. Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.

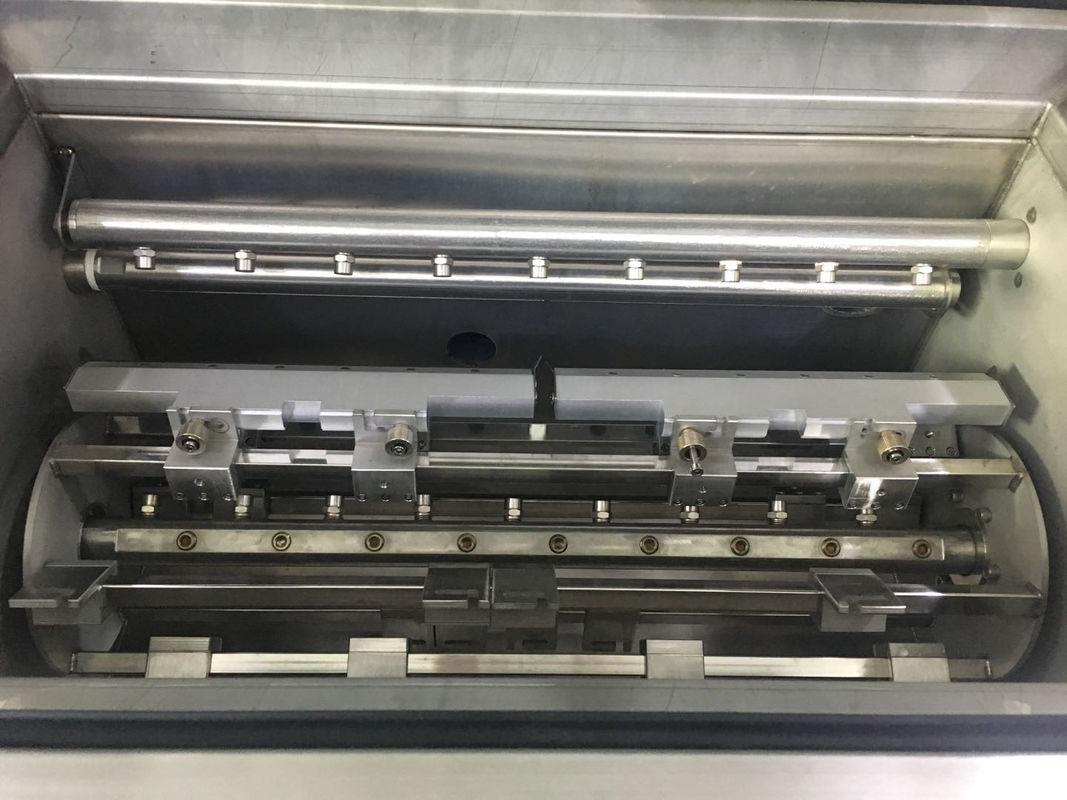

4. 6 squeegee racks : can clean 6 600mm squeegees in one time.


5. State of the process is visible through a large observation window.







Machine SPEC:



S/N NAME SPEC Remarks
1 squeegee size L 600mm as max
2 squeegee quantity 6 pcs
3 liquid tank/water tank 75L/75L
4 clean time 5~15min
5 rinse time 1~2min
6 Dry time 5~20min
7 Clean liquid water -based liquid
8 rinse liquid DI water or tap water
9 Dry method hig pressure hot air blow dry
10 Liquid temp Room temp~60℃
11 Dry temp Room tmep~90℃
12 Filter 100um+1um
13 Ultrasonic Power 1.2KW
14 Clean/rinse pump power 1.1KW+1.1KW
15 Total power 28KW
16 Power supply/Air supply AC380V,50/60HZ,63A /0.5~0.7Mpa
17 Machine size L1400xW1300xH1300(mm)
18 Machine weight 500KG



Customer Questions and Answers:



Q1: How many squeegees can SME-220 clean at one time?

A1: 600mm length squeegees, 6 pcs; 254mm length squeegees, 12 pcs.



Q2: How SME-220 can complex squeegees clean?

A2: SME-220 use ultrasonic cleaning and spray cleaning technology.



Q3: What is cycle time of SME-220?

A3: about 20 minutes.



Comparison pictures before and after cleaning:

Compact Smt Squeeges Wash Machine MPM DEK Solder Paste Squeegee Cleaning Machine 0



Compact Smt Squeeges Wash Machine MPM DEK Solder Paste Squeegee Cleaning Machine 1
