High Perfomance And Low Price SMT Squeegee Cleaning Machine For Solder Paste Printing Squeegee

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-220

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1500*1600*1800 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability: 200 sets per year

Get Best Price
Product Details
High Light:

80L SMT Squeegee Cleaning Machine

,

600mm SMT Squeegee Cleaning Machine

,

80L SMT chemical cleaning machine

Squeegee Number:
6 Pcs
Customized:
Non-Customized
Specification:
Squeegee Size: 600mm Length
Cleaning Type:
Aqueous Liquid Clean
Liquid Tank Capacity:
80L
Water Tank Liquid:
80L
Nozzle Type:
Fan-Shaped Nozzle
Machine Size:
L1300*W1400*H1400mm
Machine Weight:
500KG
Squeegee Number:
6 Pcs
Customized:
Non-Customized
Specification:
Squeegee Size: 600mm Length
Cleaning Type:
Aqueous Liquid Clean
Liquid Tank Capacity:
80L
Water Tank Liquid:
80L
Nozzle Type:
Fan-Shaped Nozzle
Machine Size:
L1300*W1400*H1400mm
Machine Weight:
500KG
Product Description

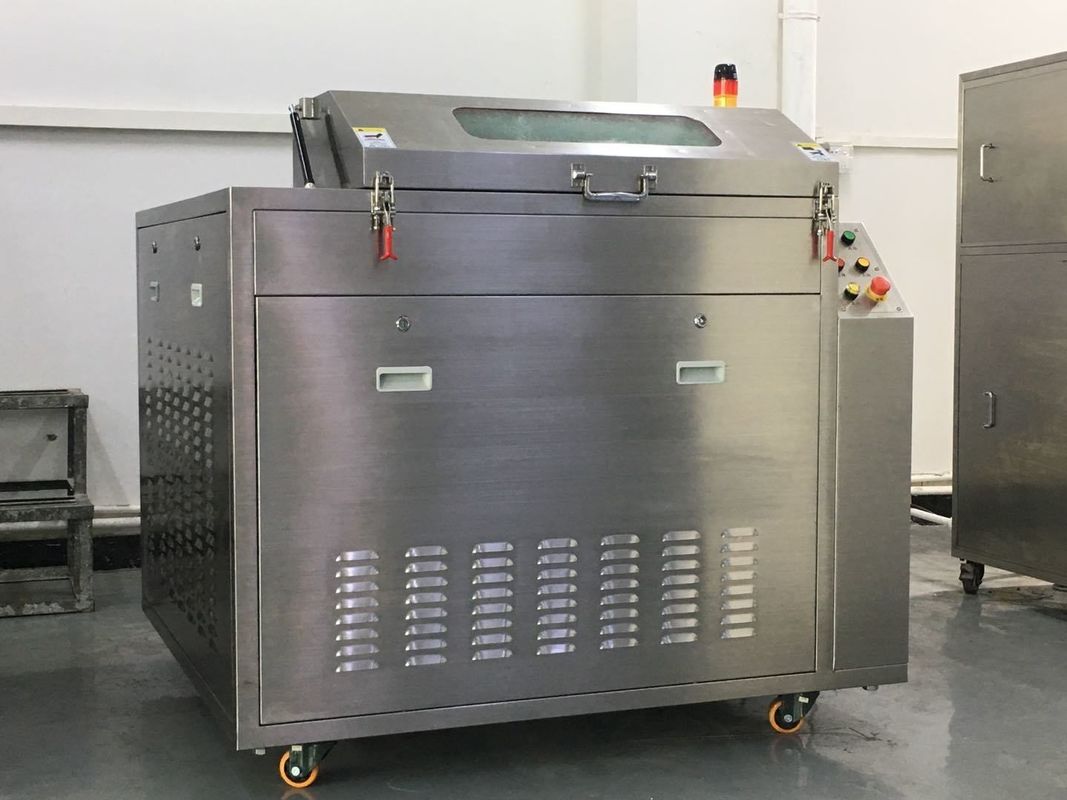

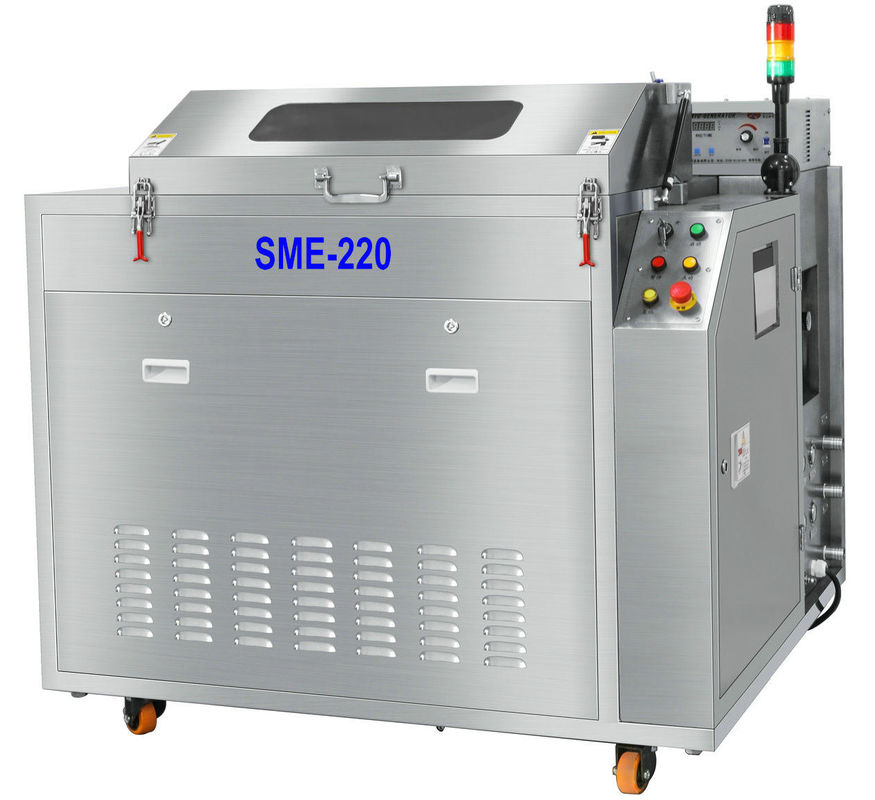

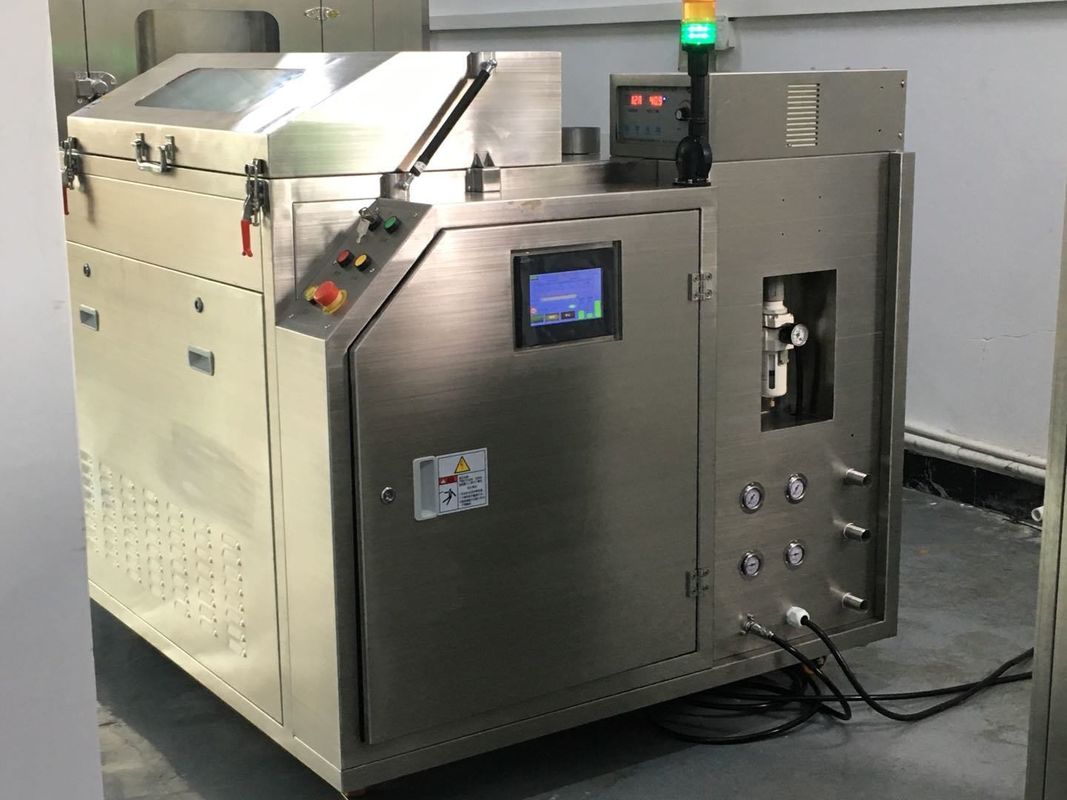

  High Perfomance And Low Price SMT Squeegee Cleaning Machine For Solder Paste Printing Squeegee.



  All the smt printer squeegees can be washed in this automatic wash machine.



  SMT solder paste printing machine squeegees are very hard to clean beause the corners at the 2 end of them; cracks of squeegees and fixing plateS are also never be cleared.SUS304 stainless steel, silver color, automatic SMT Squeegee Cleaning Machine for SMT printer SME-220 is an off-line, compact, energy-saving , batch cleaning SMT Squeegee  cleaning machine. SME-220 can automatically complete the cleaning, rinsing, drying process in one chamber by just push" start" key.


Machine Features:


1.      Special designed to clean solder paste ,flux and other organic and inorganic contaminations on Squeegees .
2.     Ultrasonic and spray clean at the same time to clean all the solder paste off from the squeegees.
3.      Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.
4.      6 squeegee racks : can clean 6  600mm squeegees in one time.
5.      State of the process is visible through a large observation window.
6.      Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
7.      Easy operation interface, quick setting clean parameters. Different passwords can be set.
8.     Inner filter makes detergent used repeated. .
9.     Totally SUS304 structure, very firm and attractive.

 Machine Spec:

Item SME-220 Spec
Squeegee numbers 6pcs of 600mm squeegees one time, 12 pcs of 254mm one time
clean lqiuid tank capacity 80L
rinse water  tank capacity 80L
Clean time 5~10min
Rinse time 1~2min
Dry time 10~30min
cleaning liquid heat temp Room temp~60ºC
Dry temp Room temp~99ºC
water temp  Room temo~60ºC
Cleaning liquid filter 1um
Rinse water filter 1um
clean/ rinse pump 1.1KW
ultrasonic power 1.2KW
Power/air supply AC380V/50A/50HZ,30KW;0.5Mpa
Machine size L1400 x W1300 x H1300(mm)
Machine weight 500KG


Comparison pictures before and after cleaning:

High Perfomance And Low Price SMT Squeegee Cleaning Machine For Solder Paste Printing Squeegee 0



High Perfomance And Low Price SMT Squeegee Cleaning Machine For Solder Paste Printing Squeegee 1
