Liquid Wash And Water Rinse Ultrasonic+Spray Cleaning Machine For red glue Sgueegees

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-220

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Packaging Details: Vacuum +plywood case package, case size: 2000*1600*1700 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability: 200 sets per year

Get Best Price
Product Details
High Light:

80L screen cleaning machine

,

40KHz screen cleaning machine

,

40KHz Automatic Screen Cleaning Machine

Cleaning Objects:
Ink,silver Paste, Glue Squeegee
Squeegee Length:
900mm
Squeegee Numbers:
6pcs
Liquid Tank Capacity:
80L
Water Tank Capacity:
80L
Liquid Temp:
RT~60℃
Water Temp:
RT~60℃
Rotation Speed:
10~15 RPM
Ultrasonic:
40KHz
Spray Pressure:
4~5kg/cm2
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Air Supply:
0.5~0.7Mpa, 200~400L/Min
Machine Size:
L1700*W1300*H1300mm
Machine Weight:
500kg
Cleaning Objects:
Ink,silver Paste, Glue Squeegee
Squeegee Length:
900mm
Squeegee Numbers:
6pcs
Liquid Tank Capacity:
80L
Water Tank Capacity:
80L
Liquid Temp:
RT~60℃
Water Temp:
RT~60℃
Rotation Speed:
10~15 RPM
Ultrasonic:
40KHz
Spray Pressure:
4~5kg/cm2
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Air Supply:
0.5~0.7Mpa, 200~400L/Min
Machine Size:
L1700*W1300*H1300mm
Machine Weight:
500kg
Product Description

 Product Description:

SME-230 is a red glue printing squeegee automatic cleaning machine for screen printer. It is an off-line, compact, energy-saving , batch cleaning, screen squeegee  cleaning machine. all kinds of screen printing material red glue, silver paste, glue... can be throughly cleaned by SME-230. It is an automatic running machine; wash, rinse, dry process in one chamber by just push" start" key. Inks residual was kept in filter barrel and cleaning tank.

Machine Features:
1.      Special designed to clean printing ink, silver paste,glue...etc on screen squeegees .
2.      Ultrasonic and spray clean at the same time to clean all the leftovers off from the squeegees.
3.      Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.

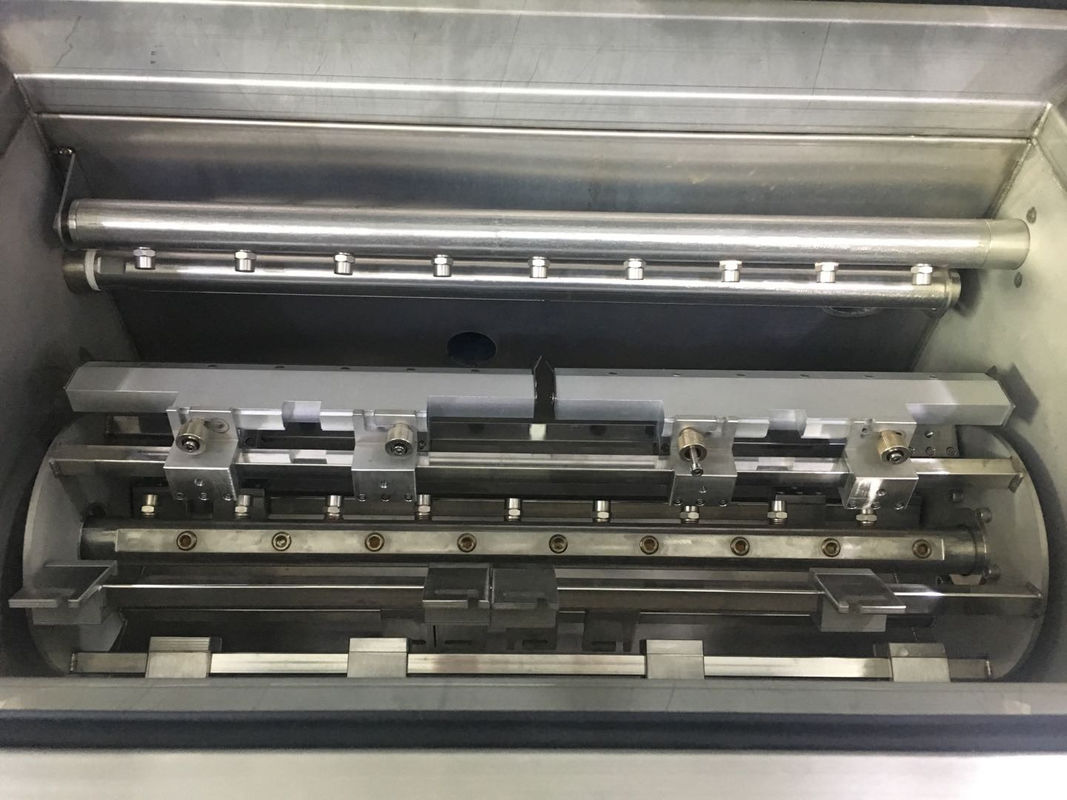

4.      6 squeegee racks : can clean 4 pcs of 900mm squeegees in one time.
5.      State of the process is visible through a large observation window.
6.      Clean liquid heat system heat liquid to a certain temp, raise clean efficiency and reduce clean time.
7.      Easy operation interface, quick setting clean parameters. Different passwords can be set.

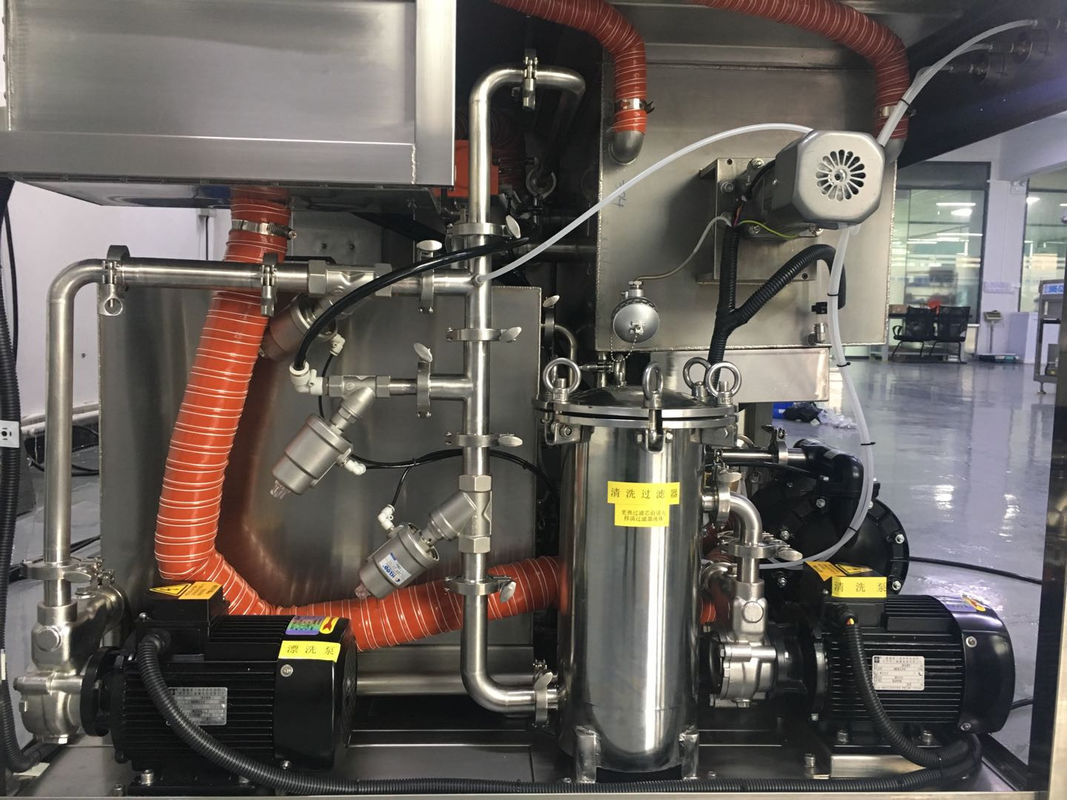

8.     Inner filter makes liquid used repeated. .
9.     Totally SUS304 structure, very firm and attractive.

 Machine Spec:
Item SME-230 Spec
Squeegee numbers 6 pcs of 600mm squeegees one time, 12 pcs of 254mm one time
clean lqiuid tank capacity 100L
rinse water  tank capacity 100L
Clean time 5~10min
Rinse time 1~2min
Dry time 5~15min
cleaning liquid heat temp RT~60ºC
Dry temp RT~99ºC
water temp  RT~60ºC
Cleaning liquid filter 1um
Rinse water filter 1um
clean/ rinse pump 1.1KW
ultrasonic power 1.7KW
Power/air supply AC380V/50A/50HZ,30KW;0.5Mpa
Machine size L1700 x W1400 x H1300(mm)
Machine weight 600KG


Customer Questions and Answers:



Q1: How many squeegees can SME-230 clean at one time?

A1:  6 pcs 600mm length squeegees; 254mm length squeegees, 12 pcs.



Q2: How SME-230 can complex squeegees clean?

A2: SME-230 use ultrasonic cleaning and spray cleaning technology.



Q3: What is cycle time of SME-230?

A3: about 16 minutes.



Comparison pictures before and after cleaning:



Liquid Wash And Water Rinse Ultrasonic+Spray Cleaning Machine For red glue Sgueegees 0



Liquid Wash And Water Rinse Ultrasonic+Spray Cleaning Machine For red glue Sgueegees 1
