Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-260
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1600*1500*1650 mm(L*W*H)
Delivery Time: 35~40 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 100 sets per year
Material: |
SUS304 Stainless Steel |
Application: |
Sgueegee, SMT Solder Paste Printer Squeegee |
Cleaning Type: |
High Pressure Spray Clean+ultrasonic Clean |
Cleaning Process: |
Liquid Clean+ Water Rinse +hot Air Blow Dry |
Feature: |
PLC Control, Auto Cleaning, Easy Operation |
Squeegee Size: |
L900mmx6pcs |
Machine Power: |
AC380V,3P,50/60Hz,28KW |
Machine Size: |
1700*1300*1300( L*W*H) Mm |
Machine Weight: |
600KG |
After-sales Service: |
Technical Video Support, Overseas Engineer On Site Support |
Material: |
SUS304 Stainless Steel |
Application: |
Sgueegee, SMT Solder Paste Printer Squeegee |
Cleaning Type: |
High Pressure Spray Clean+ultrasonic Clean |
Cleaning Process: |
Liquid Clean+ Water Rinse +hot Air Blow Dry |
Feature: |
PLC Control, Auto Cleaning, Easy Operation |
Squeegee Size: |
L900mmx6pcs |
Machine Power: |
AC380V,3P,50/60Hz,28KW |
Machine Size: |
1700*1300*1300( L*W*H) Mm |
Machine Weight: |
600KG |
After-sales Service: |
Technical Video Support, Overseas Engineer On Site Support |
Customized Squeegee And Big Size Water Based Liquid SMT Squeegee Cleaning Machine.
Big size rotation cleaning method smt squeegee cleaning machine for all solder paste printing machine.
Non-contact, spray cleaning and ultrasonic cleaning technology combination; rotation cleaning method; auto cleaning process.

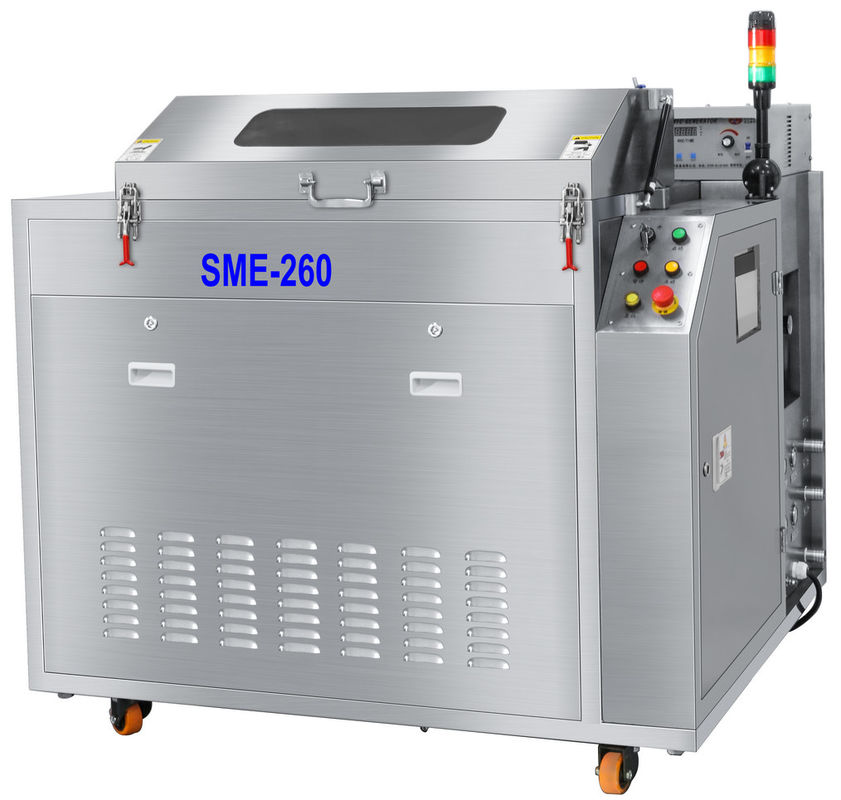

SME-260 is big squeegees cleaning machine for big squeegees. SME-260 is a SUS304 stainless steel, silver color, rotation squeegee cleaning machine. It can clean 6 squeegees at one time and all solder paste squeegees like MPM, DEK, ERKA,GKG, DESON... liquid clean, water rinse and hot air toast dry process, spray and ultrasonic cleaning technology combination make squeegees very clean, even corner and claws.
SME-260 clean process: lqiuid wash, water rinse, hot air blow dry.
SME-260 one key easy operation, auto running.
1.Ultrasonic clean+Spray very good cleaning result, especailly gaps and corners of squeegees.

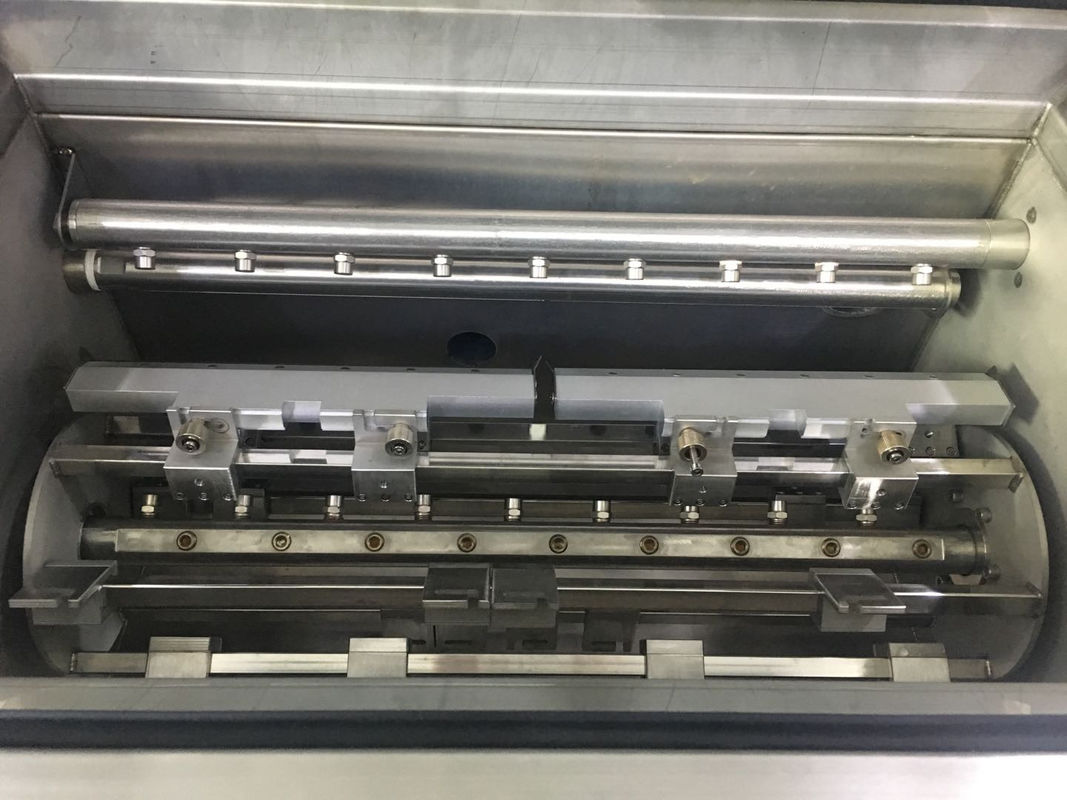

2.Rotation cleaning, 6 pcs of squeegees one time.
3.Squeegees are easy and convienent to laod
Machine Features:
1. Special designed to clean solder paste ,flux and other organic and inorganic contaminations on Squeegees .
2. Ultrasonic and spray clean at the same time to clean all the solder paste off from the squeegees.
3. Clean,rinse,dry process, thoroughly clean, standby and ready to use at any time.
4. 6 squeegee racks : can clean 6 600mm squeegees in one time.
5. State of the process is visible through a large observation window.

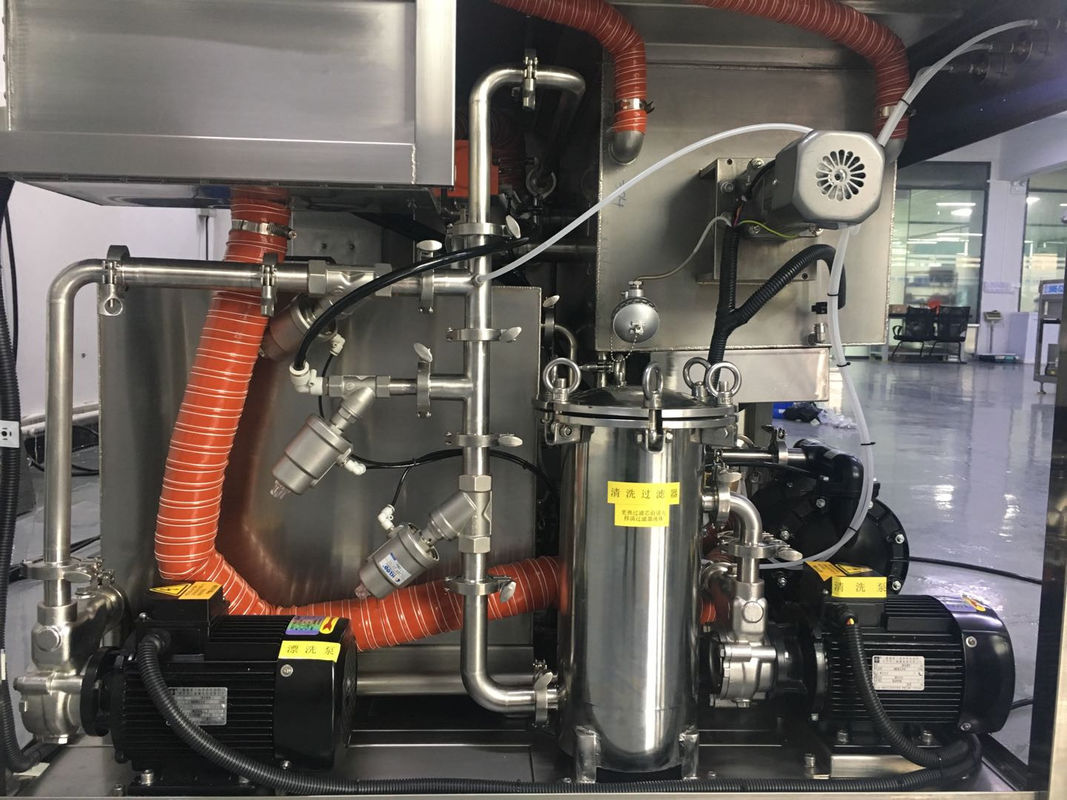

6. Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
7. Easy operation interface, quick setting clean parameters. Different passwords can be set.
8. Inner filter makes detergent used repeated.
9. Totally SUS304 structure, very firm and attractive.
Machine SPEC:
| S/N | NAME | SPEC | Remarks |
| 1 | squeegee size | L 900mm | as max |
| 2 | squeegee quantity | 6 pcs | |
| 3 | liquid tank/water tank | 80L/80L | |
| 4 | clean time | 5~15min | |
| 5 | rinse time | 1~2min | |
| 6 | Dry time | 5~20min | |
| 7 | Clean liquid | water -based liquid | |
| 8 | rinse liquid | DI water or tap water | |
| 9 | Dry method | hig pressure hot air blow dry | |
| 10 | Liquid temp | Room temp~60℃ | |
| 11 | Dry temp | Room tmep~90℃ | |
| 12 | Filter | 100um+1um | |
| 13 | Ultrasonic Power | 1.2KW | |
| 14 | Clean/rinse pump power | 1.1KW+1.1KW | |
| 15 | Total power | 28KW | |
| 16 | Power supply/Air supply | AC380V,50/60HZ,63A /0.5~0.7Mpa | |
| 17 | Machine size | L1400xW1300xH1300(mm) | |
| 18 | Machine weight | 500KG |
Customer Questions and Answers:
Q1: How many squeegees can SME-260 clean at one time?
A1: 900mm length squeegees, 6 pcs; 400mm length squeegees, 12 pcs.
Q2: How SME-260 can complex squeegees clean?
A2: SME-260 use ultrasonic cleaning and spray cleaning technology.
Q3: What is cycle time of SME-260?
A3: about 20 minutes.
Comparison pictures before and after cleaning:
