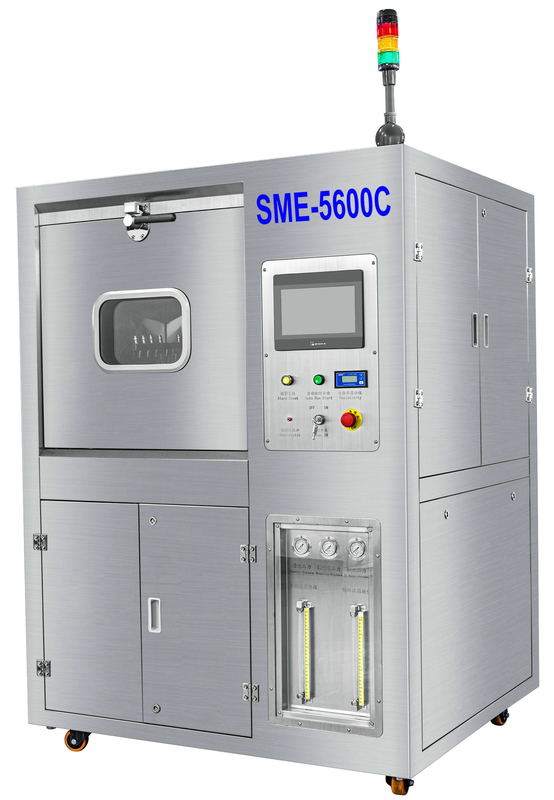

560*610mm Pcba Auto Cleaning Machine Double Layer Wash Basket With For Amount And Multiple

Product Details

Place of Origin: Dongguan,Guanddong, China

Brand Name: SME

Certification: CE, UL

Model Number: SME-5600C

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1500*1400*2150 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 200sets/Year

Get Best Price
Product Details
High Light:

Double Layer Auto PCBA Cleaning Machine

,

560*610mm Pcba Auto Cleaning Machine

,

0.5Mpa Pcba Auto Cleaning Machine

PCB Size:
30x30mm~560x610mm
Cleaning Basket Size:
L560*W610*H100mm* 2Layers
Wash Time:
5~10min
Rinse Time:
1~2min/time
Rinse Times:
3~5times(1~99 Avaliable)
Dry Time:
20~25min
Liquid Heat Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Resistivity Range:
0~18MΩ
Air Supply:
0.5Mpa, 200~400L/min
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Machine Size:
1300*1200*1850( L*W*H) Mm
Weight:
600KG
Material:
SUS304 Stainless Steel
PCB Size:
30x30mm~560x610mm
Cleaning Basket Size:
L560*W610*H100mm* 2Layers
Wash Time:
5~10min
Rinse Time:
1~2min/time
Rinse Times:
3~5times(1~99 Avaliable)
Dry Time:
20~25min
Liquid Heat Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Resistivity Range:
0~18MΩ
Air Supply:
0.5Mpa, 200~400L/min
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Machine Size:
1300*1200*1850( L*W*H) Mm
Weight:
600KG
Material:
SUS304 Stainless Steel
Product Description



We are a  spray wash technology company in PCBA assembly and micro eletronics field. We sold more than 100 sets of PCBA batch type and inline cleaning machine all over the world.



560*610mm Double Layer Wash Basket Pcba Auto Cleaning Machine With For Small Amount And Multiple PCBA.



SME-5600C is a multi-spec and small batch PCBA residual cleaning machine for all kinds of PCBA. It  is a batch type aqueous PCBA cleaning machine.

SME-5600C PCBA cleaning machine can clean duts on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.

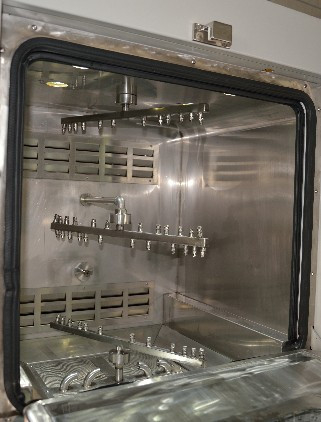

SME-5600C 2layers cleaning basket can be dispatched into one layer type; the middel spray bar can be dispatched make the machien can clean more pcs big size PCBA.


Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.



SME-5600C features:


1. All kinds of flux and solder balls can be clean: for example, rosin flux, water-soluble flux , non-clean flux ,solder paste.


2. 2-layers bigger cleaning basket: 560mm(L) ×610mm(W) × 100mm(H) x2 layers.


3. All processes are visible through a large observation window.


4 .Easy operation interface, quick setting clean parameters. Different passwords can be set for ooerator and engineers.


5. Standard liquid and DI water fliter.



6.DI water resistivity real time check. Resistivity range is 0~18 MΩ.


7. Compressed air blow off pipes and pumps, save liquid.


8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.


9. Totally SUS304 structure,  solide, acid and alkali corrision-proof


SME-5600L spec:



ITEM SPEC
Cleaning basket size L560xW610xH100mmx 2layers
Diluent liquid tank capacity 60L
Spray liquid tank capacity 18L
Concentrate tank capacity 30L
Cleaning time 5~20min
Rinse time 1~2 min/times
Rinse times 1~10times
Dry time 10~30min
Diluent liquid heat temp room temp ~60ºC
PCB dry time room temp~99ºC
Resistivity range 0~18MΩ
Liquid filter 1um
DI water filter 1um
Air filter 10um
Vent size φ76XH50(mm)
Power supply AC380, 3 Phases, 50/60Hz, 30KW
Air supply 0.5Mpa, 400L/Min
Machine size L1200xW1300x1850(mm)
Machine weight 600KG

Customer Question & Answer

Ask something for more details

Q1: What is the cycle time of SME-5600c batch aqueous cleaning  machine?

A1: Total 30~35min. wash 10min+rinse 10min+dry 10~25min.



Q2: What liuqid can be used in SME-5600L to clean PCBA?

A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid  wash, DI water rinse.

Q3: Have many pcbas can SME-5600C clean in one cycle?

A3: L100*W100mm  size PCBA for example, it can clean 60pcs.

Q4: Does SME-5600Cneed DI water?

A4: Yes, it need DI water for rinse to remove liquid residual and ions on PCBA surface.

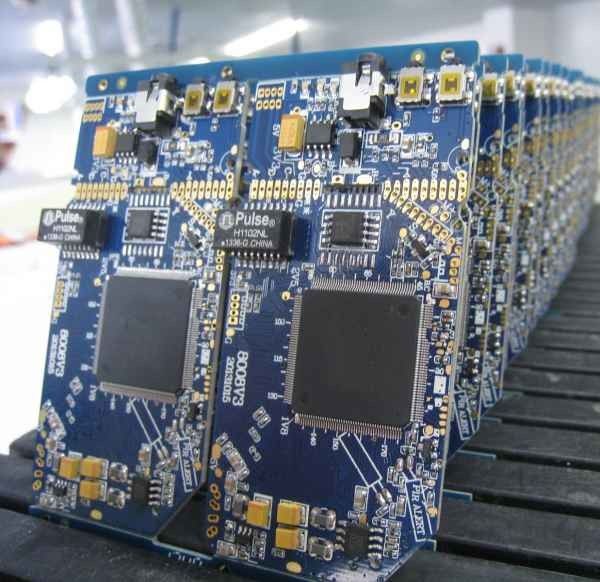

Comparison picutures before and after cleaning:

560*610mm Pcba Auto Cleaning Machine Double Layer Wash Basket With For Amount And Multiple 0





560*610mm Pcba Auto Cleaning Machine Double Layer Wash Basket With For Amount And Multiple 1
