Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-3120C
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1500*1700*2350 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200 sets per year
Screen Type: |
Pcb Solder Resist Printing Ink Screen |
Screen Size: |
L1200*W1200*T40mm |
Wash Tank: |
50L |
Rinse Tank: |
100L |
Wash Time: |
3~5min |
Rinse Time: |
1min |
Dry Time: |
3~5min |
Filter: |
1um |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Wash Process: |
Wash+rinse+air Blow Dry |
Machine Size: |
L1260*W1650*H2050 |
Machine Weight: |
630KG |
Liquid Heat Temp: |
30~35℃ |
Power Supply: |
5KW |
Screen Type: |
Pcb Solder Resist Printing Ink Screen |
Screen Size: |
L1200*W1200*T40mm |
Wash Tank: |
50L |
Rinse Tank: |
100L |
Wash Time: |
3~5min |
Rinse Time: |
1min |
Dry Time: |
3~5min |
Filter: |
1um |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Wash Process: |
Wash+rinse+air Blow Dry |
Machine Size: |
L1260*W1650*H2050 |
Machine Weight: |
630KG |
Liquid Heat Temp: |
30~35℃ |
Power Supply: |
5KW |

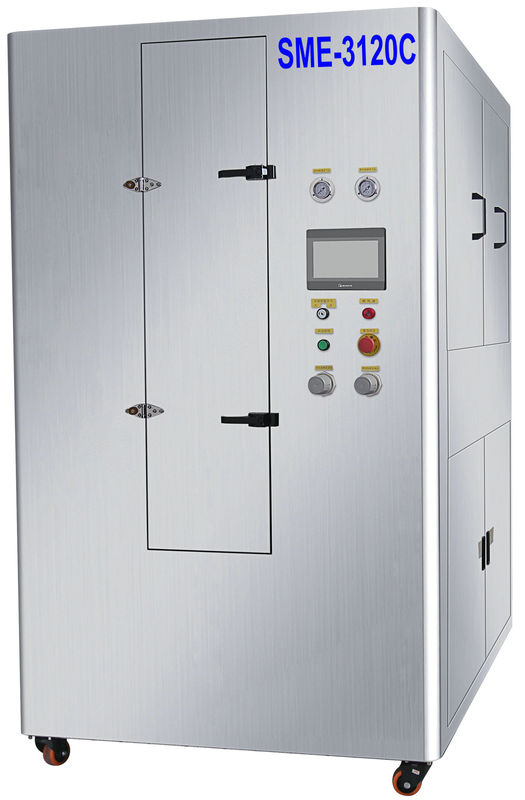

SME-3120 Universal Screen Cleaning Machine For All Kinds Of Solvent And All Kinds Of Printed Inks is used to wash all kinds of inks anby using any solvent, liquid.
Machine process:
Rotate spray clean + spray resin + air dry process can clean any silk screen clean and dry.
Machine Feature:
1. Totally driven by compressed air, no electric power, no explosion, fire caused by electric sparks.
2. Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.
3. One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure
4. Clean and rinse system can use different solvent to meet more strict clean requirement .
5. Multi-level precise filtration system, Solvent repeated use in the machine.
6. Standard equipped with auto solvent fill in and drain out function.
7. Exhaust air vent connected to the factory air pipe, no abnormal flavor in clean workshop caused by solvent, protect working environment, meet the requirement of environment protection.
8. Cut off 10% printing defect, significantly improve printing quality
9. Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.
10. Reduce screen damage rate to less than 1%, extend lifespan of Screen.
11. Solvent repeated use, cost down, greatly reduce solvent emission.
Machine Spec:
| Item | SME-3120 spec |
| Max Screen Size | 1200 x 1200 x 40mm( Lx W x T) |
| Solvent tank | Max 50L |
| Clean time | 3~6min |
| Rinse time | 1~2min |
| Dry time | 3~5min |
| Air consumption | 200~800L/min |
| Air supply | 0.5~0.7Mpa |
| Air vent size | Φ124 × H30 (mm) |
| Filter system | 3-class filtration system |
| Clean mode | Clean +rinse + dry |
| Machine size | L1260 x W1650 x H 2050(mm) |
| Machine weight | 630kg |
Other related machines:
SME-3120;SME-1350;SME-1500 and SME-1800 for lager screen baord such as:1200x1200mm;1350x1350mm;1500x1500mm;1800x1800mm.
We are screen cleaning machine design, manufacturer, sales and service company, we looking for local agent.
Customer questions and Answers:
Q1: What kind of printed screen can this machine wash?
A1: Only PCB solder mask ink. especailly Taiyo solder resist ink.
Q2: Does it need electric power?
A2: yes, 380VAC, 5KW
Q3: Only Naco3 liquid can use in this machine?
A3: Yes, It is very cleap, save cleaning cost up to 90%.
Comparison pictures beofre and after cleaning:
