Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-3100
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1500*1700*2350 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200 sets per year
Screen Type: |
Ink Print Screen, Silver Paste Print Screen |
Screen Size: |
L1000*W1000*T40mm |
Wash Tank: |
50L |
Rinse Tank: |
50L |
Wash Time: |
3~5min |
Rinse Time: |
1~2min |
Dry Time: |
3~5min |
Filter: |
1um |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Wash Process: |
Wash+rinse+air Blow Dry |
Machine Size: |
L1260*W1450*H1950 |
Machine Weight: |
600KG |
Screen Type: |
Ink Print Screen, Silver Paste Print Screen |
Screen Size: |
L1000*W1000*T40mm |
Wash Tank: |
50L |
Rinse Tank: |
50L |
Wash Time: |
3~5min |
Rinse Time: |
1~2min |
Dry Time: |
3~5min |
Filter: |
1um |
Air Supply: |
0.5~0.7Mpa, 800~1000L/Min |
Wash Process: |
Wash+rinse+air Blow Dry |
Machine Size: |
L1260*W1450*H1950 |
Machine Weight: |
600KG |
We are a design, manufacture, sales and service high-tech company, overseas cleaning machine agent are wanted!

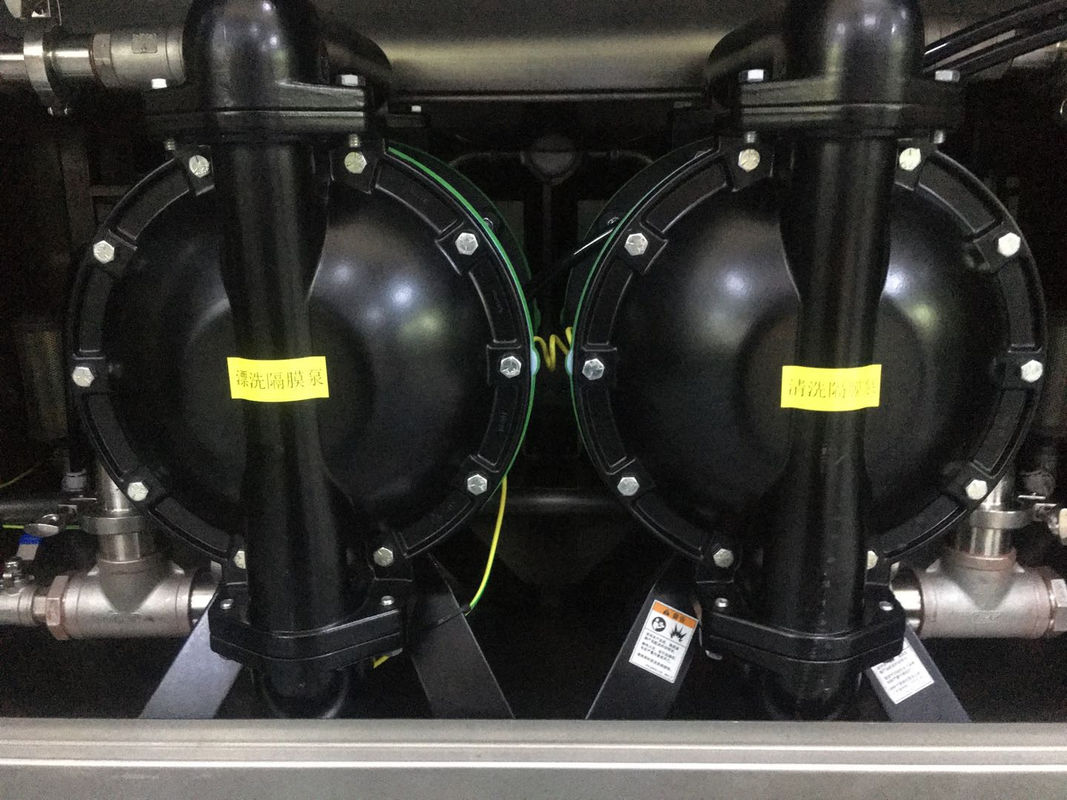

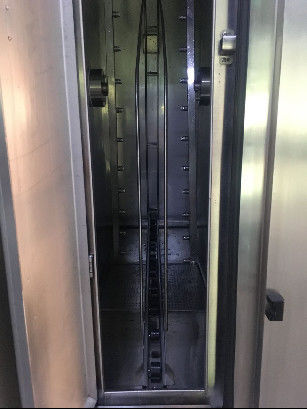

As a wash and rinse double recycle system automtic printed silk screen cleaning machine. SME-3100 is specially used to clean printed ink, glue, silver paste...to make screen clean and dry and waiting for re-use next time. SME-3100 uses solvent spray cleaning technology to spray cleaning solvent onto surface of screen to wash ink residual off. It is totally driven by compressed air, not use electric power. Rotate spray clean + spray resin + air dry process can clean any silk screen clean and dry.
Mainly used in the following industries:
1. TP/PCB/FPC: Ink, Silver paste, Isolated/Etching glue Screen and Stencil.
2. Sneakers/Clothing/Sings/Plastic/Hardware Silk Printing Screen.
Machine Feature:
1. Totally driven by compressed air, no electric power, no explosion, fire caused by electric sparks.
2. Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.
3. One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure
4. Clean and rinse system can use different solvent to meet more strict clean requirement .

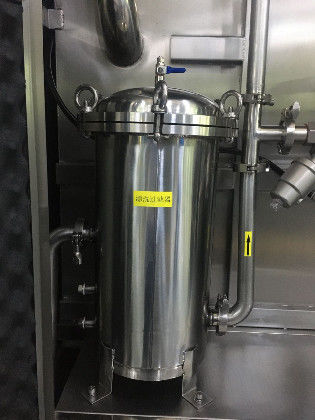

5. Multi-level precise filtration system, Solvent repeated use in the machine.
6. Standard equipped with auto solvent fill in and drain out function.
7. Exhaust air vent connected to the factory air pipe, no abnormal flavor in clean workshop caused by solvent, protect working environment, meet the requirement of environment protection.
8. Cut off 10% printing defect, significantly improve printing quality
9. Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.
10. Reduce screen damage rate to less than 1%, extend lifespan of Screen.
11. Solvent repeated use, cost down, greatly reduce solvent emission.
Machine Spec:
| Item | SME-3100spec |
| Max Screen Size | 1000 x 1000 x 40mm( Lx W x T) |
| Solvent tank | Max 50L |
| Clean time | 3~6min |
| Rinse time | 1~2min |
| Dry time | 3~5min |
| Air consumption | 200~800L/min |
| Air supply | 0.5~0.7Mpa |
| Air vent size | Φ124 × H30 (mm) |
| Filter system | 3-class filtration system |
| Clean mode | Clean +rinse + dry |
| Machine size | L1260 x W1450 x H 1950(mm) |
| Machine weight | 600kg |
Other related machines:

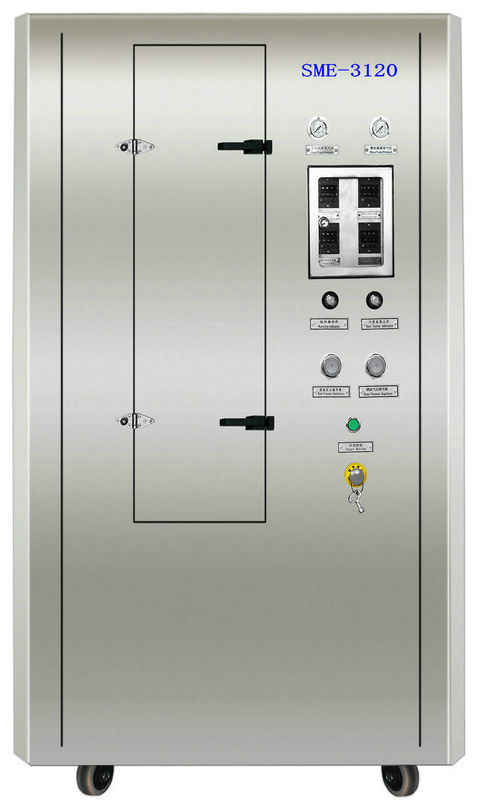

SME-3120;SME-1350;SME-1500 and SME-1800 for lager screen baord such as:1200x1200mm;1350x1350mm;1500x1500mm;1800x1800mm.
Customer questions and Answers:
Q1: What kind of printed screen can this machine wash?
A1: Basically any printed screen; especially ink, silver paste, glue...
Q2: Does it need electric power?
A2: No, totally no need, just compressed-air, so no risk caused by electric,heat, sparks...
Q3: Only solvent can use in this machine?
A3: Because the machine is pneumatic, so any solvent and liquid can use in this machine.
Comparison pictures beofre and after cleaning(640mesh):
