| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SHENHUA |
| Certification: | CE,UL |
| Model Number: | SC820 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H) |
| Delivery Time: | 60~80days |
| Payment Terms: | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
| Supply Ability: | 100 sets per Year |
| Material: | SUS304 Stainless Steel | PCBA Size: | L600*W400*T100mm As Max |
|---|---|---|---|
| Conveyor Net Width: | 600mm | Conveyor Speed: | 0.1~1.5m/min |
| Conveyor Direction: | Left To Right | DI Water Amount: | 400~800L/H |
| Air Exhaust Amount: | 42m³/H | DI Water Resistivity Range: | 0~18MΩ |
| Compressed-air Supply: | 0.5Mpa, 200~400L/min | Power Supply:: | AC380V, 3P, 50/60Hz,150KW |
| Machine Size: | 6600*1750*1650( L*W*H) Mm | Machine Weight: | 3600KG |
| High Light: | SIP semiconductor cleaning equipment,1650mm semiconductor cleaning equipment,1650mm auto cleaning equipment |
||

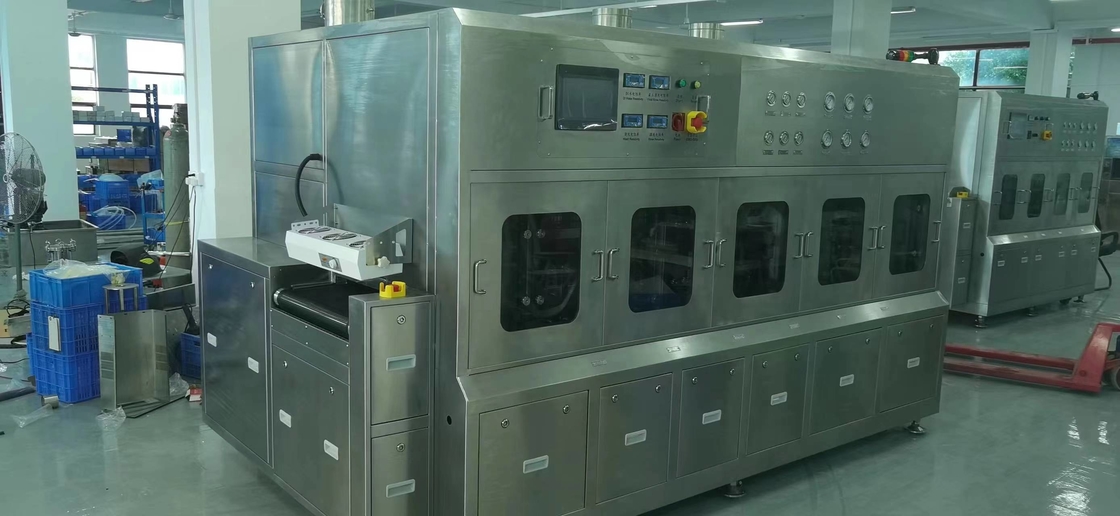

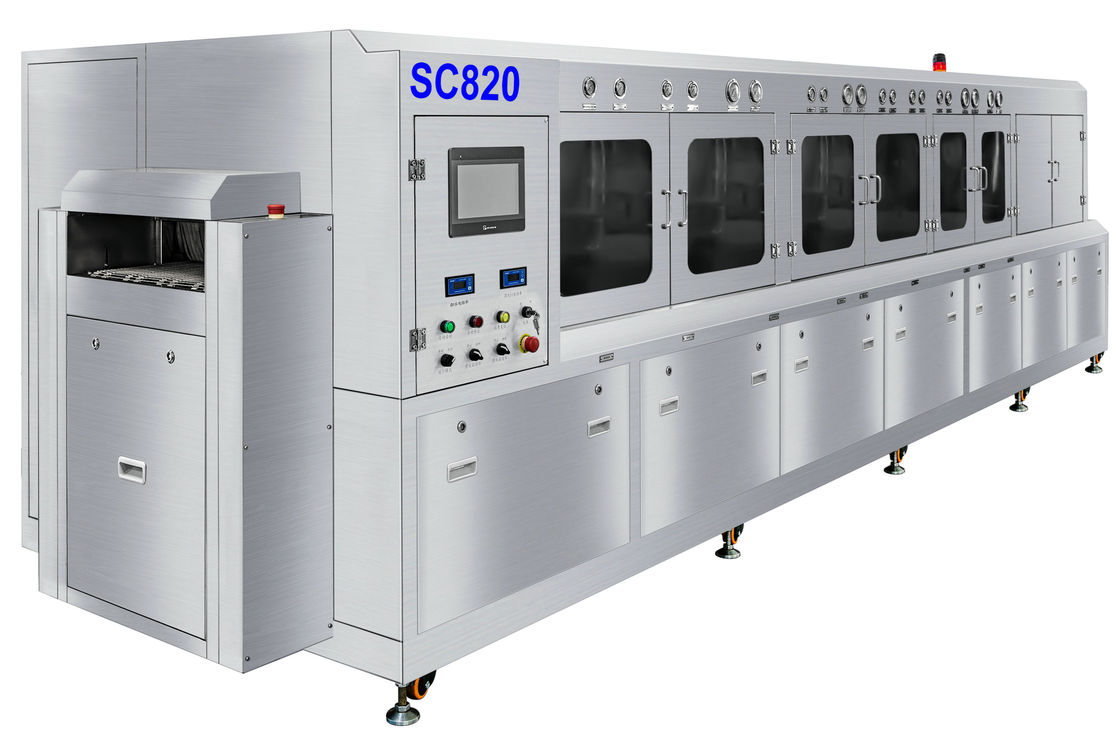

As a SEMI Sip packaging in line auto cleaning system for advanced semiconductor package process. SC820 is precise, high quality, SIP packaging deflux cleaning system.
SC820 SIP package auto cleaing machine is used to clean flux residuals, soder balls and particles on sip package products, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
Precise process: Pre-wash+Wash1+Wash2+ Chemical isolation+ Pre-rinse+ Rinse+Final rinse+ Air blow dry+ Hot air dry1+ Hot air dry2.
By using our SHENHUA latest mix spray cleaning technology, the system has following advantages:
1. SIP package semi in line cleaning system.
2. Liquid mix spray wash technology, super wash result, thoroughly clean water-sular solder paste flux and non-clean flux.
3. Longer wash sections + DI water rinse section+ Air blow section +2 hot air dry sections.
4. Liquid and fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down spary system on wash and rinse sections.
6. Liquid and DI water spray pressure can be adjusted for dirrerent semiconductor products cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry+ 2 section hot air dry system.
9. SUS304 stainless PCB flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.
12. Total SUS304 structure, Acid and Alkali corrosion resistance.
Machine Spec:
| S/N | Item | SC820 Spec |
| 1 | conyeyor net | 600mm |
| 2 | conveyor speed | 0.1~1.5m/min |
| 3 | conveyor height | 900±50mm |
| 4 | conveyor direction | Left to Right |
| 5 | product size | L400*W600mm as max |
| 6 | product height | 100mm as max(with component) |
| 7 | wash tank capacity | 300L |
| 8 | rinse tank capacity | 30L+120L+30L |
| 9 | DI water consumption | 400~1000L/H |
| 10 | exhausted air | 42m³ |
| 11 | electric control | PLC+TP |
| 12 | Resistivity range | 0~18MΩ |
| 13 | PH range | 0~14 |
| 14 | air supply | 0.5Mpa |
| 15 | power supply | AC380V,50/60HZ, 3P,150KW |
| 16 | machine size | L6600*W1750*H1650mm |
| 17 | machine weight | 3600KG |
Q1: What kind of semiconductor profucts can SC820 clean?
A1: Flux on SIP, BGA,CSP,Flip chip... pacakage. it has 2x600mm wash section with 2x14 spray rods on it, that's why it is so powerful.
Q2: Why is it 150KW?
A2: in wash section, it has 3x12KW heater;in pre-rinse section,it has 1x12KW heater; in Rinse section, it has 3x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.
Q3: What is the liquid temperature and DI water temperature?
A3: liquid temperature can heat to 80℃; DI water can heat to 60℃.
Q4: What is the liquid consumption per hour?
A4: It depends on liquid itself and temperature, we install liquid cool condenser ,normally 5~15L/ Hour.
