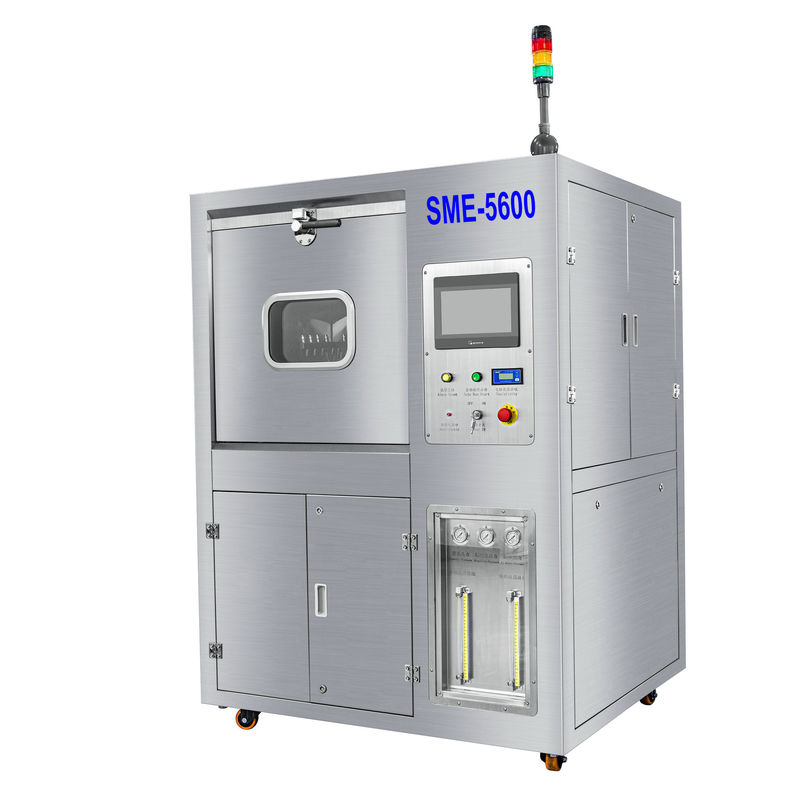

PCBA Batch Type Flux Auto Cleaning Machine With Water Based Liquid Wash And DI Water Rinse Hot Air Blow Dry

Product Details

Place of Origin: Dongguan, China

Brand Name: SME

Certification: CE, UL

Model Number: SME-5600C

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1500*1400*2150 mm(L*W*H)https://www.maoyt.com/index.php?r=product/edit&pid=13717873#label_name

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 200sets/Year

Get Best Price
Product Details
High Light:

600KG PCBA Cleaning Machine

,

SME PCBA Cleaning Machine

,

SME 600KG water cleaning machine

PCB Size:
30x30mm~550x600mm
Cleaning Basket Size:
L610*W560*H100mm* 2Layers
Wash Time:
5~10min
Rinse Time:
1~2min/time
Rinse Times:
3~5times(1~99 Avaliable)
Dry Time:
20~25min
Liquid Heat Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Resistivity Range:
0~18MΩ
Air Supply:
0.5Mpa, 200~400L/min
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Machine Size:
1300*1200*1850( L*W*T) Mm
Weight:
600KG
Material:
SUS304 Stainless Steel
PCB Size:
30x30mm~550x600mm
Cleaning Basket Size:
L610*W560*H100mm* 2Layers
Wash Time:
5~10min
Rinse Time:
1~2min/time
Rinse Times:
3~5times(1~99 Avaliable)
Dry Time:
20~25min
Liquid Heat Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Resistivity Range:
0~18MΩ
Air Supply:
0.5Mpa, 200~400L/min
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Machine Size:
1300*1200*1850( L*W*T) Mm
Weight:
600KG
Material:
SUS304 Stainless Steel

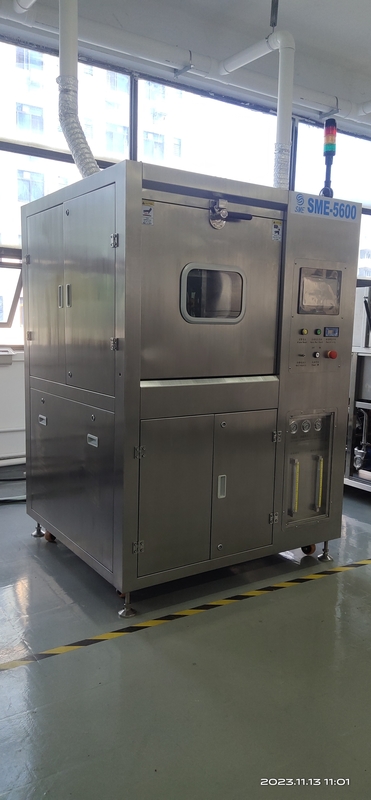

Product Description

Poduct Description

PCBA flux batch type auto cleaning machine  is used to clean PCBA flux on PCBA. It is a compact, energy-saving and environmental protection machine.

SME-5600C wash flux by using water-based liquid. Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics PCBA flux auto clean.



SME-5600C advantages:


1. Wash with water-based liquid to remove flux residual on surface of PCBA.


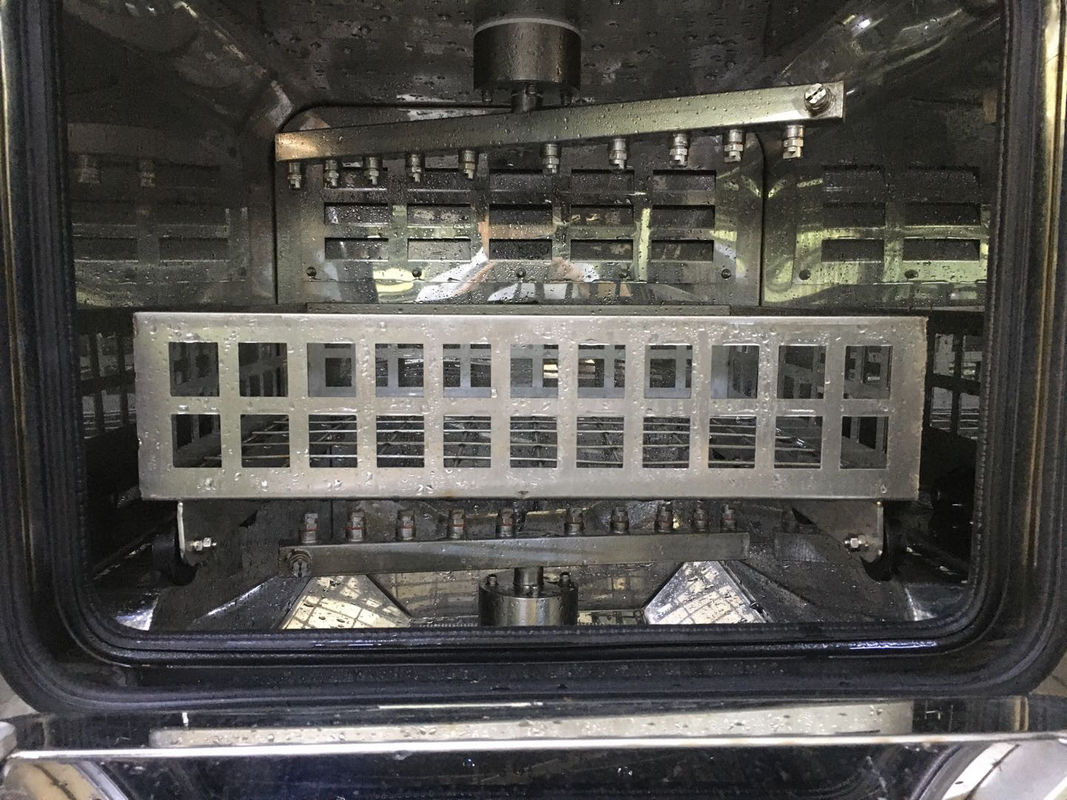

2. 2-layers PCBA basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.


3. All processes are visible through a large observation window.


4 .Easy operation interface, easy parameter setting.


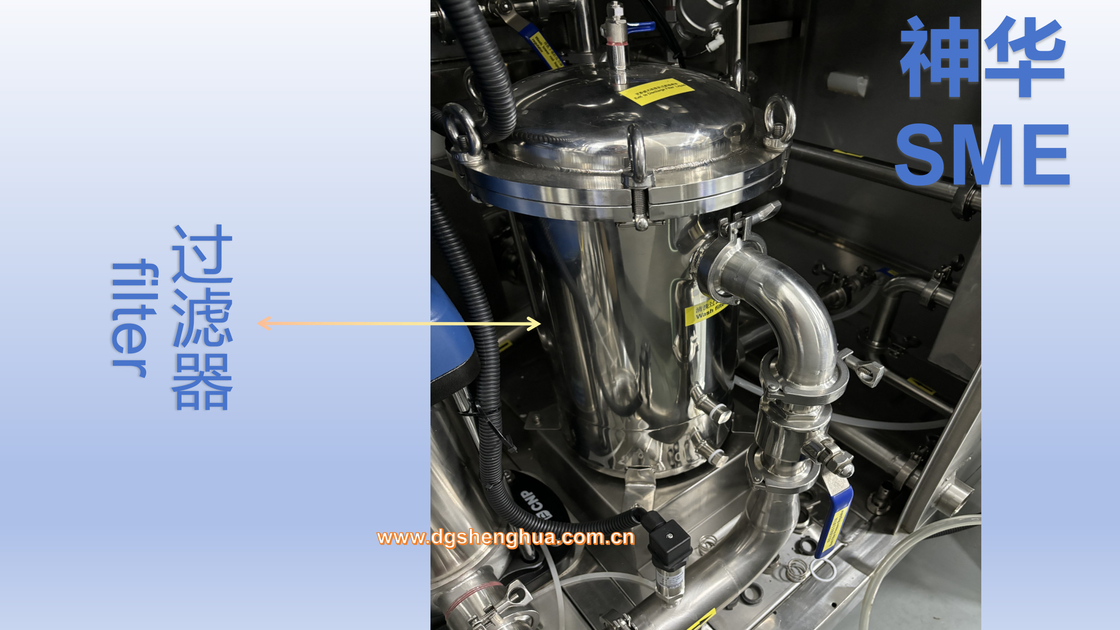

5. Inner filter makes liquid used repeated.



6.Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.


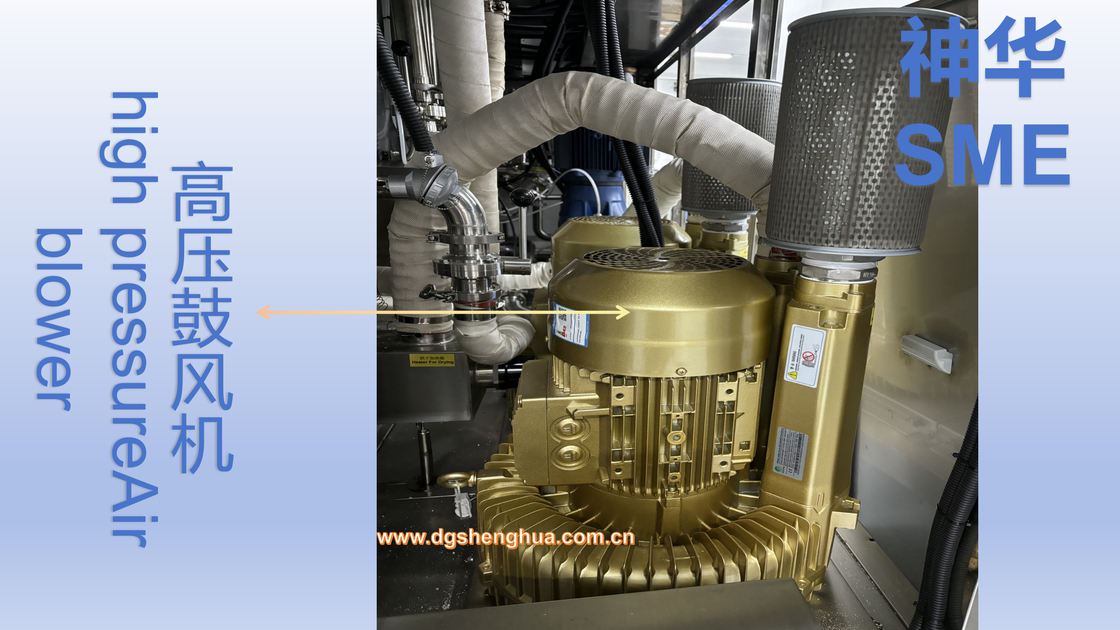

7. The remaining liquid in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.


8. Liquid wash+DI water rinse, make coated PCBA into a new one.


9. Totally SUS304 structure,  solide, acid and alkali corrision-proof


SME-5600C spec:





ITEM SPEC
PCBA basket size L610xW560xH100mmx 2layers
Diluent liquid tank capacity 60L
Spray liquid tank capacity 18L
Concentrate tank capacity 30L
Wash time 5~20min
Rinse time 1~2 min/times
Rinse times 1~10times
Dry time 10~30min
Diluent liquid heat temp room temp ~60ºC
PCB dry time room temp~99ºC
Resistivity range 0~18MΩ
Liquid filter 0.2um
DI water filter 0.2um
Air filter 10um
Vent size φ76XH50(mm)
Power supply AC380, 3 Phases, 50/60Hz, 30KW
Air supply 0.5Mpa, 400L/Min
Machine size L1300xW1200x1850(mm)
Machine weight 600KG

Customer Question & Answer

Q1: What is the cycle time of SME-5600C batch cleaning  machine?

A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.



Q2: What liuqid can be used in SME-5600C to clean PCBA?

A2: Water-based PCBA cleaning liquid  wash, DI water rinse.



Q3: Have many pcbas can SME-560C0 clean in one cycle?

A3: L200*W100mm  size PCBA for example, it can clean 30~40pcs.



Q4: Does the PCBAs need to bake after wash, rinse and dry process in the machine?

A4: Sure, PCBAs after clean need to put into electric oven and bake for 2 hours at 100~110℃ or 4hours at 80~90℃to make the PCBA totally dry.


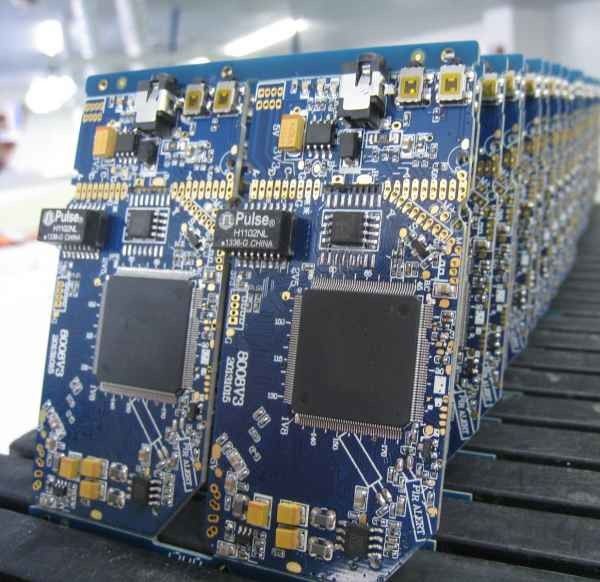

Comparison pictures before clean and after clean:

PCBA Batch Type Flux  Auto Cleaning Machine With Water Based Liquid Wash And DI Water Rinse Hot Air Blow Dry 0



PCBA Batch Type Flux  Auto Cleaning Machine With Water Based Liquid Wash And DI Water Rinse Hot Air Blow Dry 1

PCBA Batch Type Flux  Auto Cleaning Machine With Water Based Liquid Wash And DI Water Rinse Hot Air Blow Dry 2
